Introduction of Pomace Dryer
Pomace with high moisture content is difficult to store and transport. After drying, it can be used for animal feed, paper making, biofuel, and other applications. Our pomace dryer can rapidly reduce the moisture content of wet pomace from 80% to below 12%. The drying process is as follows: first, the pomace is crushed (if necessary), next, it is dewatered (if the moisture content exceeds 65-75%, a screw dehydrator is used to lower it to 50-65%), finally, the pomace is fed into the dryer.
Due to the high moisture, high sugar content, and easy adhesion of pomace, a special scattering and lifting device is installed inside the dryer to prevent the pomace from adhering to the wall.
Advantages of Pomace Dryer
01
Compact Footprint
The three-pass drum shortens the machine length by 50%, reducing the building area and saving about 40% of project investment.
02
Automated Operation
PLC intelligent control gives a high degree of automation; only one or two people are needed to operate the system.
03
Adjustable Output
Frequency conversion controls material flow, so drying capacity and moisture are easily adjusted to your needs.
04
Environmental Protection
The system is well sealed and equipped with a complete dust-removal device, ensuring no dust overflow and energy-saving, environmentally friendly operation.
05
Deep-Processing Options
Follow-up sections such as crushing, mixing, granulating, baling and briquetting can be added to improve deep processing.
06
Multiple Heating Source
The heat source can be coal, gas, oil, biomass particles, steam, etc.

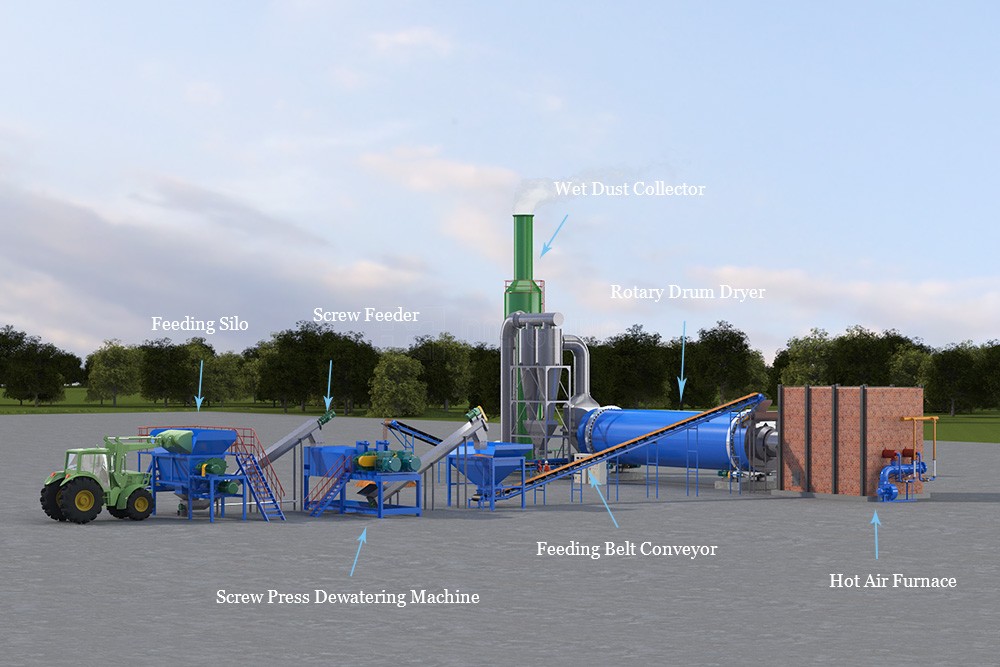

Working Principle of Pomace Dryer
The complete pomace dryer system includes heating part, feeding machine, crushing machine, rotary dryer, discharging machine, and cyclone dust collector. Wet fruit pomace is evenly fed into the rotary drum via the feeding system. Under the combined effect of hot air (either co-current or counter-current) and drum rotation, the material is continuously lifted and dispersed by the lifting plates, ensuring full contact with the high-temperature air and rapid moisture evaporation. The dried pomace is discharged from the outlet, while the exhaust gas is released after dust removal and purification.
Specifications of Pomace Dryer
| Device Specification | DDJG1210 | DDJG1410 | DDJG1610 | DDJG2010/3 | DDJG2210/3 | DDJG2510/3 | DDJG2512/3 | DDJG2912/3 |
| Daily Processing Capacity(t/d) | 33.6 | 40.8 | 58.9 | 131.4 | 145.0 | 167.7 | 204.0 | 247.0 |
| Daily Output(t/d) | 15.6 | 19.2 | 27.7 | 61.8 | 68.2 | 78.9 | 96.0 | 116.2 |
| Water Evaporation Capacity (t/h) | 0.75 | 0.90 | 1.30 | 2.90 | 3.20 | 3.70 | 4.50 | 5.45 |
| Raw Material Water Content(%) | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
| Dried Material Water Content(%) | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） |
| Drying Temperature(℃) | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 |
| Total Weight(kg) | 32 | 40 | 55 | 95 | 100 | 125 | 145 | 165 |
| Plant Area(㎡) | 15000 | 17000 | 21500 | 26500 | 28500 | 370000 | 41000 | 45500 |
| Device Specification(m) | 5*14 | 5*14 | 6*16 | 8*16 | 8*16 | 10*16 | 10*18 | 10*20 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

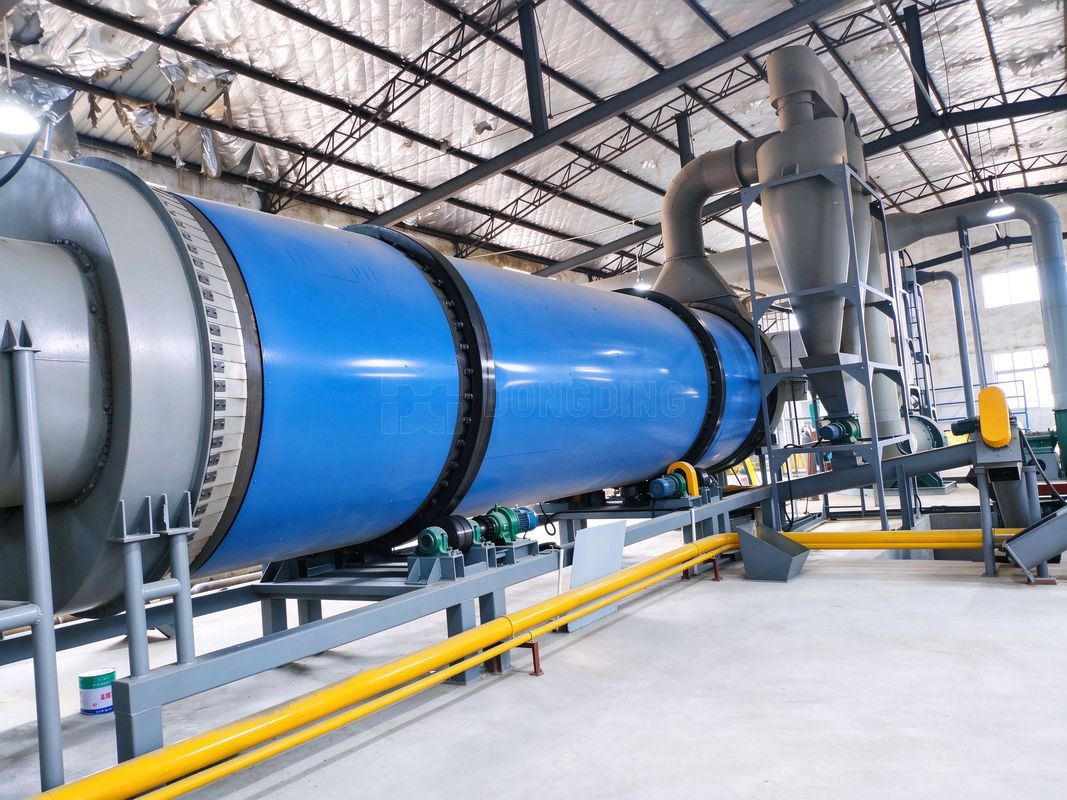

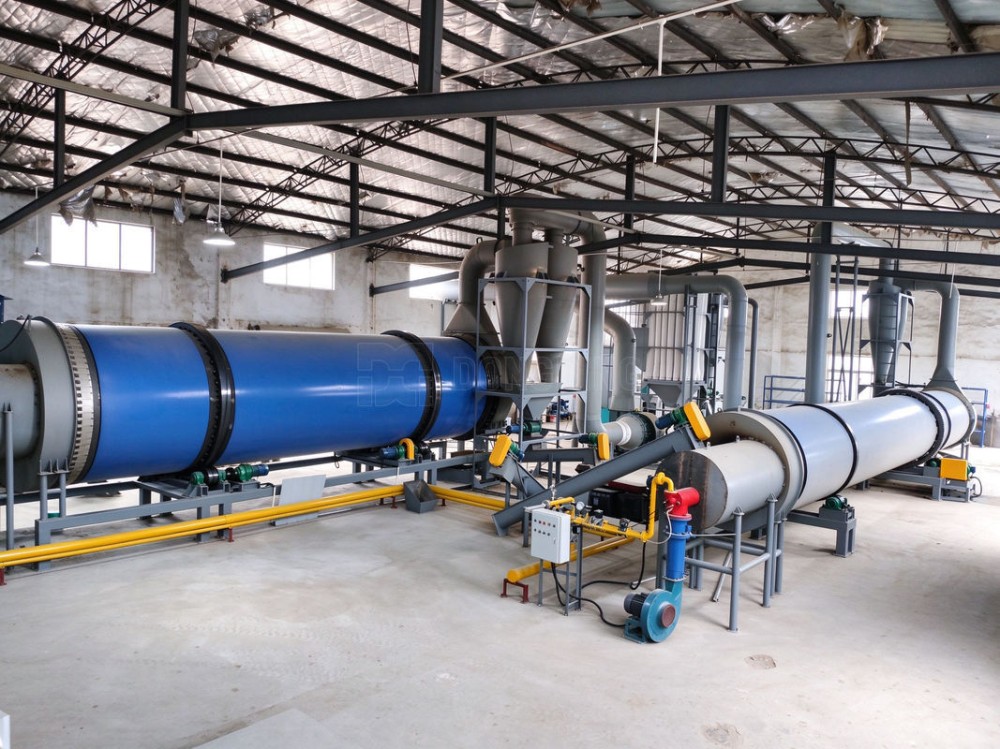

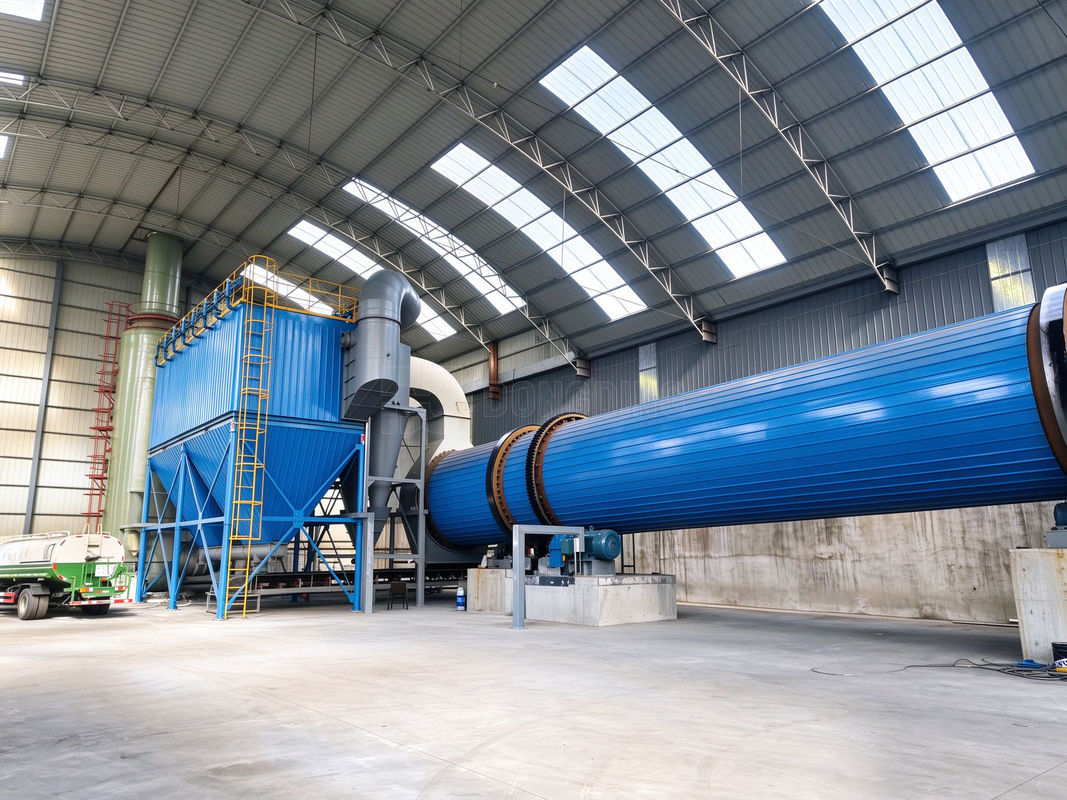

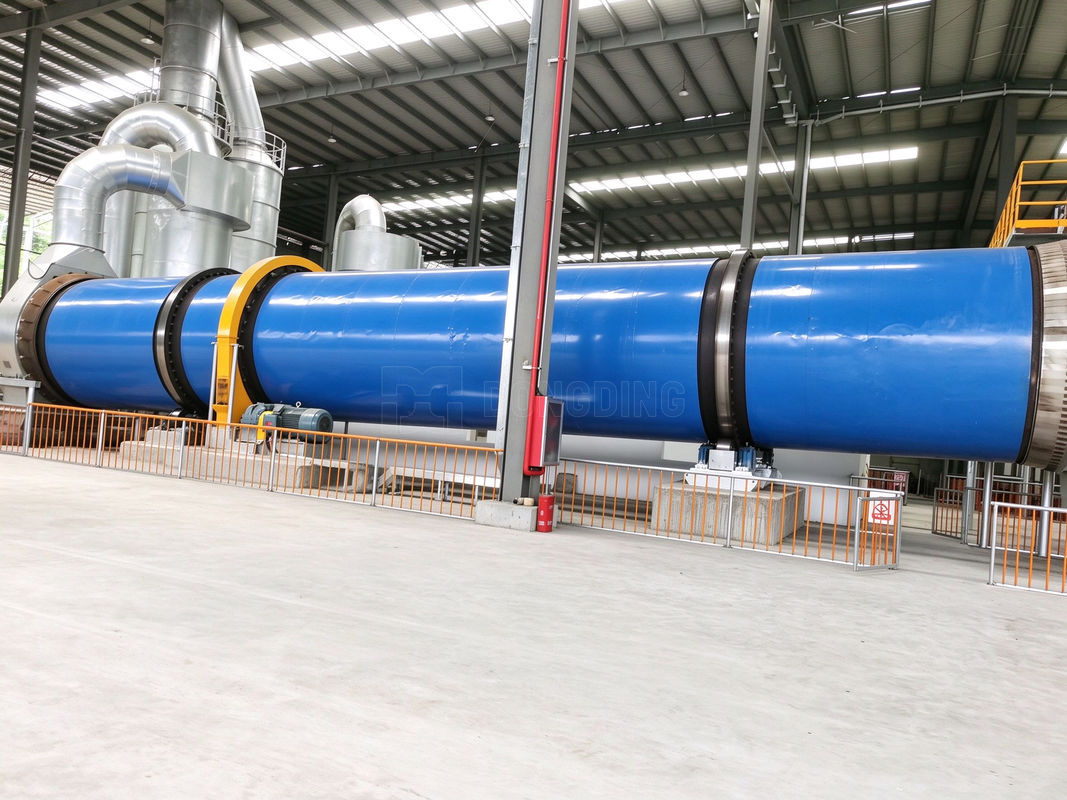

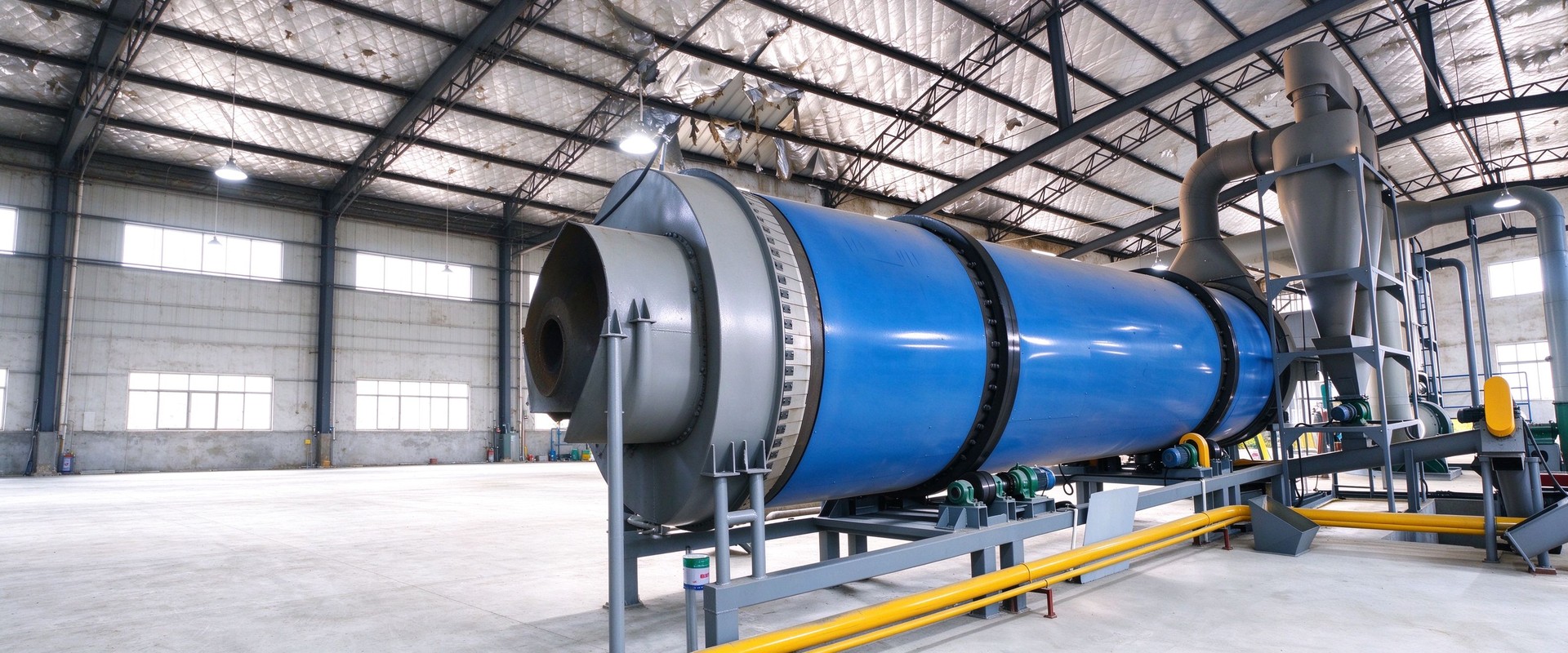

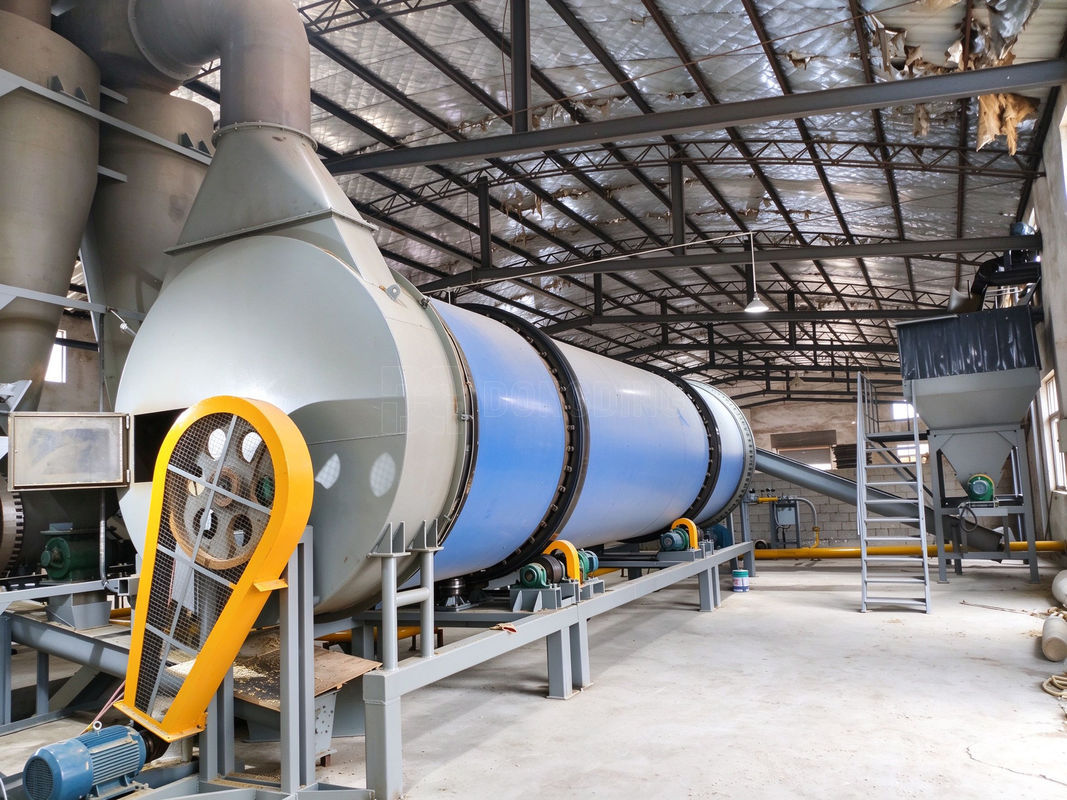

Show of Pomace Dryer
