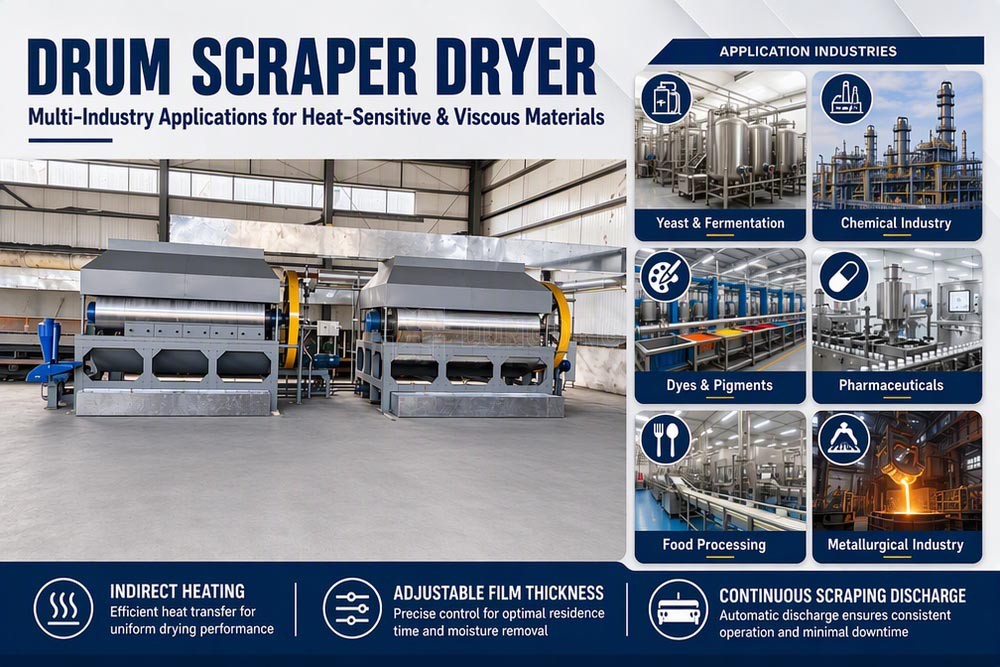

Introduction of Scraper Drum Dryer
The drum scraper dryer adopts an indirect heating mode. By heating the rotating drum, it evaporates moisture from the viscous materials adhered to the drum surface.
The operating parameters of the drum scraper dryer—such as feed concentration, film thickness, and drum rotational speed—are adjustable to meet the specific requirements of different material properties. It is suitable for the dehydration of viscous and heat-sensitive materials in industries such as yeast, chemicals, dyes, pharmaceuticals, food, and metallurgy.
Advantages of Scraper Drum Dryer
01
Uniform Drying
Thin evenly spread material film with consistent heat and mass transfer; eliminates uneven drying, ensuring stable product quality.
02
Wide Operating Flexibility
Adaptable to various materials and output capacities. Automatic control enables simple operation, easy maintenance and real-time parameter monitoring for stable running.
03
Premium Drum Construction
Material-contact drum adopts high-grade cast iron with corrosion resistance and zero contamination; stainless steel is optional for diverse drying demands.
04
High Thermal Efficiency
Thermal efficiency reaches 80%–90%.
05
Short Drying Cycle
Forms 0.5–1.5 mm thin wet film; drying completed within 10–15 seconds, ideal for heat-sensitive materials.
06

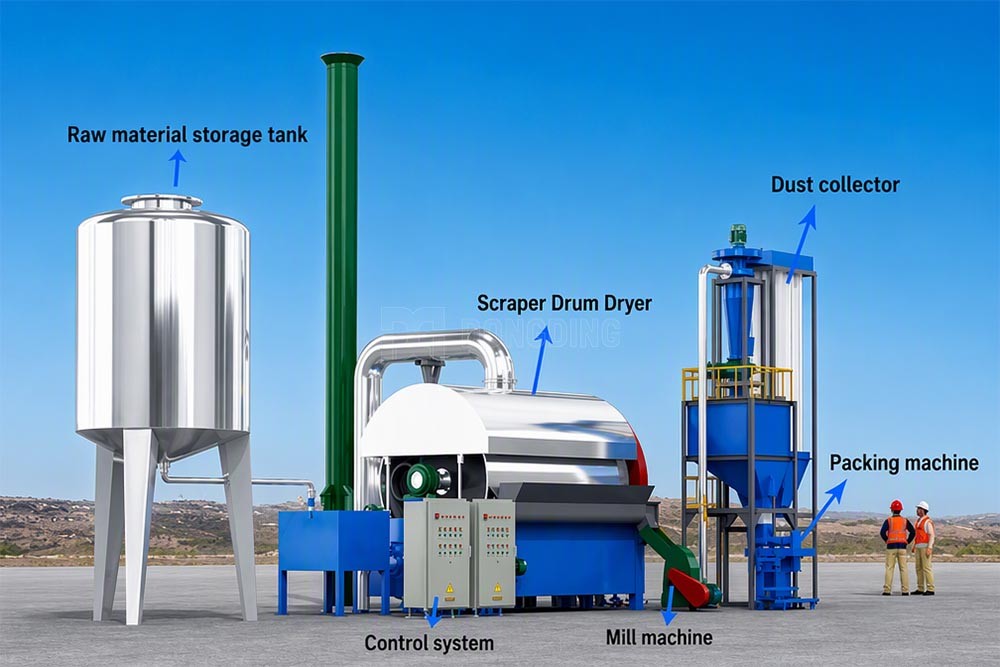

Working Principle of Scraper Drum Dryer
The drum scraper dryer system can handle material as followed;
Brewery yeast,
humic acid, potassium humate, potassium fulvic acid, sodium fulvic acid,
Lignin, ammonium salt,
other sludge and sticky materials in food, chemical, pharmaceutical and other industries
Wet materials evenly cover the drum surface from the feeding inlet. the drum forms a material film upon contact with wet materials during rotation. The internally heated drum transfers heat through its wall by steam or thermal oil to evaporate water in the material film. During the rotation, dried materials are scraped off by the internal scrapers, then collected at the discharge outlet. The finished products are available in flake, powder or granular forms.
Specifications of Scraper Drum Dryer
| Model | JHD1500×2500 | JHD2000×2000 | JHD2000×2500 | JHD2000×3000 | JHD2000×3500 | JHD2500×3500 | JHD2500×4000 | JHD3000×4000 |
| Output Capacity（kg/h) | 40-55 | 50-65 | 60-80 | 70-100 | 90-120 | 100-150 | 120-180 | 150-250 |
| Drum size （mm） | Φ 1500×2500 | Φ 2000×2000 | Φ 2000×2500 | Φ 2000×3000 | Φ 2000×3500 | Φ 2500×3500 | Φ 2500×4000 | Φ 3000×2500 |
| Rotation speed （r/min） | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 |
| Steam working pressure （Mpa） | 0.15-0.3 | 0.15-0.3 | 0.15-0.3 | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.3-0.8 | 0.3-0.8 |
| Big pressure of steam （Mpa） | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.5 | 0.8 | 0.8 |
| Steam consumption （kg/h） | 280-370 | 320-390 | 360-480 | 370-500 | 380-520 | 380-550 | 400-600 | 450-800 |
| Main motor power （kw） | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| Total weight （T) | 8.5 | 10.7 | 12.2 | 13.5 | 15.0 | 17.0 | 21.0 | 25.0 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

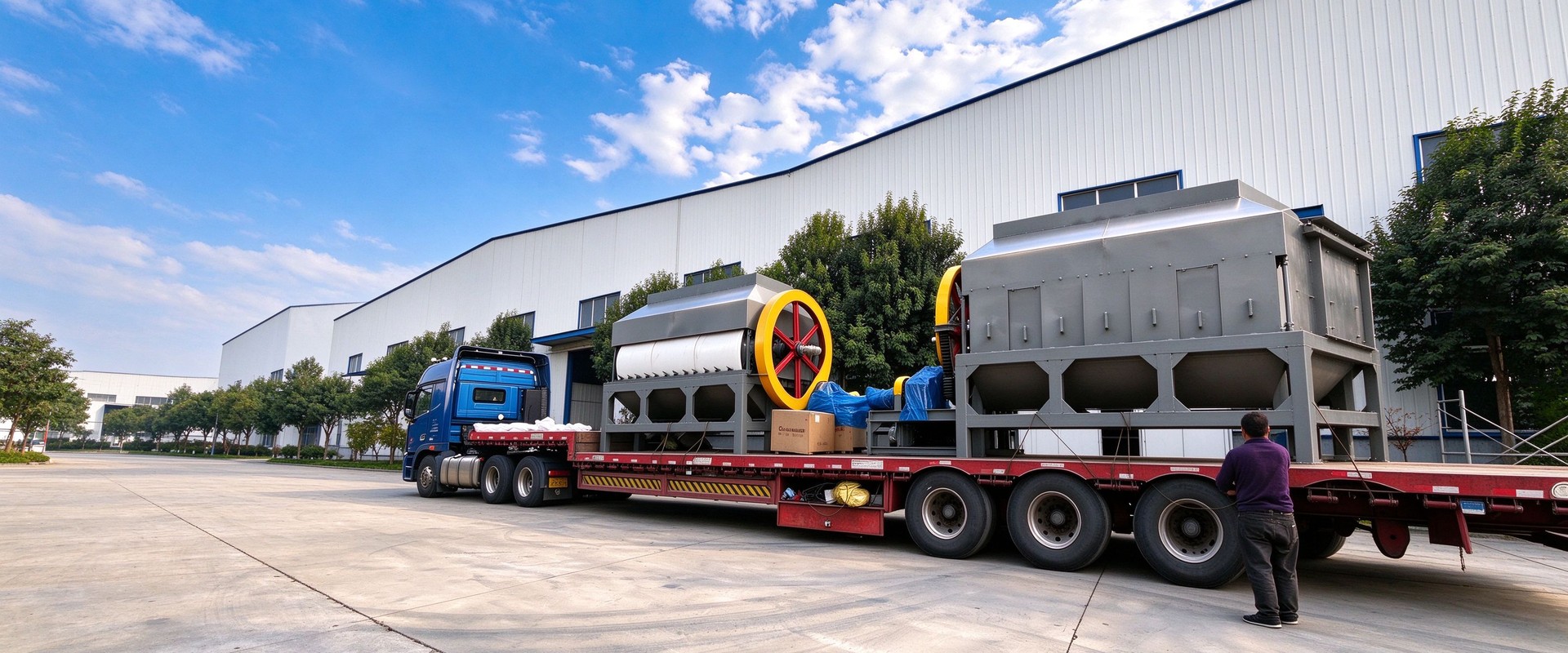

Show of Scraper Drum Dryer
Product Photos
Why Dongding
Learn More About Dongding® Service
Related Cases
1,100 TPD Fly Ash Drying Project
Input moistureFrom 28% to 2%
Output moisture≤ 5%
LocationMongolia
500 TPD Coal Slime Dryer Project
Input moistureFrom 35% to 10%
Output moisture≤ 10%
LocationInner Mongolia, China
300 TPD Sludge Drying Project
Input moistureFrom 80% to 15%
Output moisture≤ 15%
LocationVietnam
600 TPD Coal Slime Drying Line
Input moistureFrom 40% to 10%
Output moisture≤ 10%
LocationShanxi, China
300 TPD Bentonite Dryer Project
Input moistureFrom 25% to 8%
Output moisture≤ 8%
LocationIran
200 TPD Ore Powder Drying Project
Input moistureFrom 18% to 5%
Output moisture≤ 5%
LocationZambia
150 TPD Sludge Dewatering & Drying Project
Input moistureFrom 80% to 15
Output moisture≤ 15%
LocationJiangsu, China
1.05 TPH Yeast Drum Drying Line
Input moistureFrom 85% to 12%
Output moisture≤ 12%
LocationThailand
