Introduction of Biomass Pellet Burner
Biomass pellet burner is a stove that burns compressed wood or biomass pellets to create a source of heat；The semi-gasification combustion avoids the slagging of biomass particles during the direct combustion. And precise control of air distribution, feeding, gasification and combustion have been adopted to achieve combust efficiently and cleanly; the efficiency of which can reach more than 98%. It is widely used in all kinds of boilers, industrial kilns and spraying, drying, conveying, aluminum melting and other thermal energy industries.
Chemical and pharmaceutical: Manufacture & dry
Painting industry: bake coating & solidified spray
Foundry industry: dry welding rod & solder
Abrasives industry: dry grinding wheel & thermal insulation material, fiberglass, aluminosilicate fiber & FBT etc
Agriculture products and food industry: bake & dry coffee, tobacco,vegetable, grain, noodles, seafood, bean, etc
Heating engineering: heating for factory, civil building, etc
Advantages of Biomass Pellet Burner
01
Complete Combustion
Low-pressure operation effectively avoids tempering and degasification for complete, high-efficiency combustion.
02
Precise Fuel Feeding
A high-precision fuel conveying system provides accurate and smooth feed.
03
Low-Temperature Gasification
The gasification chamber burns at low temperature and pyrolyzes at high temperature.
04
Wide Load Adjustment
Thermal load can be adjusted quickly across 30%–120% of rated load, with fast start-up and response.
05
Clean & Low-NOx
Low-nitrogen, low-temperature segmented combustion keeps NOx at or below 300 mg/Nm³.
06
Low Dust & Sulfur
Dust is 1/10–1/20 and sulfur 1/100 of type-II bituminous coal; after treatment, tail gas approaches natural gas.
Working Principle of Biomass Pellet Burner
Biomass pellets are continuously fed into the horizontal combustion chamber by a screw feeder. An ignition rod lights them automatically. The blower supplies primary and secondary air, with the secondary air entering tangentially to create a swirling flame. The pellets burn thoroughly in a semi-gasified, fluidized state inside the chamber, producing a high-temperature flame and flue gas at 800–1200℃, which are ejected through the burner nozzle into the connected hot air furnace or dryer. A PLC system automatically controls the feed rate, air-to-fuel ratio, start and stop, while a UV flame sensor confirms successful ignition.
Specifications of Biomass Pellet Burner
| Model | Overall Dimensions (L x W x H) (m) | Biomass NozzleHeight | Biomass Outlet Diameter | Biomass Fuel Consumption | Heating Value |
| R30B | 1.9×0.8×1.95 | 0.76 | φ159 | 75KG/H | 300000Kcal |
| R45B | 2×0.85×2 | 0.87 | φ180 | 112.5KG/H | 450000Kcal |
| R60B | 2×0.95×2 | 0.92 | φ200 | 150KG/H | 600000Kcal |
| R90B | 2.4×1.2×2.3 | 1.18 | φ239 | 225KG/H | 900000Kcal |
| R120B | 2.8×1.4×3 | 1.3 | φ273 | 300KG/H | 1200000Kcal |
| R180B | 3.7×1.6×3.4 | 1.52 | φ377 | 450KG/H | 1800000Kcal |
| R240B | 4×1.7×3.6 | 1.72 | φ402 | 600KG/H | 2400000Kcal |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

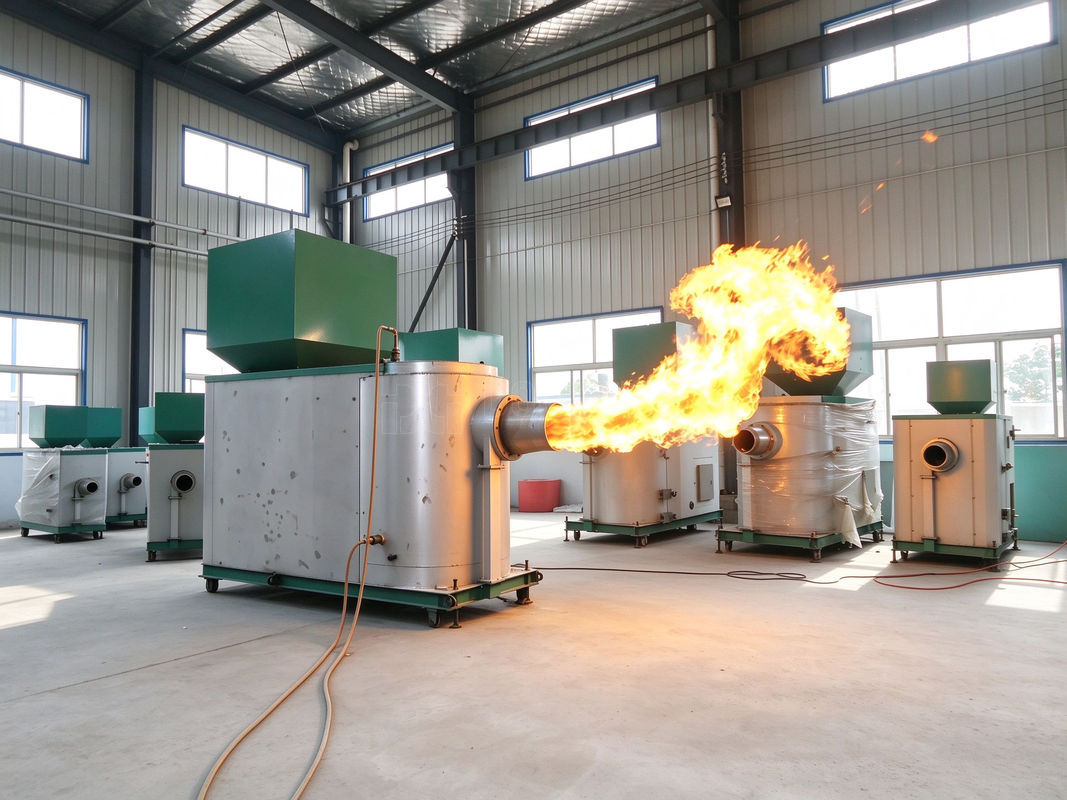

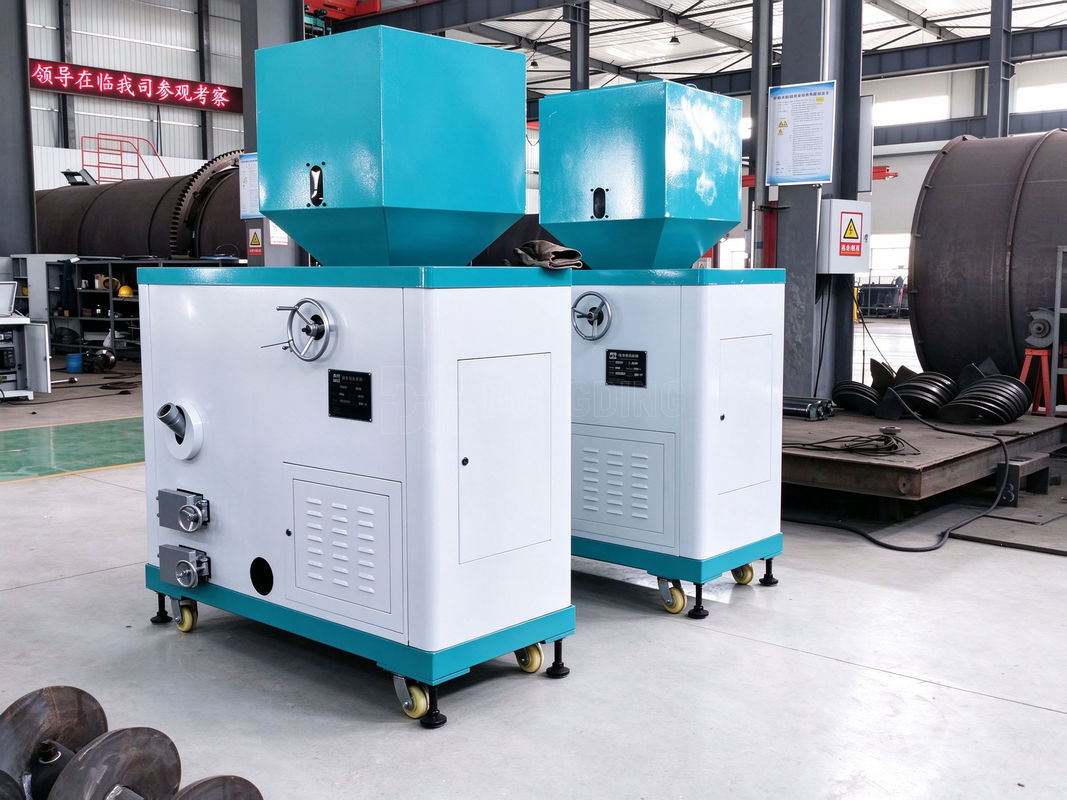

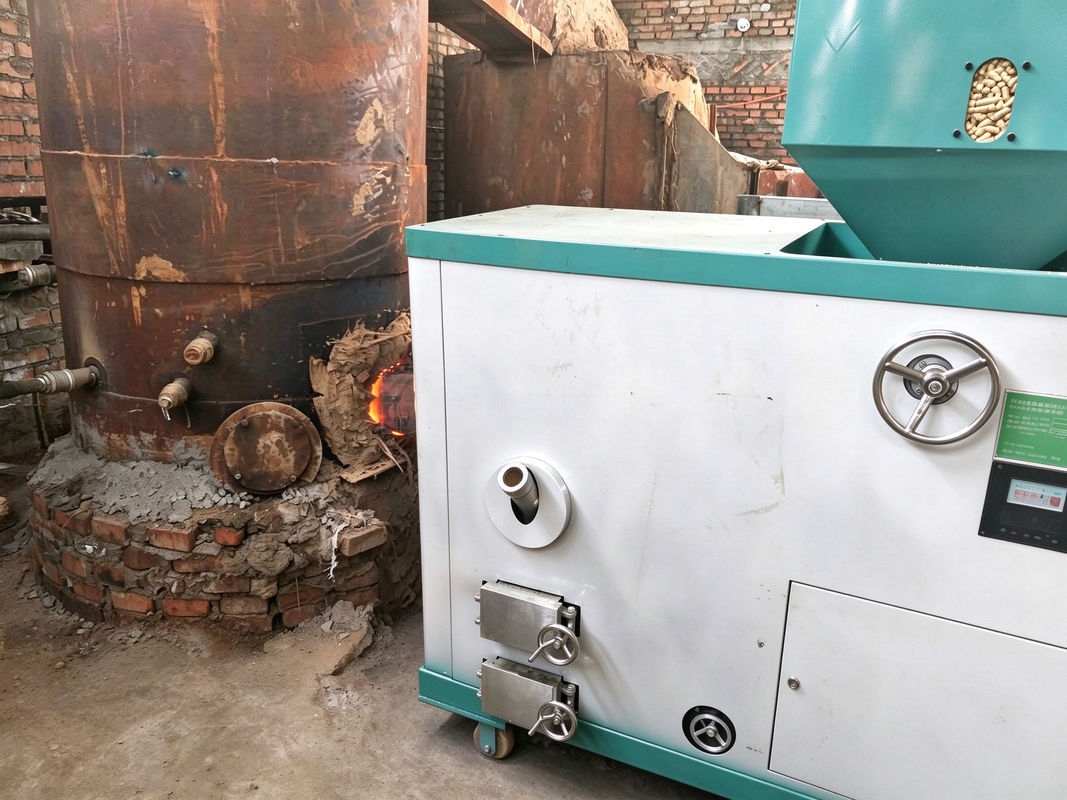

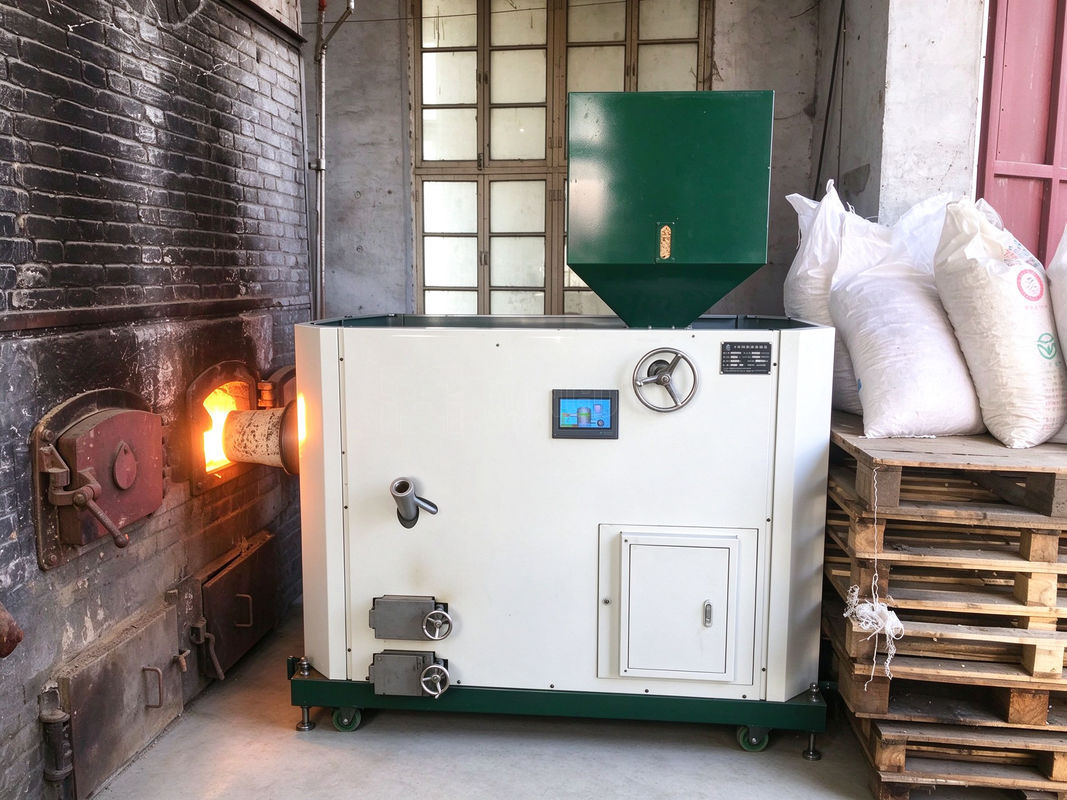

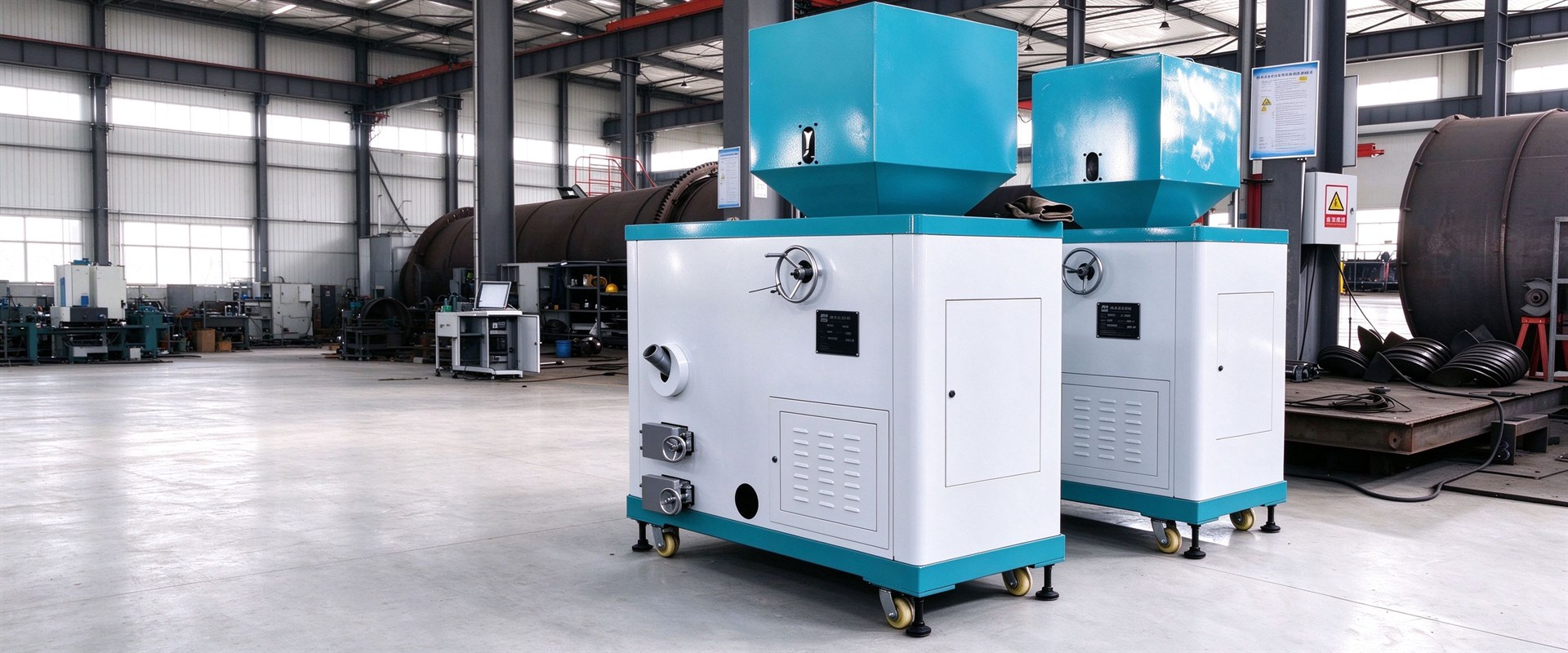

Show of Biomass Pellet Burner
