All Dongding dryers come with a 12-month warranty covering parts and workmanship from the date of commissioning. Lifetime technical support and spare parts supply are provided.
Introduction of Fluidized Bed Furnace
Fluidized bed combustion boiler（FBC boiler）are widely used in industries such as building materials, chemicals, metallurgy, pharmaceuticals, etc. FBC boiler can use inferior coal instead of high-quality coal to generate high-temperature flue gas for direct or indirect heating
The fluidized bed combustion boiler is to send coal (size of 0-10mm), into the air distributor in the boiler, and the high-pressure air will make the coal particles and furnace material boil through the air distributor. Due to the fact that coal particles only account for about 1% of the furnace material; the contact area with air during boiling combustion is large and the relative movement speed is fast; and the time from raw coal entering the furnace to being discharged from the furnace is long; thus, some low-quality coal with high ash content and low calorific value that are difficult to burn through in other furnace can also be stably and fully burned in FBC boiler.
Advantages of Fluidized Bed Furnace
01
Wide Fuel Adaptability
Capable of burning various low-quality coal and slag with a calorific value above 6270 KJ/kg.
02
Long Service Life
The furnace body is evenly heated for a long service life, with combustion efficiency over 95%.
03
Flexible Operation
Flexible operation with good regulation, fast heating, and full-load running two to thirty minutes after shutdown.
04
05
06
Working Principle of Fluidized Bed Furnace
A FBC boiler consists of three parts: a furnace bed, a furnace, and a mixing chamber. The furnace bed includes an air distribution box, air distribution plate, air cap, slag hole, etc; The furnace section includes vertical section, diffusion section, suspension section, and furnace door; The mixing room is connected to the dryer and is equipped with ash discharge doors, manhole doors, thermocouples, etc.
Specifications of Fluidized Bed Furnace
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

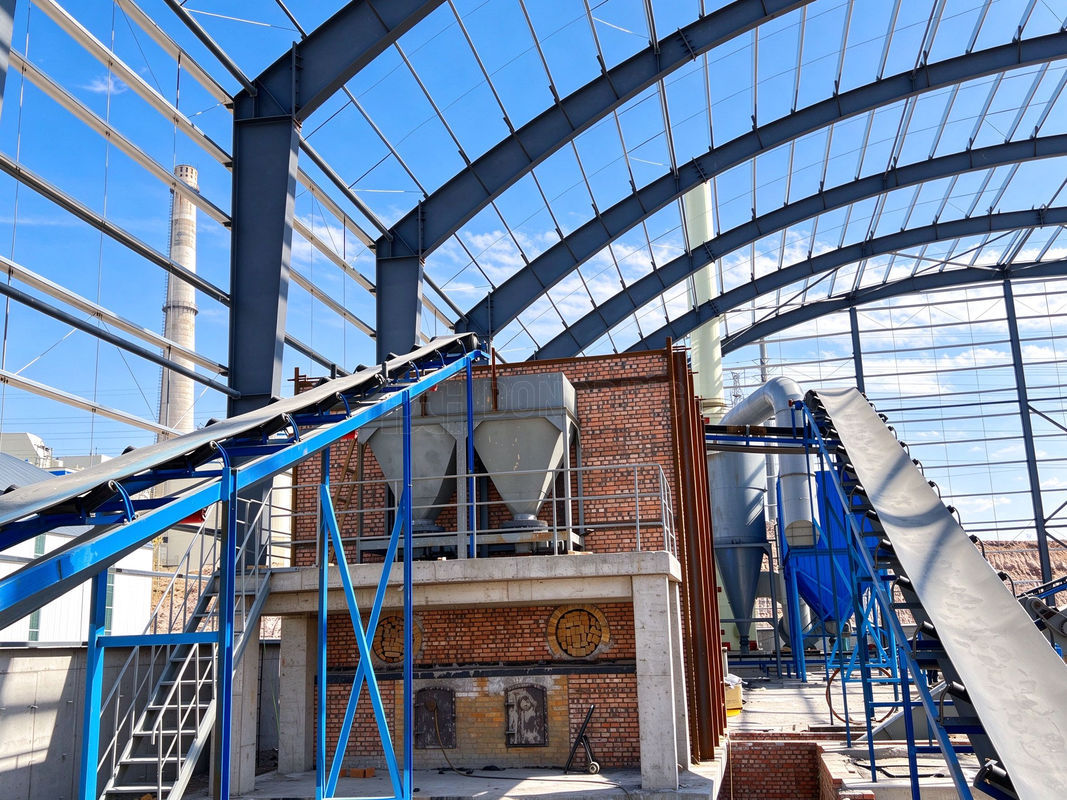

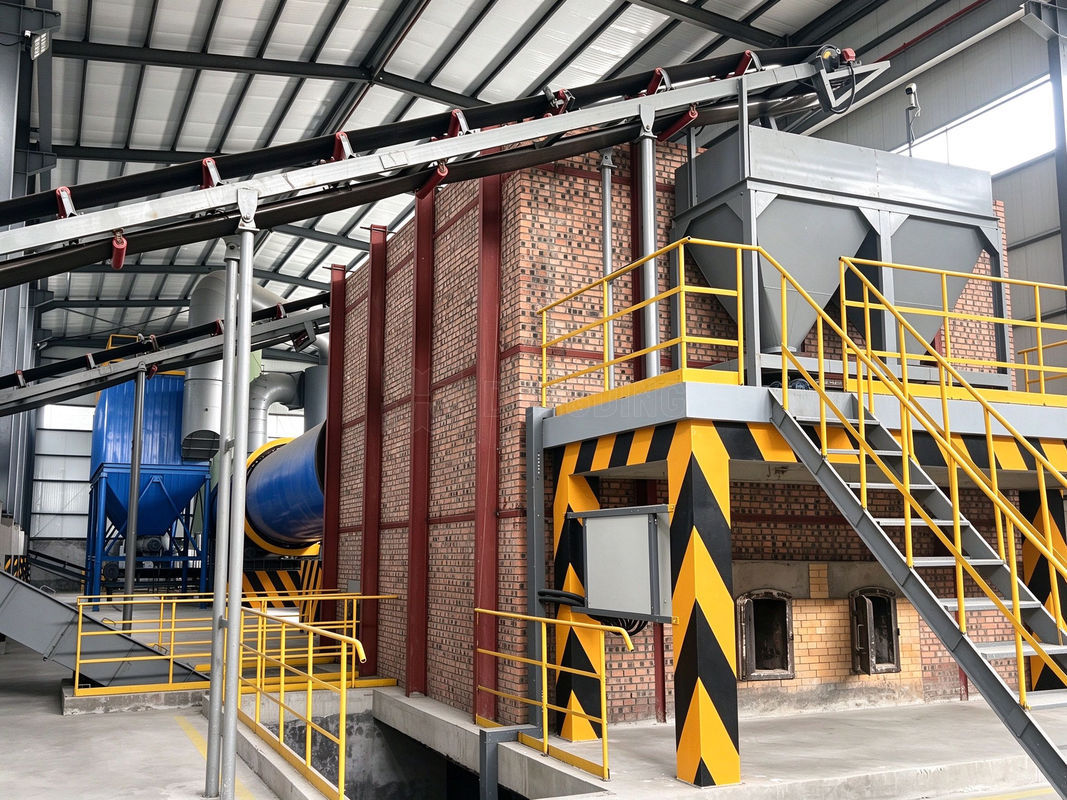

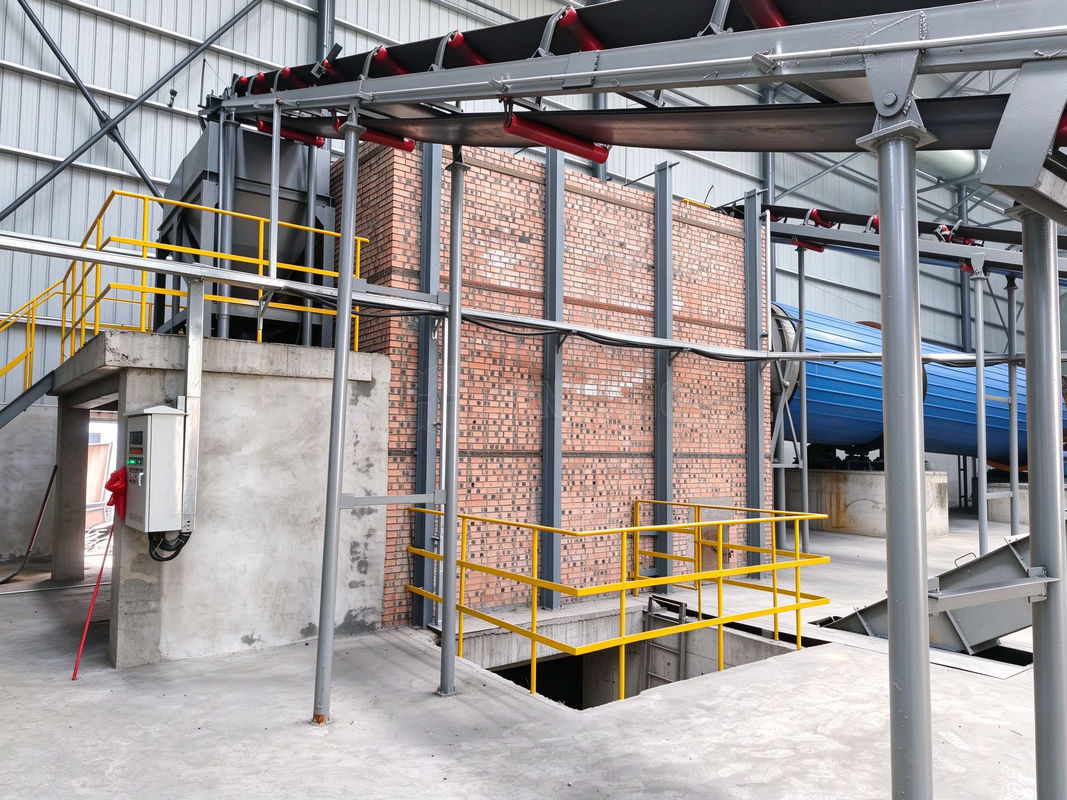

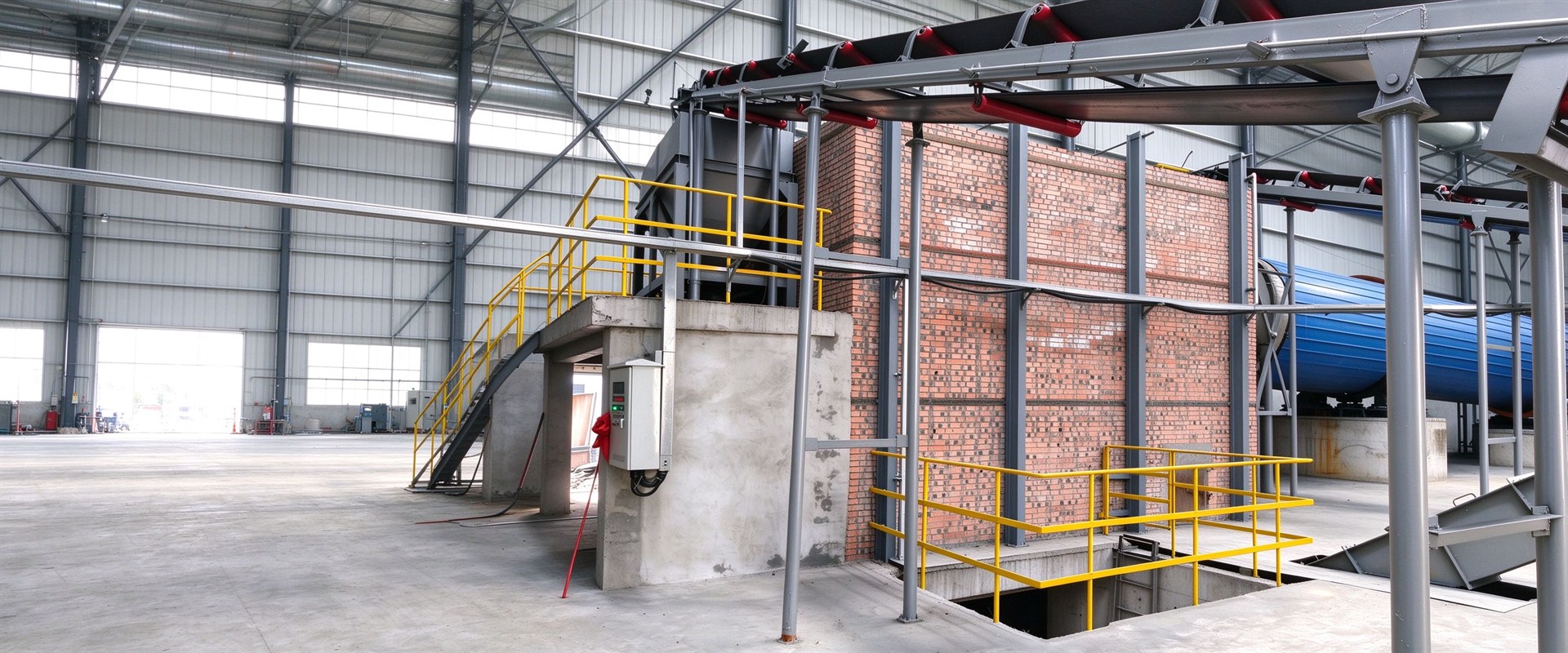

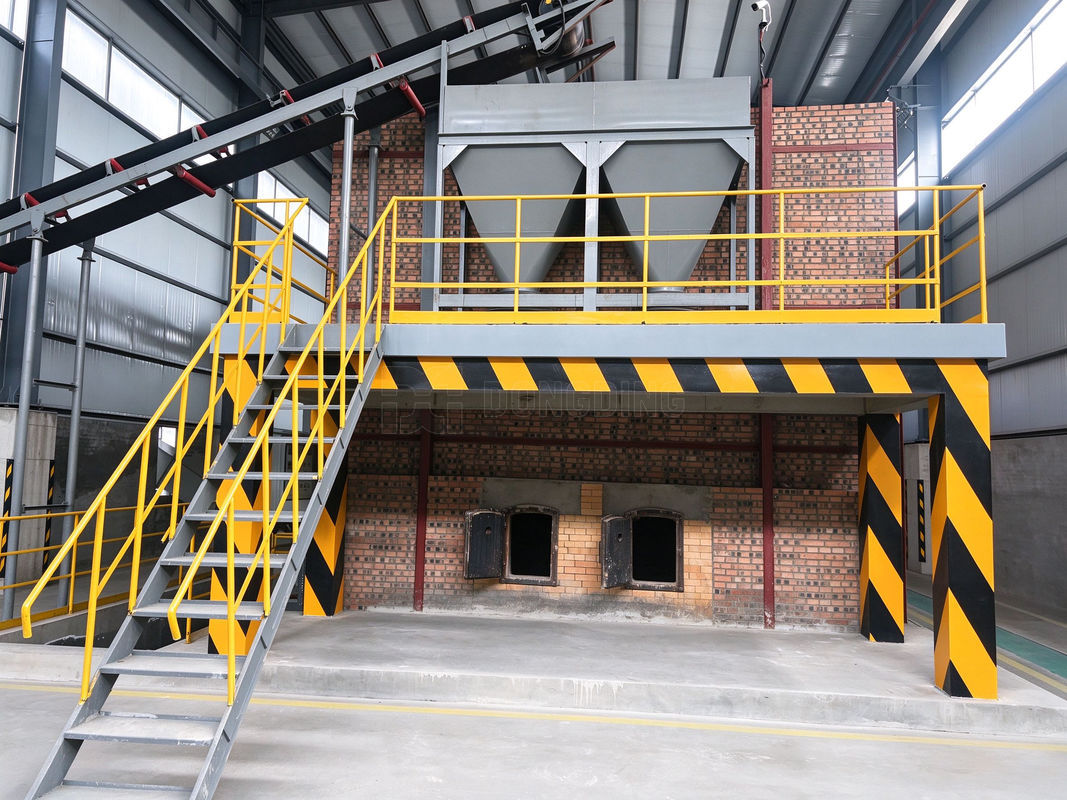

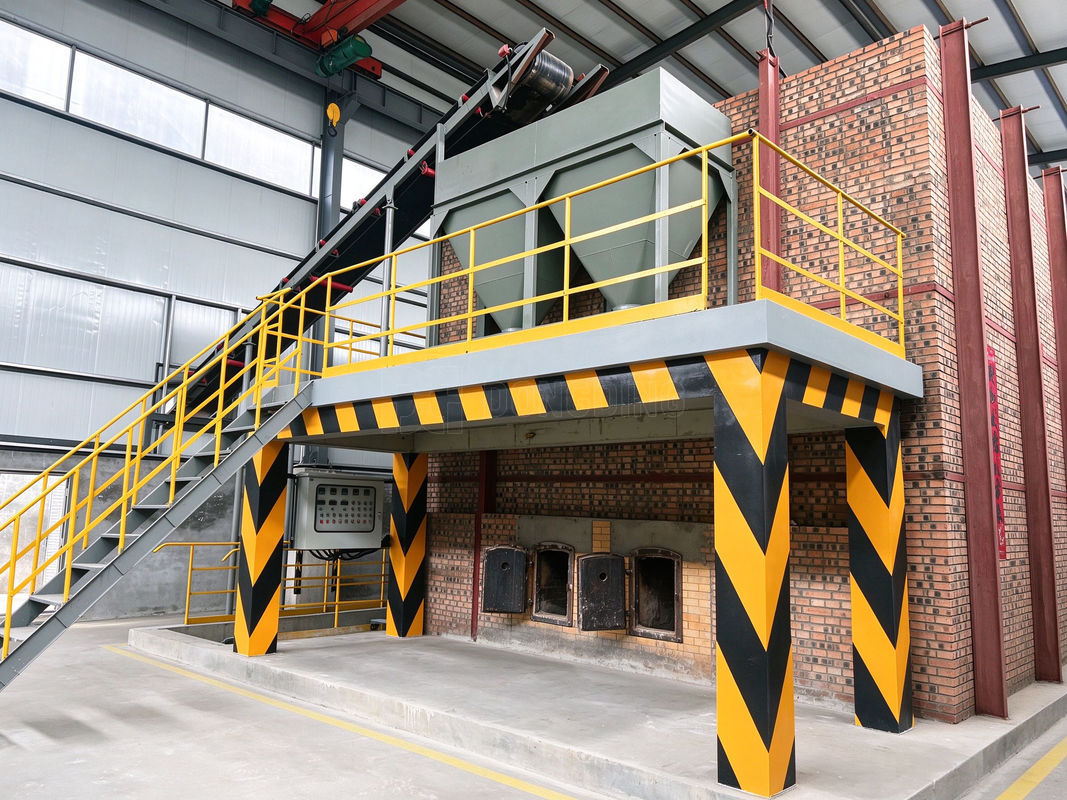

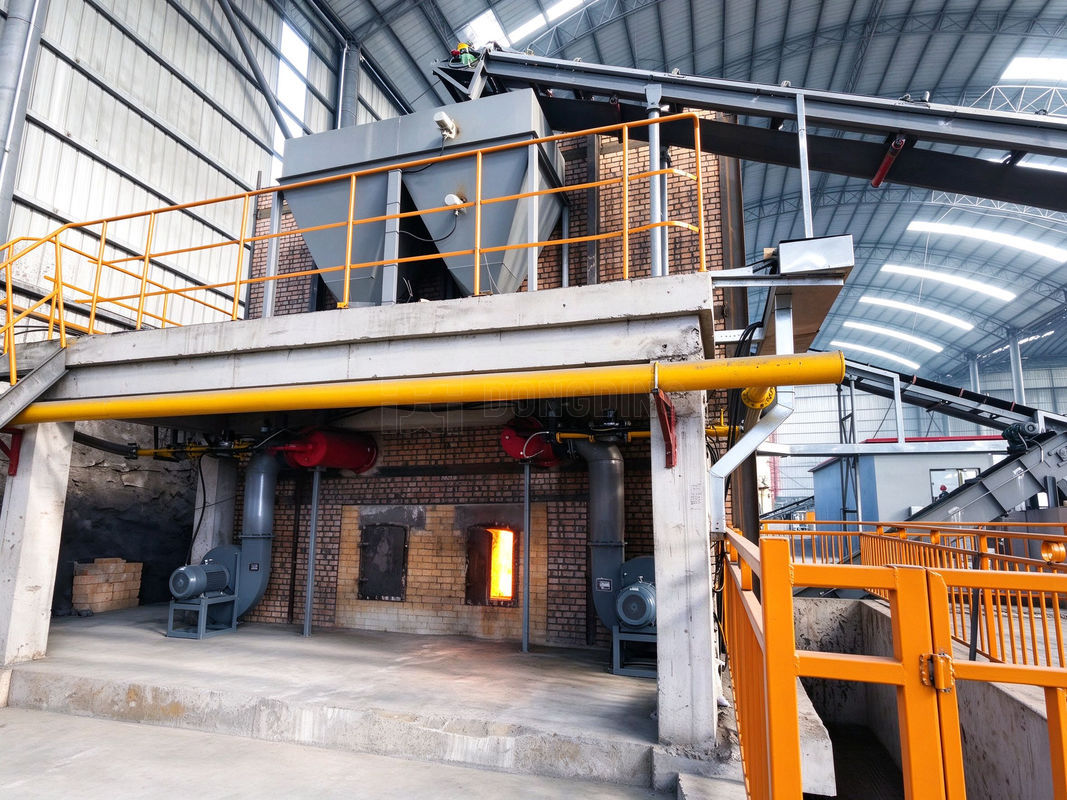

Show of Fluidized Bed Furnace
