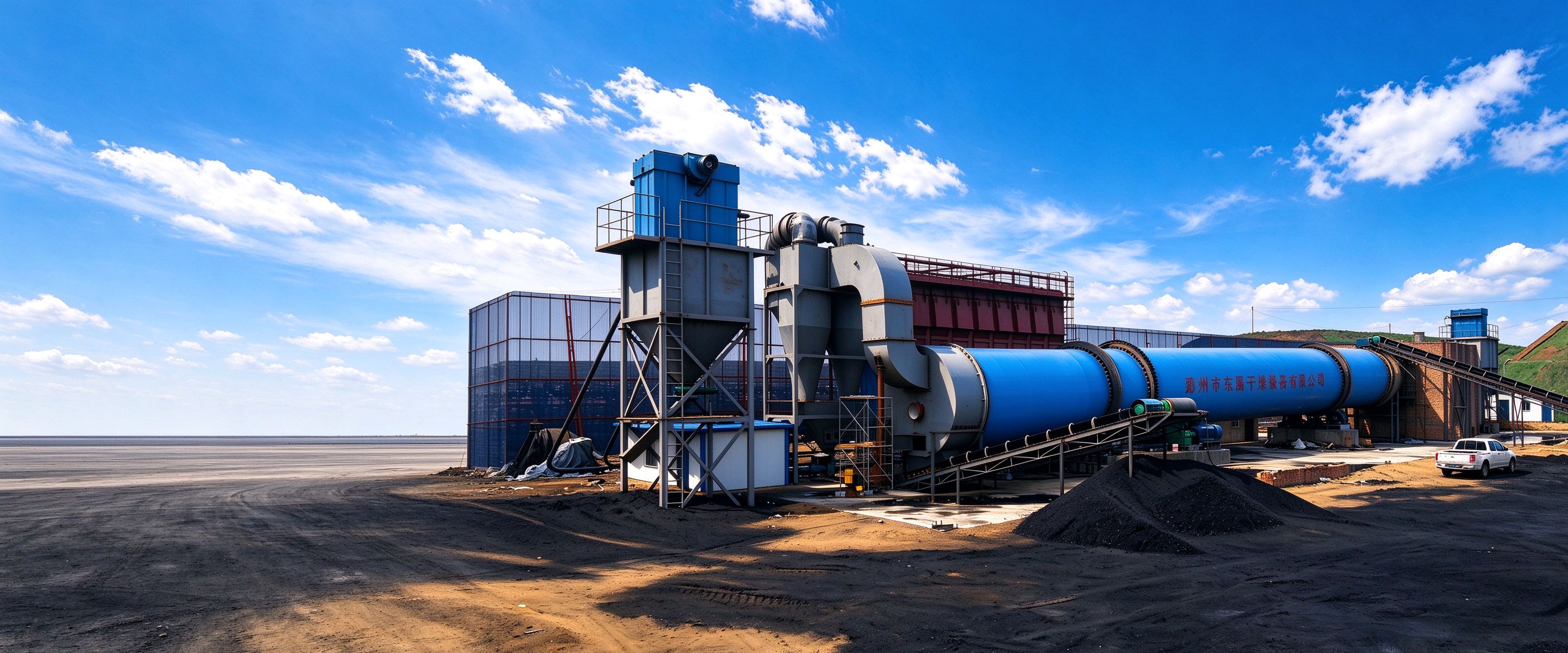

Introduction of Coal Dryer
Rotary dryers are widely applied for coal dewatering. Equipped with varied lifting, cleaning and crushing assemblies inside the drum, they effectively resolve material sticking on cylinder walls during drying.
This coal drying system suits lignite, raw coal, carbon coal, anthracite, bituminous coal, lean coal and meager lean coal. Drying temperature, pressure, air volume and rotating speed are precisely adjusted based on coal characteristics. The drum diameter ranges Φ1.9–Φ3.4 m, length 24–40 m, with capacity of 300–2500 T/D. It lowers moisture from 40±5% down to 10±2%.
Advantages of Coal Dryer
01
High Evaporation Efficiency
Downstream drying feeds hot flue gas and wet material from the same side for rapid, high-efficiency evaporation.
02
Customizable Design & Controllable Final Product
Internal structure and drying system tailored according to coal type, Tailored capacity and feed moisture.
03
Smooth Feeding & Discharging
New feeding/discharging unit eliminates blockage, intermittent/uneven feeding and material backflow, reducing burden on dust collection system.
04
Anti-sticking Design
Optimized internal structure enhances material sweeping and heat transfer, prevents cylinder wall sticking, suitable for high-moisture & sticky materials.
05
Zero Horizontal Thrust, Stable Operation
Zero horizontal thrust reduces wear of riding wheels, ensuring stable and reliable cylinder rotation.
06
Lower Wear & Power Consumption
Self-aligning riding wheel device maintains linear contact between riding wheels and riding rings, cutting down wear and power loss.

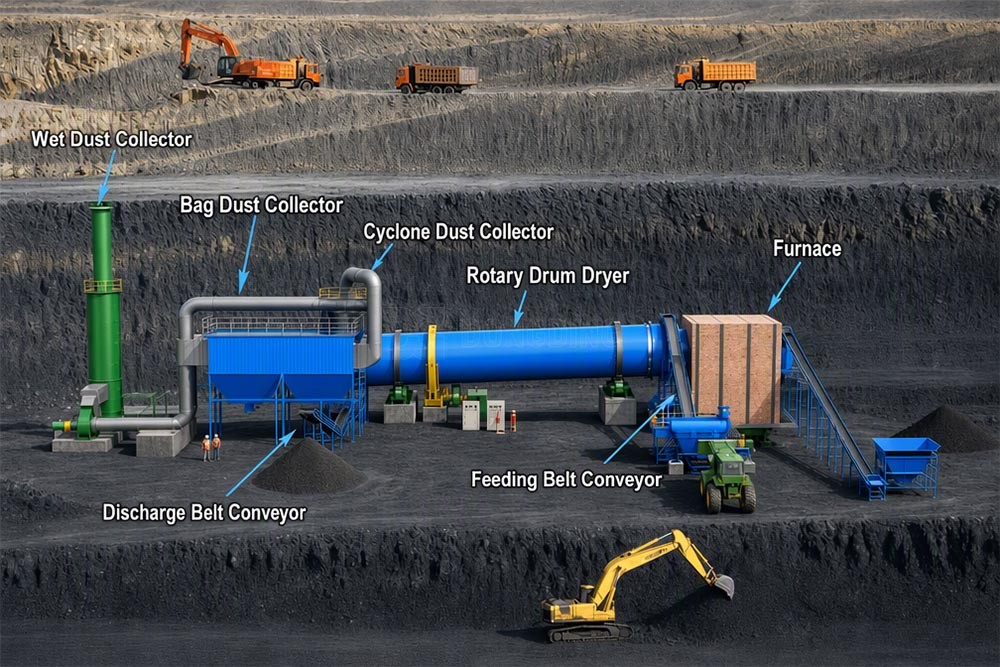

Working Principle of Coal Dryer
There are many lifting boards in the cylinder body. Through the rotation of the cylinder, lifting boards are driven to throw and spread the material continuously. Moreover, the crushing device of the cylinder wall breaks the material again. The lifted material is fully in contact with the hot air coming from the air induction system to exchange heat, evaporate water, and discharged from the outlet.
Specifications of Coal Dryer
| Specification | Capacity(T/D) | Initial Moisture(%) | Final Moisture(%) | Total Power(kw) | Floor Area(m2) |
| DDMG1918 | 300±10 | 25±5 | ≤12 | 109 | 7m*25m |
| DDMG2218 | 500±30 | 25±5 | ≤12 | 128 | 8m*30m |
| DDMG2520 | 700±30 | 25±5 | ≤12 | 240 | 8m*30m |
| DDMG2822 | 1000±30 | 25±5 | ≤12 | 400 | 8m*40m |
| DDMG3024 | 1200±30 | 25±5 | ≤12 | 480 | 12m*50m |
| DDMG3428 | 1500±30 | 25±5 | ≤12 | 600 | 12m*60m |
| DDMG3830 | 1800±30 | 25±5 | ≤12 | 800 | 16m*70m |
| DDMG4032 | 2000±30 | 25±5 | ≤12 | 1000 | 18m*70m |
| DDMG4238 | 2500±30 | 25±5 | ≤12 | 1200 | 20m*80m |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

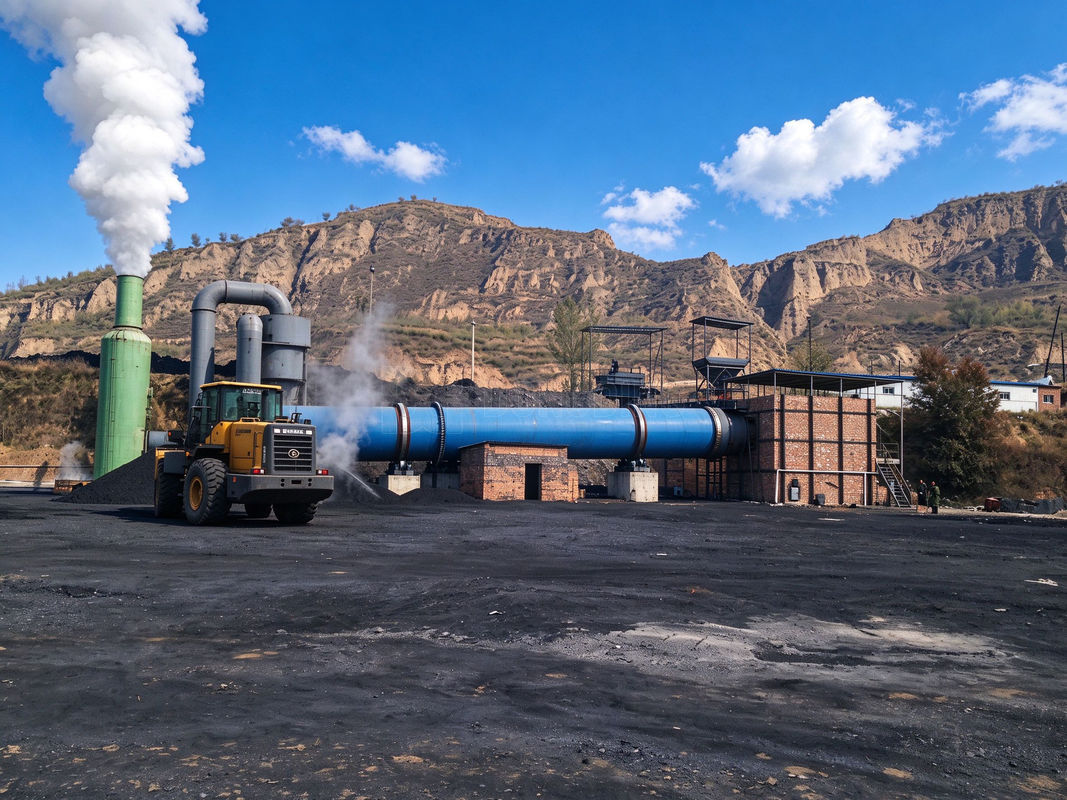

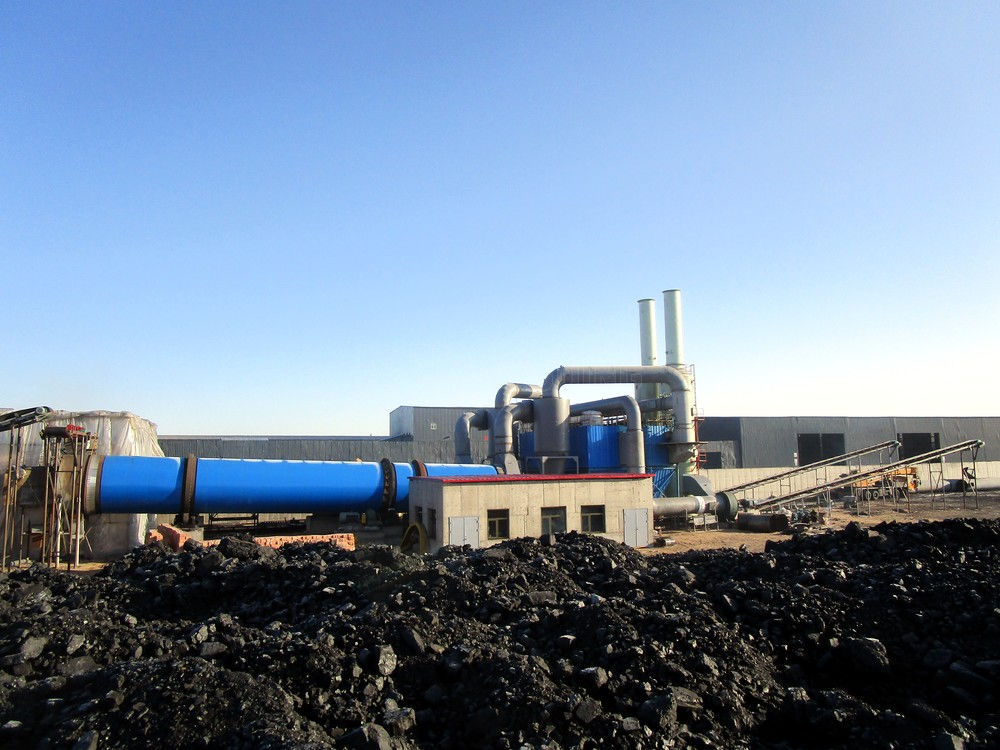

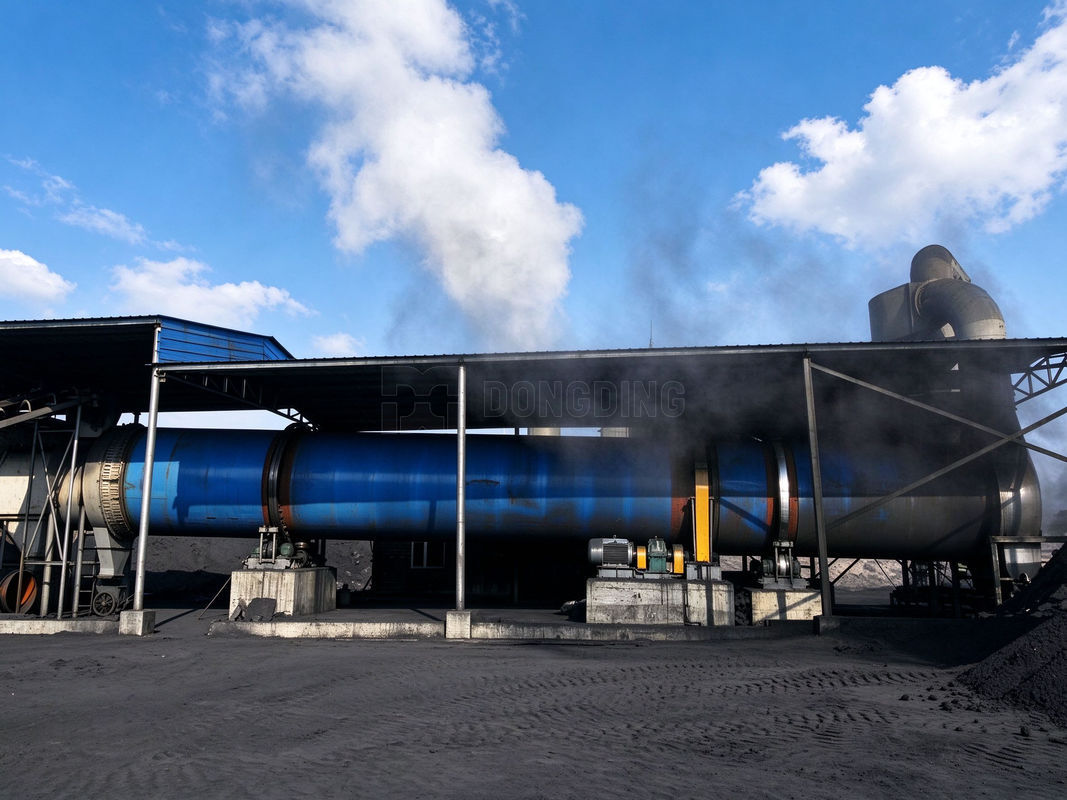

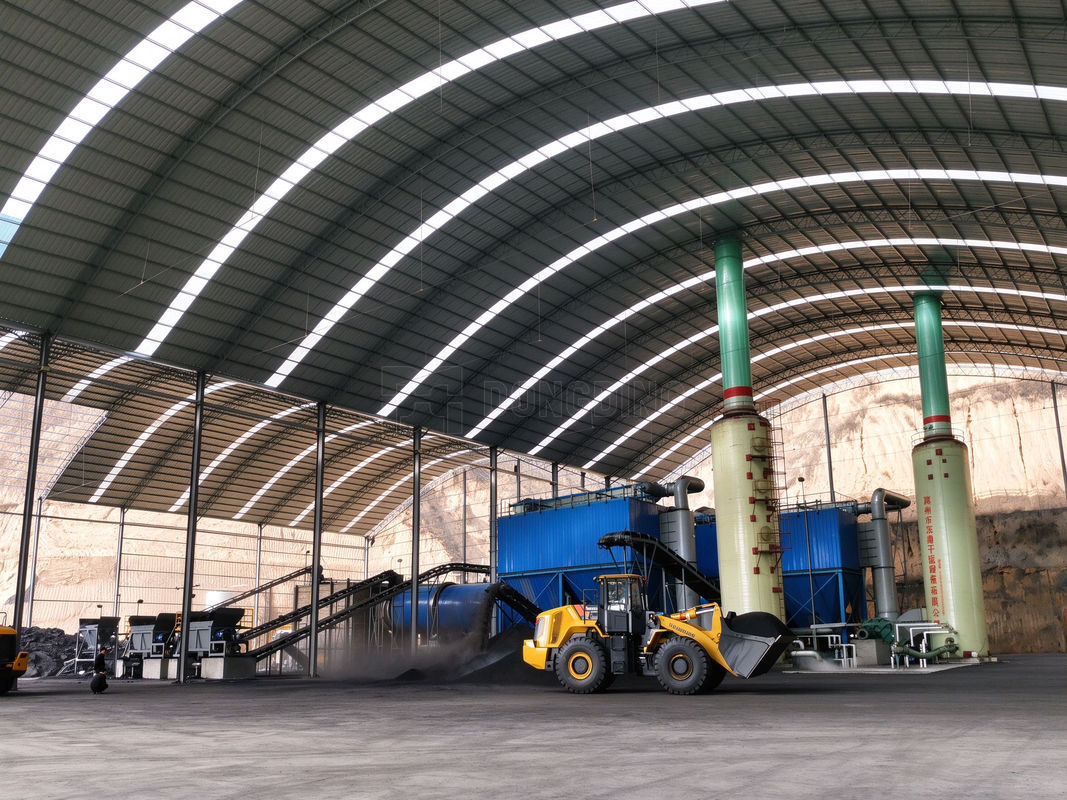

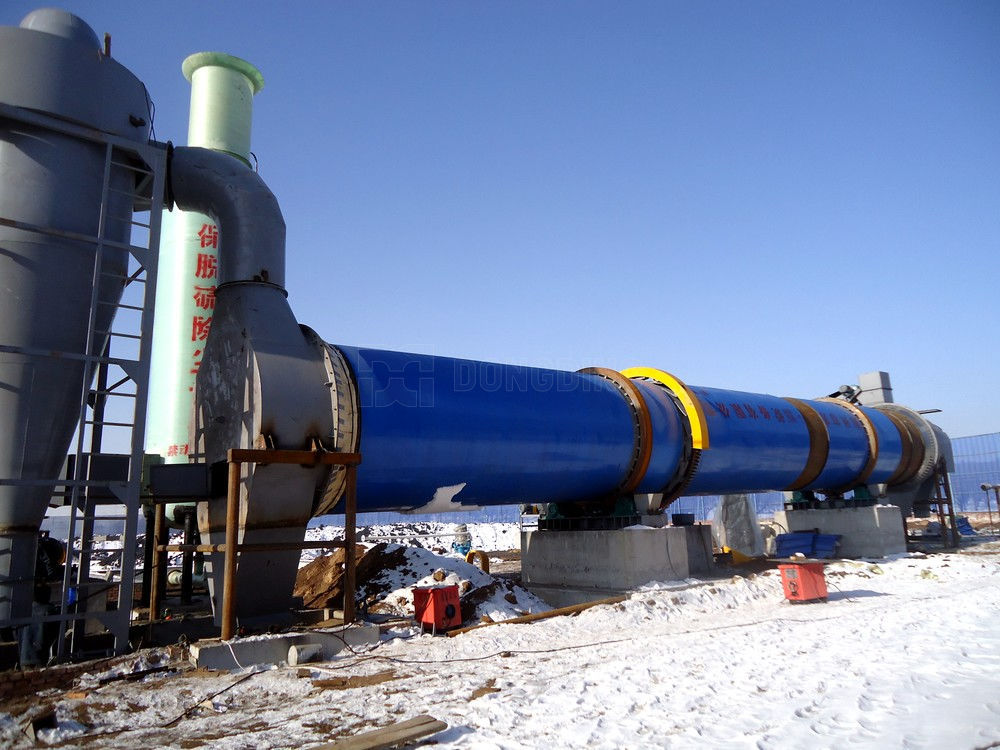

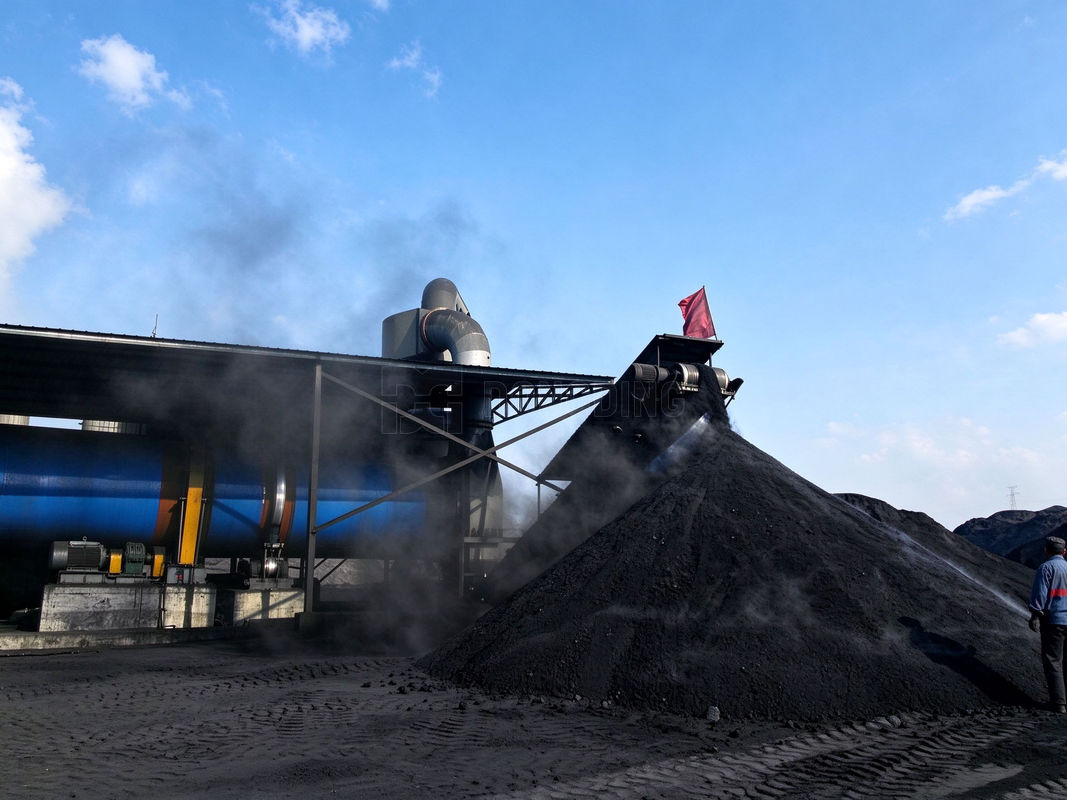

Show of Coal Dryer
Product Photos
Why Dongding
Learn More About Dongding® Service
Related Cases
1,100 TPD Fly Ash Drying Project
Input moistureFrom 28% to 2%
Output moisture≤ 5%
LocationMongolia
500 TPD Coal Slime Dryer Project
Input moistureFrom 35% to 10%
Output moisture≤ 10%
LocationInner Mongolia, China
300 TPD Sludge Drying Project
Input moistureFrom 80% to 15%
Output moisture≤ 15%
LocationVietnam
600 TPD Coal Slime Drying Line
Input moistureFrom 40% to 10%
Output moisture≤ 10%
LocationShanxi, China
300 TPD Bentonite Dryer Project
Input moistureFrom 25% to 8%
Output moisture≤ 8%
LocationIran
200 TPD Ore Powder Drying Project
Input moistureFrom 18% to 5%
Output moisture≤ 5%
LocationZambia
150 TPD Sludge Dewatering & Drying Project
Input moistureFrom 80% to 15
Output moisture≤ 15%
LocationJiangsu, China
1.05 TPH Yeast Drum Drying Line
Input moistureFrom 85% to 12%
Output moisture≤ 12%
LocationThailand
- 600+
- Projects Worldwide
With drying projects running across the globe, Dongding has earned long-term trust through reliable quality and responsive after-sales service.
