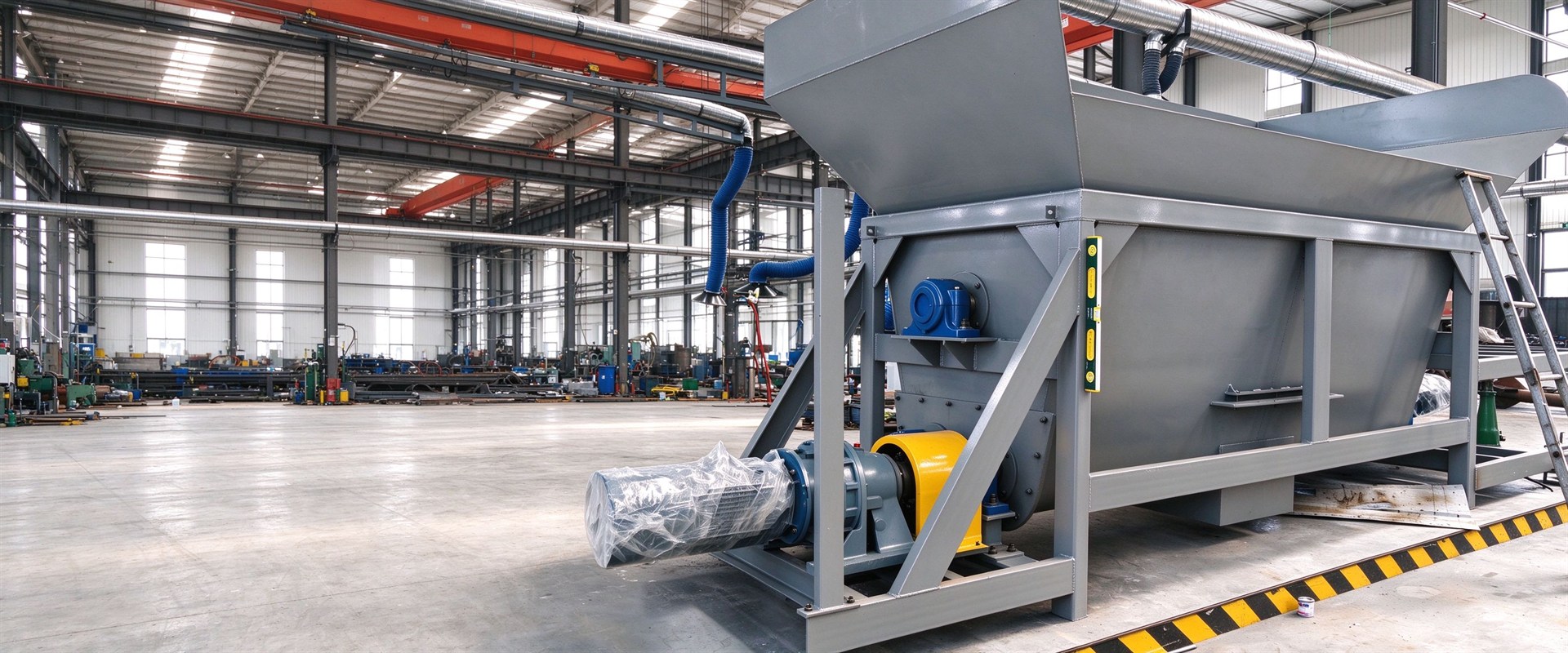

Introduction of Screw Disintegrating Feeder
The Screw Disintegrating Feeder developed by Dongding is a specialized feeding and disintegration machine designed for handling heavy mineral powders, stone powder, mineral sludge, clay, soil and other cohesive or moisture-laden materials. It features anti-sticking and anti-blocking performance, high driving torque, and an integrated material storage, disintegration and feeding system. The equipment is widely used in aggregates, mineral processing and bulk material handling applications.
The machine offers the advantages of high feeding capacity, simple and robust construction, reliable operation, easy maintenance, and stable material discharge. Dongding can also provide custom-engineered feeding solutions based on the customer's material characteristics, moisture content, bulk density, particle size and required throughput.
Advantages of Screw Disintegrating Feeder
01
High Feeding Capacity
Handles heavy mineral powders, stone powder, mineral sludge, clay and other cohesive or moisture-laden materials at 30–300 t/h.
02
Simple & Robust Construction
Sturdy design with anti-sticking and anti-blocking performance and high driving torque.
03
Reliable Operation
Integrated storage, disintegration and feeding system for continuous, trouble-free running.
04
Easy Maintenance
Straightforward construction simplifies cleaning and servicing.
05
Stable Material Discharge
Paddle-type disintegration breaks up lumps to ensure smooth, even material flow.
06
Custom-Engineered Solutions
Tailored to your material characteristics, moisture content, bulk density, particle size and required throughput.

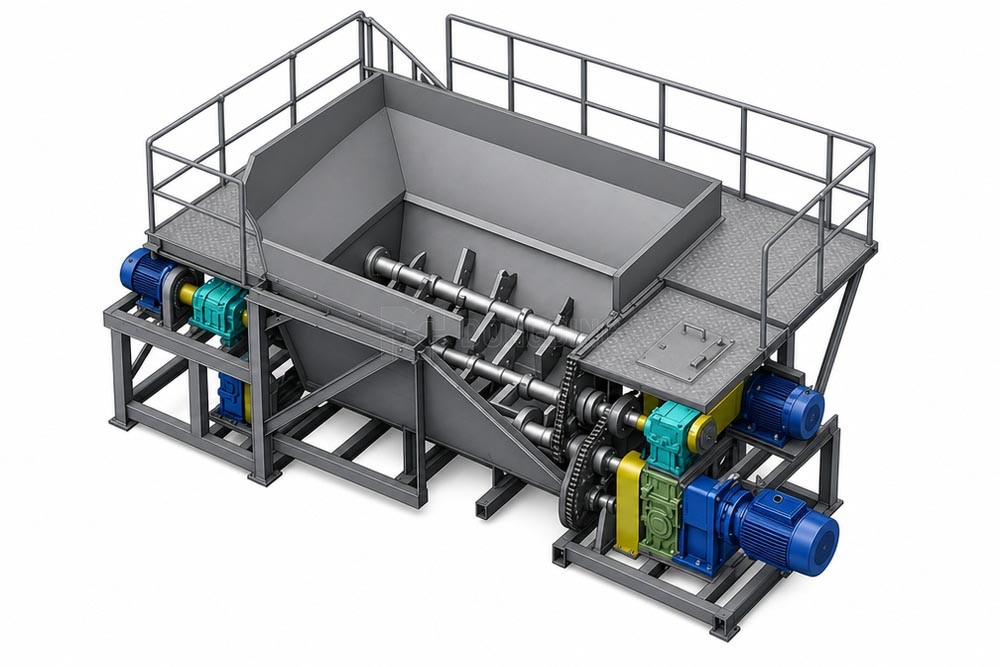

Working Principle of Screw Disintegrating Feeder
The upper section is equipped with a paddle-type mixing and disintegrating mechanism, which continuously agitates and breaks up compacted or agglomerated materials, preventing the formation of large lumps and ensuring smooth material flow.
The lower section adopts a twin-shaft, bidirectional screw conveying system. The screw shafts are arranged in a coaxial configuration with centralized feeding, allowing material to move from both sides toward the center and then be discharged at a controlled rate. The feeding capacity can be precisely adjusted through variable-frequency drive (VFD) speed control, enabling stable and quantitative feeding according to process requirements.
Specifications of Screw Disintegrating Feeder
| Model | Screw Diameter (mm) | Capacity (t/h) | Total Power (kW) | Overall Dimensions (L×W×H) (mm) |
| DWX3.0-2 | 280 | 30 | 26 | 6000*2750*2500 |
| DWS3.0-2 | 380 | 100 | 44 | 6350*2900*2700 |
| DWS3.0-3 | 400 | 300 | 89 | 7350*3400*2960 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.
