Introduction of Biomass Pellet Production Line
The biomass pellet production line is a complete solution for converting agricultural residues, forestry waste, wood processing waste, and other biomass materials into high-density biomass fuel pellets. The production line integrates material processing, drying, crushing, pelletizing, cooling, screening, and packing processes to provide an efficient and continuous pellet production solution.
We offer biomass pellet production lines with various capacities, for example 500 kg/h, 1 t/h, 1.5 t/h, 2 t/h, 3 t/h, and 4-5 t/h. The final pellets can be 6 mm, 8 mm, 10 mm, 12 mm, etc.
Advantages of Biomass Pellet Production Line
01
Complete Production Solution
Integrates crushing, drying, pelletizing, cooling, screening, and packing into one complete production line.
02
Wide Range of Raw Materials
Suitable for wood waste, sawdust, rice husks, straw, peanut shells, and various agricultural and forestry residues.
03
Customized Capacity
Production capacity and equipment configuration can be customized according to the customer's requirements.
04
Efficient Drying System
Effectively reduces the moisture content of high-moisture biomass materials before pelletizing.
05
High-Density Pellets
Compresses loose biomass materials into dense and uniform pellets, making storage and transportation easier.
06
Eco-Friendly and Renewable Energy
Converts agricultural and forestry waste into renewable solid fuel, helping reduce waste and reliance on fossil fuels.

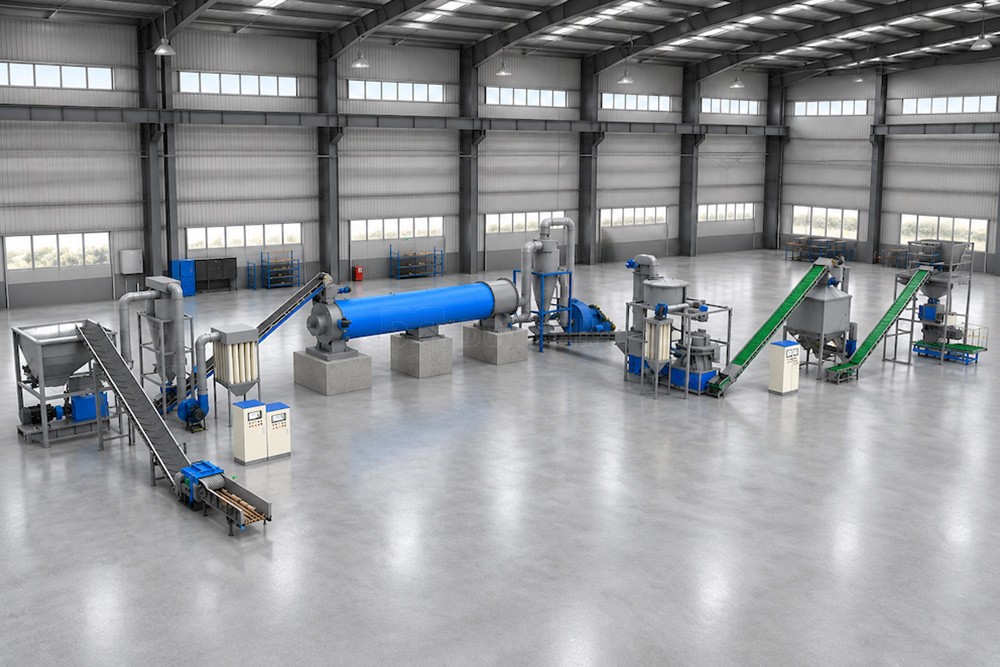

Working Principle of Biomass Pellet Production Line

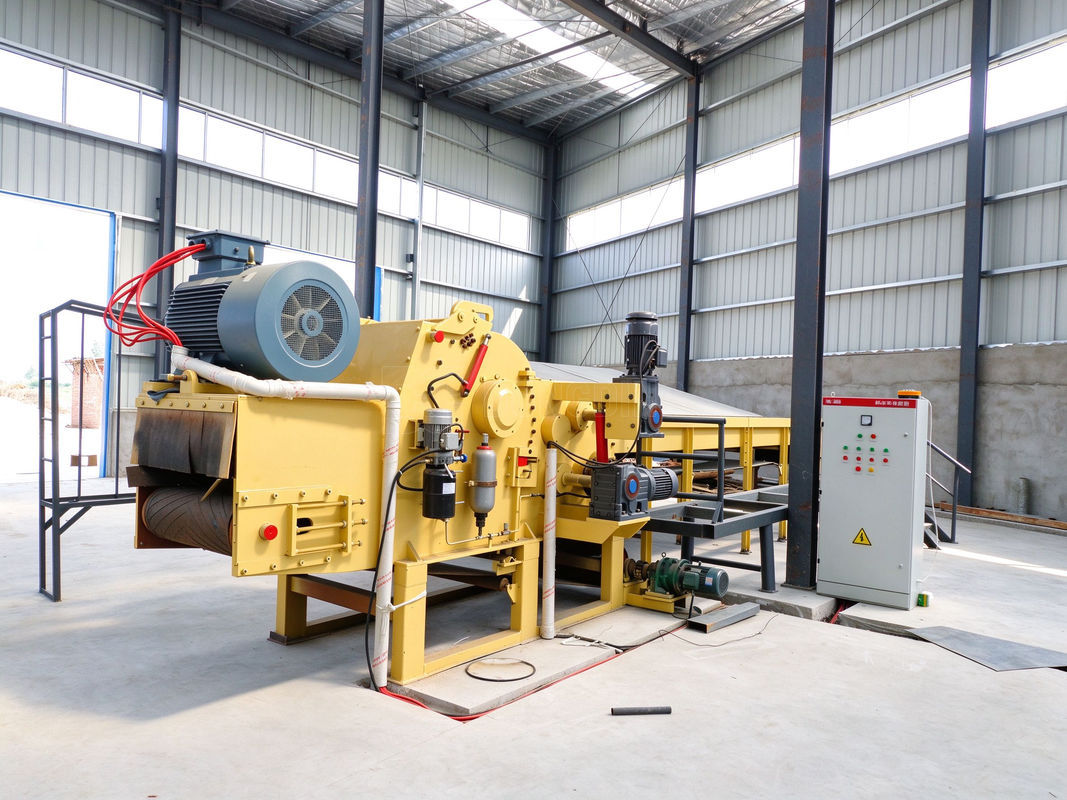

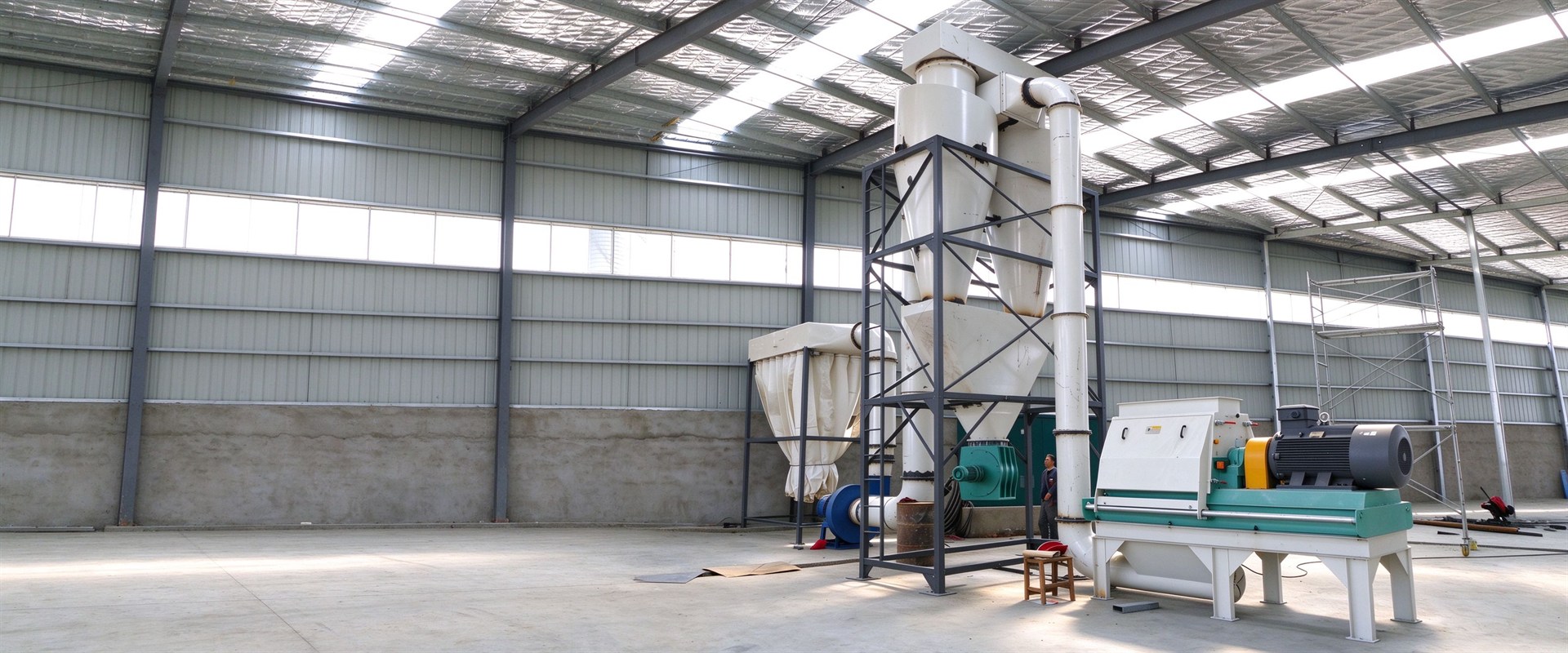

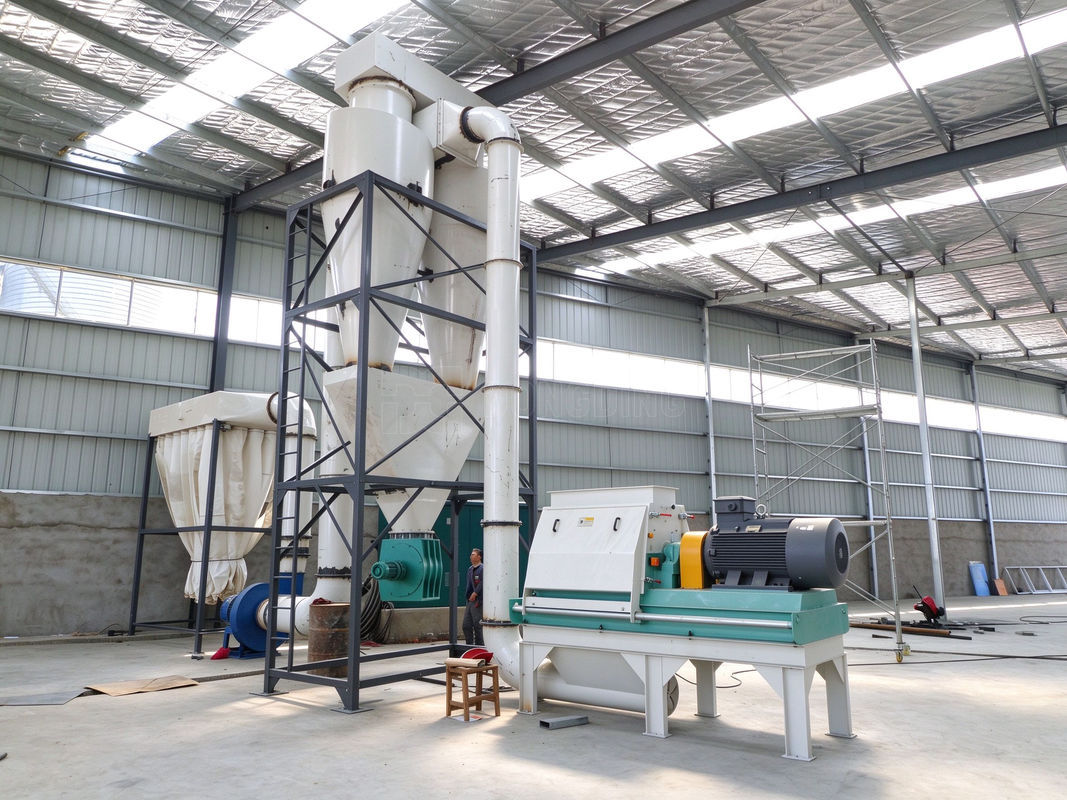

1. Crushing and breaking system. If the raw material is the log, straw, leftover material and something bigger, needed to crush raw materials before pelleting.

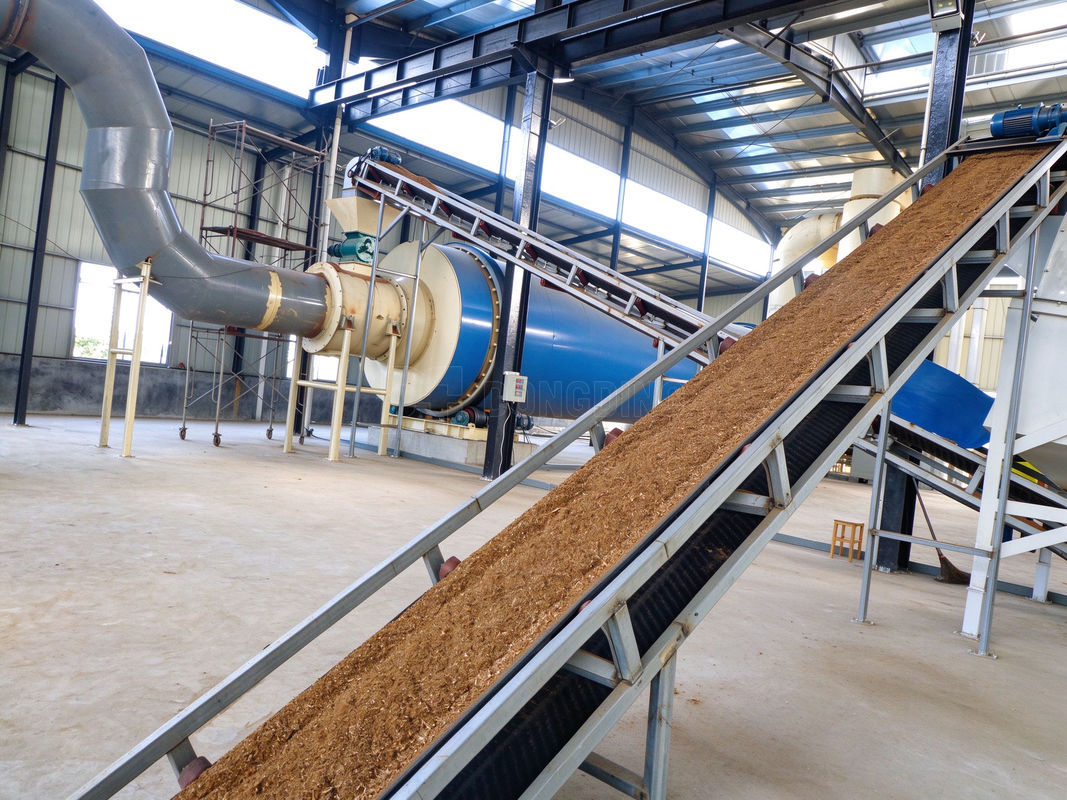

2. Drying system. In general, a material with a moisture content of 15-20% is suitable for granulating. If the moisture exceeds 20%, it needs to be dried before granulating.

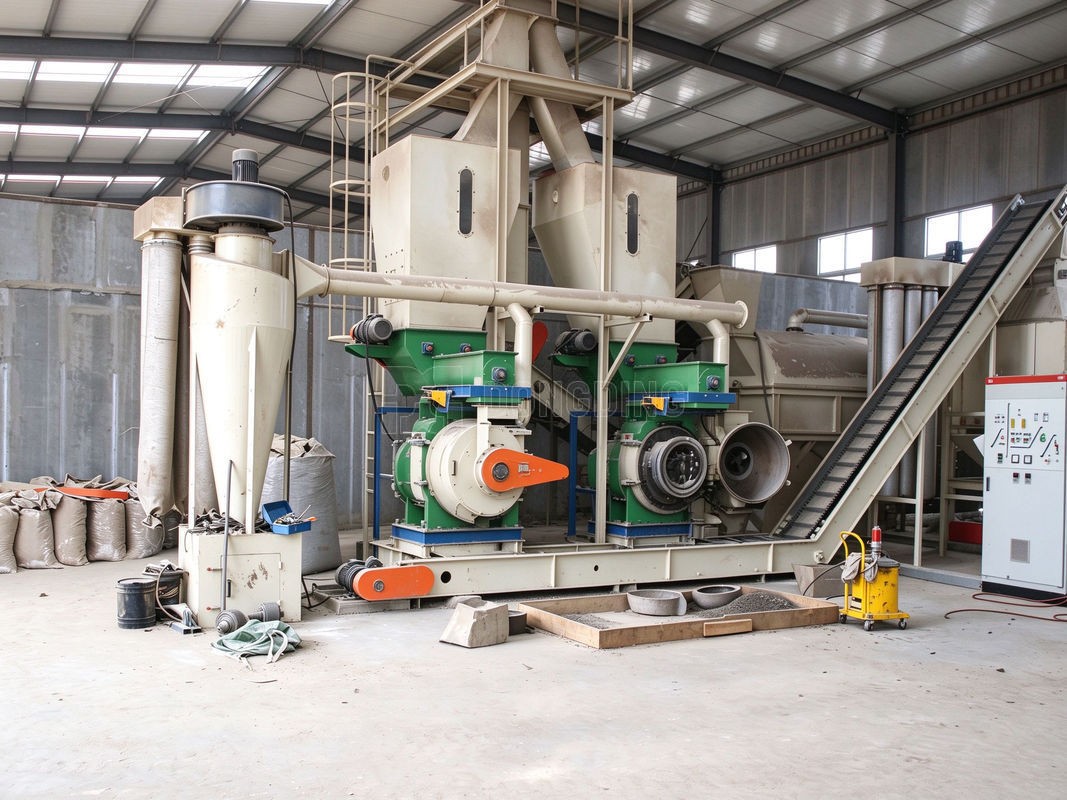

3. Granulating system. The final moisture of the pellet meets the safe store requirements of the pellet.

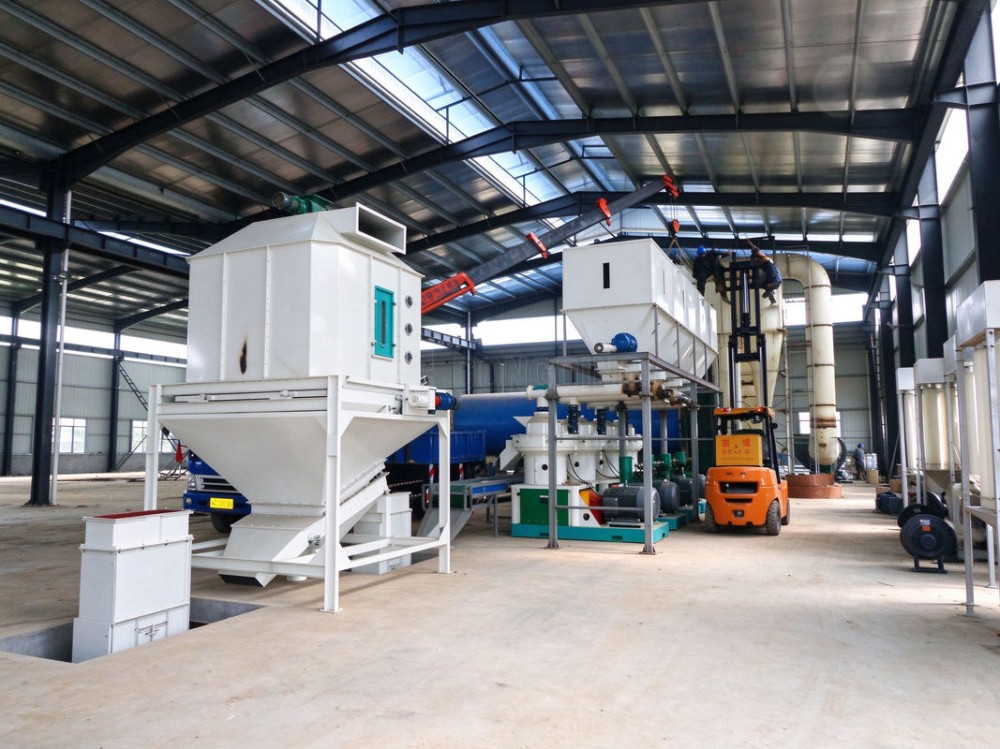

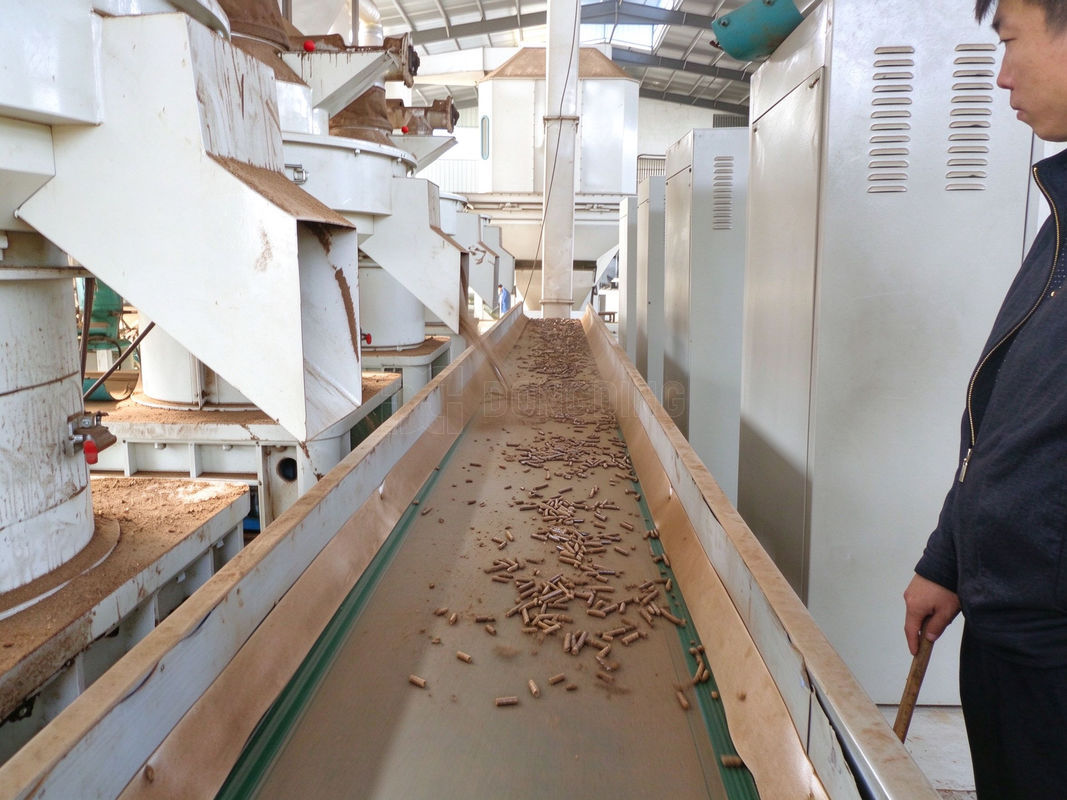

4. Cooling screening system. Biomass pellet after cooling screening machine go through belt conveyor into cooling sieve.
5. Packaging system. Send the biomass pellet into the packaging machine.
Specifications of Biomass Pellet Production Line
| Model | Capacity(t/h) | Motor power(kw) | Weight(ton) | Area(㎡) |
| DDKL1000 | 0.8-1.0 | 135 | 45 | 10x24 |
| DDKL1500 | 1.2-1.5 | 175 | 47 | 10x24 |
| DDKL2000 | 1.5-2.0 | 210 | 55 | 10x24 |
| DDKL3000 | 2.5-3.0 | 255 | 68 | 12x26 |
| DDKL5000 | 4.5-5.0 | 300 | 73 | 12x26 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

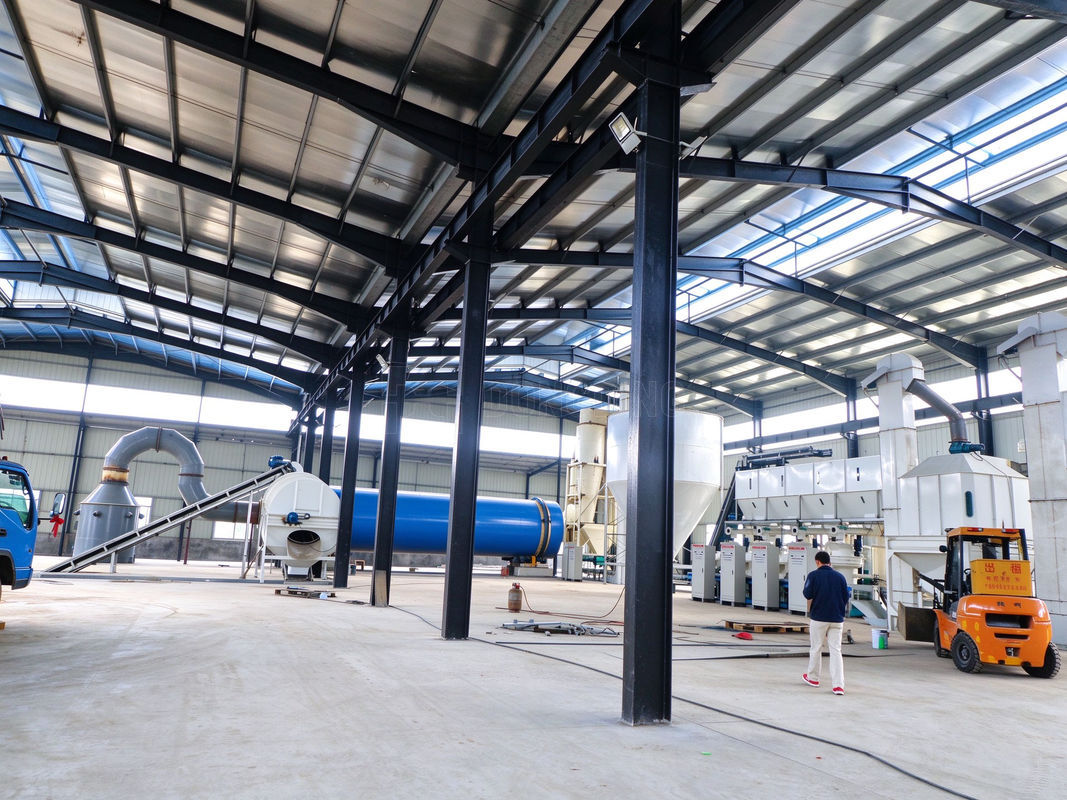

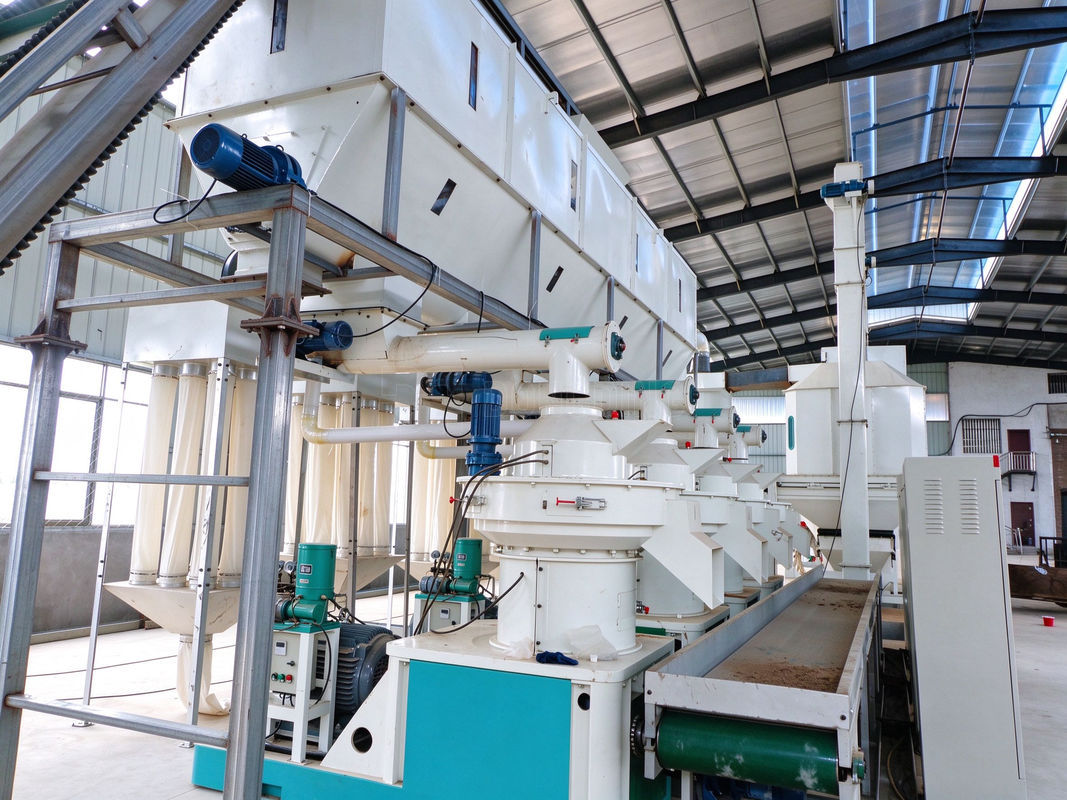

Show of Biomass Pellet Production Line
Product Photos
