Introduction of Coco Peat Rotary Dryer
Coconut peat (coconut coir ) is a powdery substance between the coconut husk fibers. After being dried, the coconut peat can be used in the field of plant cultivation or made into coconut chaff bricks, which has high economic benefits.
The coco peat drying system has the advantages of energy saving and low consumption technology. Through precisely temperature control and scientific sealing technology, the production process is safe, efficient, clean and environmentally friendly. This cocopeat dryer system can be also used to dry coconut husk chips, coconut fiber, palm fiber, wood chips, sawdust, etc. And the final moisture of the dried material can reach 12%.
Advantages of Coco Peat Rotary Dryer
01
Automatic Control
Automatic control ensures the drying process is even and stable.
02
Designed Inner Structure
Inner structure designed for coco peat with high drying efficiency of 90–95%.
03
Customized Solution
Operating parameters can be changed to suit the required material properties.
04
Designed Lifting Board
Different materials use various combinations of circumferential lifting.
05
PLC & Video Monitoring
Equipped with a PLC system and video monitoring for a high degree of automation and simple operation.
06
Multiple Heat Sources
Customers can choose the heat source that fits their situation, with customized solutions and quality-assured accessory parts.

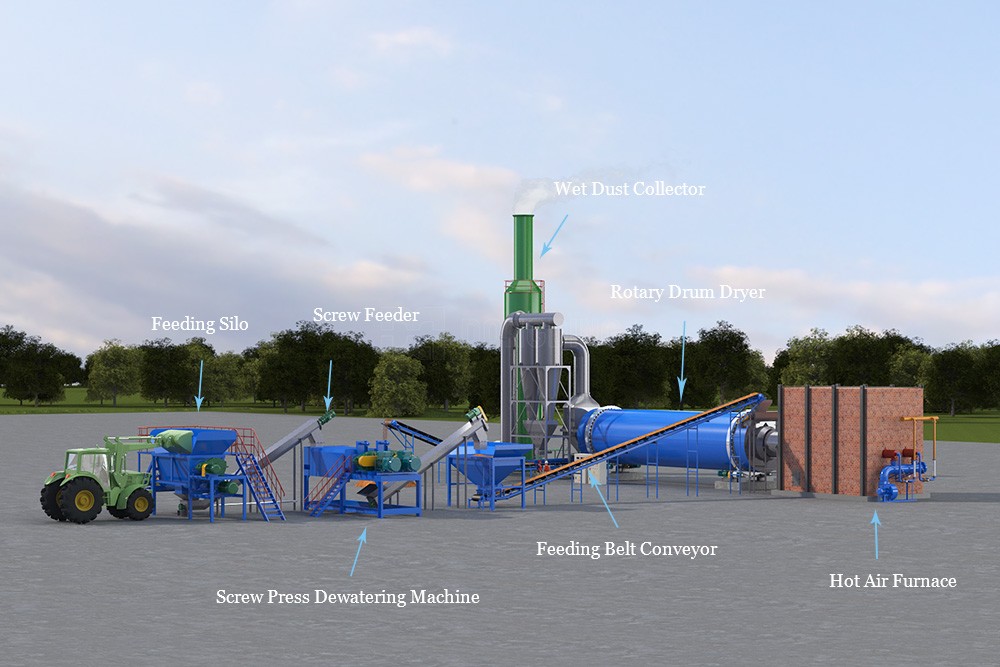

Working Principle of Coco Peat Rotary Dryer
Firstly, coco peat is dehydrated by dehydrator machine (if the raw material with high water content), then transported to the rotary drum dryer by the belt conveyor. Because of the inclination of drum dryer, material with hot air moves to the end of dryer body, during which process wet material gets fully contact with the hot air. After drying, most of the dry material is discharged through the belt conveyor. The left material mixed with dust continue goes into the cyclone dust collector and the bag dust collector in sequence, where the dust will be collected. Lastly, with the function of induced draft fan, the left material will discharged through the conveyor.
Specifications of Coco Peat Rotary Dryer
| Device Specification | DDJG1210 | DDJG1410 | DDJG1610 | DDJG2010/3 | DDJG2210/3 | DDJG2510/3 | DDJG2512/3 | DDJG2912/3 |
| Daily Processing Capacity(t/d) | 33.6 | 40.8 | 58.9 | 131.4 | 145.0 | 167.7 | 204.0 | 247.0 |
| Daily Output(t/d) | 15.6 | 19.2 | 27.7 | 61.8 | 68.2 | 78.9 | 96.0 | 116.2 |
| Water Evaporation Capacity (t/h) | 0.75 | 0.90 | 1.30 | 2.90 | 3.20 | 3.70 | 4.50 | 5.45 |
| Raw Material Water Content(%) | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
| Dried Material Water Content(%) | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） |
| Drying Temperature(℃) | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 |
| Total Weight(kg) | 32 | 40 | 55 | 95 | 100 | 125 | 145 | 165 |
| Plant Area(㎡) | 15000 | 17000 | 21500 | 26500 | 28500 | 370000 | 41000 | 45500 |
| Device Specification(m) | 5*14 | 5*14 | 6*16 | 8*16 | 8*16 | 10*16 | 10*18 | 10*20 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

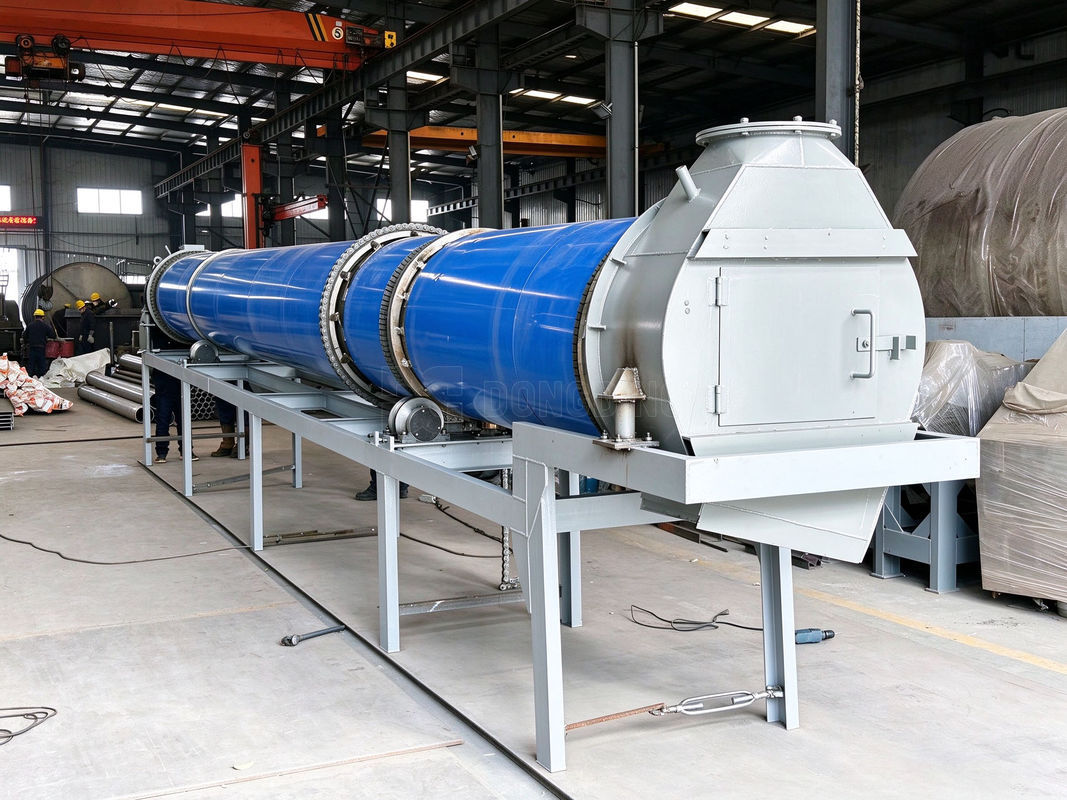

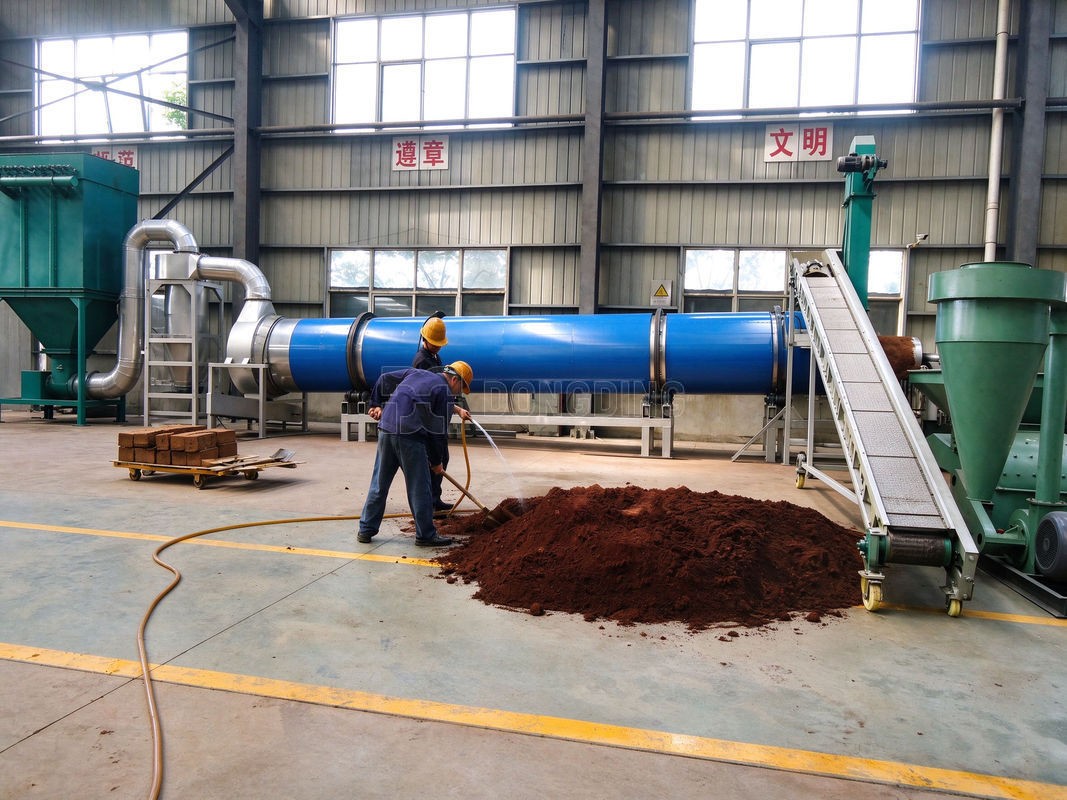

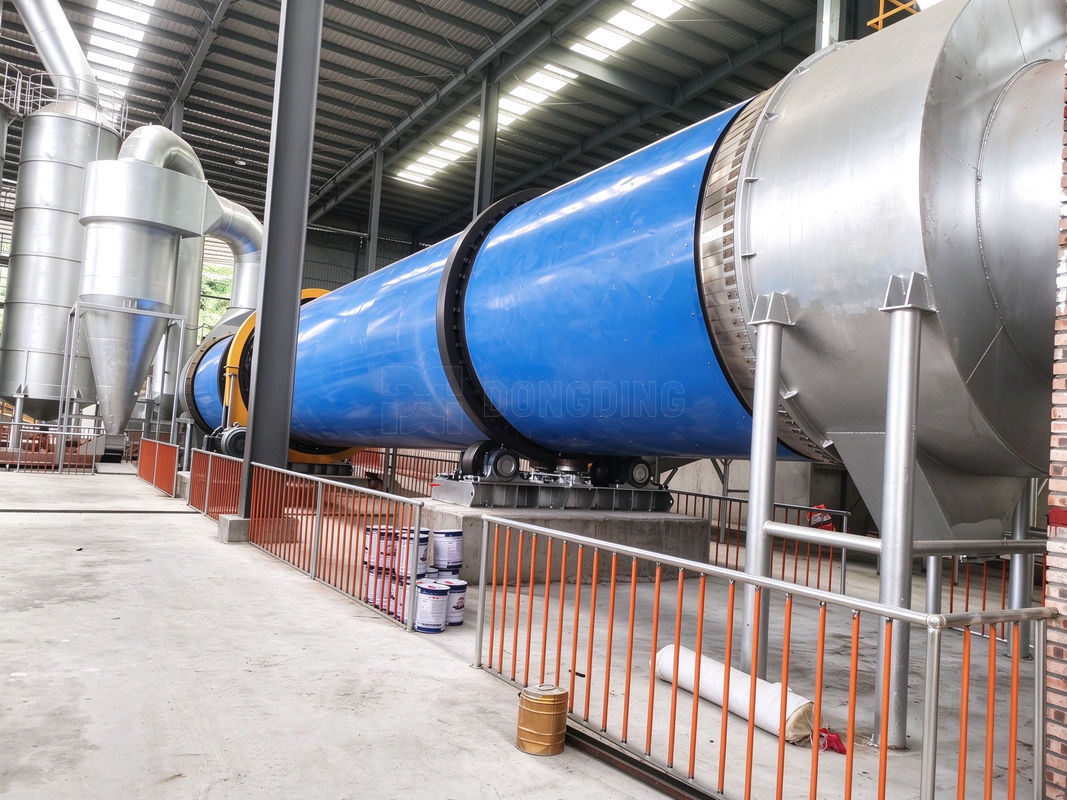

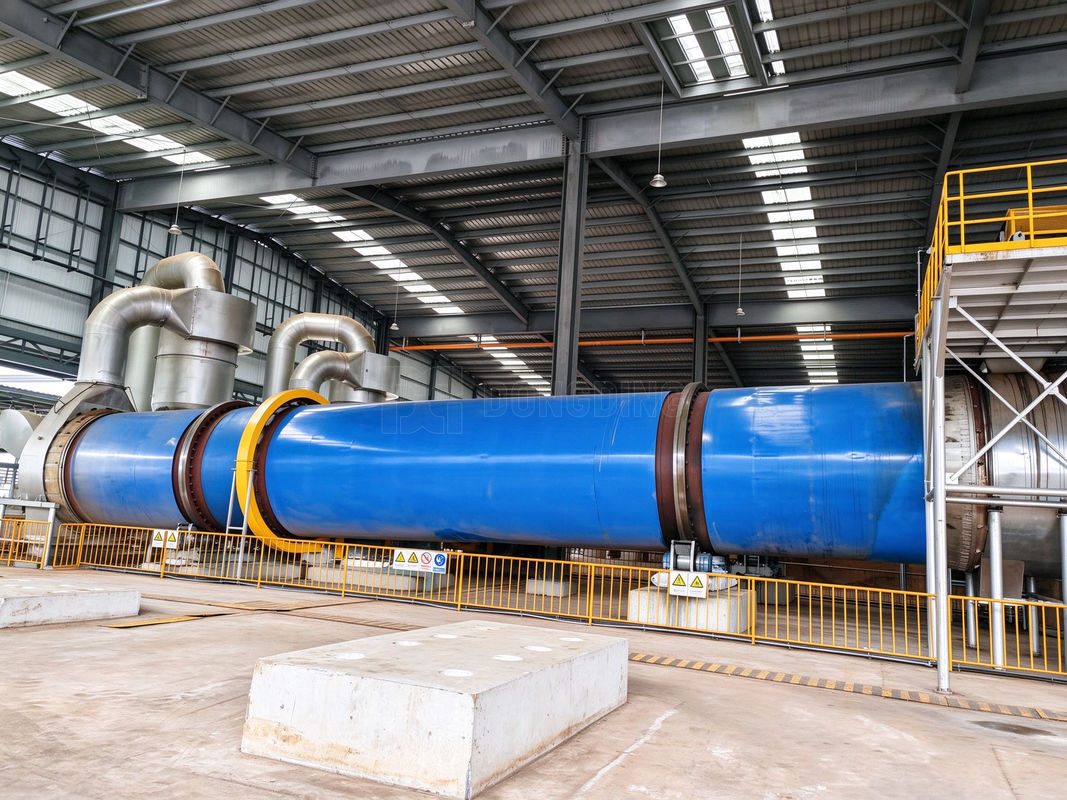

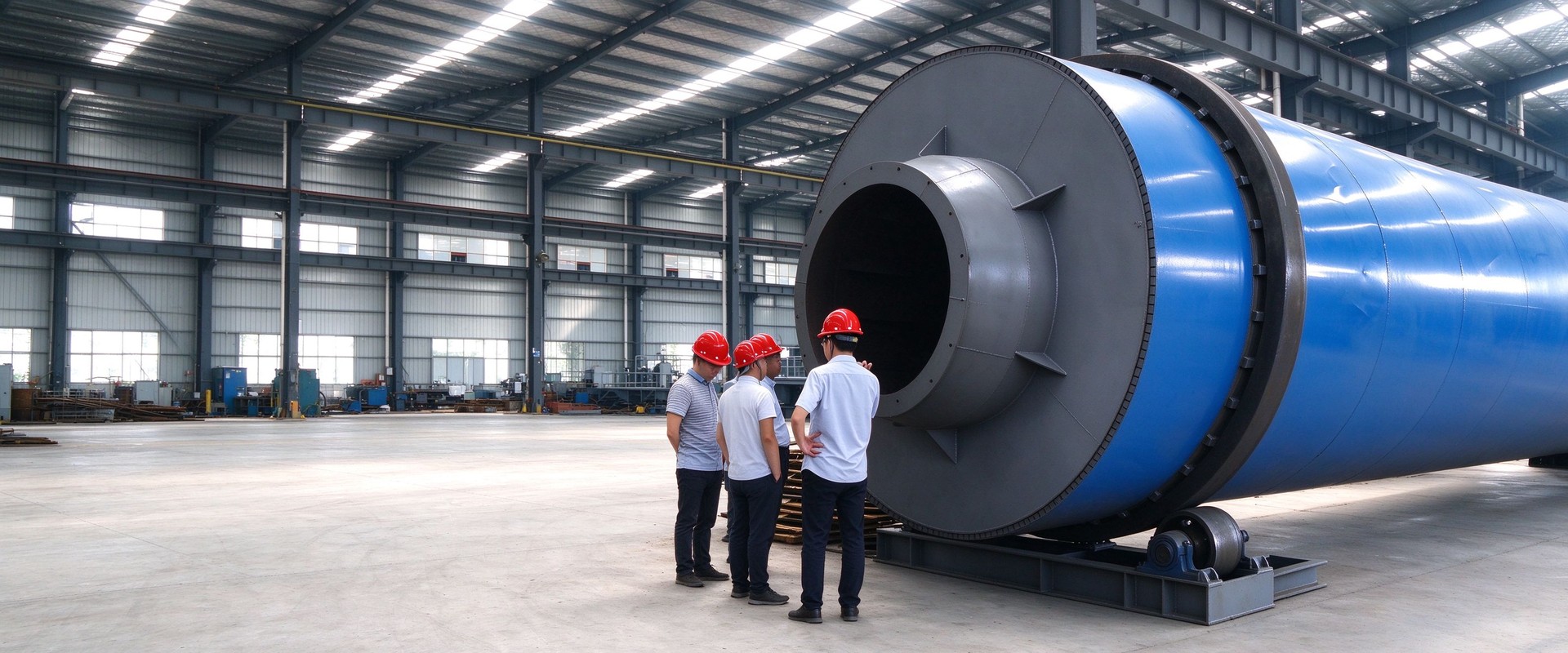

Show of Coco Peat Rotary Dryer
