All Dongding dryers come with a 12-month warranty covering parts and workmanship from the date of commissioning. Lifetime technical support and spare parts supply are provided.

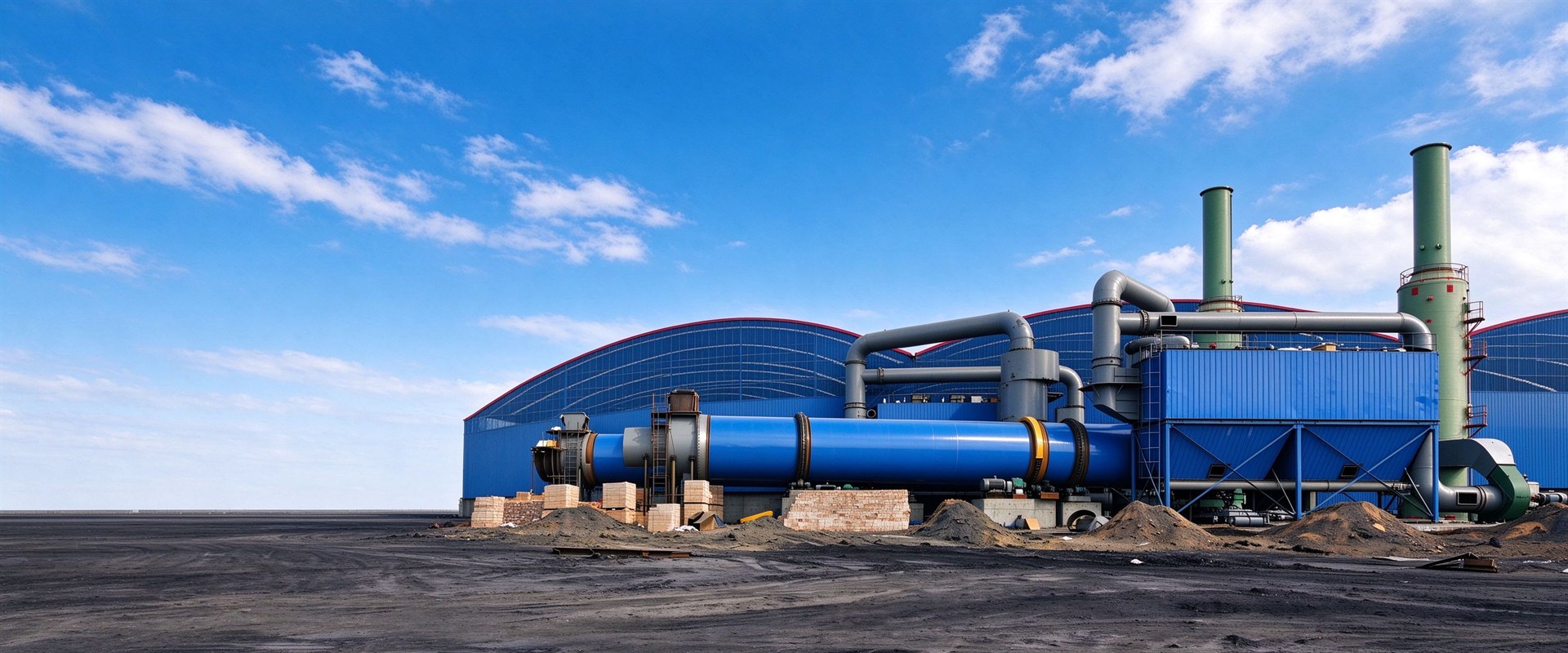

Introduction of Coal Slime Dryer
Coal slime features high moisture, high viscosity and fine particles. It is difficult to transport, low in economic value, unstable and prone to weathering. Targeting these properties, Dongding has developed a dedicated coal slime dryer. It precisely controls drying temperature, pressure, air volume and rotating speed. Equipped with customized feeding, cleaning and crushing devices, the machine achieves sufficient heat exchange and conversion. It delivers higher drying efficiency and heat utilization, while cutting dust emission for energy-saving and eco-friendly operation.
Advantages of Coal Slime Dryer
01
High Evaporation Efficiency
Downstream drying feeds hot flue gas and wet material from the same side for rapid, high-efficiency evaporation.
02
Customizable Design & Controllable Final Product
Internal structure and drying system tailored according to coal type, Tailored capacity and feed moisture.
03
Smooth Feeding & Discharging
New feeding/discharging unit eliminates blockage, intermittent/uneven feeding and material backflow, reducing burden on dust collection system.
04
Anti-sticking Design
Optimized internal structure enhances material sweeping and heat transfer, prevents cylinder wall sticking, suitable for high-moisture & sticky materials.
05
Zero Horizontal Thrust, Stable Operation
Zero horizontal thrust reduces wear of riding wheels, ensuring stable and reliable cylinder rotation.
06
Lower Wear & Power Consumption
Self-aligning riding wheel device maintains linear contact between riding wheels and riding rings, cutting down wear and power loss.

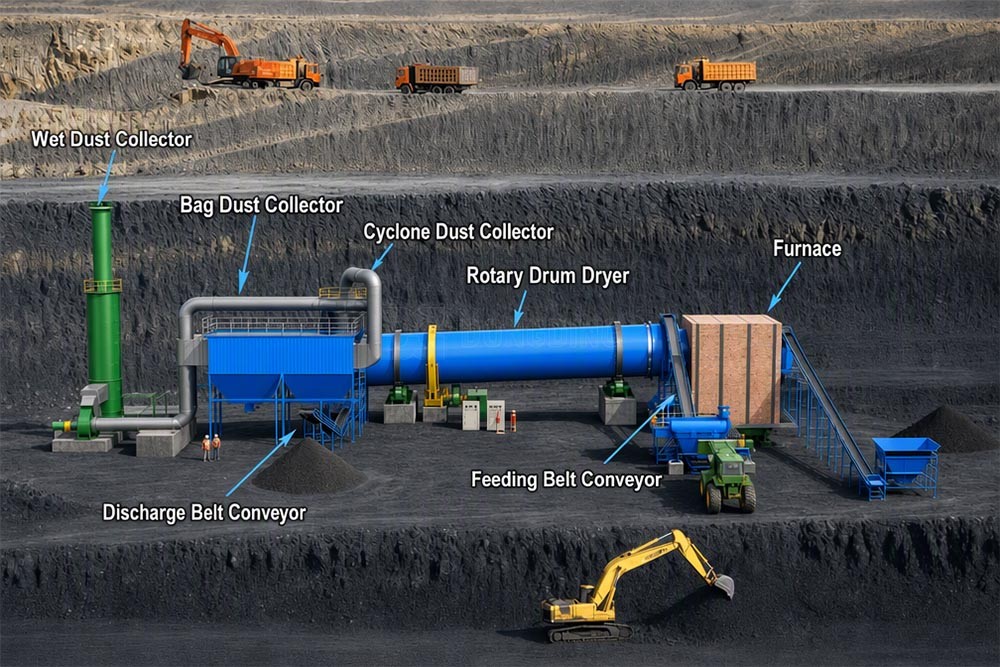

Working Principle of Coal Slime Dryer
Our coal slime dryer consists of a heat source, breaking unit, belt feeder, rotary drum, discharger, induced draft fan, unloading device and electric control cabinet.
After entering the drum, wet coal slime passes through four zones in sequence:
Feed Zone: Wet coal slime contacts hot air for rapid moisture evaporation.
Cleaning Zone: Lifting plates form a material curtain. The cleaning unit removes adhered material and crushes lumps to expand the heat exchange area.
Inclined Lifting Zone: The material becomes loose with low moisture and no sticking, for continuous heat exchange.
Discharge Zone: The material slides to the outlet, reaching the target moisture and finishing drying.
Specifications of Coal Slime Dryer
| Specification | Capacity(T/D) | Initial Moisture(%) | Final Moisture(%) | Total Power(kw) | Floor Area(m2) |
| DDMG1918 | 300±10 | 25±5 | ≤12 | 109 | 7m*25m |
| DDMG2218 | 500±30 | 25±5 | ≤12 | 128 | 8m*30m |
| DDMG2520 | 700±30 | 25±5 | ≤12 | 240 | 8m*30m |
| DDMG2822 | 1000±30 | 25±5 | ≤12 | 400 | 8m*40m |
| DDMG3024 | 1200±30 | 25±5 | ≤12 | 480 | 12m*50m |
| DDMG3428 | 1500±30 | 25±5 | ≤12 | 600 | 12m*60m |
| DDMG3830 | 1800±30 | 25±5 | ≤12 | 800 | 16m*70m |
| DDMG4032 | 2000±30 | 25±5 | ≤12 | 1000 | 18m*70m |
| DDMG4238 | 2500±30 | 25±5 | ≤12 | 1200 | 20m*80m |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

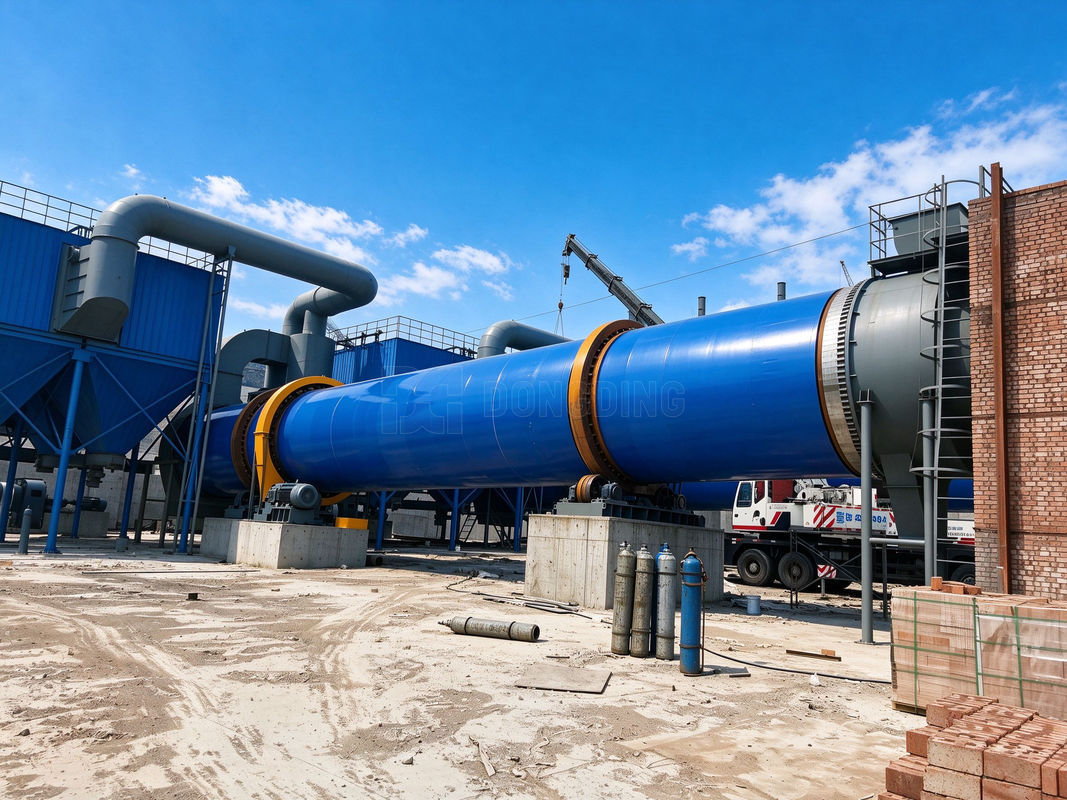

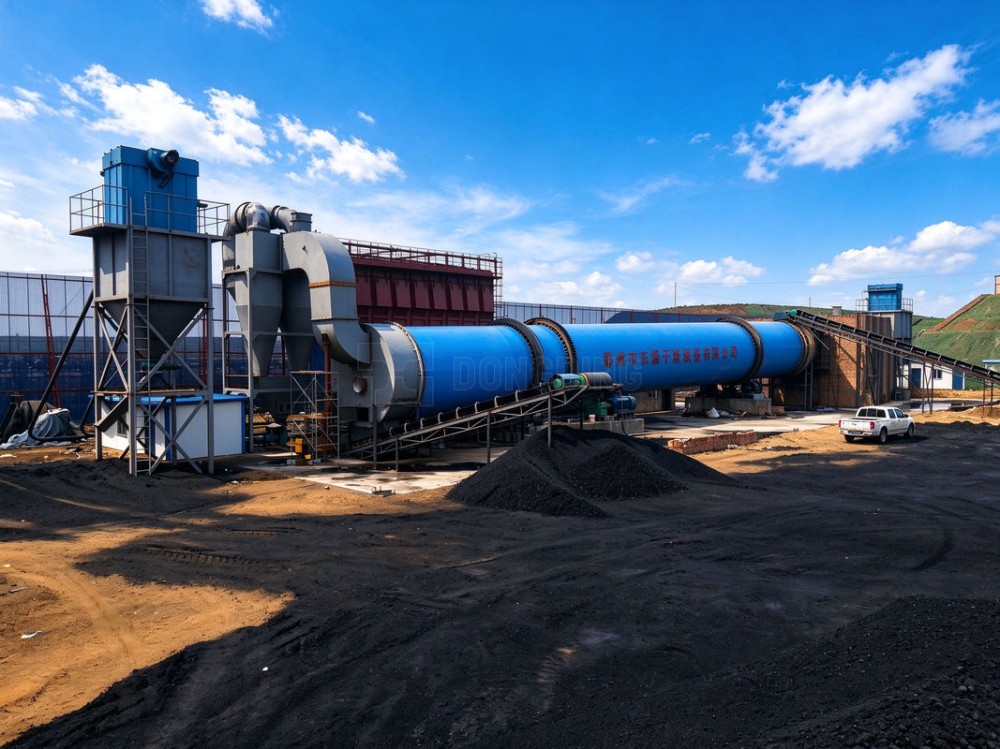

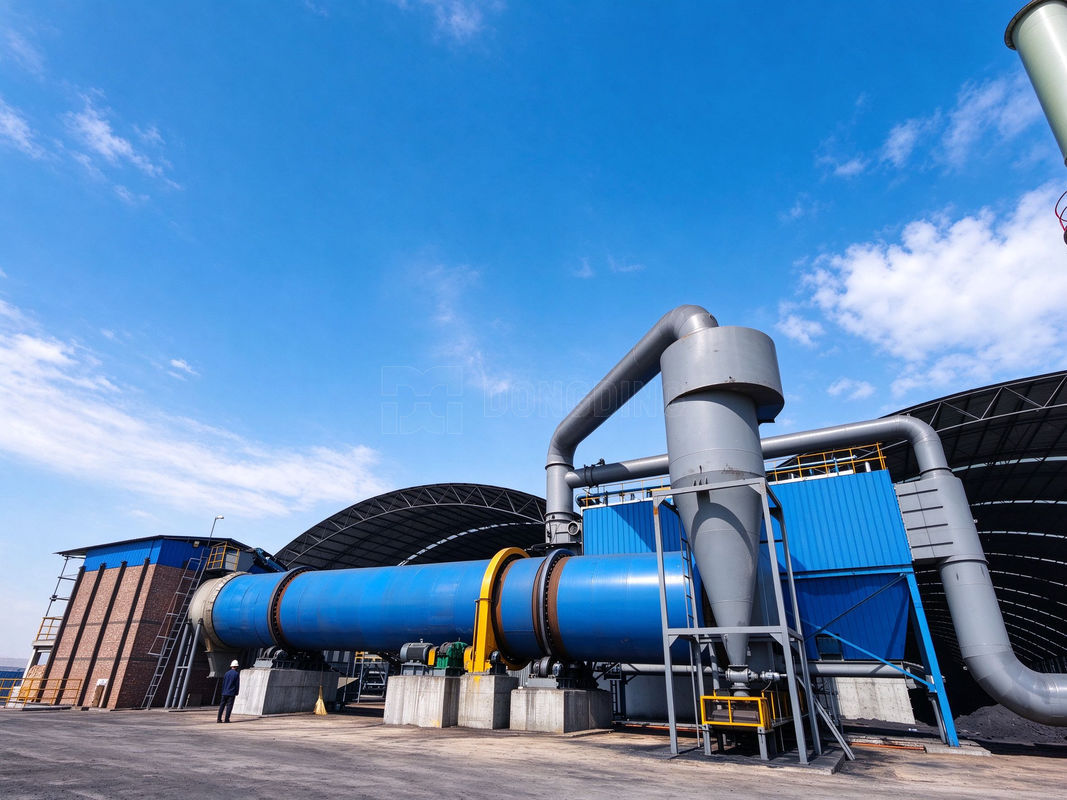

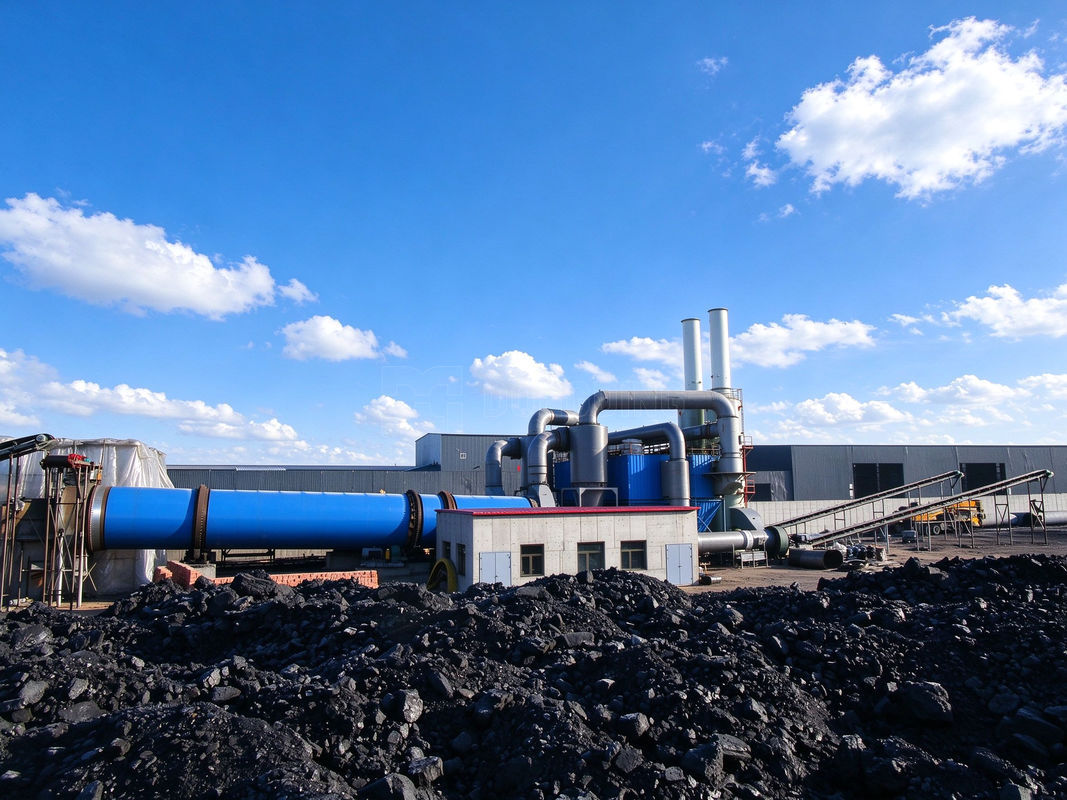

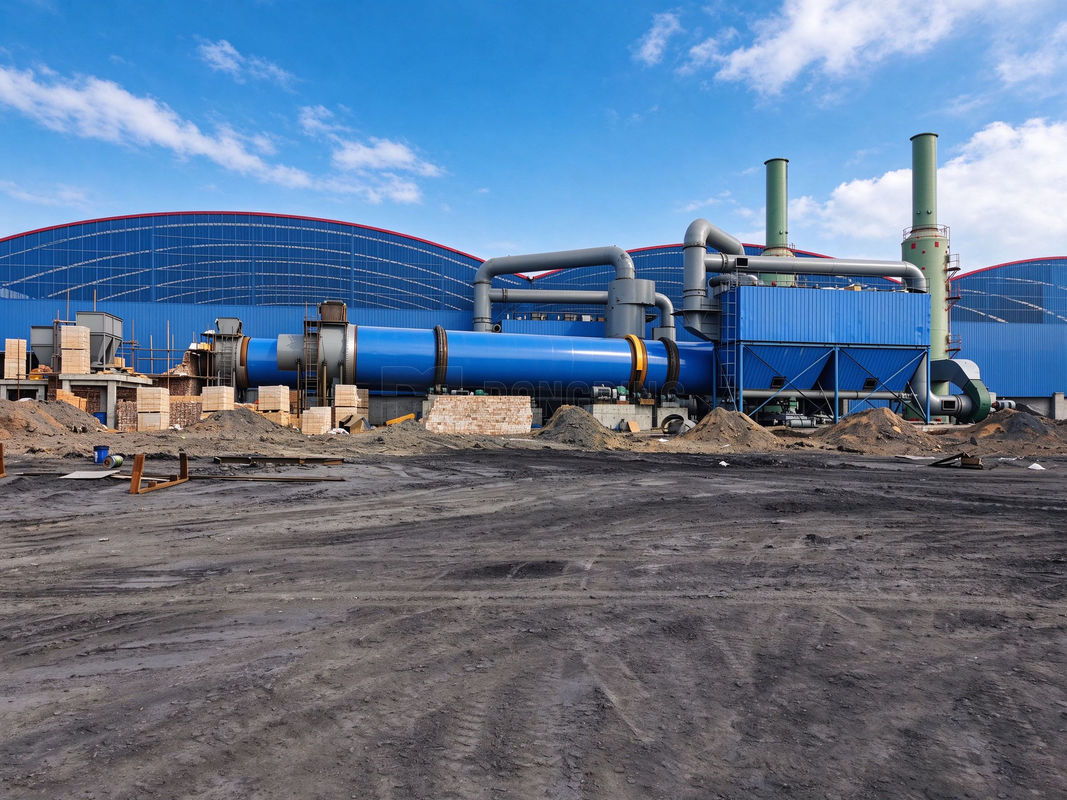

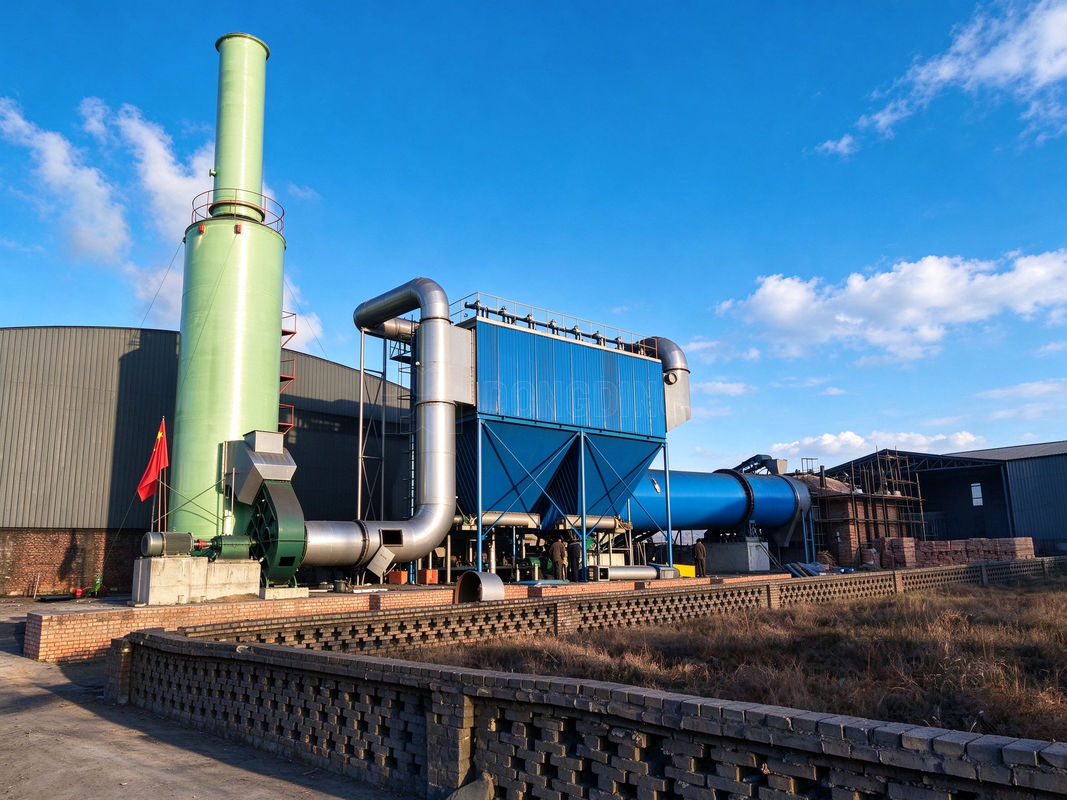

Show of Coal Slime Dryer
Product Photos
Why Dongding
Learn More About Dongding® Service
Related Cases
1,100 TPD Fly Ash Drying Project
Input moistureFrom 28% to 2%
Output moisture≤ 5%
LocationMongolia
500 TPD Coal Slime Dryer Project
Input moistureFrom 35% to 10%
Output moisture≤ 10%
LocationInner Mongolia, China
300 TPD Sludge Drying Project
Input moistureFrom 80% to 15%
Output moisture≤ 15%
LocationVietnam
600 TPD Coal Slime Drying Line
Input moistureFrom 40% to 10%
Output moisture≤ 10%
LocationShanxi, China
300 TPD Bentonite Dryer Project
Input moistureFrom 25% to 8%
Output moisture≤ 8%
LocationIran
200 TPD Ore Powder Drying Project
Input moistureFrom 18% to 5%
Output moisture≤ 5%
LocationZambia
150 TPD Sludge Dewatering & Drying Project
Input moistureFrom 80% to 15
Output moisture≤ 15%
LocationJiangsu, China
1.05 TPH Yeast Drum Drying Line
Input moistureFrom 85% to 12%
Output moisture≤ 12%
LocationThailand
- 600+
- Projects Worldwide
With drying projects running across the globe, Dongding has earned long-term trust through reliable quality and responsive after-sales service.
Frequently Asked Questions
Common questions about our rotary dryers — pricing, customization, installation and after-sales.
A:
Please share your raw material, initial and target moisture content, required capacity (t/h), available fuel or heat source, and your target market. With these details our engineers can recommend the right model and send an accurate quotation.
A:
As a manufacturer, we accept orders starting from a single machine. We can also deliver complete drying production lines with auxiliary equipment such as hot air furnaces and dust collectors. Contact us for tailored pricing.
A:
Standard models are usually delivered within 25-40 days after the deposit. Customized machines or larger production lines may take longer depending on the configuration. The exact schedule is confirmed in your contract.
A:
Yes. Every dryer is engineered around your material, capacity, moisture and site layout. Heat source, material of construction, dust collection and automation level can all be customized to your process.
A:
Yes. We provide installation guidance, commissioning, operator training and lifetime after-sales support. Our engineers can also travel to your site, and all equipment comes with a warranty.
