Introduction of Wet Dust Collector
The Wet Scrubber is an advanced dual-stage dust collection system engineered for the most demanding industrial environments. By combining impingement water bath technology with wet stainless steel mesh filtration in a single tower, it delivers a highly effective solution for capturing fine particulates and toxic gases.
With a filtration efficiency exceeding 99%, the wet scrubber is the preferred choice for industries such as coal mining, ceramics, casting, boiler emissions, and refractory material production. Its ability to handle high-concentration dust while keeping operating costs low makes it a superior alternative to traditional dry filtration in high-humidity or high-temperature settings.
Advantages of Wet Dust Collector
01
Ultra-low Emissions
High removal efficiency for fine particles, ensuring a particulate matter (PM) emission concentration of less than 5 mg/Nm³.
02
PM2.5 Control
The removal rate for PM2.5 exceeds 94%.
03
Synergistic Pollutant Control
Effectively eliminates "gypsum rain" and "ammonium sulfate rain," controls ammonia slip, and prevents GGH (Gas-Gas Heater) scaling/fouling.
04
Aerosol & SO3 Removal
Removal efficiency for aerosols and sulfur trioxide (SO3) is higher than 60%.
05
Low Operating Cost
Features low power consumption and minimal operating resistance (pressure drop < 300 Pa).
06
Heavy Metal Sequestration
Mercury (Hg) removal efficiency is approximately 40%, with mercury-laden ash removal exceeding 76% and an overall heavy metal pollutant removal rate of up to 98%.
Working Principle of Wet Dust Collector
Core Components:
Central Inlet Duct: Directs high-velocity dust-laden gas to the primary treatment zone.
Impingement Water Bath: A heavy-duty reservoir at the base that captures coarse particles through high-energy turbulence.
Multi-Layer Stainless Steel Mesh: A secondary filtration matrix that uses liquid film interception for fine particulates.
Continuous Mist Spray System: A network of high-atomization nozzles that saturates the mesh and provides a self-cleaning function.
Automated Ash Discharge Mechanism: Ensures continuous removal of collected sludge without interrupting operation.
Specifications of Wet Dust Collector
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

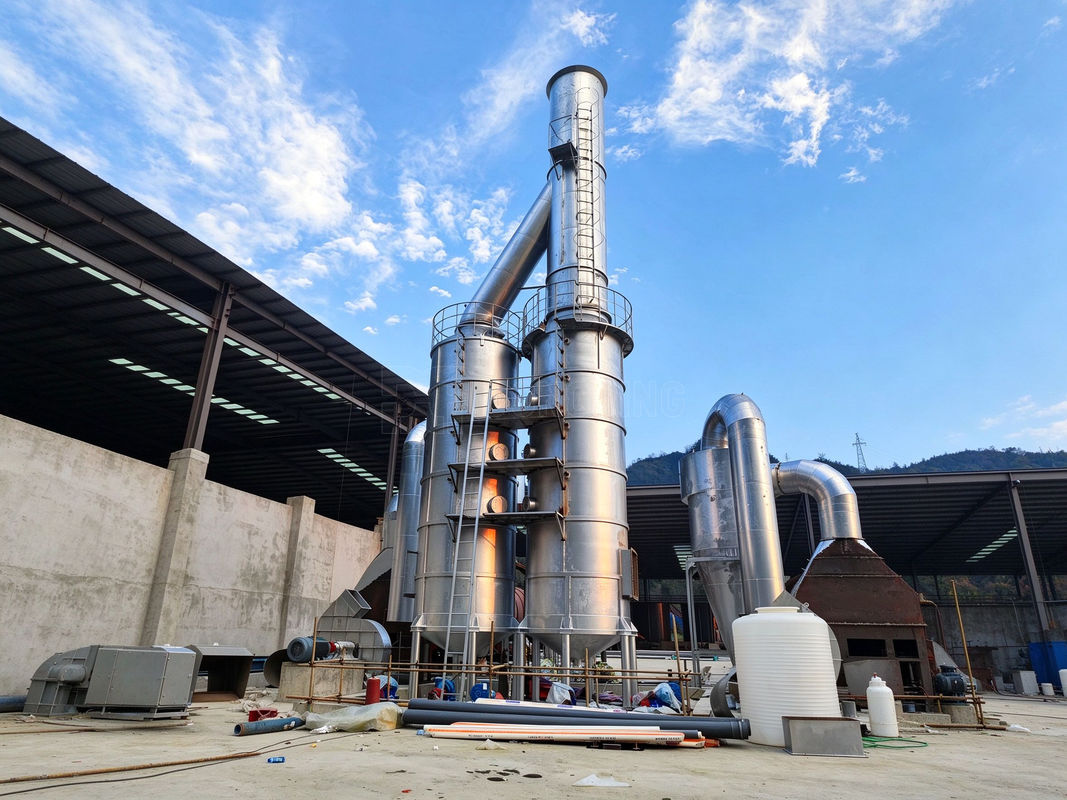

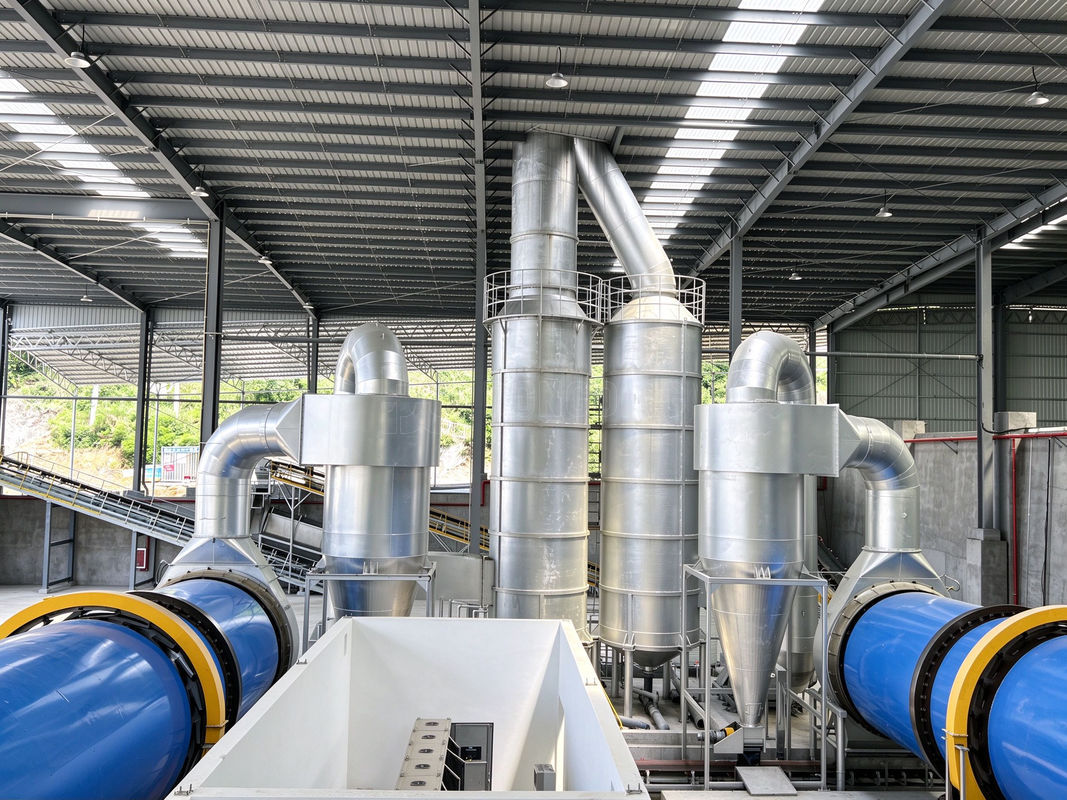

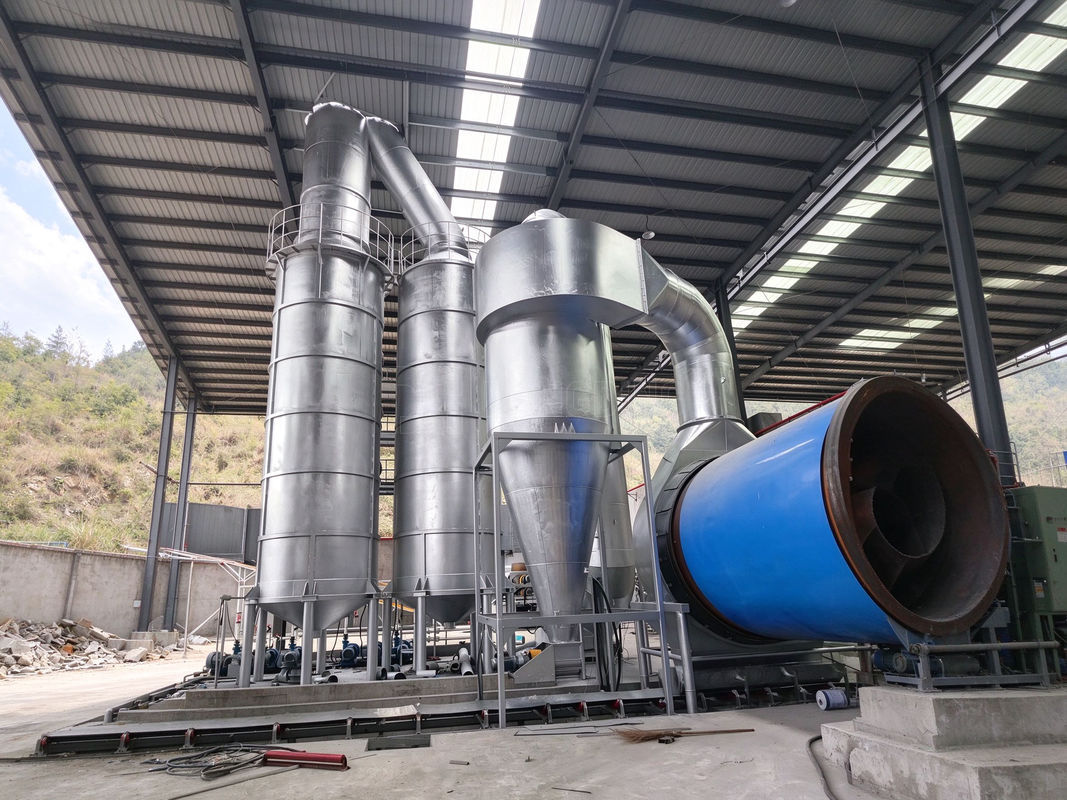

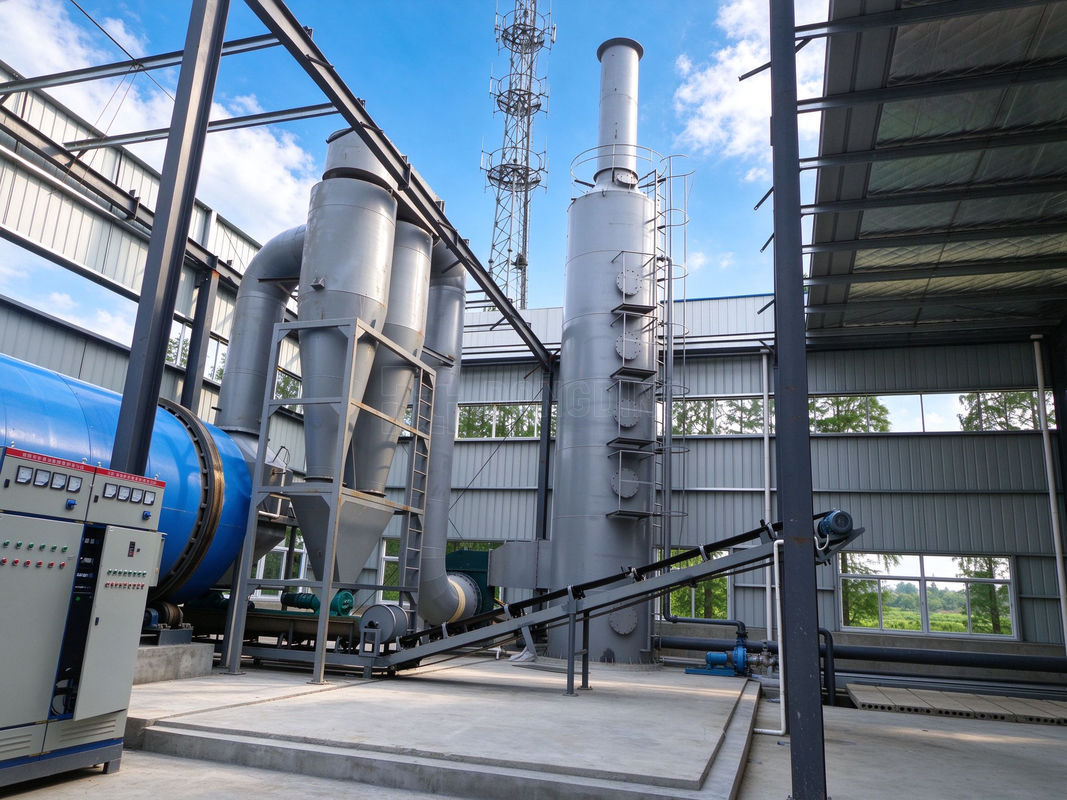

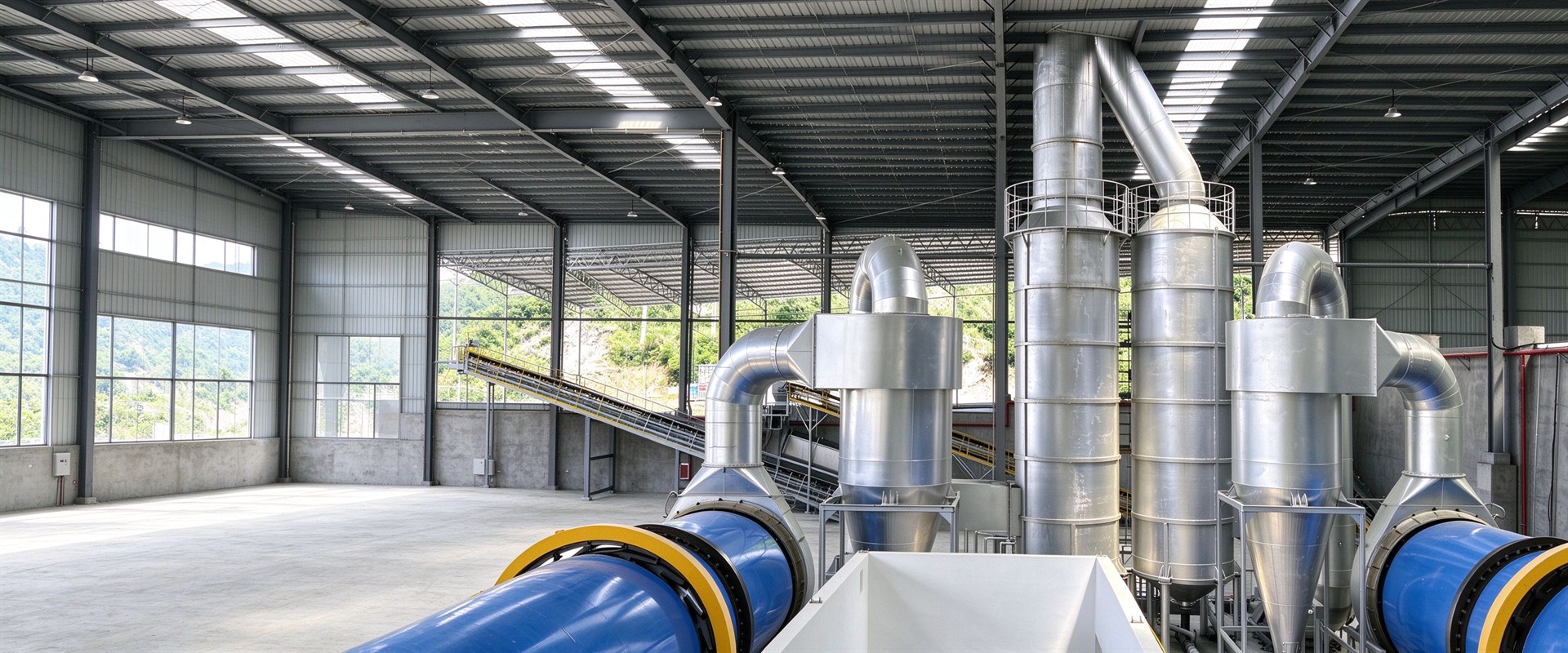

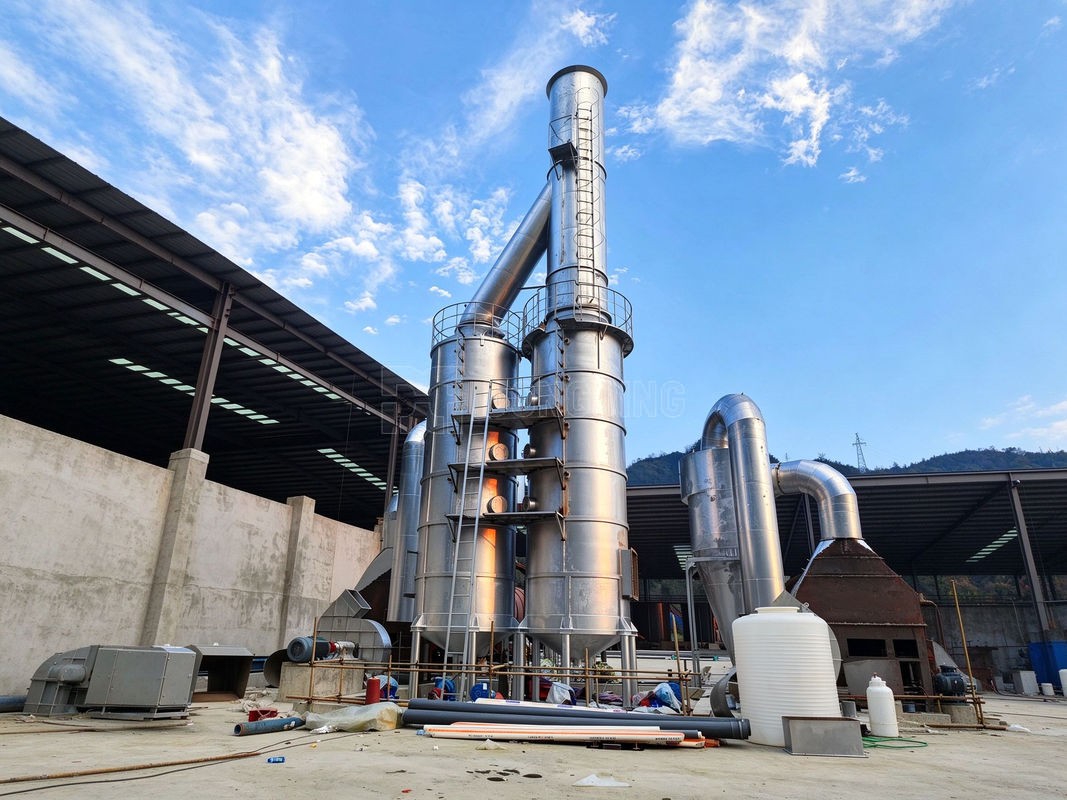

Show of Wet Dust Collector
Product Photos
Why Dongding
Learn More About Dongding® Service
Related Cases
1,100 TPD Fly Ash Drying Project
Input moistureFrom 28% to 2%
Output moisture≤ 5%
LocationMongolia
500 TPD Coal Slime Dryer Project
Input moistureFrom 35% to 10%
Output moisture≤ 10%
LocationInner Mongolia, China
300 TPD Sludge Drying Project
Input moistureFrom 80% to 15%
Output moisture≤ 15%
LocationVietnam
600 TPD Coal Slime Drying Line
Input moistureFrom 40% to 10%
Output moisture≤ 10%
LocationShanxi, China
300 TPD Bentonite Dryer Project
Input moistureFrom 25% to 8%
Output moisture≤ 8%
LocationIran
200 TPD Ore Powder Drying Project
Input moistureFrom 18% to 5%
Output moisture≤ 5%
LocationZambia
150 TPD Sludge Dewatering & Drying Project
Input moistureFrom 80% to 15
Output moisture≤ 15%
LocationJiangsu, China
1.05 TPH Yeast Drum Drying Line
Input moistureFrom 85% to 12%
Output moisture≤ 12%
LocationThailand
- 600+
- Projects Worldwide
With drying projects running across the globe, Dongding has earned long-term trust through reliable quality and responsive after-sales service.
