Introduction of Wood Pellet Manufacturing Plant
The wood pellet plant is a complete production solution for converting wood waste and other suitable biomass materials into high-density wood pellets. It is designed for the continuous processing of sawdust, wood chips, wood shavings, and other forestry and wood-processing residues. Through a series of processes including crushing, drying, pelletizing, cooling, screening, and packing, loose wood materials are converted into uniform and easy-to-handle wood fuel pellets.
As a renewable solid fuel, wood pellets are widely used in industrial boilers, heating systems, biomass power plants, and commercial heating applications. The pelletizing process increases material density, making the finished pellets easier to store, transport, and use.
Advantages of Wood Pellet Manufacturing Plant
01
Complete Production Solution
Integrates crushing, drying, pelletizing, cooling, screening, and packing into one complete production line.
02
Wide Raw Material Adaptability
Suitable for wood waste, sawdust, rice husks, straw, peanut shells, and various agricultural and forestry residues.
03
Customized Capacity
Production capacity and equipment configuration can be customized according to the customer's requirements.
04
Efficient Drying System
Effectively reduces the moisture content of high-moisture biomass materials before pelletizing.
05
High-Density Pellets
Compresses loose biomass materials into dense and uniform pellets, making storage and transportation easier.
06
Eco-Friendly and Renewable Energy
Converts agricultural and forestry waste into renewable solid fuel, helping reduce waste and reliance on fossil fuels.

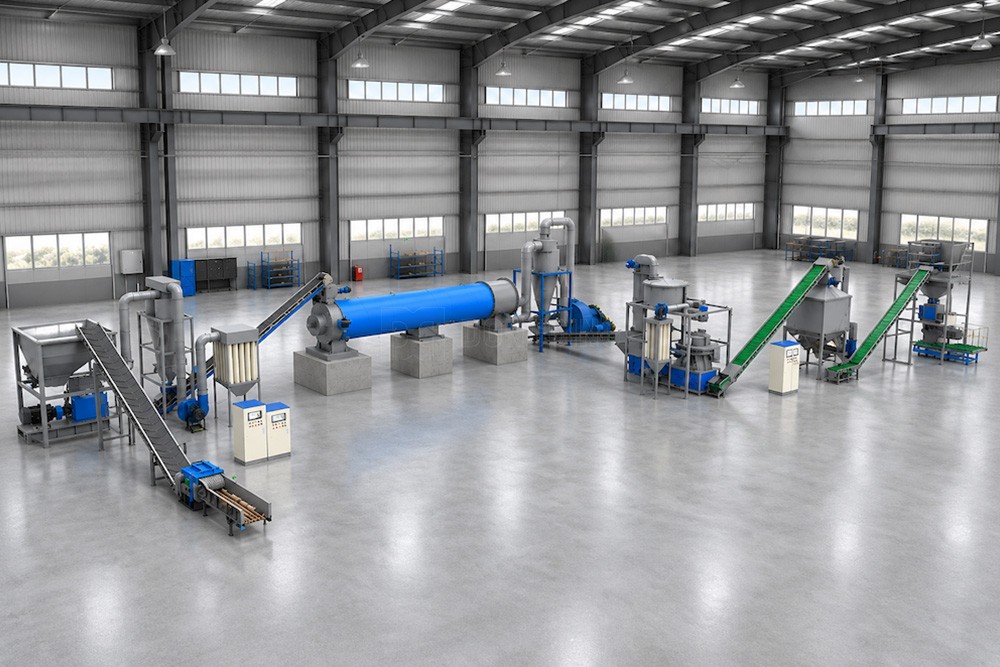

Working Principle of Wood Pellet Manufacturing Plant
1. Raw Material Handling System – Feeding and conveying wood materials.
2. Crushing & Grinding System – Reduces wood waste to a suitable particle size.
3. Drying System – Reduces moisture content to the required level for pelletizing.
4. Pelletizing System – Compresses prepared wood materials into dense pellets.
5. Cooling & Screening System – Cools fresh pellets and removes fines or unqualified particles.
6. Packing System – Packs finished wood pellets for convenient storage and transportation.
Specifications of Wood Pellet Manufacturing Plant
| Model | Capacity(t/h) | Motor power(kw) | Weight(ton) | Area(㎡) |
| DDKL1000 | 0.8-1.0 | 135 | 45 | 10x24 |
| DDKL1500 | 1.2-1.5 | 175 | 47 | 10x24 |
| DDKL2000 | 1.5-2.0 | 210 | 55 | 10x24 |
| DDKL3000 | 2.5-3.0 | 255 | 68 | 12x26 |
| DDKL5000 | 4.5-5.0 | 300 | 73 | 12x26 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

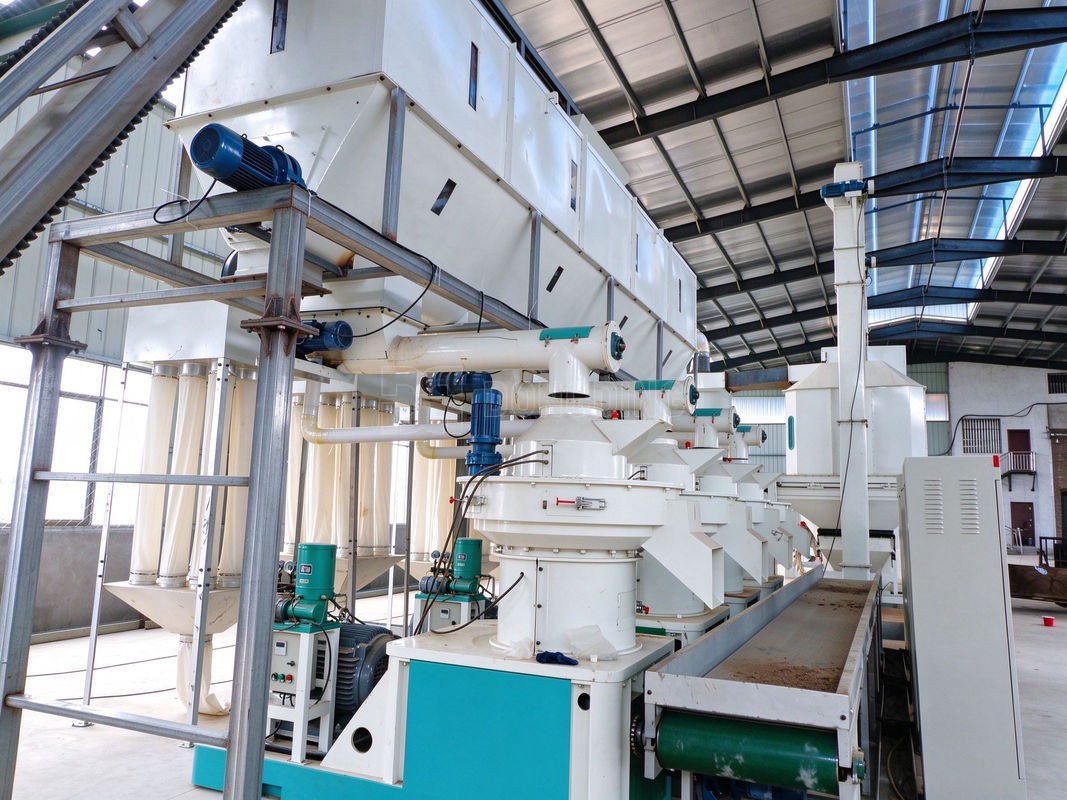

Show of Wood Pellet Manufacturing Plant
