Introduction of Sawdust & Forestry Waste Pellet Line
The Sawdust & Forestry Waste Pellet Line is designed to process sawdust, wood chips, branches, and other forestry residues into high-quality biomass pellets. The production line integrates crushing, drying, pelletizing, cooling, and packaging processes. With an efficient production process and flexible configuration, it helps convert forestry waste into renewable biomass fuel, improve resource utilization, and reduce waste.
Advantages of Sawdust & Forestry Waste Pellet Line
01
Complete Production Solution
Integrates crushing, drying, pelletizing, cooling, screening, and packing into one complete production line.
02
Wide Raw Material Adaptability
Suitable for wood waste, sawdust, rice husks, straw, peanut shells, and various agricultural and forestry residues.
03
Customized Capacity
Production capacity and equipment configuration can be customized according to the customer's requirements.
04
Efficient Drying System
Effectively reduces the moisture content of high-moisture biomass materials before pelletizing.
05
High-Density Pellets
Compresses loose biomass materials into dense and uniform pellets, making storage and transportation easier.
06
Eco-Friendly and Renewable Energy
Converts agricultural and forestry waste into renewable solid fuel, helping reduce waste and reliance on fossil fuels.

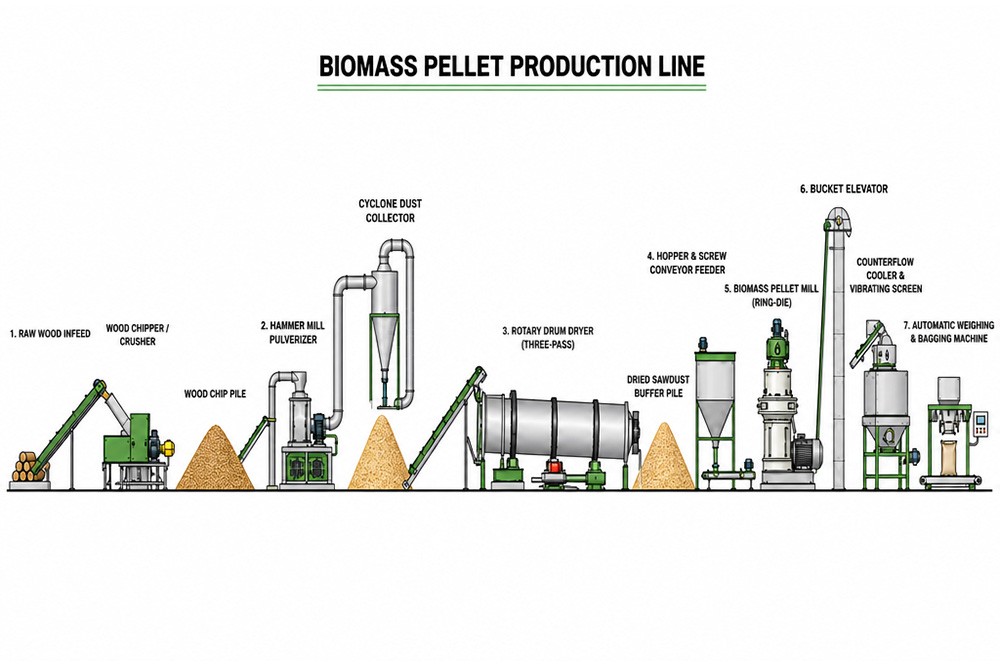

Working Principle of Sawdust & Forestry Waste Pellet Line
The complete sawdust and forestry waste pellet production line typically consists of the following equipment:
Raw Material Crushing System: Reduces wood chips, branches, and other forestry residues to suitable sizes for further processing.
Drying System: Reduces the moisture content of raw materials to meet pelletizing requirements.
Pelletizing System: Compresses the processed materials into dense, uniform biomass pellets.
Cooling System: Cools freshly produced pellets, improves the hardness, and reduces residual moisture.
Screening System: Removes fines and broken pellets to ensure consistent product quality.
Packaging System: Weighs and packs finished pellets for convenient storage, transportation, and distribution.
Specifications of Sawdust & Forestry Waste Pellet Line
| Model | Capacity(t/h) | Motor power(kw) | Weight(ton) | Area(㎡) |
| DDKL1000 | 0.8-1.0 | 135 | 45 | 10x24 |
| DDKL1500 | 1.2-1.5 | 175 | 47 | 10x24 |
| DDKL2000 | 1.5-2.0 | 210 | 55 | 10x24 |
| DDKL3000 | 2.5-3.0 | 255 | 68 | 12x26 |
| DDKL5000 | 4.5-5.0 | 300 | 73 | 12x26 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

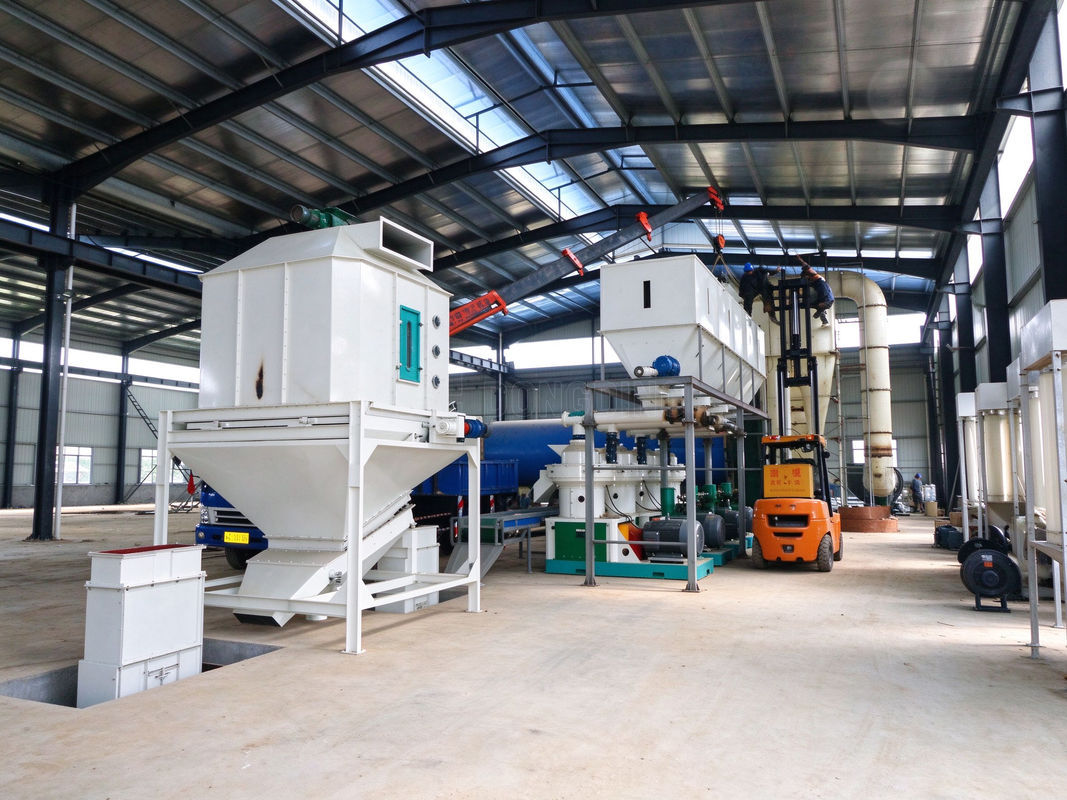

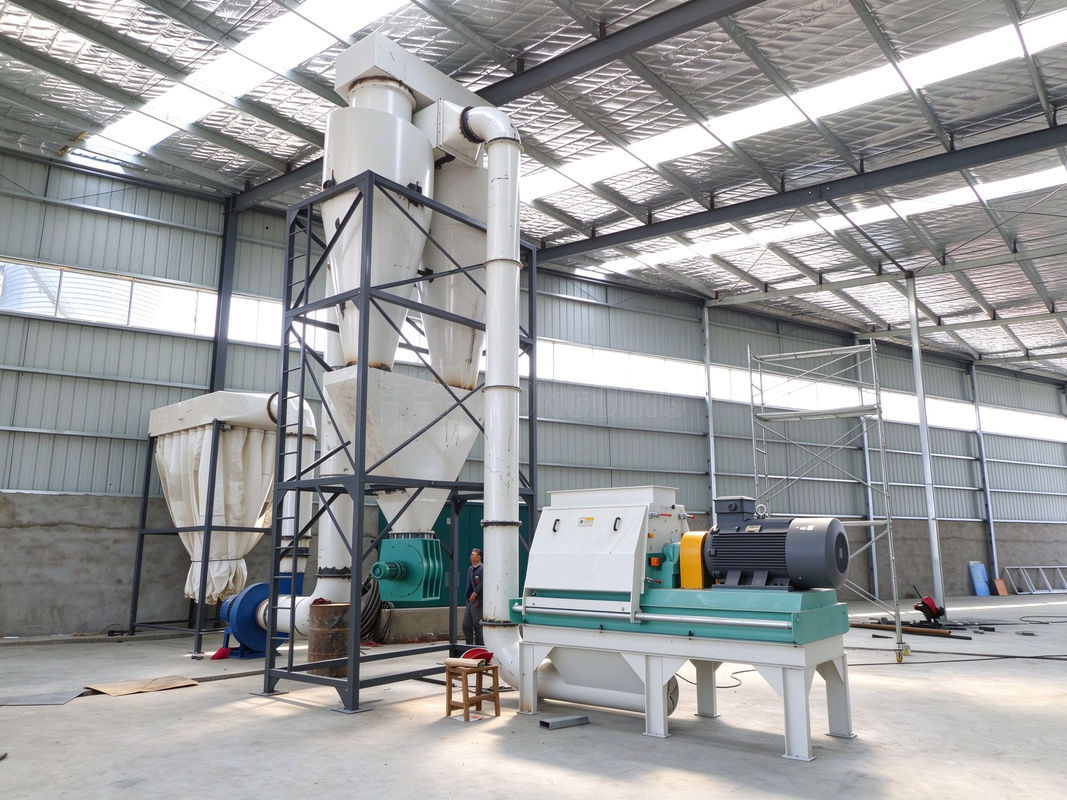

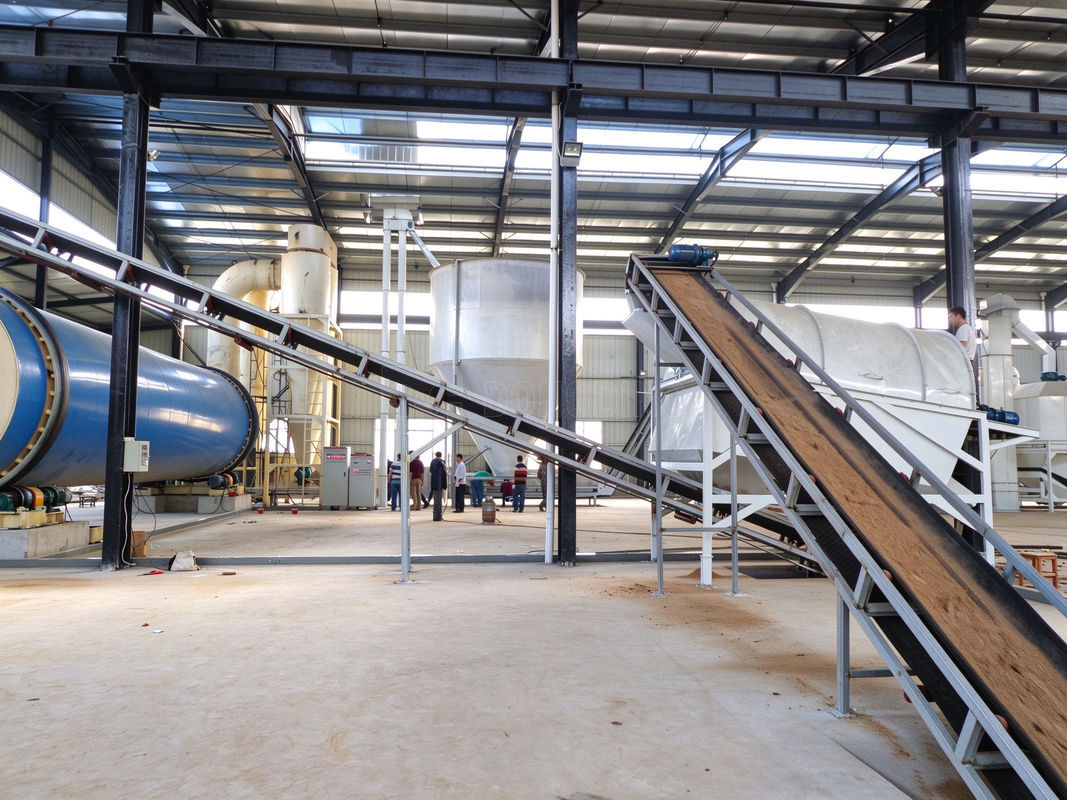

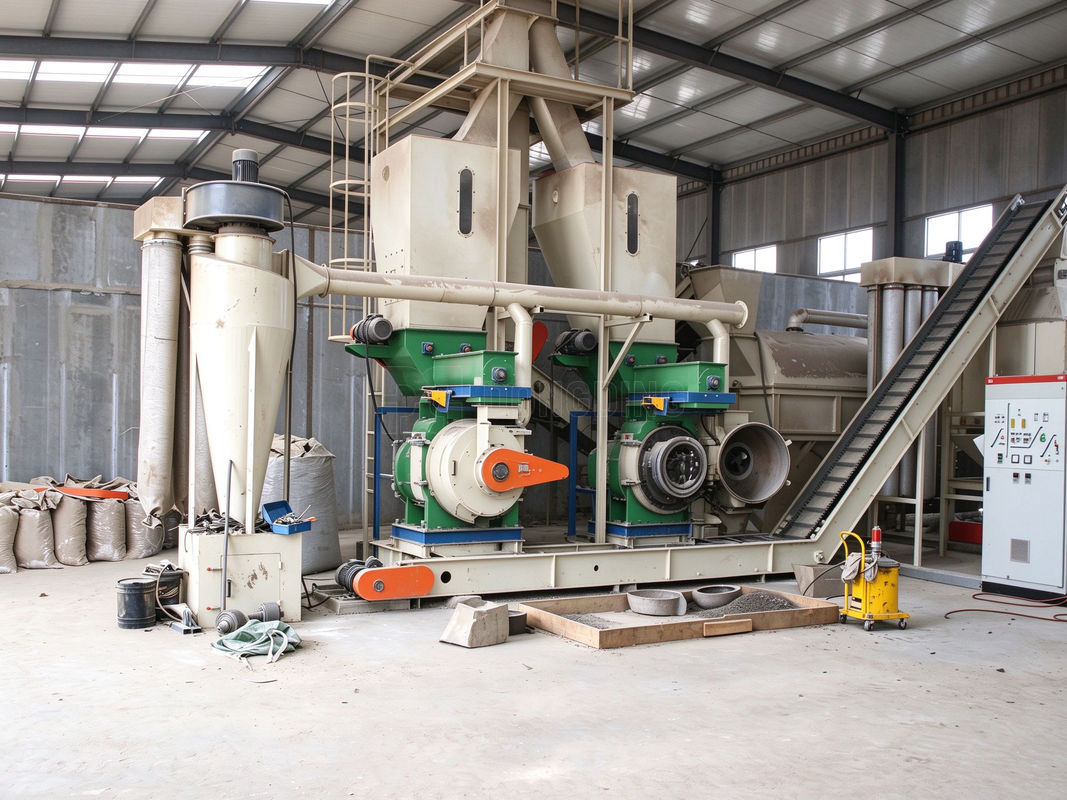

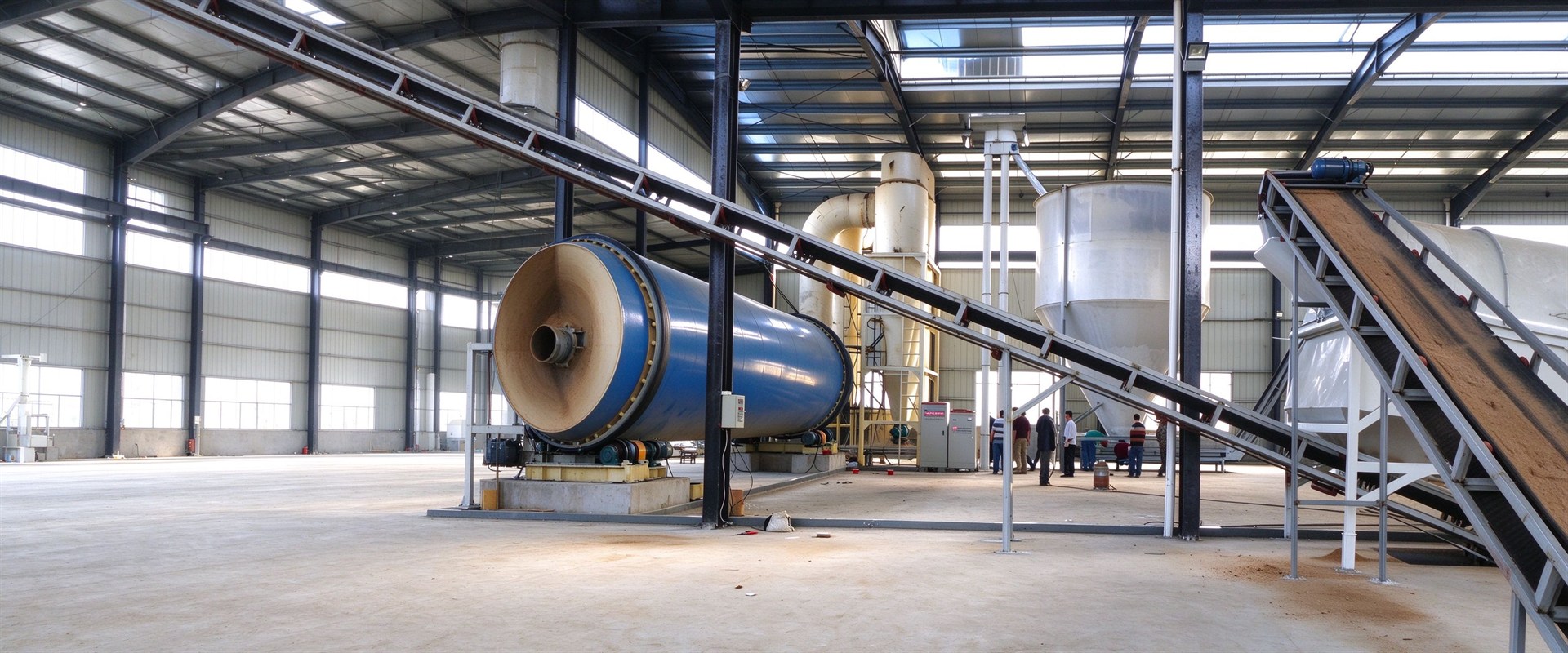

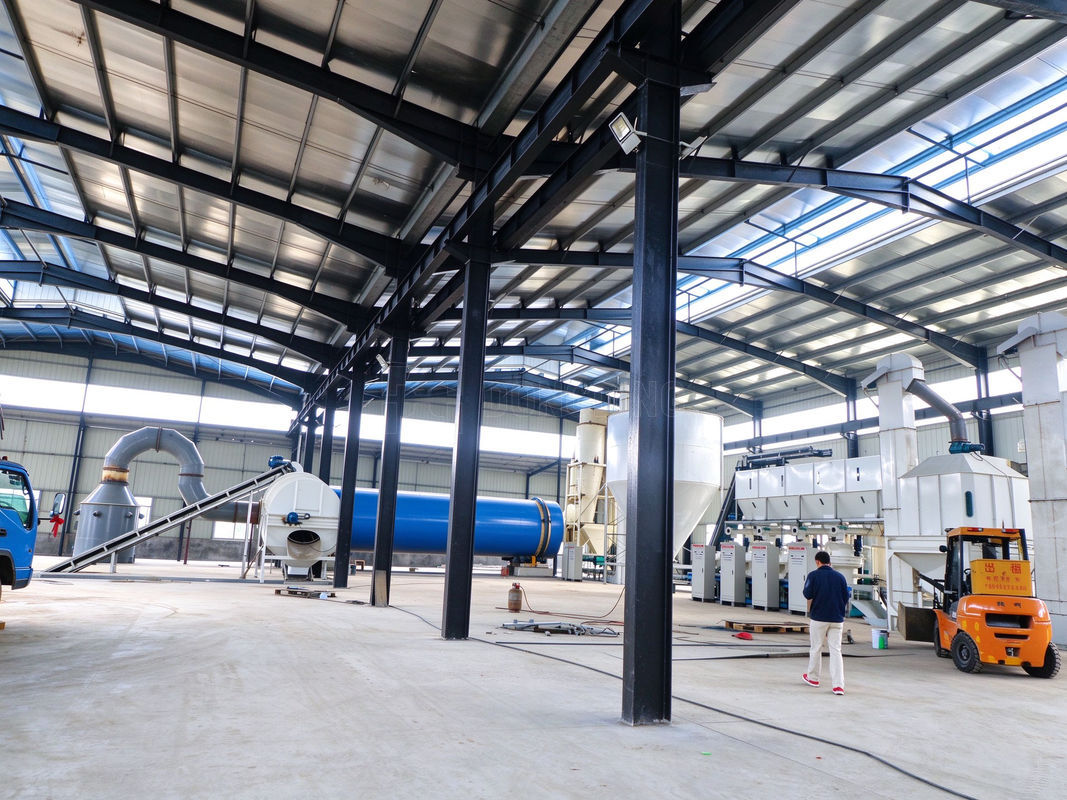

Show of Sawdust & Forestry Waste Pellet Line
