Introduction of Cassava Pulp Dryer
Cassava residue can be used as livestock feed after drying. The cassava residue dryer produced by our company can dehydrate cassava dregs with a moisture content of about 80% into final products with a moisture content of less than 12%. The dryer is equipped with specialized dehydration, temperature regulating, lifting, guiding, and dispersing devices, which effectively prevent wall sticking and blocking during operation.
Advantages of Cassava Pulp Dryer
01
Anti-Sticking Structure
After being broken up and crushed in the channel, the material becomes loose and less viscous, eliminating wall sticking during drying.
02
Low Energy Consumption
A special heat source and heat-preservation system effectively reduce energy consumption.
03
Sealed & Dust-Free
A unique sealing structure and a complete dust-removal device prevent dust overflow.
04
Adjustable Operation
Operating parameters can be adjusted to different material properties for a stable full-break fabric curtain and efficient mass and heat exchange.
05
PLC Control
Centralized electrical control offers high automation and ease of operation; the line can connect to crushing, mixing, granulating and packaging sections.
06
Deep-Processing Options
Follow-up sections such as crushing, mixing, granulating, baling and briquetting can be added to enhance deep processing.

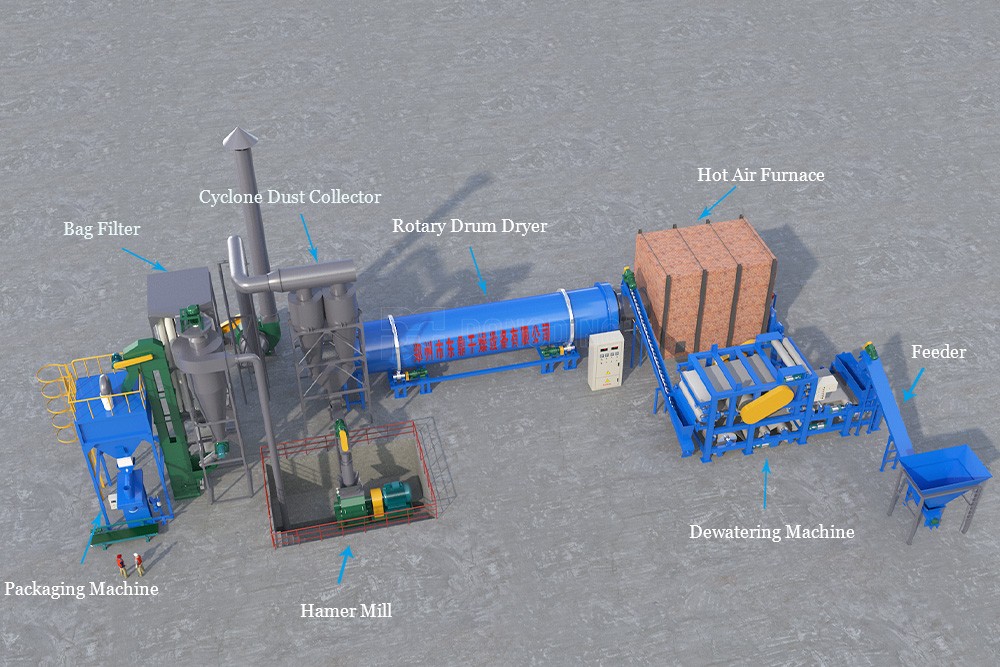

Working Principle of Cassava Pulp Dryer
We can provide a complete dryer plant, which includes heating part, feeding machine, crushing machine, rotary dryer, discharging machine, and cyclone dust collector, etc. This cassava residue dryer plant is suitable for drying cassava residue, potato residue, cassava pulp, and bean dregs, etc.
Specifications of Cassava Pulp Dryer
| Device Specification | DDJG1210 | DDJG1410 | DDJG1610 | DDJG2010/3 | DDJG2210/3 | DDJG2510/3 | DDJG2512/3 | DDJG2912/3 |
| Daily Processing Capacity(t/d) | 33.6 | 40.8 | 58.9 | 131.4 | 145.0 | 167.7 | 204.0 | 247.0 |
| Daily Output(t/d) | 15.6 | 19.2 | 27.7 | 61.8 | 68.2 | 78.9 | 96.0 | 116.2 |
| Water Evaporation Capacity (t/h) | 0.75 | 0.90 | 1.30 | 2.90 | 3.20 | 3.70 | 4.50 | 5.45 |
| Raw Material Water Content(%) | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
| Dried Material Water Content(%) | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） |
| Drying Temperature(℃) | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 |
| Total Weight(kg) | 32 | 40 | 55 | 95 | 100 | 125 | 145 | 165 |
| Plant Area(㎡) | 15000 | 17000 | 21500 | 26500 | 28500 | 370000 | 41000 | 45500 |
| Device Specification(m) | 5*14 | 5*14 | 6*16 | 8*16 | 8*16 | 10*16 | 10*18 | 10*20 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

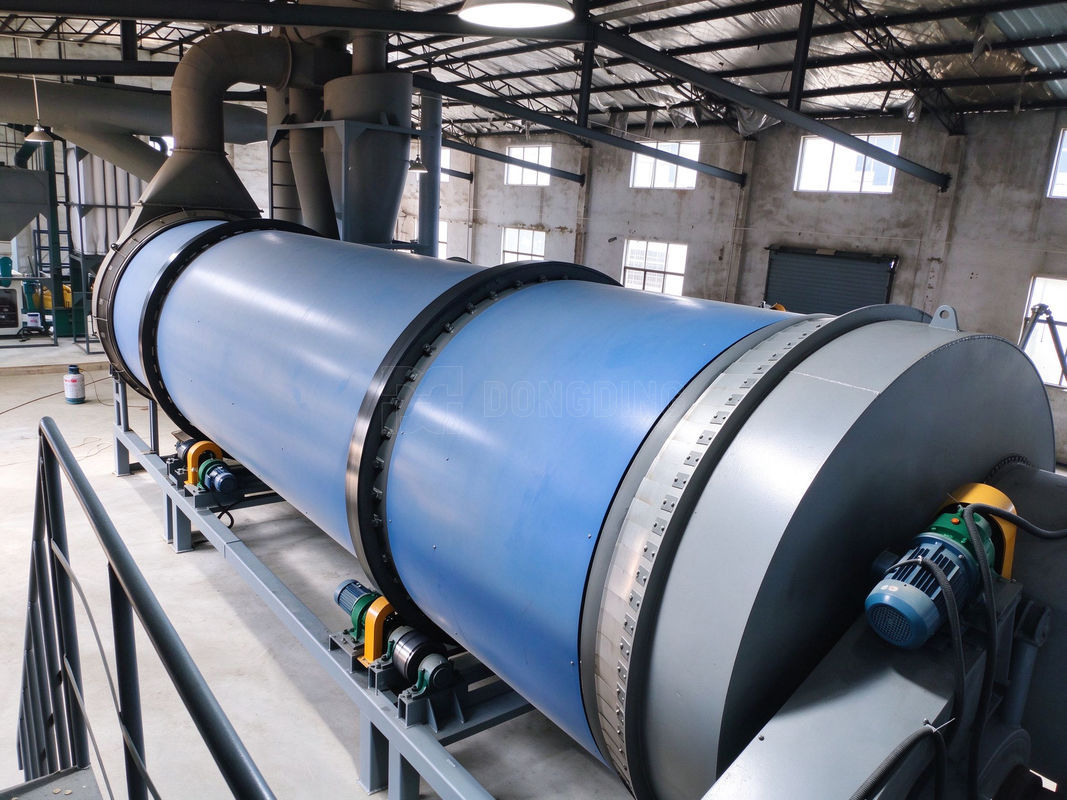

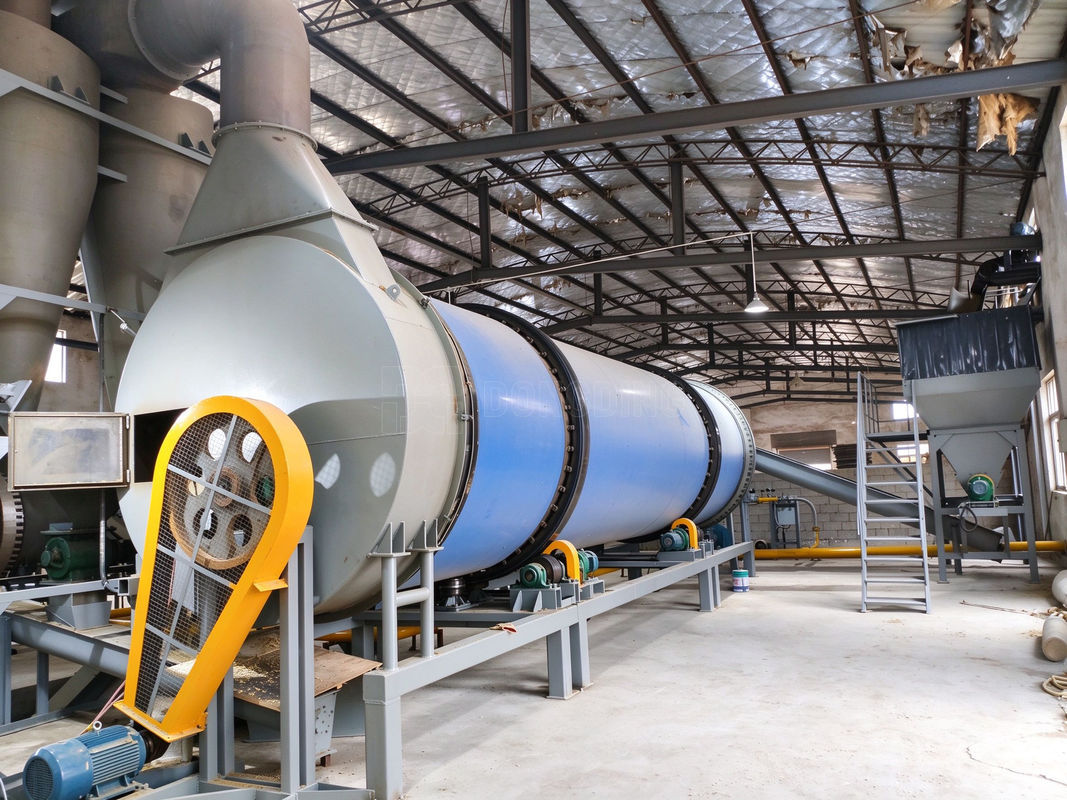

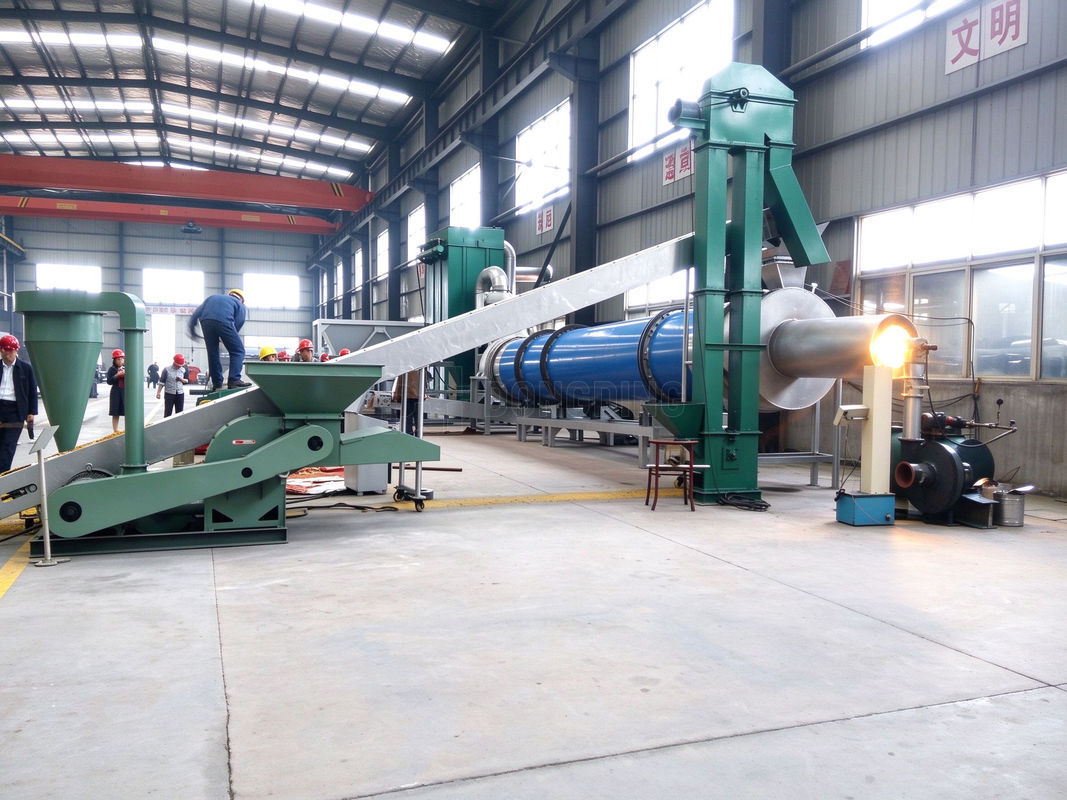

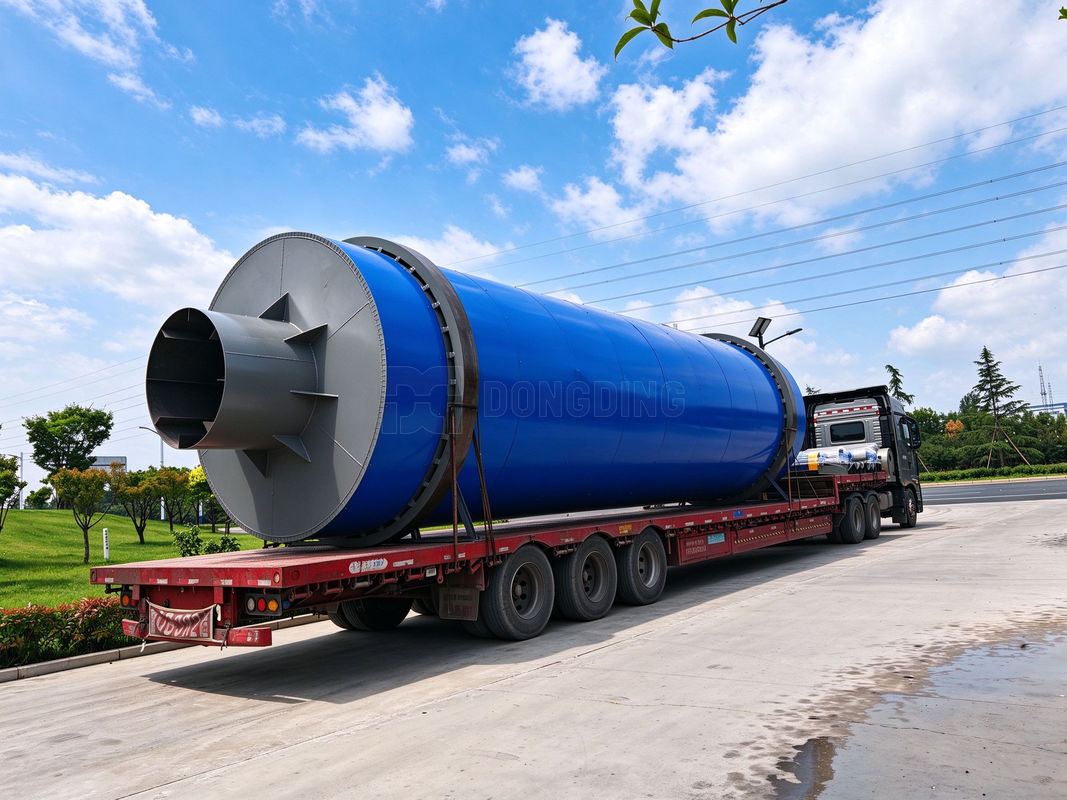

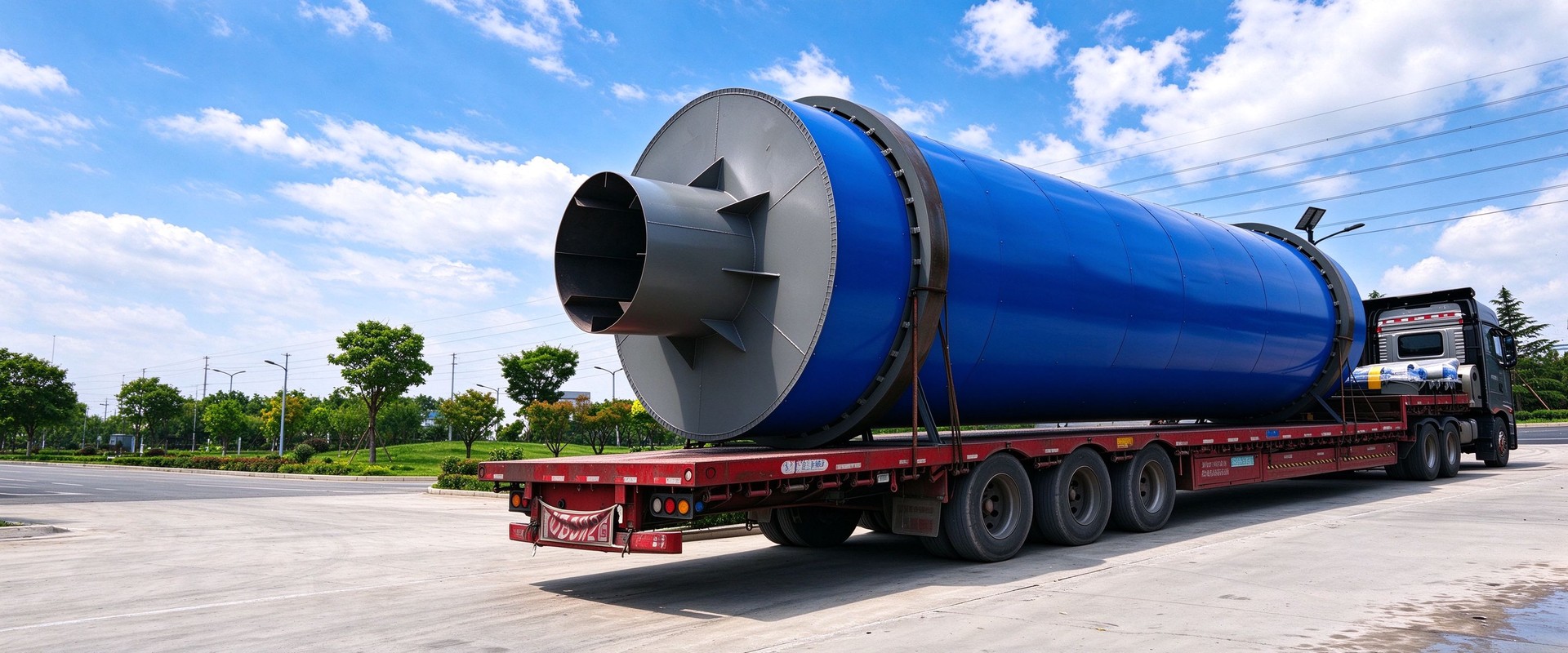

Show of Cassava Pulp Dryer
Product Photos
Why Dongding
Learn More About Dongding® Service
Related Cases
1,100 TPD Fly Ash Drying Project
Input moistureFrom 28% to 2%
Output moisture≤ 5%
LocationMongolia
500 TPD Coal Slime Dryer Project
Input moistureFrom 35% to 10%
Output moisture≤ 10%
LocationInner Mongolia, China
300 TPD Sludge Drying Project
Input moistureFrom 80% to 15%
Output moisture≤ 15%
LocationVietnam
600 TPD Coal Slime Drying Line
Input moistureFrom 40% to 10%
Output moisture≤ 10%
LocationShanxi, China
300 TPD Bentonite Dryer Project
Input moistureFrom 25% to 8%
Output moisture≤ 8%
LocationIran
200 TPD Ore Powder Drying Project
Input moistureFrom 18% to 5%
Output moisture≤ 5%
LocationZambia
150 TPD Sludge Dewatering & Drying Project
Input moistureFrom 80% to 15
Output moisture≤ 15%
LocationJiangsu, China
1.05 TPH Yeast Drum Drying Line
Input moistureFrom 85% to 12%
Output moisture≤ 12%
LocationThailand
- 600+
- Projects Worldwide
With drying projects running across the globe, Dongding has earned long-term trust through reliable quality and responsive after-sales service.
