Introduction of Animal Manure Dryer
The animal manure rotary dryer is a high-efficiency, continuous drying equipment specifically designed for processing high-moisture, high-viscosity organic waste, such as livestock manure (cow dung, chicken manure, pig manure). This equipment rapidly reduces the moisture content of manure (usually from 60%-80% to 10%-30%) through multi-stage contact between high-temperature hot air and the material. The drying process produces dry, odorless organic fertilizer raw materials or feed that are easy to store or further process. Its enclosed operating mode effectively reduces environmental pollution while achieving the resource utilization of waste, making it widely used in farms, organic fertilizer plants, and environmental protection projects.
Advantages of Animal Manure Dryer
01
High Drying Efficiency
Reducing energy consumption by 30%-50% compared to traditional drying equipment.
02
Continuous production
Continuous production enables processing capacities of 1-16 tons per hour, meeting large-scale demands.
03
Flexibility and Intelligence
Supports diverse heat sources (natural gas, biomass, etc.) and parameter adjustments (rotation speed, angle of inclination) to accommodate different material characteristics.
04
Intelligent Control System
The automated control system enables one-button operation, requiring only 2-3 people to manage the entire line.
05
Long-time Service
High-temperature and corrosion-resistant materials extend the equipment's lifespan and lower maintenance costs.
06
Wide Applications
Widely used in livestock and poultry manure treatment, organic fertilizer production, feed processing, and environmental engineering for drying high-moisture organic materials.

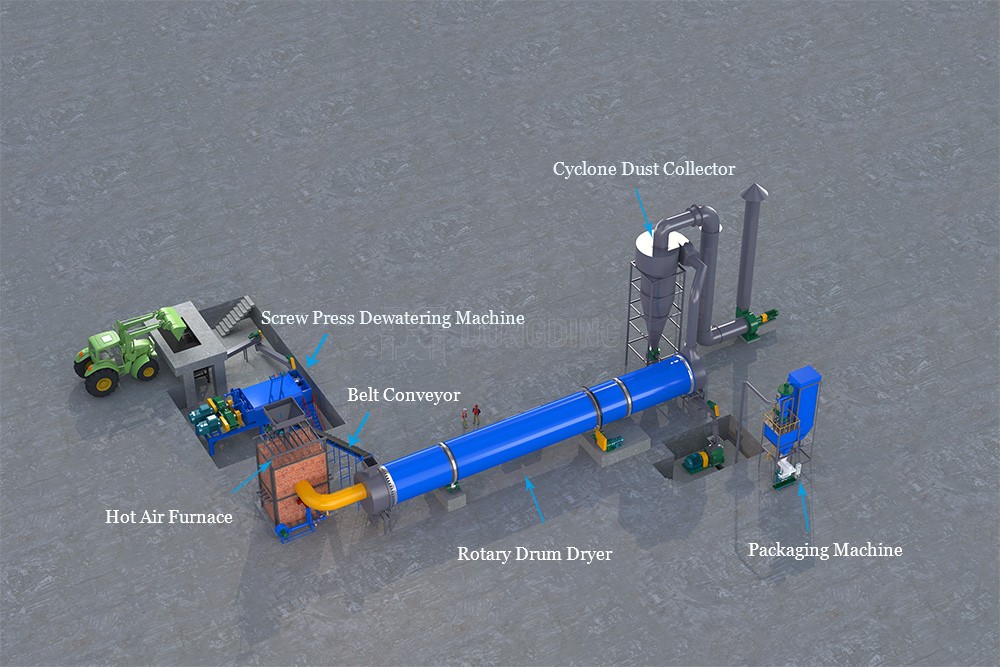

Working Principle of Animal Manure Dryer
The animal manure dryer mainly consists of a heat source, feeding machine, conveyor, rotary drum, discharging machine, induced draft fan, discharge conveyor, and electrical control cabinet.
First, the wet material is fed into the rotary drum. As the drum rotates, the lifting plates continuously lift and scatter the material, allowing it to come into full contact with the hot air. During the drying process, the material gradually moves toward the discharge end under the combined effects of the drum's inclination and rotation. Finally, the dried material is discharged through the outlet, completing the drying process.
Specifications of Animal Manure Dryer
| Device Specification | DDJG1210 | DDJG1410 | DDJG1610 | DDJG2010/3 | DDJG2210/3 | DDJG2510/3 | DDJG2512/3 | DDJG2912/3 |
| Daily Processing Capacity(t/d) | 33.6 | 40.8 | 58.9 | 131.4 | 145.0 | 167.7 | 204.0 | 247.0 |
| Daily Output(t/d) | 15.6 | 19.2 | 27.7 | 61.8 | 68.2 | 78.9 | 96.0 | 116.2 |
| Water Evaporation Capacity (t/h) | 0.75 | 0.90 | 1.30 | 2.90 | 3.20 | 3.70 | 4.50 | 5.45 |
| Raw Material Water Content(%) | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
| Dried Material Water Content(%) | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） |
| Drying Temperature(℃) | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 |
| Total Weight(kg) | 32 | 40 | 55 | 95 | 100 | 125 | 145 | 165 |
| Plant Area(㎡) | 15000 | 17000 | 21500 | 26500 | 28500 | 370000 | 41000 | 45500 |
| Device Specification(m) | 5*14 | 5*14 | 6*16 | 8*16 | 8*16 | 10*16 | 10*18 | 10*20 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

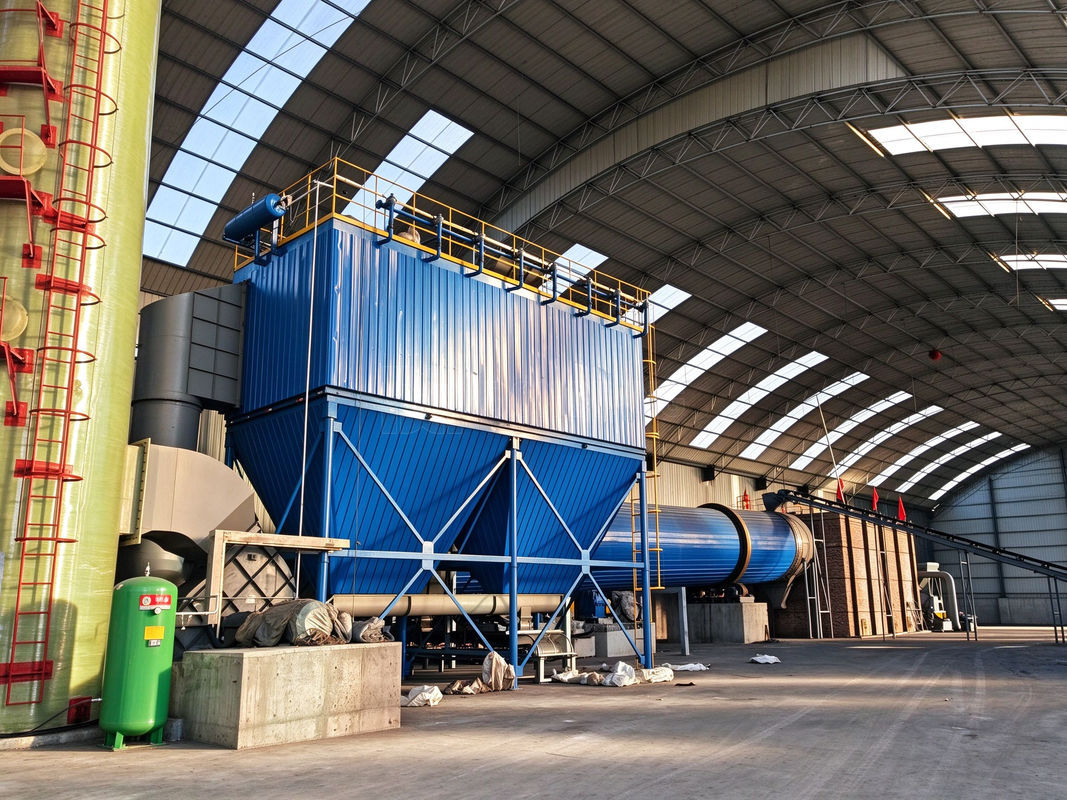

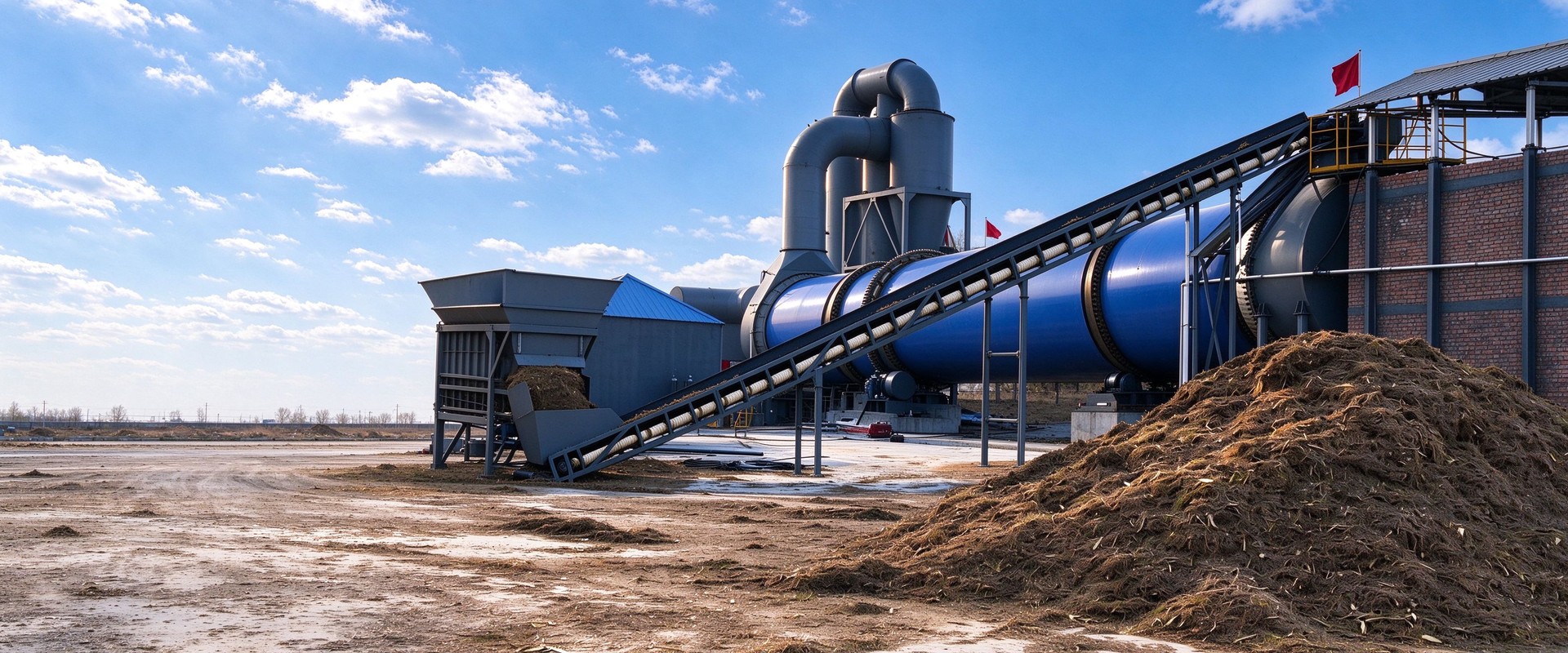

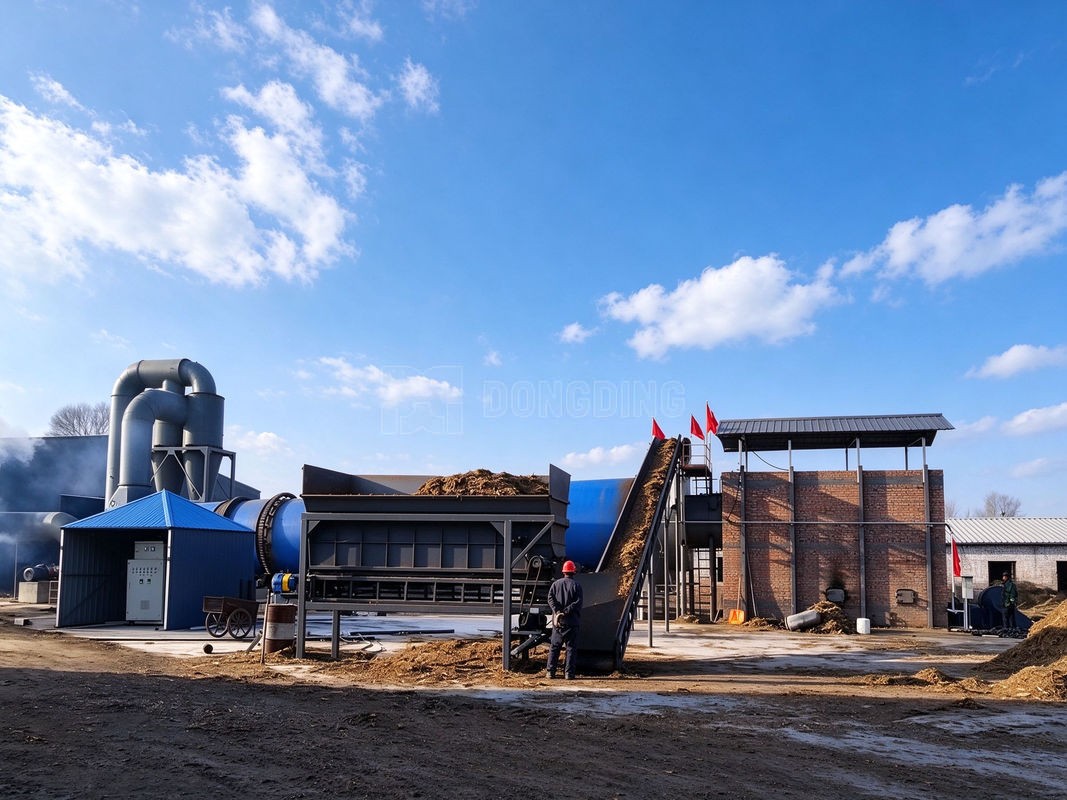

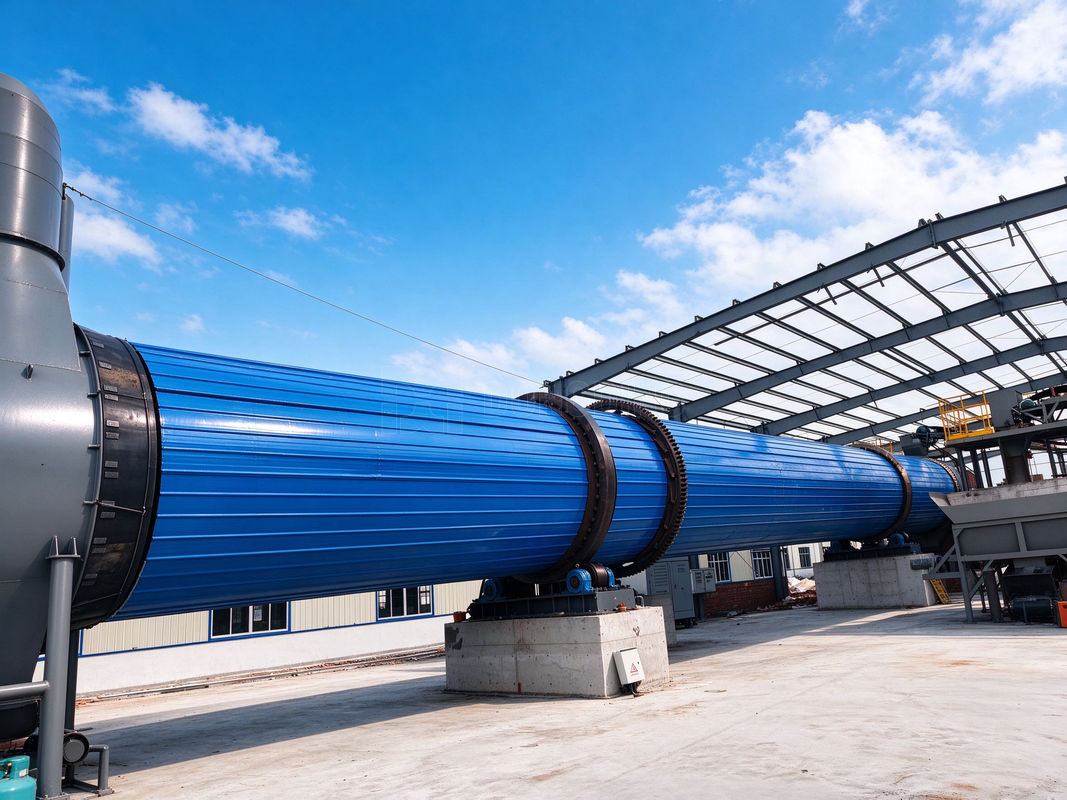

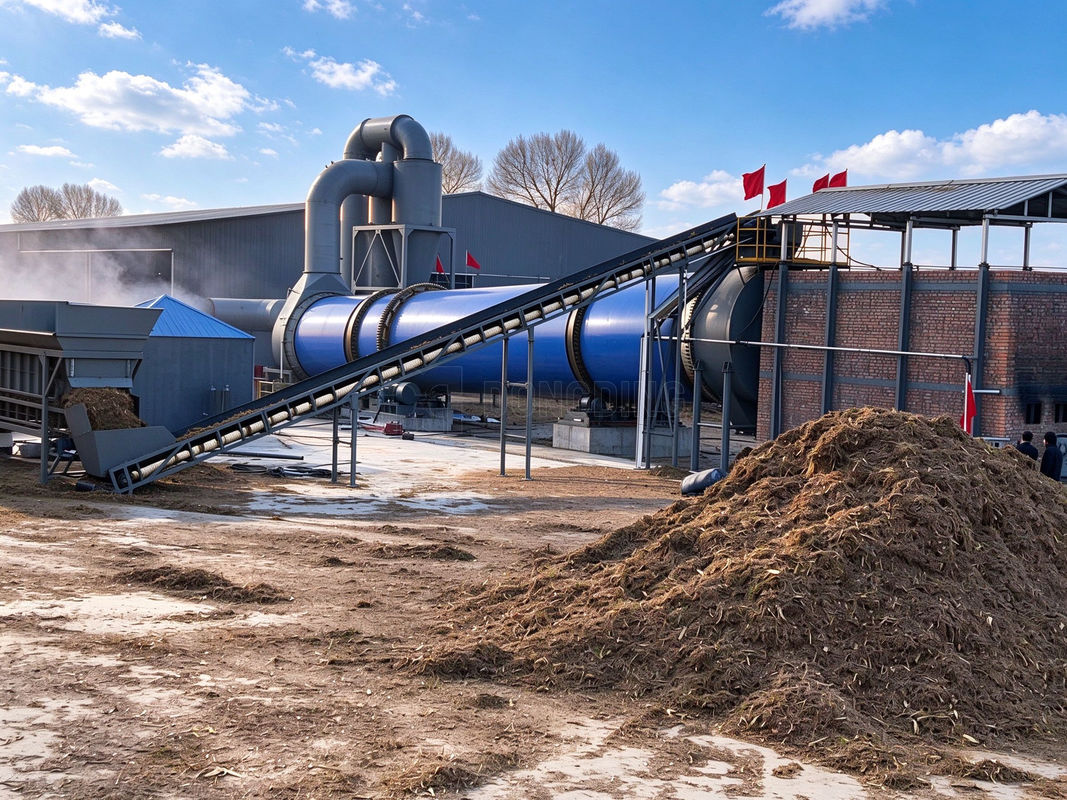

Show of Animal Manure Dryer
Product Photos
Why Dongding
Learn More About Dongding® Service
Related Cases
1,100 TPD Fly Ash Drying Project
Input moistureFrom 28% to 2%
Output moisture≤ 5%
LocationMongolia
500 TPD Coal Slime Dryer Project
Input moistureFrom 35% to 10%
Output moisture≤ 10%
LocationInner Mongolia, China
300 TPD Sludge Drying Project
Input moistureFrom 80% to 15%
Output moisture≤ 15%
LocationVietnam
600 TPD Coal Slime Drying Line
Input moistureFrom 40% to 10%
Output moisture≤ 10%
LocationShanxi, China
300 TPD Bentonite Dryer Project
Input moistureFrom 25% to 8%
Output moisture≤ 8%
LocationIran
200 TPD Ore Powder Drying Project
Input moistureFrom 18% to 5%
Output moisture≤ 5%
LocationZambia
150 TPD Sludge Dewatering & Drying Project
Input moistureFrom 80% to 15
Output moisture≤ 15%
LocationJiangsu, China
1.05 TPH Yeast Drum Drying Line
Input moistureFrom 85% to 12%
Output moisture≤ 12%
LocationThailand
- 600+
- Projects Worldwide
With drying projects running across the globe, Dongding has earned long-term trust through reliable quality and responsive after-sales service.
Frequently Asked Questions
Common questions about our rotary dryers — pricing, customization, installation and after-sales.
A:
Please share your raw material, initial and target moisture content, required capacity (t/h), available fuel or heat source, and your target market. With these details our engineers can recommend the right model and send an accurate quotation.
A:
As a manufacturer, we accept orders starting from a single machine. We can also deliver complete drying production lines with auxiliary equipment such as hot air furnaces and dust collectors. Contact us for tailored pricing.
A:
Standard models are usually delivered within 25-40 days after the deposit. Customized machines or larger production lines may take longer depending on the configuration. The exact schedule is confirmed in your contract.
A:
Yes. Every dryer is engineered around your material, capacity, moisture and site layout. Heat source, material of construction, dust collection and automation level can all be customized to your process.
A:
Yes. We provide installation guidance, commissioning, operator training and lifetime after-sales support. Our engineers can also travel to your site, and all equipment comes with a warranty.
