Introduction of Straw Dryer
Straw dryer is widely used for drying corn straw, soybean straw, cotton straw, wheat straw, sorghum straw, forage, ginkgo leaf, mulberry leaf and other agricultural cellulose materials. For small capacity requirements, it can be met by the single path rotary drum dryer, for large capacity, the three (triple) pass rotary drum dryer is recommended. The large-scale straw dryer has the advantages of high drying speed, automatic control, stable and reliable operation. Our company can also provide straw crushing and straw forming machine or straw pelleting system according to customers' needs in order to make a one-stop solution for our customers.
Advantages of Straw Dryer
01
High Drying Efficiency
Inner structure designed for straw with high drying efficiency of up to 90–95%.
02
PLC & Video Monitoring
Equipped with a PLC system and video monitoring for a high degree of automation and simple operation.
03
No Heat Leakage
A unique sealing structure prevents thermal energy leakage.
04
Automatic Impurity Removal
Impurities and iron are automatically removed so they do not enter the subsequent drying process.
05
Multiple Heat Sources
Customers can choose the heat source that fits their situation, and we can provide customized solutions.
06
Low Investment
Low investment, low operating cost and a short investment-recovery time.

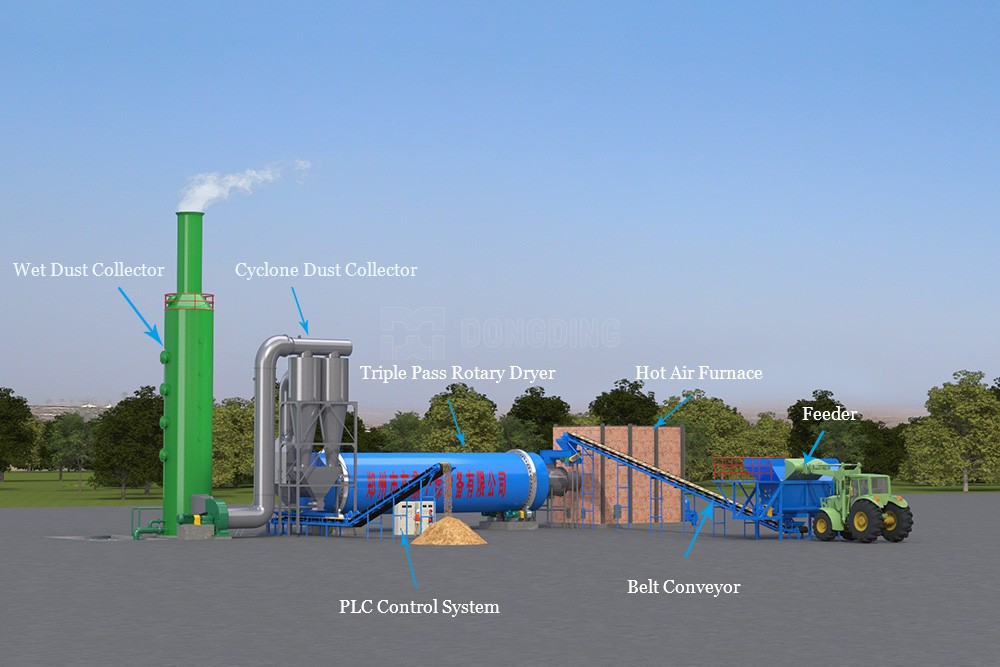

Working Principle of Straw Dryer
Firstly, straw (crushed if needed) is transported to the rotary drum dryer by the belt conveyor. The material moves to the end of the dryer body, during which process the wet material gets fully contact with the hot air. After drying, most of the dry material is discharged through the belt conveyor. The remaining material mixed with dust goes into the cyclone dust collector and the bag dust collector in sequence, where the dust is collected. Lastly, with the function of the induced draft fan, the remaining material is discharged through the conveyor.
Specifications of Straw Dryer
| Device Specification | DDJG1210 | DDJG1410 | DDJG1610 | DDJG2010/3 | DDJG2210/3 | DDJG2510/3 | DDJG2512/3 | DDJG2912/3 |
| Daily Processing Capacity(t/d) | 33.6 | 40.8 | 58.9 | 131.4 | 145.0 | 167.7 | 204.0 | 247.0 |
| Daily Output(t/d) | 15.6 | 19.2 | 27.7 | 61.8 | 68.2 | 78.9 | 96.0 | 116.2 |
| Water Evaporation Capacity (t/h) | 0.75 | 0.90 | 1.30 | 2.90 | 3.20 | 3.70 | 4.50 | 5.45 |
| Raw Material Water Content(%) | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
| Dried Material Water Content(%) | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） |
| Drying Temperature(℃) | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 |
| Total Weight(kg) | 32 | 40 | 55 | 95 | 100 | 125 | 145 | 165 |
| Plant Area(㎡) | 15000 | 17000 | 21500 | 26500 | 28500 | 370000 | 41000 | 45500 |
| Device Specification(m) | 5*14 | 5*14 | 6*16 | 8*16 | 8*16 | 10*16 | 10*18 | 10*20 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

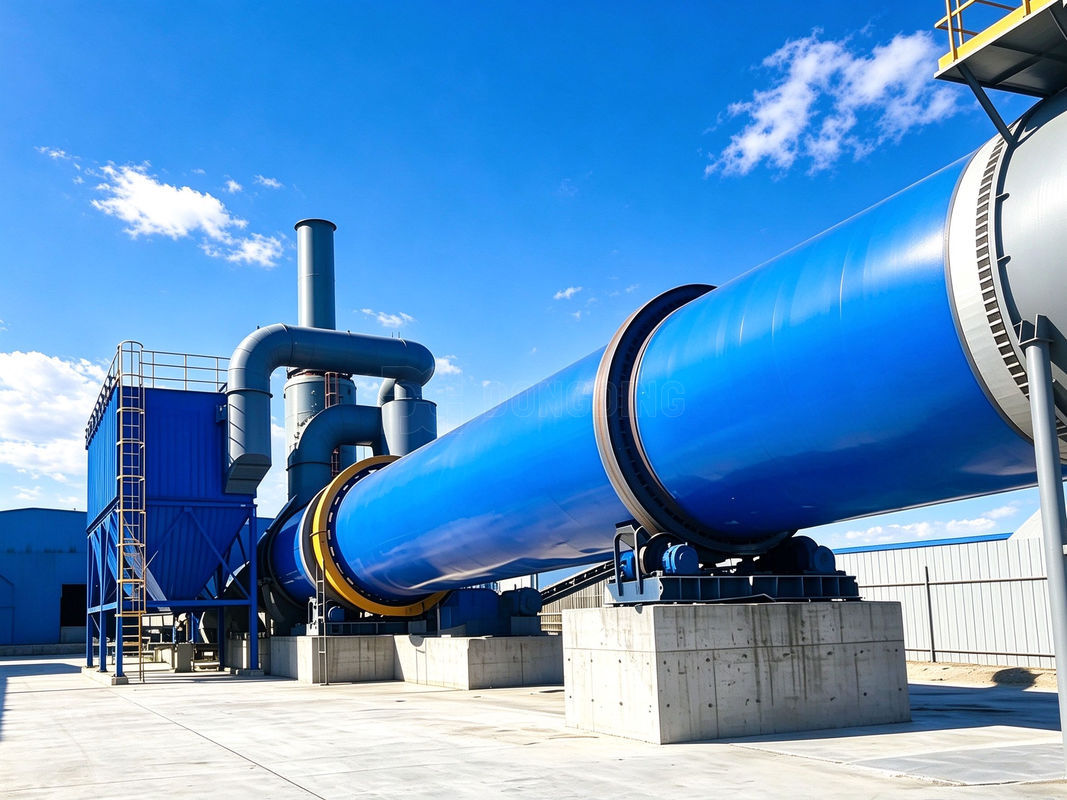

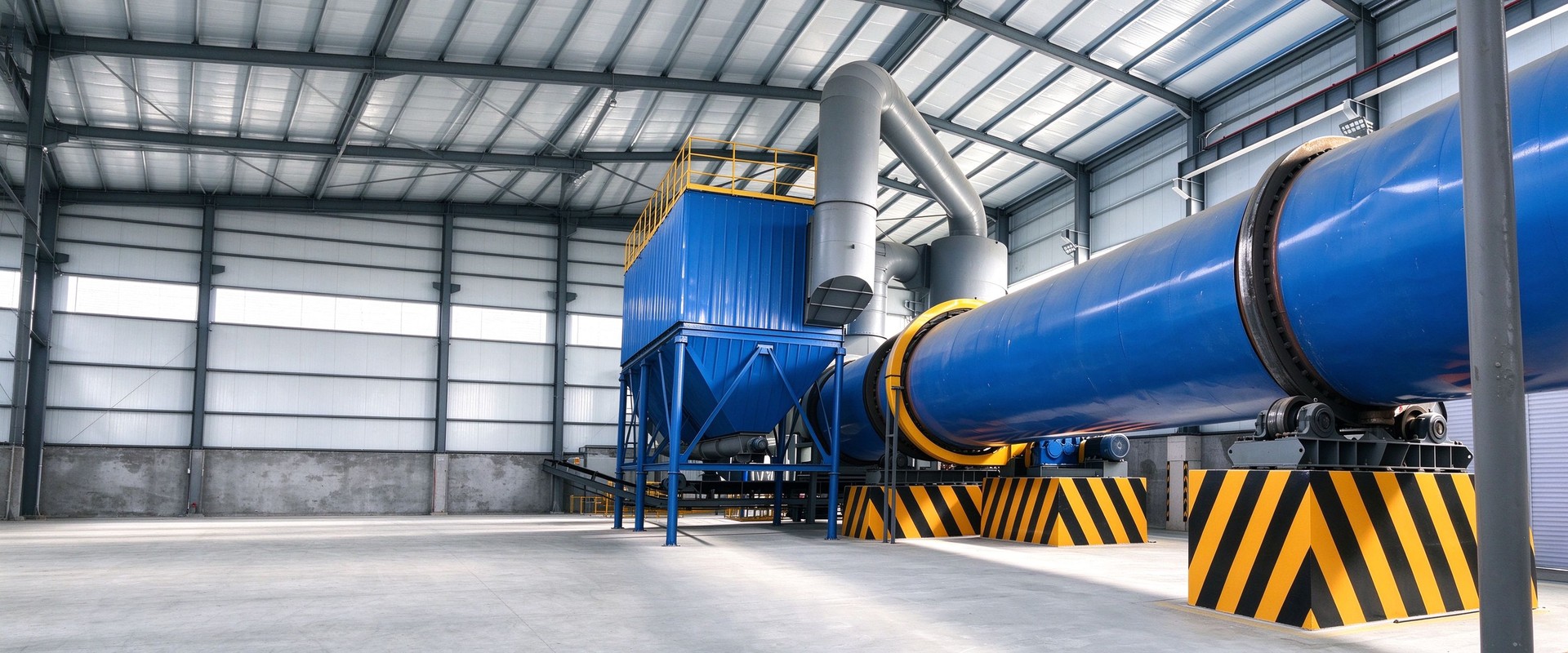

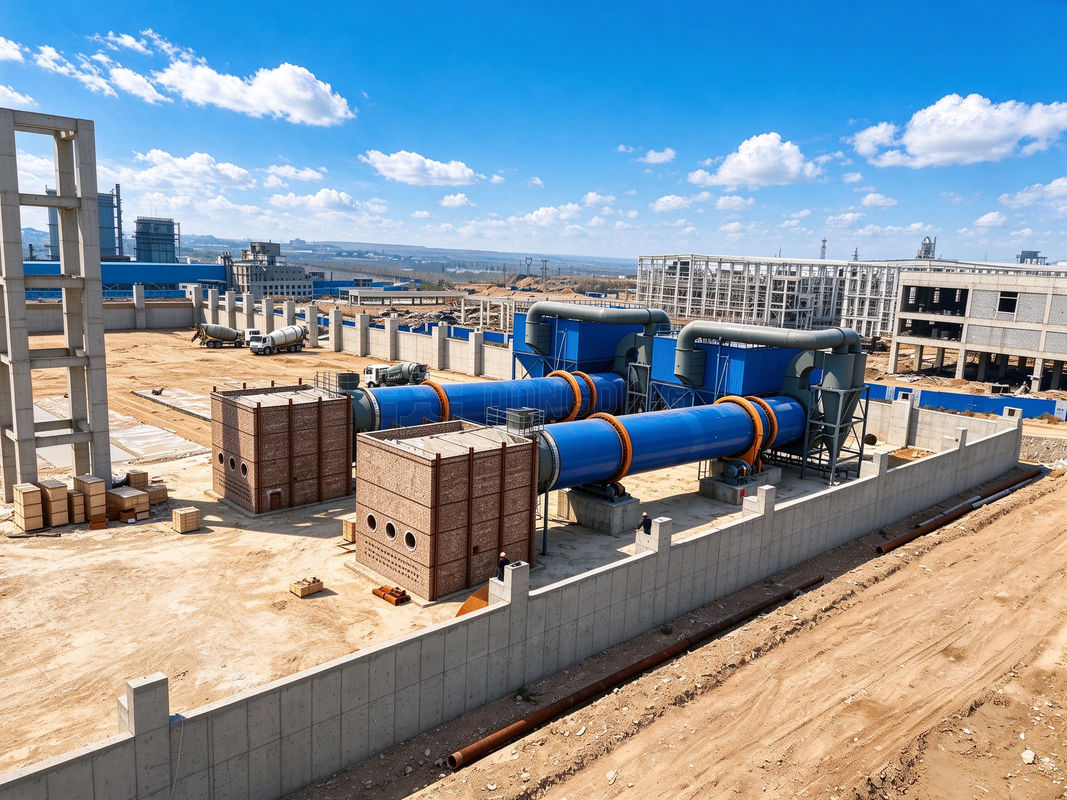

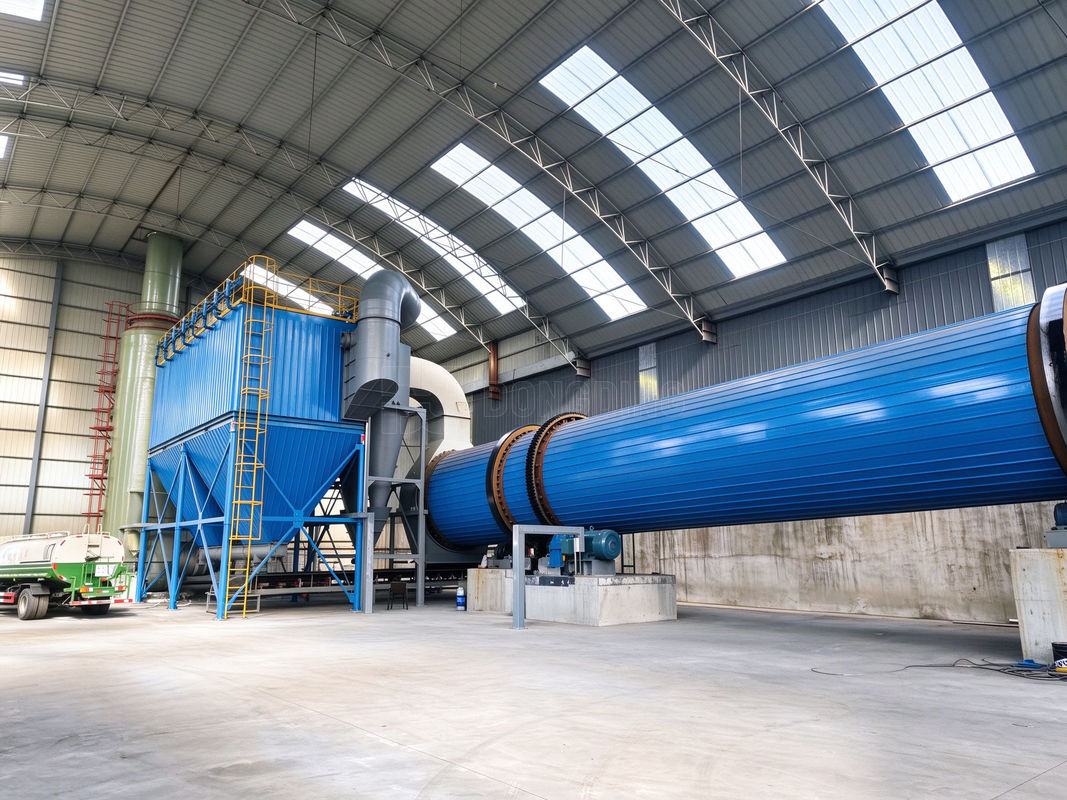

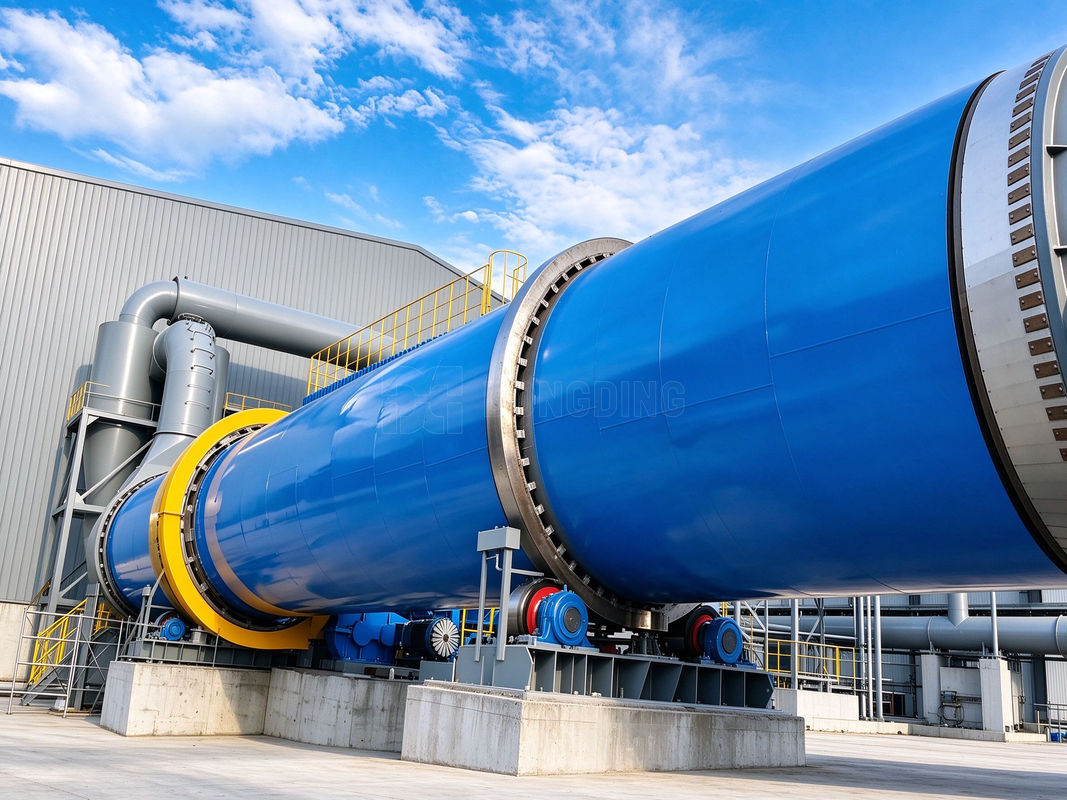

Show of Straw Dryer
