Introduction of Coffee Grounds Dryer
Spent Coffee Grounds (SCG), a common by-product of coffee production, contain a high moisture content of approximately 85%, making them difficult to store, transport, and reuse. Our coffee grounds drying system adopts an efficient pre-dewatering and drying process to reduce the moisture content to around 10%, preparing the material for further processing and utilization.
For a complete processing solution, we also offer integrated pelletizing systems that convert dried coffee grounds into biomass fuel pellets and other value-added products. This enables customers to achieve a convenient and efficient one-stop solution, from wet coffee grounds to finished pellets.
Advantages of Coffee Grounds Dryer
01
High Drying Efficiency
Inner structure designed for coffee grounds with high drying efficiency of up to 90–95%.
02
PLC & Video Monitoring
Equipped with PLC and video monitoring systems for a high degree of automation and simple operation.
03
No Heat Leakage
A unique sealing structure prevents thermal energy leakage.
04
Automatic Impurity Removal
Impurities and iron are automatically removed so they do not enter the subsequent drying process.
05
Multiple Heat Sources
Customers can choose the heat source that fits their needs, and we can design customized solutions.
06
Low Investment
Low operating cost and a short investment-recovery time.

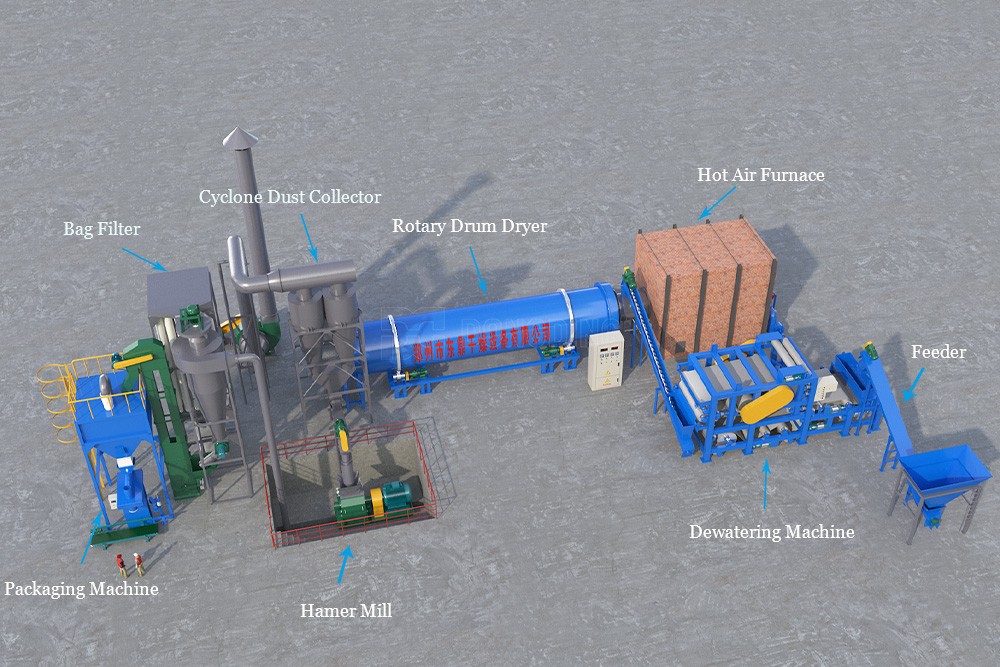

Working Principle of Coffee Grounds Dryer
First, the wet coffee grounds are conveyed to the rotary drum dryer by a belt conveyor. As the material moves through the dryer, it comes into full contact with the hot air, allowing the moisture to evaporate efficiently. After drying, most of the dried coffee grounds are discharged through the outlet and conveyed by a belt conveyor. The remaining fine particles and dust are carried into the cyclone dust collector and then the baghouse dust collector, where they are separated and collected. Finally, with the assistance of the induced draft fan, the collected material is discharged through the conveyor.
Specifications of Coffee Grounds Dryer
| Device Specification | DDJG1210 | DDJG1410 | DDJG1610 | DDJG2010/3 | DDJG2210/3 | DDJG2510/3 | DDJG2512/3 | DDJG2912/3 |
| Daily Processing Capacity(t/d) | 33.6 | 40.8 | 58.9 | 131.4 | 145.0 | 167.7 | 204.0 | 247.0 |
| Daily Output(t/d) | 15.6 | 19.2 | 27.7 | 61.8 | 68.2 | 78.9 | 96.0 | 116.2 |
| Water Evaporation Capacity (t/h) | 0.75 | 0.90 | 1.30 | 2.90 | 3.20 | 3.70 | 4.50 | 5.45 |
| Raw Material Water Content(%) | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
| Dried Material Water Content(%) | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） |
| Drying Temperature(℃) | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 |
| Total Weight(kg) | 32 | 40 | 55 | 95 | 100 | 125 | 145 | 165 |
| Plant Area(㎡) | 15000 | 17000 | 21500 | 26500 | 28500 | 370000 | 41000 | 45500 |
| Device Specification(m) | 5*14 | 5*14 | 6*16 | 8*16 | 8*16 | 10*16 | 10*18 | 10*20 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

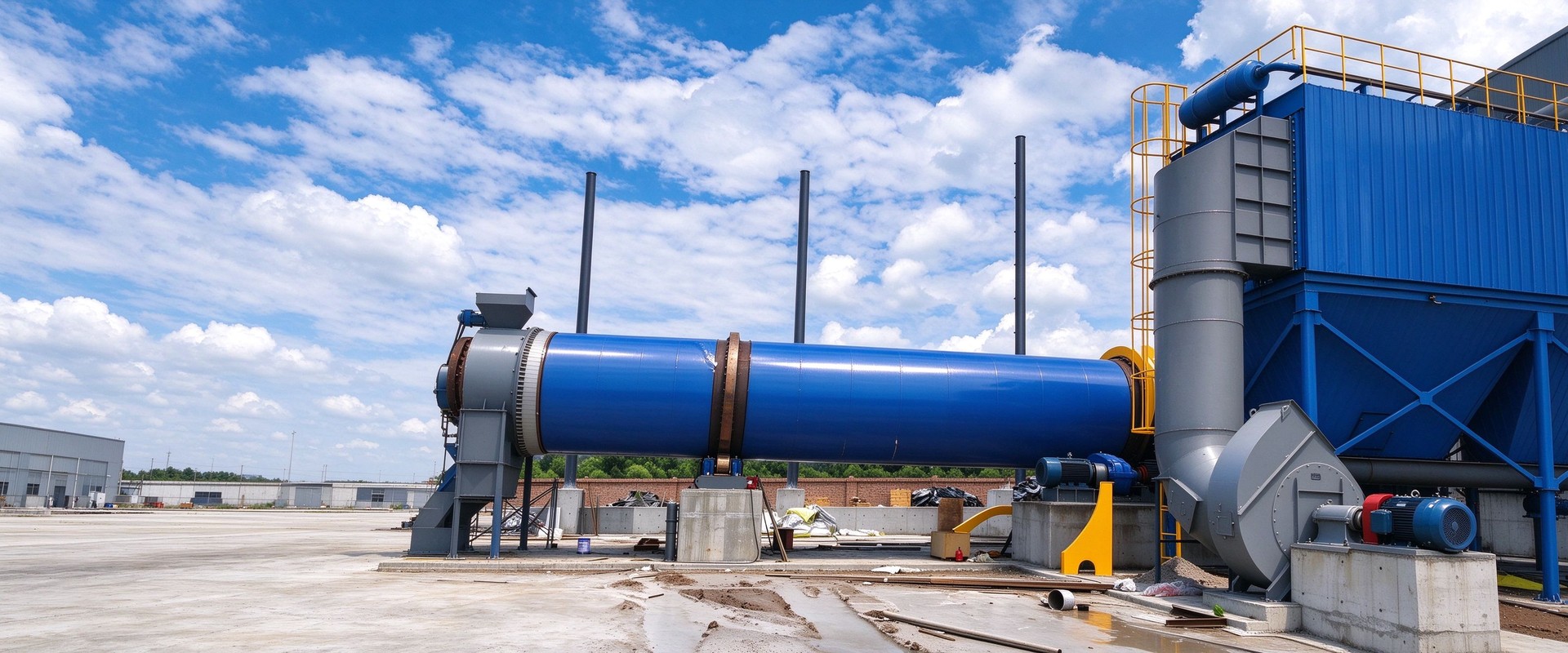

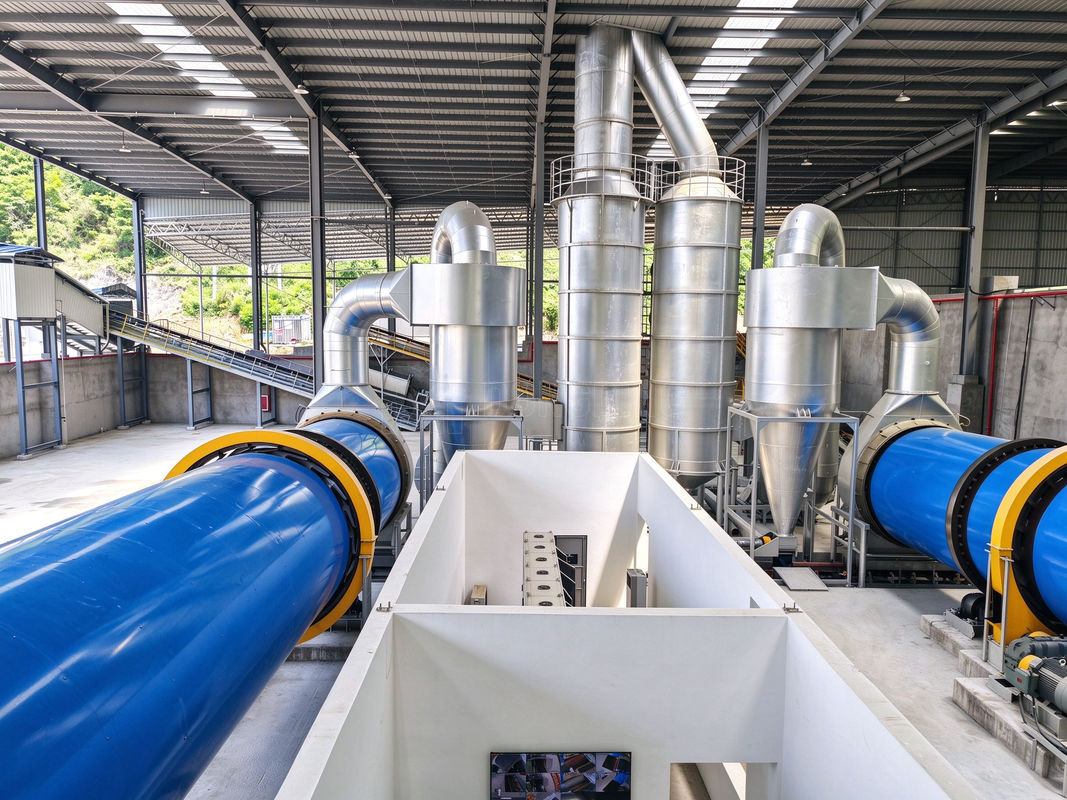

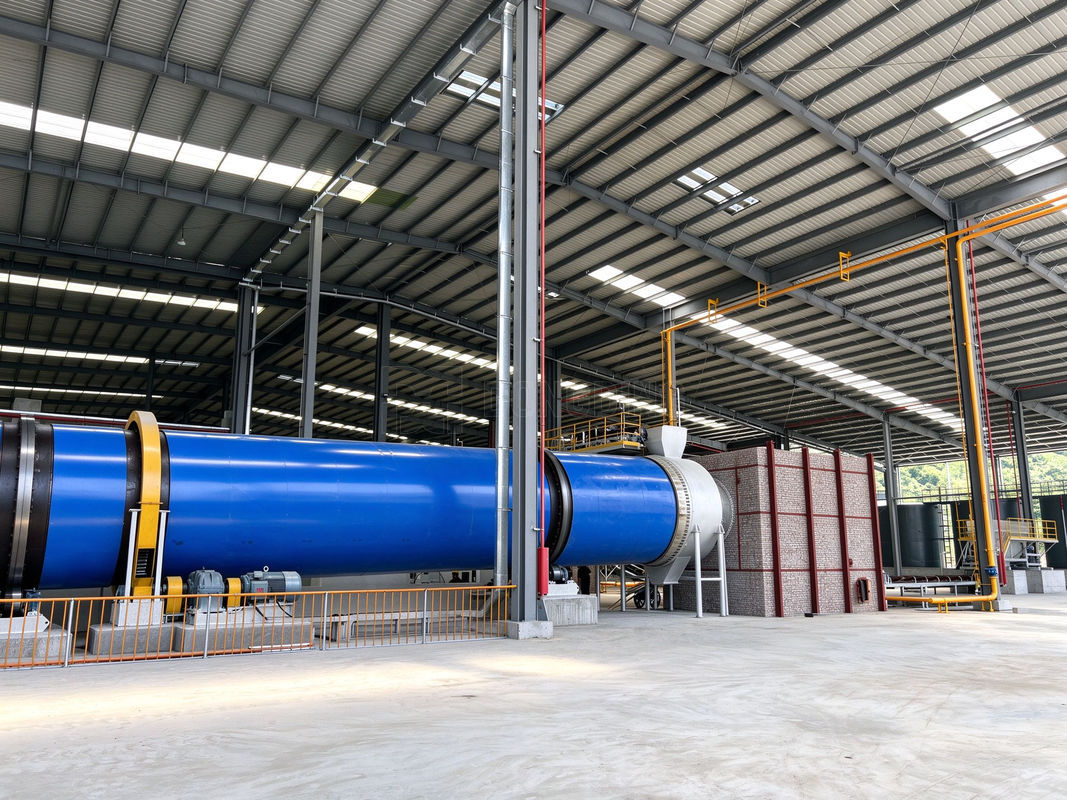

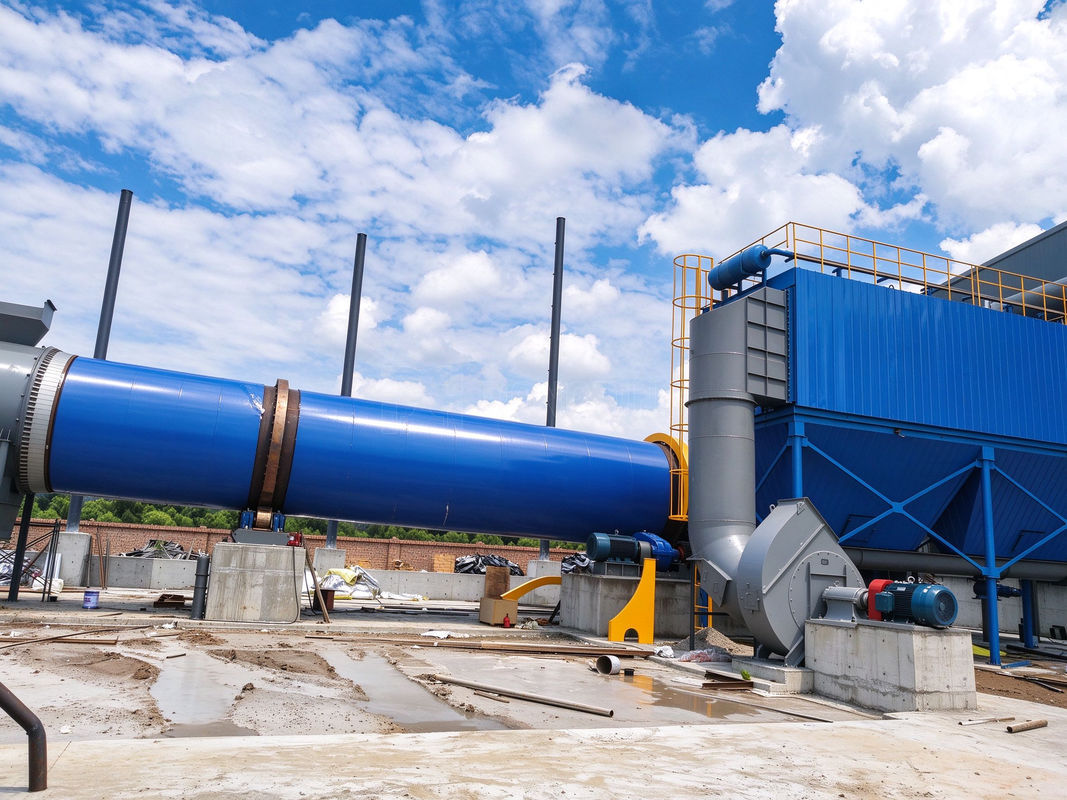

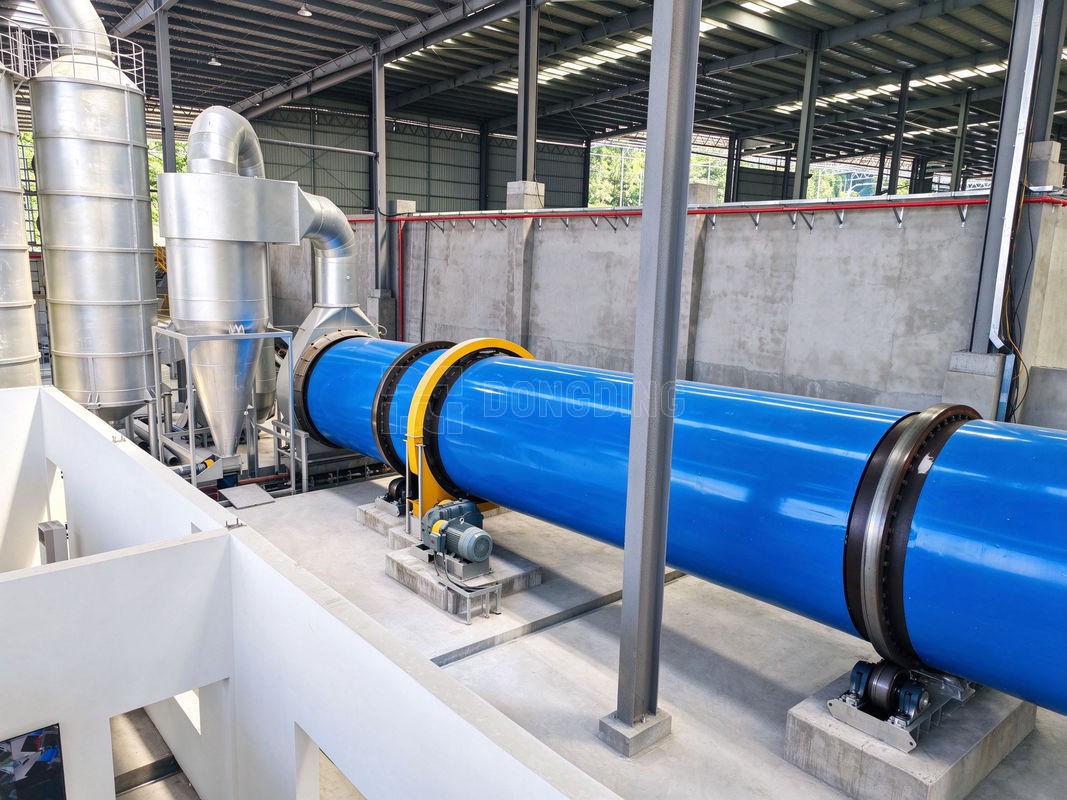

Show of Coffee Grounds Dryer
Product Photos
Why Dongding
Learn More About Dongding® Service
Related Cases
1,100 TPD Fly Ash Drying Project
Input moistureFrom 28% to 2%
Output moisture≤ 5%
LocationMongolia
500 TPD Coal Slime Dryer Project
Input moistureFrom 35% to 10%
Output moisture≤ 10%
LocationInner Mongolia, China
300 TPD Sludge Drying Project
Input moistureFrom 80% to 15%
Output moisture≤ 15%
LocationVietnam
600 TPD Coal Slime Drying Line
Input moistureFrom 40% to 10%
Output moisture≤ 10%
LocationShanxi, China
300 TPD Bentonite Dryer Project
Input moistureFrom 25% to 8%
Output moisture≤ 8%
LocationIran
200 TPD Ore Powder Drying Project
Input moistureFrom 18% to 5%
Output moisture≤ 5%
LocationZambia
150 TPD Sludge Dewatering & Drying Project
Input moistureFrom 80% to 15
Output moisture≤ 15%
LocationJiangsu, China
1.05 TPH Yeast Drum Drying Line
Input moistureFrom 85% to 12%
Output moisture≤ 12%
LocationThailand
- 600+
- Projects Worldwide
With drying projects running across the globe, Dongding has earned long-term trust through reliable quality and responsive after-sales service.
Frequently Asked Questions
Common questions about our rotary dryers — pricing, customization, installation and after-sales.
A:
Please share your raw material, initial and target moisture content, required capacity (t/h), available fuel or heat source, and your target market. With these details our engineers can recommend the right model and send an accurate quotation.
A:
As a manufacturer, we accept orders starting from a single machine. We can also deliver complete drying production lines with auxiliary equipment such as hot air furnaces and dust collectors. Contact us for tailored pricing.
A:
Standard models are usually delivered within 25-40 days after the deposit. Customized machines or larger production lines may take longer depending on the configuration. The exact schedule is confirmed in your contract.
A:
Yes. Every dryer is engineered around your material, capacity, moisture and site layout. Heat source, material of construction, dust collection and automation level can all be customized to your process.
A:
Yes. We provide installation guidance, commissioning, operator training and lifetime after-sales support. Our engineers can also travel to your site, and all equipment comes with a warranty.
