All Dongding dryers come with a 12-month warranty covering parts and workmanship from the date of commissioning. Lifetime technical support and spare parts supply are provided.
Introduction of Animal Bedding Rotary Dryer
Animal bedding is used by animals on farms to help reduce pressure, maintain body heat, and keep their living areas sanitary.
Traditional bedding materials (such as wood shavings, straw, rice husks, corn cobs, and animal manure) often require deep processing due to issues like high humidity and excessive bacterial content before they can be used. Natural drying is inefficient and prone to secondary contamination, while using untreated materials directly may lead to respiratory diseases or skin infections in animals.
The core function of the animal bedding dryer is to rapidly transform bedding materials into dry, clean, and reusable high-quality bedding through scientific processes, achieving efficient resource recycling while reducing farming costs and environmental pollution.
Advantages of Animal Bedding Rotary Dryer
01
Wide Material Adaptability
Compatible with over 20 common materials including wood shavings, sawdust, animal manure, coconut coir, peanut shells, mushroom waste, corn cobs and sand, with customizable temperature programs.
02
Excellent Product Quality
Drying uniformity of 95% or more with no localized charring or wet core, extending bedding lifespan; moisture is precisely controlled to prevent mold and skin or respiratory diseases.
03
Intelligent & Safe
A PLC control system with fire warning, overheating cut-off and dust explosion-proof devices, complying with ISO 9001 and CE safety certifications.
04
Uniform Drying
Multiple spreads and long residence times ensure uniform moisture content throughout the materials.
05
Precise Moisture Control
Material flow speed is controlled by frequency conversion, so the final moisture is easily controlled to meet your needs.
06
Multiple Heat Sources
Customers can choose the heating source that fits their needs, and we can design customized solutions.

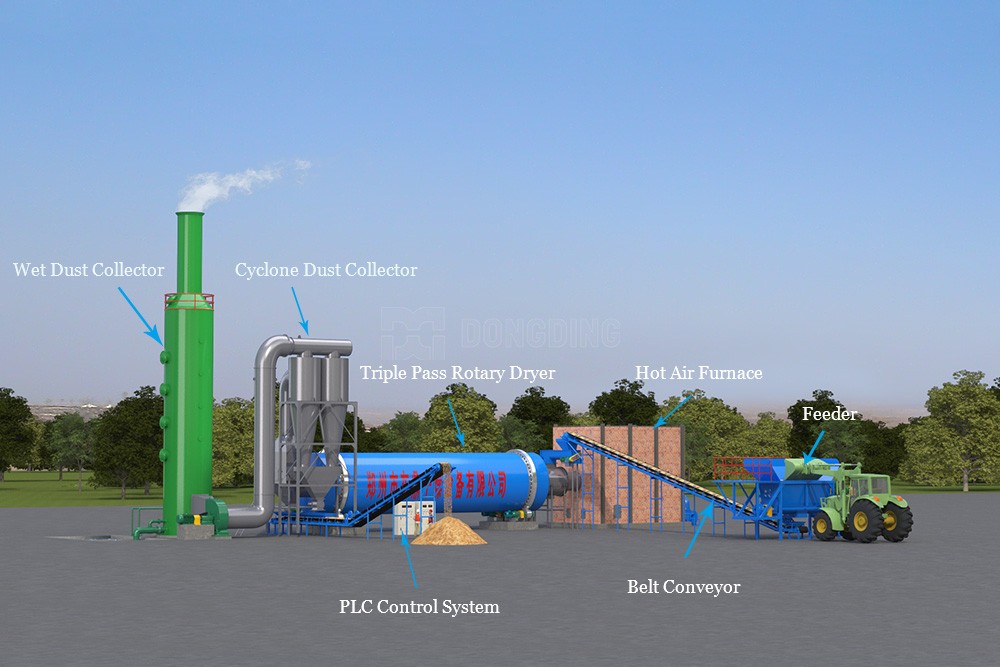

Working Principle of Animal Bedding Rotary Dryer
Crushing and Screening: Coarse materials such as straw and wood are crushed into uniform particles (usually 3–10mm) to enhance drying efficiency;
Debris and Dust Removal: A vibrating screen and magnetic separation device are used to remove impurities such as metal and stones, ensuring the purity of the finished product;
High-Temperature Drying and Sterilization: Hot Air Circulation System: Uses natural gas, biomass fuel, etc., to generate controllable high-temperature hot air that penetrates the material layer to evaporate moisture;
Intelligent Temperature Control: Automatically adjusts drying temperature and duration based on the characteristics of different materials (e.g., wood shavings with a moisture content of 30%–50%, straw with a moisture content of 15%–25%) to prevent over-carbonization;
Pathogen Inactivation: Sustained high-temperature conditions continuously kill harmful microorganisms such as E. coli and Salmonella in the raw materials, with a sterilization rate of ≥99%.
Specifications of Animal Bedding Rotary Dryer
| Device Specification | DDJG1210 | DDJG1410 | DDJG1610 | DDJG2010/3 | DDJG2210/3 | DDJG2510/3 | DDJG2512/3 | DDJG2912/3 |
| Daily Processing Capacity(t/d) | 33.6 | 40.8 | 58.9 | 131.4 | 145.0 | 167.7 | 204.0 | 247.0 |
| Daily Output(t/d) | 15.6 | 19.2 | 27.7 | 61.8 | 68.2 | 78.9 | 96.0 | 116.2 |
| Water Evaporation Capacity (t/h) | 0.75 | 0.90 | 1.30 | 2.90 | 3.20 | 3.70 | 4.50 | 5.45 |
| Raw Material Water Content(%) | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
| Dried Material Water Content(%) | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） | 12-15（adjustable） |
| Drying Temperature(℃) | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 | 350-550 |
| Total Weight(kg) | 32 | 40 | 55 | 95 | 100 | 125 | 145 | 165 |
| Plant Area(㎡) | 15000 | 17000 | 21500 | 26500 | 28500 | 370000 | 41000 | 45500 |
| Device Specification(m) | 5*14 | 5*14 | 6*16 | 8*16 | 8*16 | 10*16 | 10*18 | 10*20 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

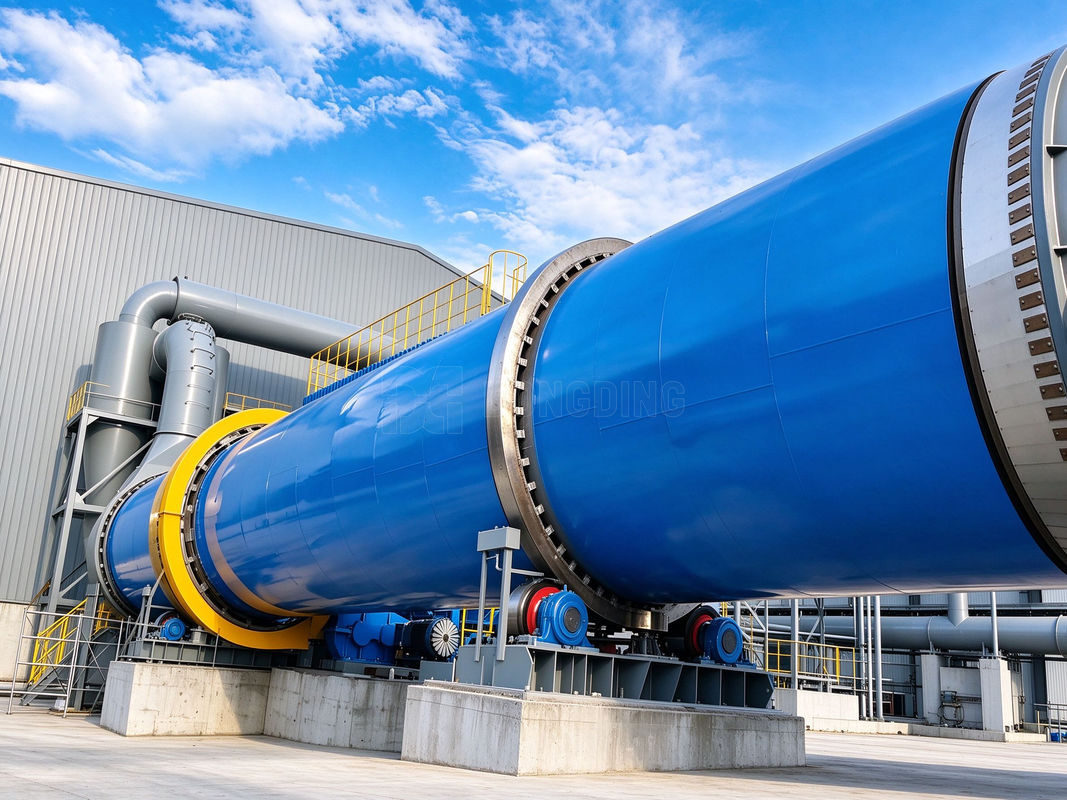

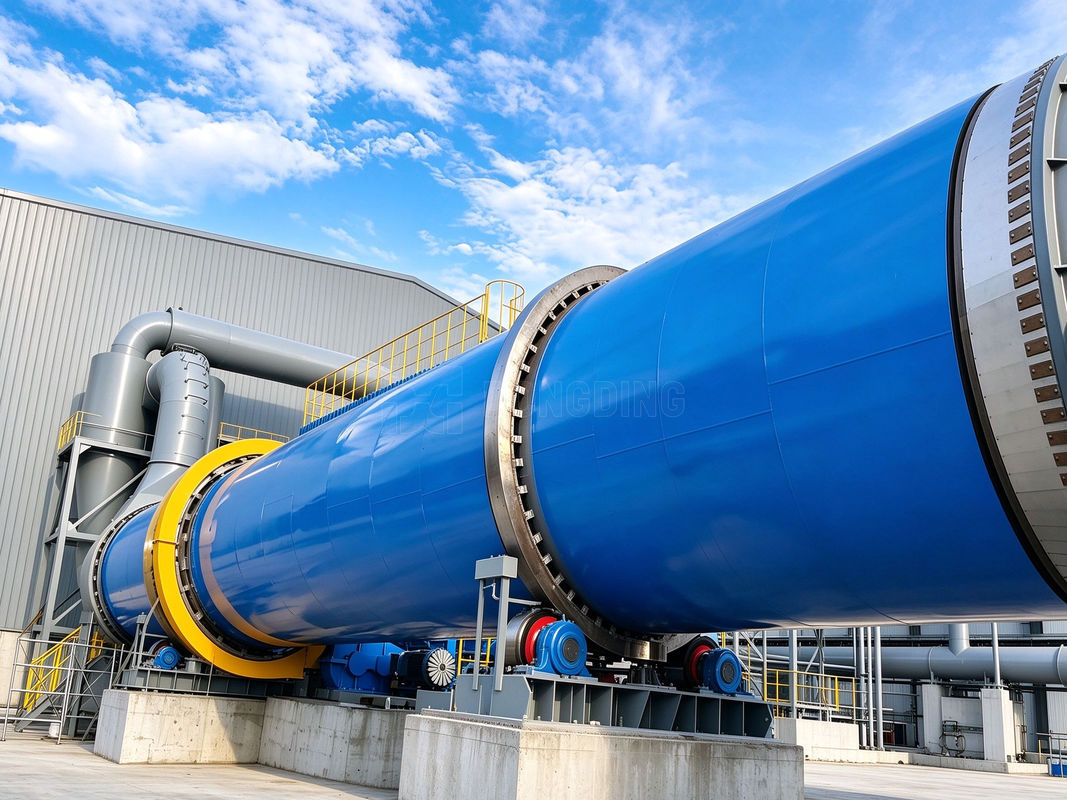

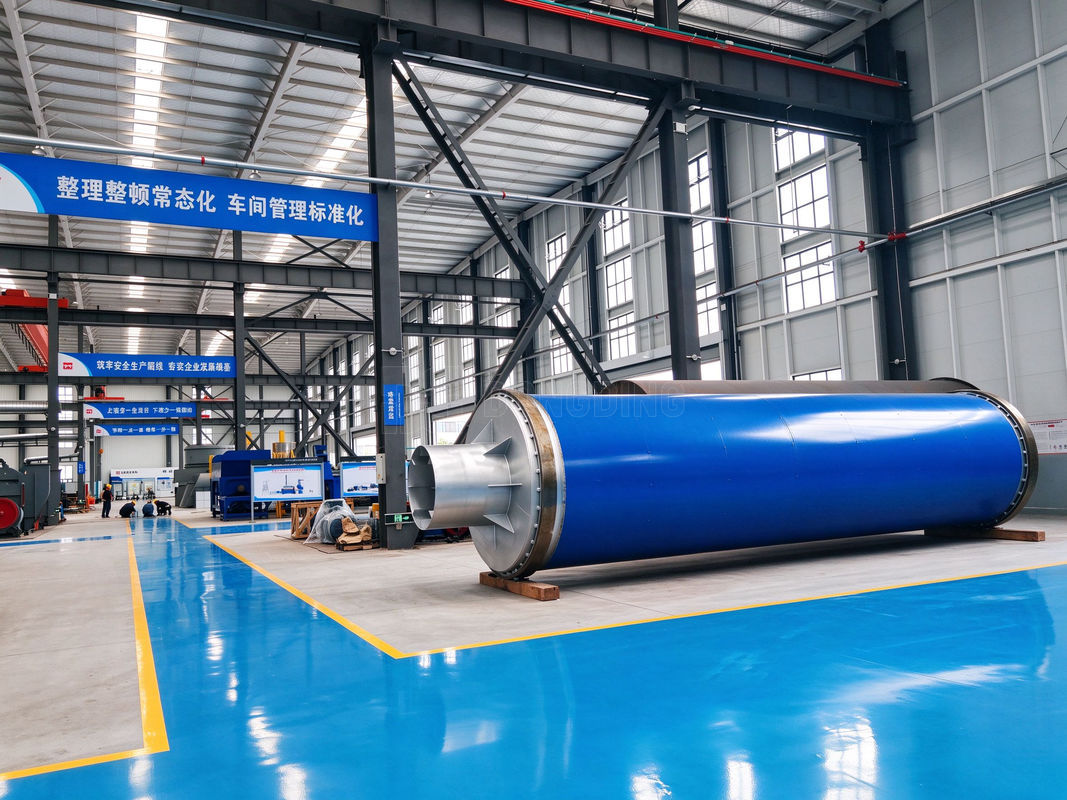

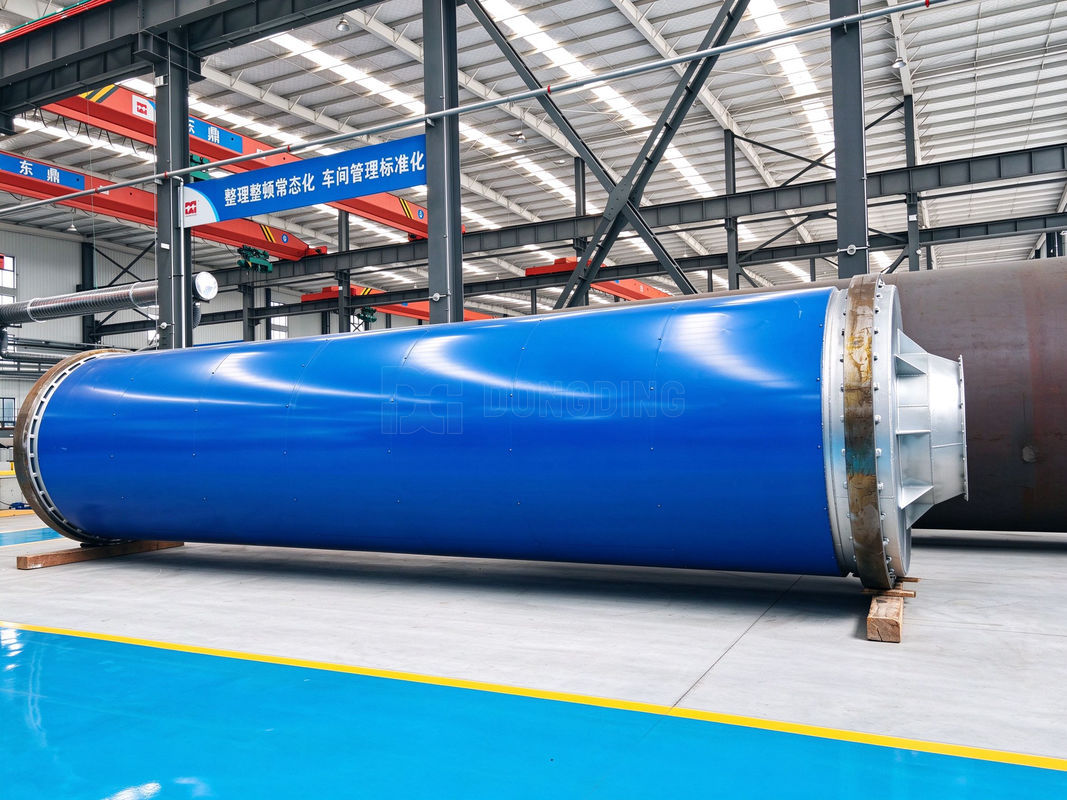

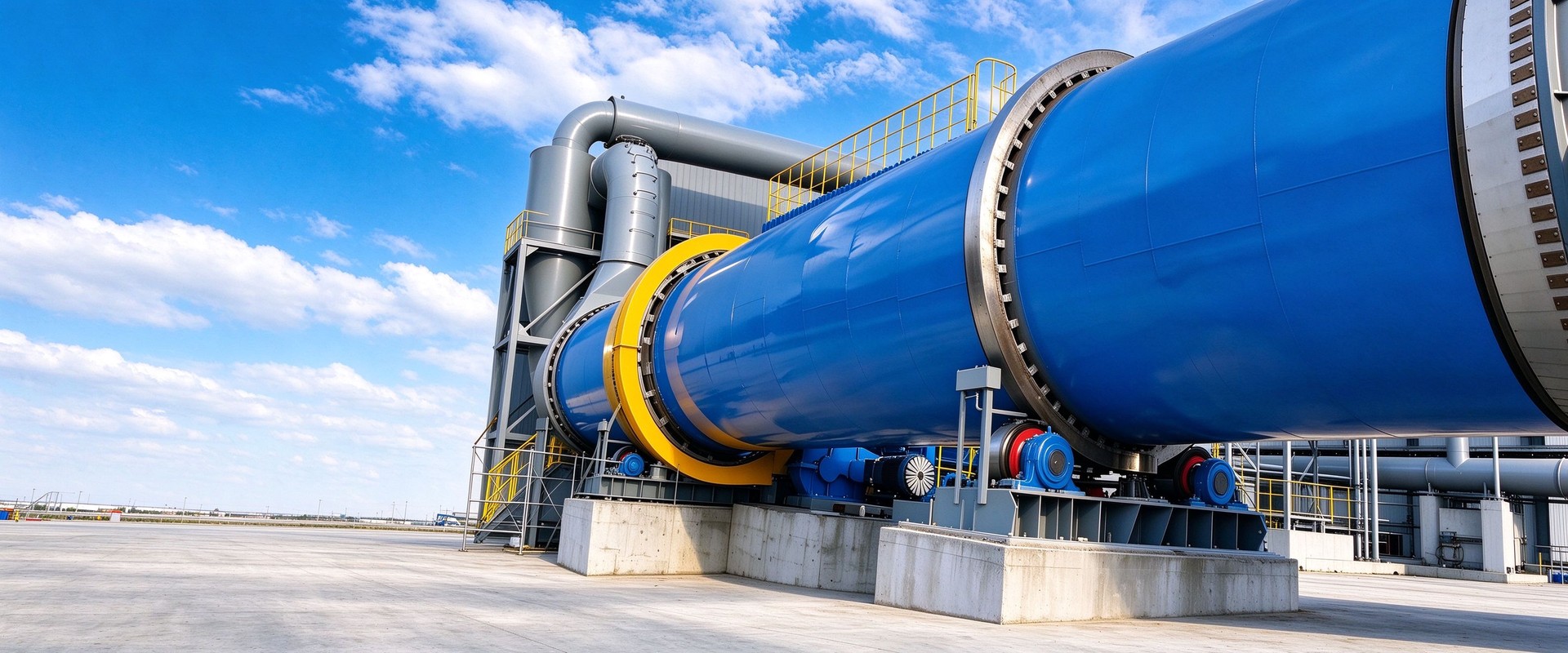

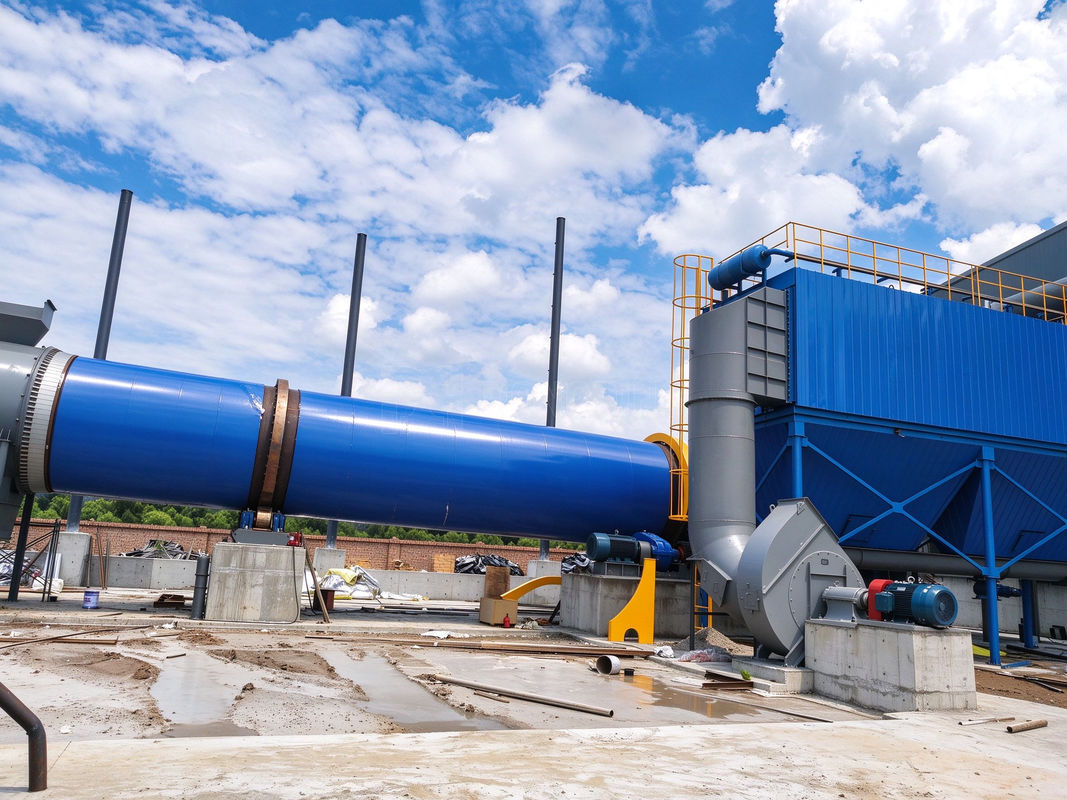

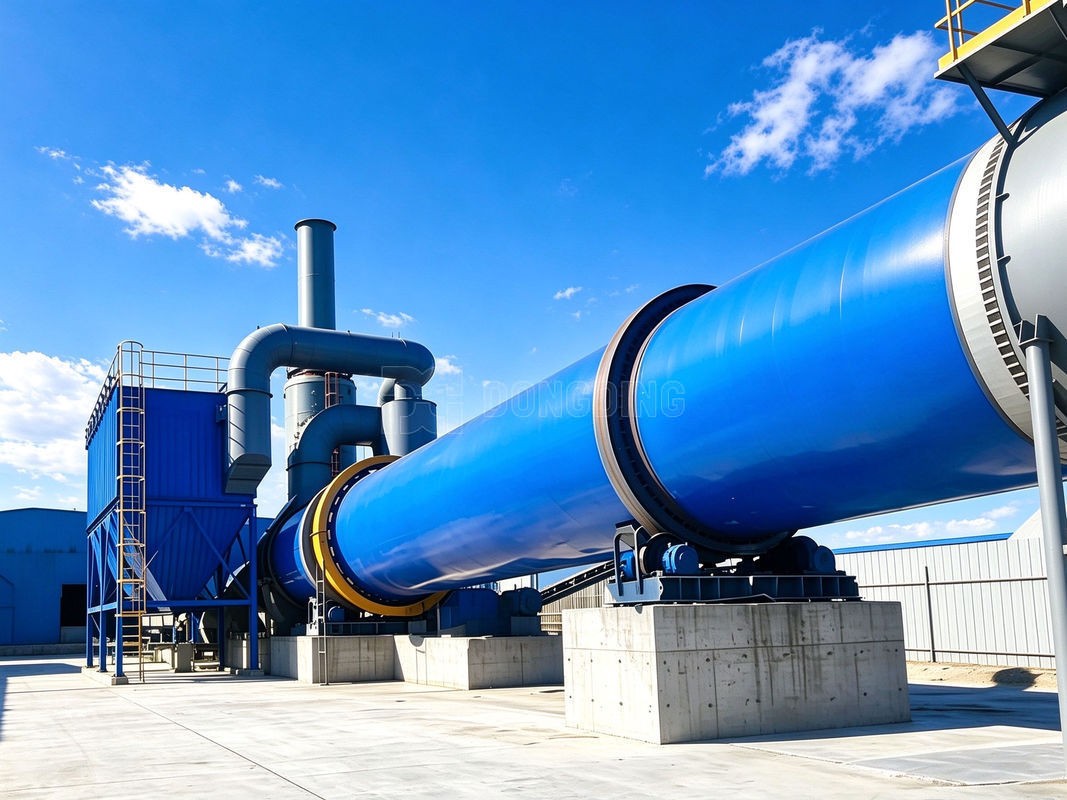

Show of Animal Bedding Rotary Dryer
Product Photos
Why Dongding
Learn More About Dongding® Service
Related Cases
1,100 TPD Fly Ash Drying Project
Input moistureFrom 28% to 2%
Output moisture≤ 5%
LocationMongolia
500 TPD Coal Slime Dryer Project
Input moistureFrom 35% to 10%
Output moisture≤ 10%
LocationInner Mongolia, China
300 TPD Sludge Drying Project
Input moistureFrom 80% to 15%
Output moisture≤ 15%
LocationVietnam
600 TPD Coal Slime Drying Line
Input moistureFrom 40% to 10%
Output moisture≤ 10%
LocationShanxi, China
300 TPD Bentonite Dryer Project
Input moistureFrom 25% to 8%
Output moisture≤ 8%
LocationIran
200 TPD Ore Powder Drying Project
Input moistureFrom 18% to 5%
Output moisture≤ 5%
LocationZambia
150 TPD Sludge Dewatering & Drying Project
Input moistureFrom 80% to 15
Output moisture≤ 15%
LocationJiangsu, China
1.05 TPH Yeast Drum Drying Line
Input moistureFrom 85% to 12%
Output moisture≤ 12%
LocationThailand
- 600+
- Projects Worldwide
With drying projects running across the globe, Dongding has earned long-term trust through reliable quality and responsive after-sales service.
Frequently Asked Questions
Common questions about our rotary dryers — pricing, customization, installation and after-sales.
A:
Please share your raw material, initial and target moisture content, required capacity (t/h), available fuel or heat source, and your target market. With these details our engineers can recommend the right model and send an accurate quotation.
A:
As a manufacturer, we accept orders starting from a single machine. We can also deliver complete drying production lines with auxiliary equipment such as hot air furnaces and dust collectors. Contact us for tailored pricing.
A:
Standard models are usually delivered within 25-40 days after the deposit. Customized machines or larger production lines may take longer depending on the configuration. The exact schedule is confirmed in your contract.
A:
Yes. Every dryer is engineered around your material, capacity, moisture and site layout. Heat source, material of construction, dust collection and automation level can all be customized to your process.
A:
Yes. We provide installation guidance, commissioning, operator training and lifetime after-sales support. Our engineers can also travel to your site, and all equipment comes with a warranty.
