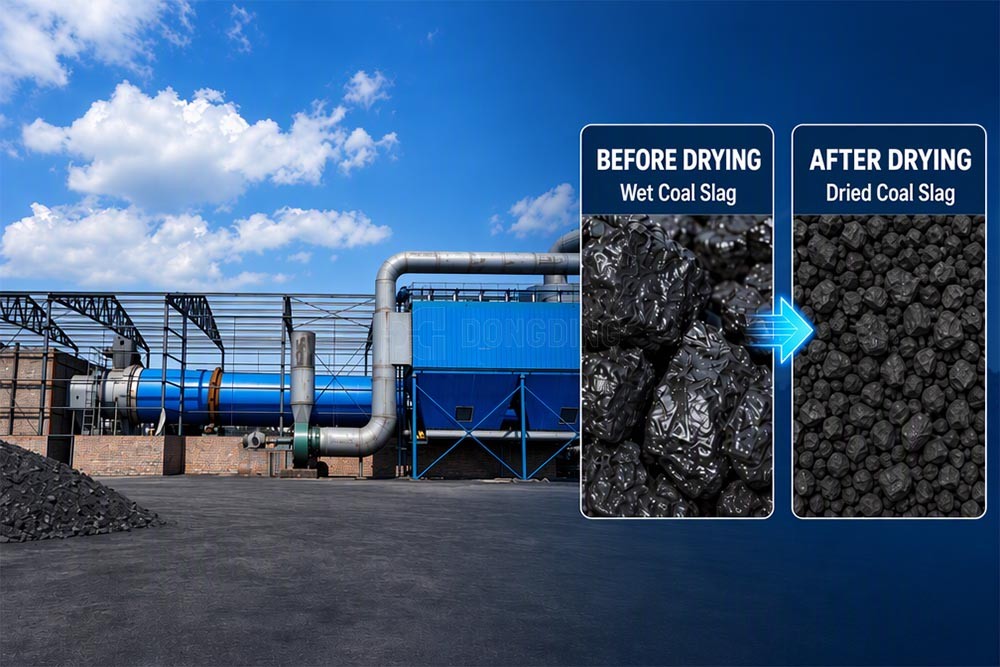

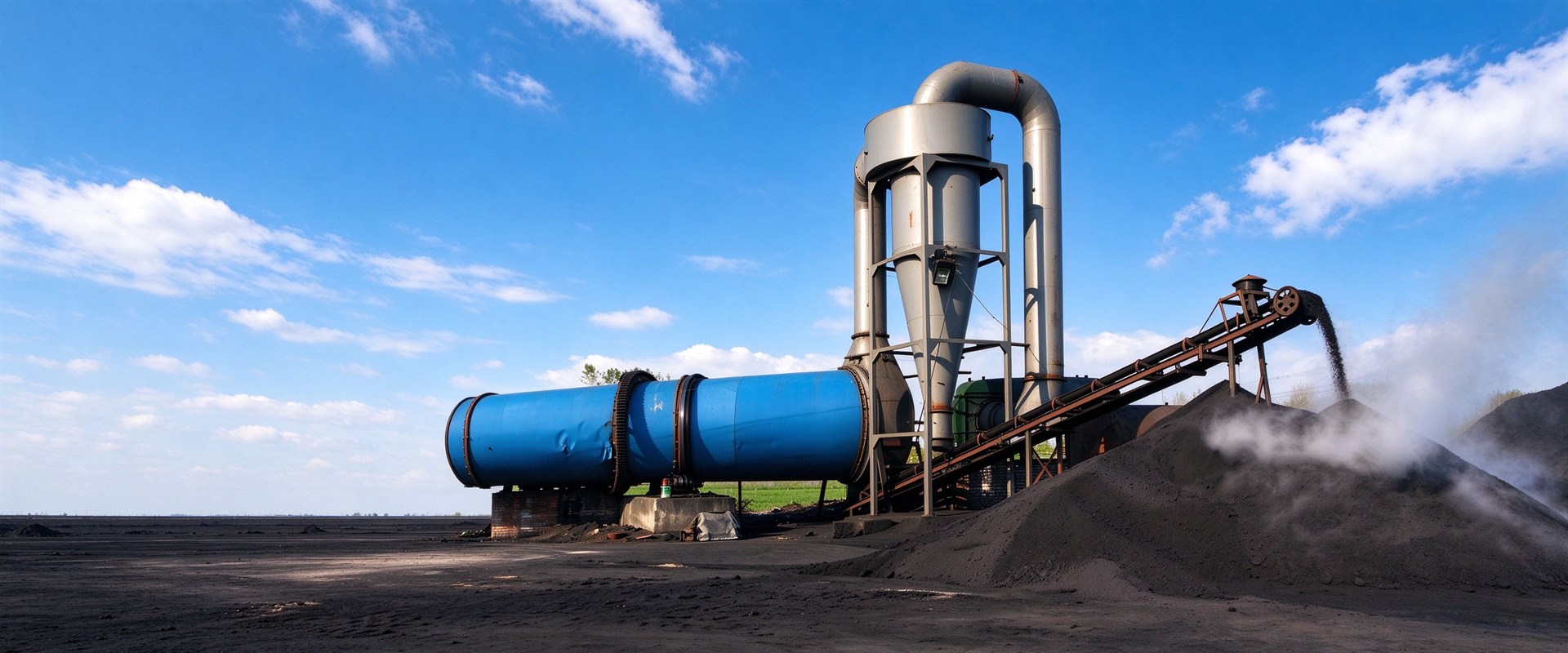

Introduction of Coal Slag Dryer
The coal slag rotary dryer is a rotary drying equipment designed for wet coal slag. With rotating drum and lifting plates, it enables sufficient heat exchange between coal slag and hot air to efficiently remove moisture.
Featuring large continuous throughput and good wear resistance, it is widely used for coal slag waste treatment in power plants and coal washing plants. Dried coal slag can be reused as building materials or blended fuel to realize resource recovery.
The outlet moisture can be flexibly adjusted by drum rotating speed and hot air temperature. With stable performance and wide adaptability, it serves as key pre-treatment equipment in coal slag recycling lines.
Advantages of Coal Slag Dryer
01
Improved Drying Effect
A unique delay-out device extends material residence time in the drum, improving heat exchange for a better drying result.
02
Precise Speed Control
Frequency-conversion drive lowers power consumption and lets the drum speed be adjusted precisely to suit uneven feed moisture.
03
Anti-Sticking Design
An internal cleaning device prevents adhesion caused by over-sticky material.
04
Safe Operation
A power-outage protection system prevents fire, explosion and other safety hazards caused by power failure.
05
Patented Discharge Technology
The discharge device uses the company's latest patented technology, proven across multiple projects.
06
Automatic Monitoring
A PLC control system enables automatic monitoring with centralized and in-situ switching.

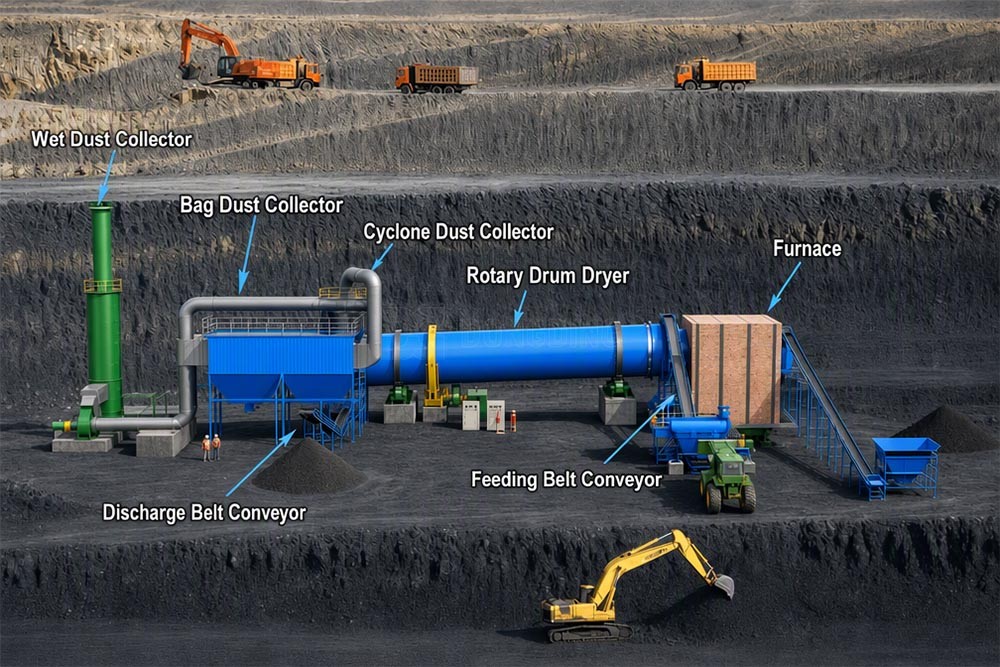

Working Principle of Coal Slag Dryer
Firstly, wet material is crushed by the crushing machine, then transported to the rotary drum dryer by the belt conveyor. Because of the inclination of drum dryer, material with hot air moves to the end of dryer body, during which process wet material gets fully contact with the hot air. After drying, most of the dry material is discharged through the belt conveyor. The left material mixed with dust continue goes into the cyclone dust collector and the bag dust collector in sequence, where the dust will be collected. Lastly, with the function of induced draft fan, the left material will discharged through the conveyor.
Specifications of Coal Slag Dryer
| Specification | Capacity(T/D) | Initial Moisture(%) | Final Moisture(%) | Total Power(kw) | Floor Area(m2) |
| DDMG1918 | 300±10 | 25±5 | ≤12 | 109 | 7m*25m |
| DDMG2218 | 500±30 | 25±5 | ≤12 | 128 | 8m*30m |
| DDMG2520 | 700±30 | 25±5 | ≤12 | 240 | 8m*30m |
| DDMG2822 | 1000±30 | 25±5 | ≤12 | 400 | 8m*40m |
| DDMG3024 | 1200±30 | 25±5 | ≤12 | 480 | 12m*50m |
| DDMG3428 | 1500±30 | 25±5 | ≤12 | 600 | 12m*60m |
| DDMG3830 | 1800±30 | 25±5 | ≤12 | 800 | 16m*70m |
| DDMG4032 | 2000±30 | 25±5 | ≤12 | 1000 | 18m*70m |
| DDMG4238 | 2500±30 | 25±5 | ≤12 | 1200 | 20m*80m |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

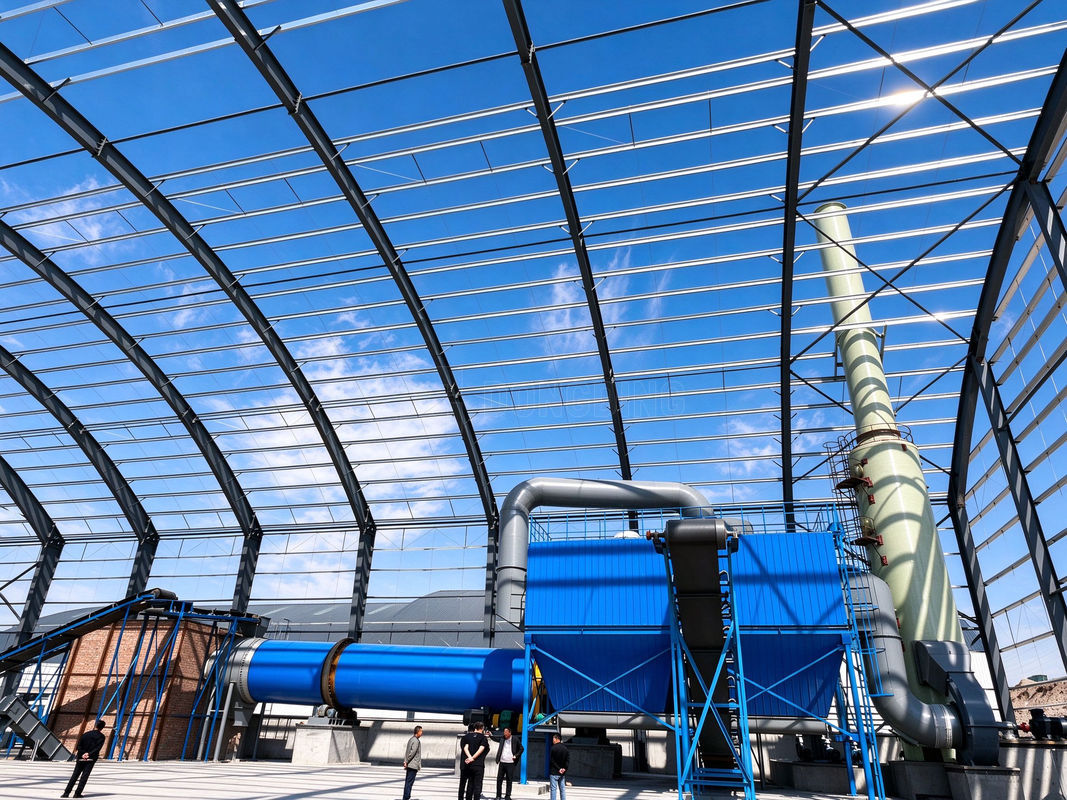

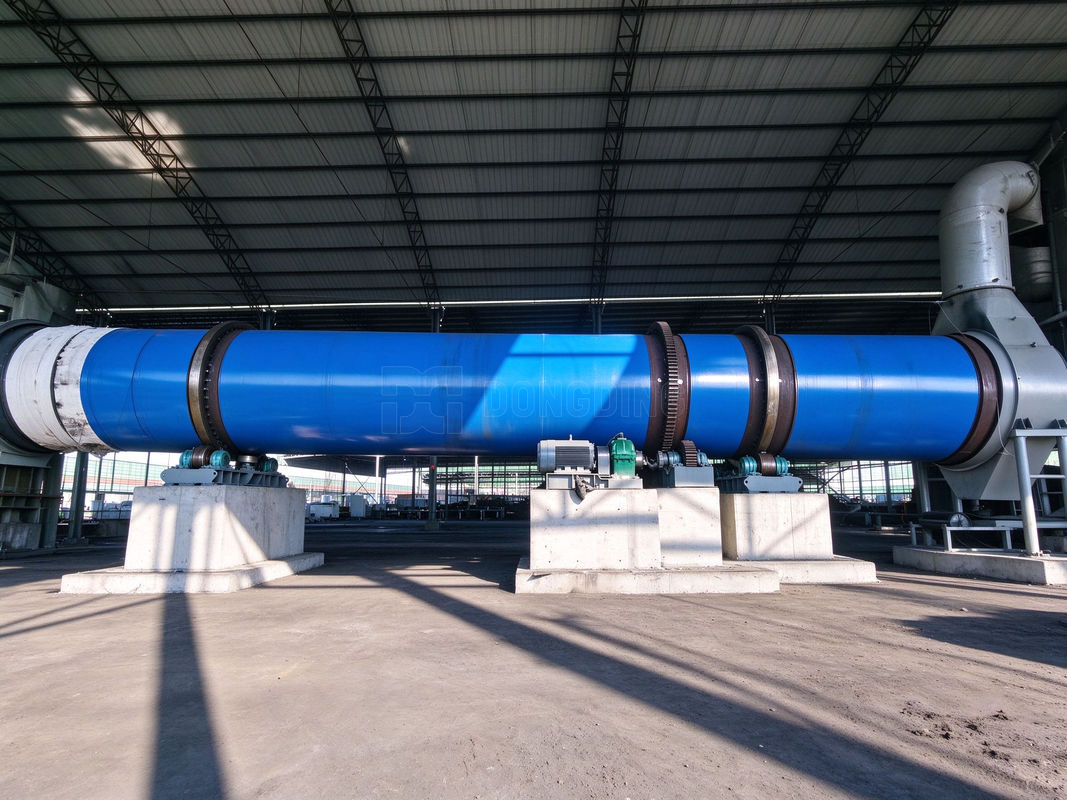

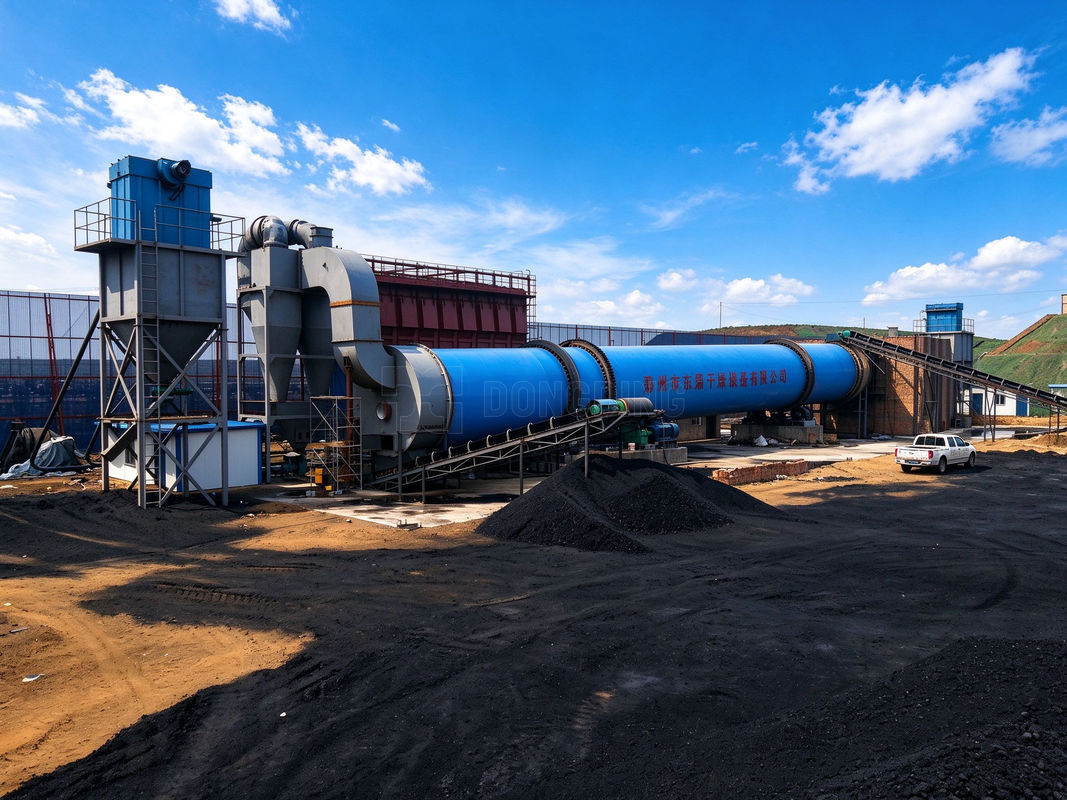

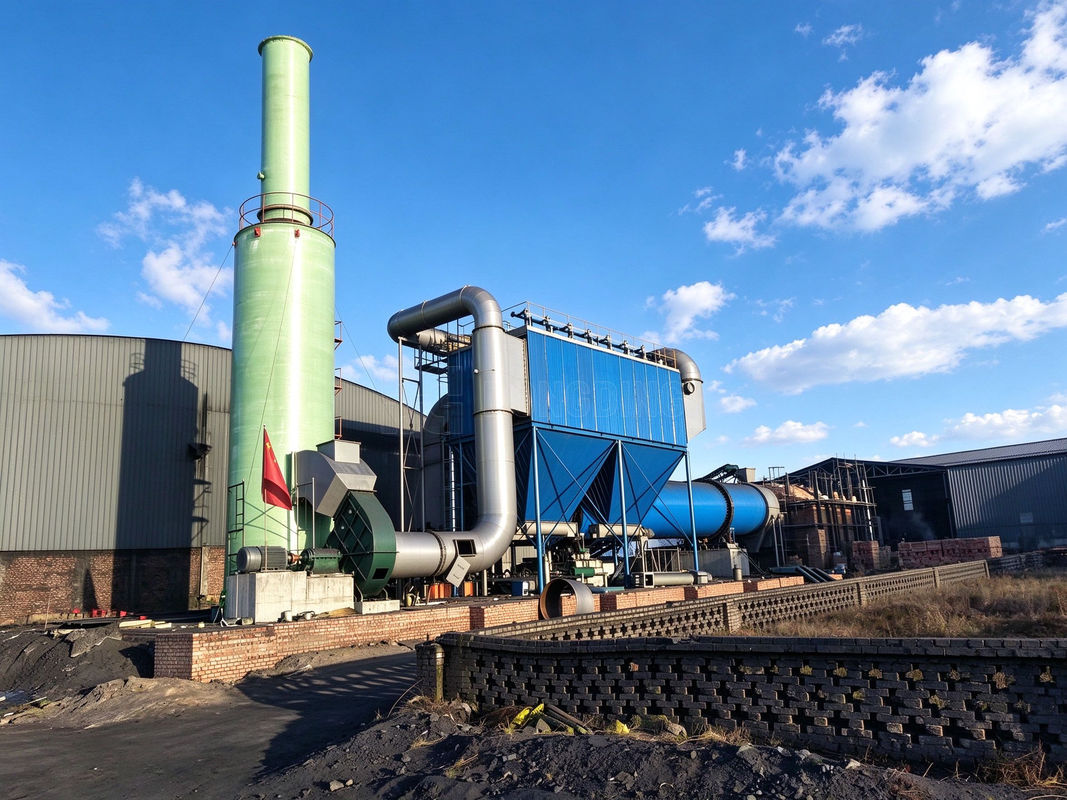

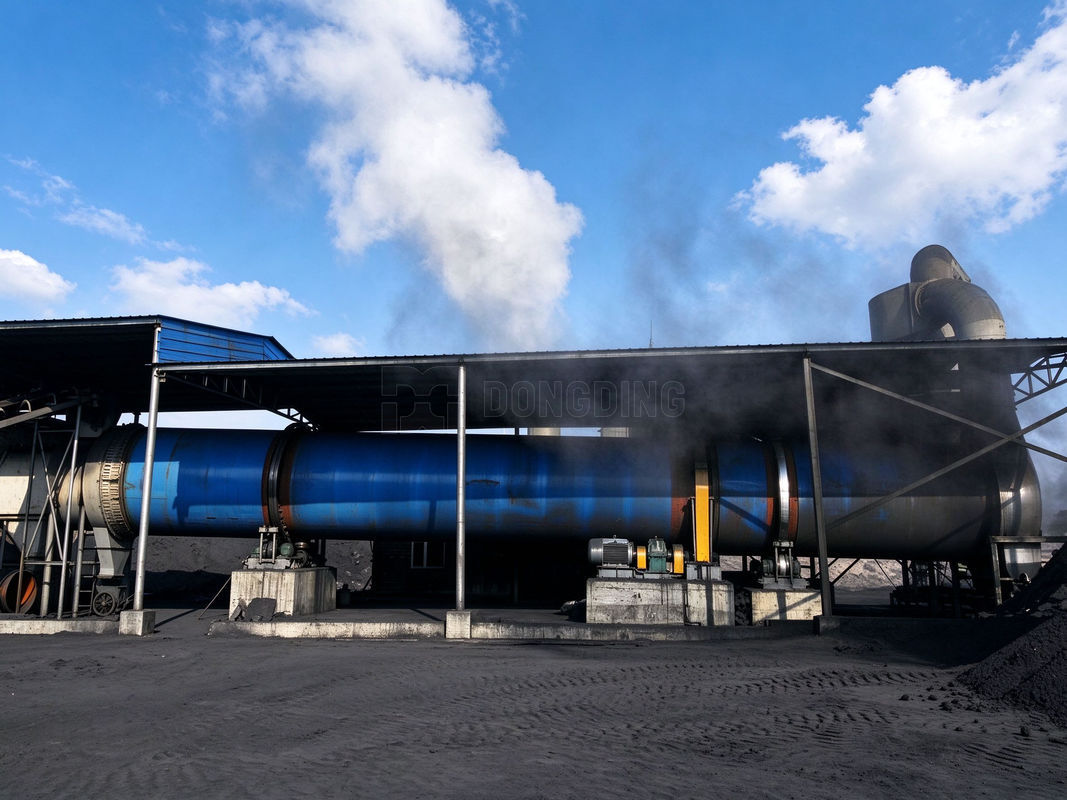

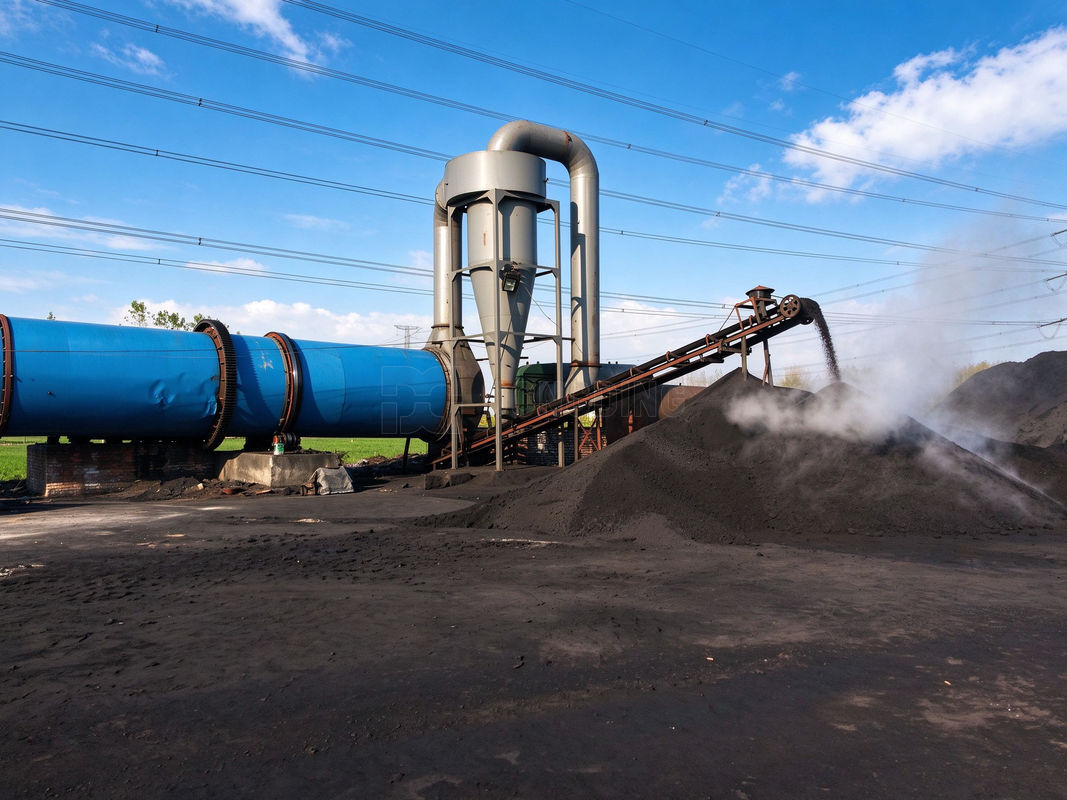

Show of Coal Slag Dryer
Product Photos
Why Dongding
Learn More About Dongding® Service
Related Cases
1,100 TPD Fly Ash Drying Project
Input moistureFrom 28% to 2%
Output moisture≤ 5%
LocationMongolia
500 TPD Coal Slime Dryer Project
Input moistureFrom 35% to 10%
Output moisture≤ 10%
LocationInner Mongolia, China
300 TPD Sludge Drying Project
Input moistureFrom 80% to 15%
Output moisture≤ 15%
LocationVietnam
600 TPD Coal Slime Drying Line
Input moistureFrom 40% to 10%
Output moisture≤ 10%
LocationShanxi, China
300 TPD Bentonite Dryer Project
Input moistureFrom 25% to 8%
Output moisture≤ 8%
LocationIran
200 TPD Ore Powder Drying Project
Input moistureFrom 18% to 5%
Output moisture≤ 5%
LocationZambia
150 TPD Sludge Dewatering & Drying Project
Input moistureFrom 80% to 15
Output moisture≤ 15%
LocationJiangsu, China
1.05 TPH Yeast Drum Drying Line
Input moistureFrom 85% to 12%
Output moisture≤ 12%
LocationThailand
- 600+
- Projects Worldwide
With drying projects running across the globe, Dongding has earned long-term trust through reliable quality and responsive after-sales service.
Frequently Asked Questions
Common questions about our rotary dryers — pricing, customization, installation and after-sales.
A:
Please share your raw material, initial and target moisture content, required capacity (t/h), available fuel or heat source, and your target market. With these details our engineers can recommend the right model and send an accurate quotation.
A:
As a manufacturer, we accept orders starting from a single machine. We can also deliver complete drying production lines with auxiliary equipment such as hot air furnaces and dust collectors. Contact us for tailored pricing.
A:
Standard models are usually delivered within 25-40 days after the deposit. Customized machines or larger production lines may take longer depending on the configuration. The exact schedule is confirmed in your contract.
A:
Yes. Every dryer is engineered around your material, capacity, moisture and site layout. Heat source, material of construction, dust collection and automation level can all be customized to your process.
A:
Yes. We provide installation guidance, commissioning, operator training and lifetime after-sales support. Our engineers can also travel to your site, and all equipment comes with a warranty.
