Introduction of Fluorite Powder Rotary Dryer
Fluorite powder comes from fluorite ore through crushing, grading and other processes. After fluorite powder is separated, the moisture content is very large. In order to facilitate transportation and increase the profit of the fluorite powder, the fluorite powder needs to be dried.
The full fluorite powder drying plant can dry the fluorite powder from the moisture of about 30% to the moisture less than 5%, and final product with the particle size between 5~20mm.

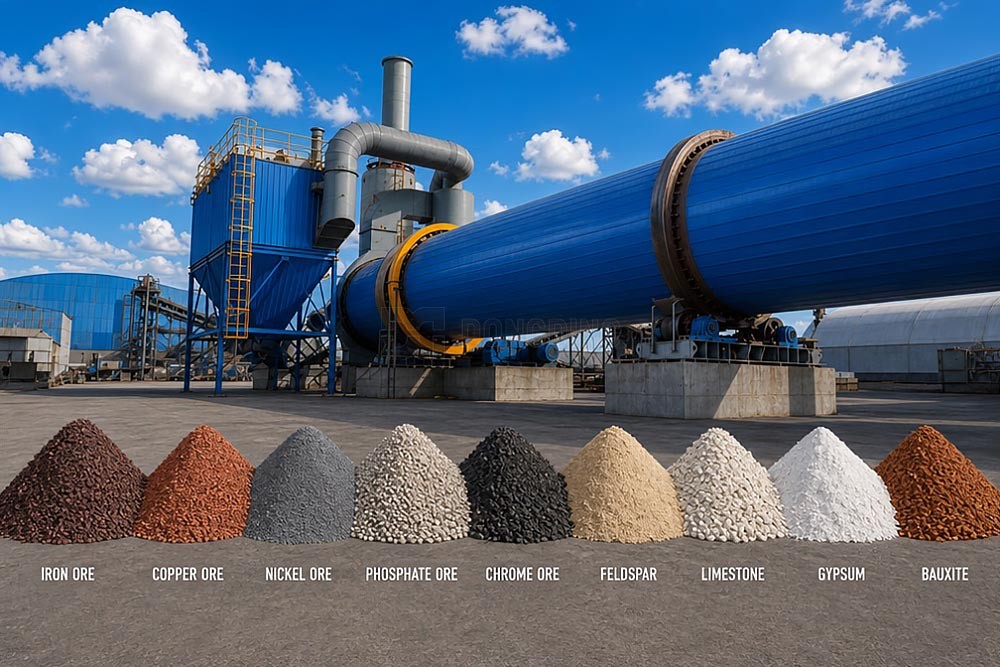

The fluorite dryer system is not only used for drying materials with high water content and powdery bonded mass like fluorite powder, but also can dry the ore concentrates, iron ore powder, manganese ore powder, coal slime, etc. This drying system is widely used in building material, chemical, mineral processing, refractory and other industries.
Advantages of Fluorite Powder Rotary Dryer
01
Efficient Heat Transfer
Specially designed lifting flights maximize heat transfer between the material and the hot gas stream.
02
High-Temperature Resistance
High-temperature-resistant design allows high-temperature hot air to dry materials quickly.
03
Automated Control
Computer automatic control enables remote operation, with drying temperature and time configured to suit the raw material.
04
Self-Aligning Support
A self-aligning tugboat structure keeps the tug and rolling ring well matched, greatly reducing wear and power consumption.
05
Multiple Heat Sources
A specially designed block wheel greatly reduces horizontal thrust; biomass pellets, electricity, fossil fuel and coal can be used as the heat source.
06
Low Investment & Fast ROI
Low equipment investment and operating cost with quick return on investment.

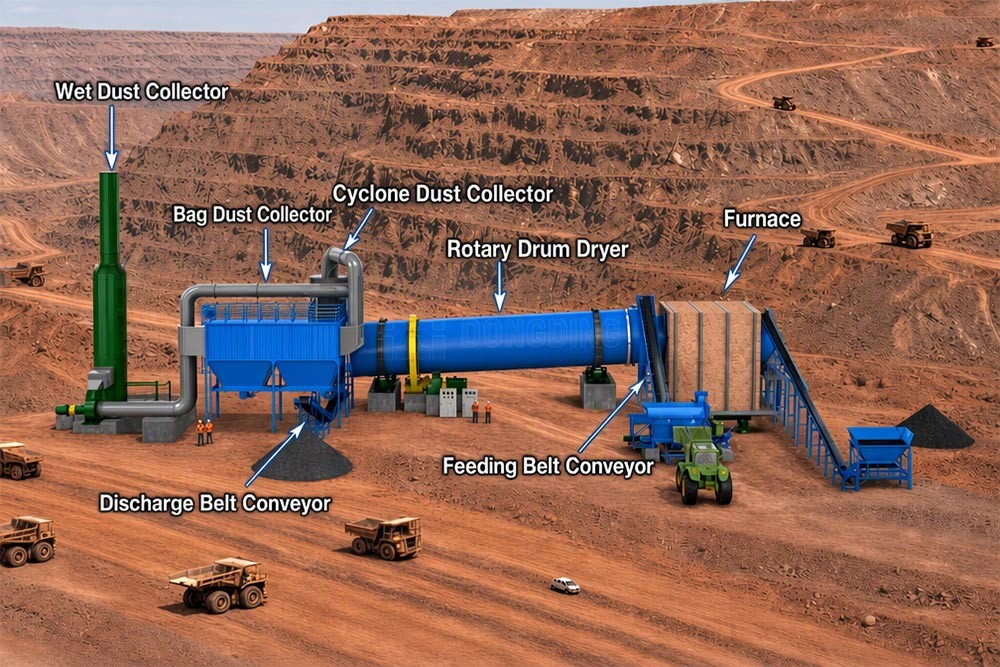

Working Principle of Fluorite Powder Rotary Dryer
Dongding fluorite powder is mainly consists of feeder, rotary drum dryer, discharging machine, induced draft fan, cyclone dust collector and distribution cabinet, etc. The raw material (first crushed if needed) is transported to the rotary drum dryer by the belt conveyor. As the drum rotates, lifting flights pick up the material and drop it through the air stream during which process wet material gets fully contact with the hot air.
Specifications of Fluorite Powder Rotary Dryer
| Model | Capacity(TPH) | Length (m) | Diameter (m) | Temperature（℃） | Motor Power（kw） |
| DD1208 | 1.9-2.4 | 8 | 1.2 | 600-750 | 7.5 |
| DD1210 | 2.4-3.0 | 10 | 1.2 | 600-750 | 7.5 |
| DD1612 | 4.5-5.7 | 12 | 1.6 | 600-750 | 15 |
| DD1812 | 6.5-8.1 | 12 | 1.8 | 600-750 | 18.5 |
| DD2212 | 9.7-12.2 | 12 | 2.2 | 600-750 | 22 |
| DD2418 | 17.4-21.7 | 18 | 2.4 | 600-750 | 37 |
| DD2420 | 19.3-24.1 | 20 | 2.4 | 600-750 | 45 |
| DD2624 | 27.2-34.0 | 24 | 2.6 | 600-750 | 55 |
| DD3020 | 30.1-37.7 | 20 | 3.0 | 600-750 | 75 |
| DD3225 | 42.9-53.6 | 25 | 3.2 | 600-750 | 90 |
| DD3628 | 60.8-76.0 | 28 | 3.6 | 600-750 | 160 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

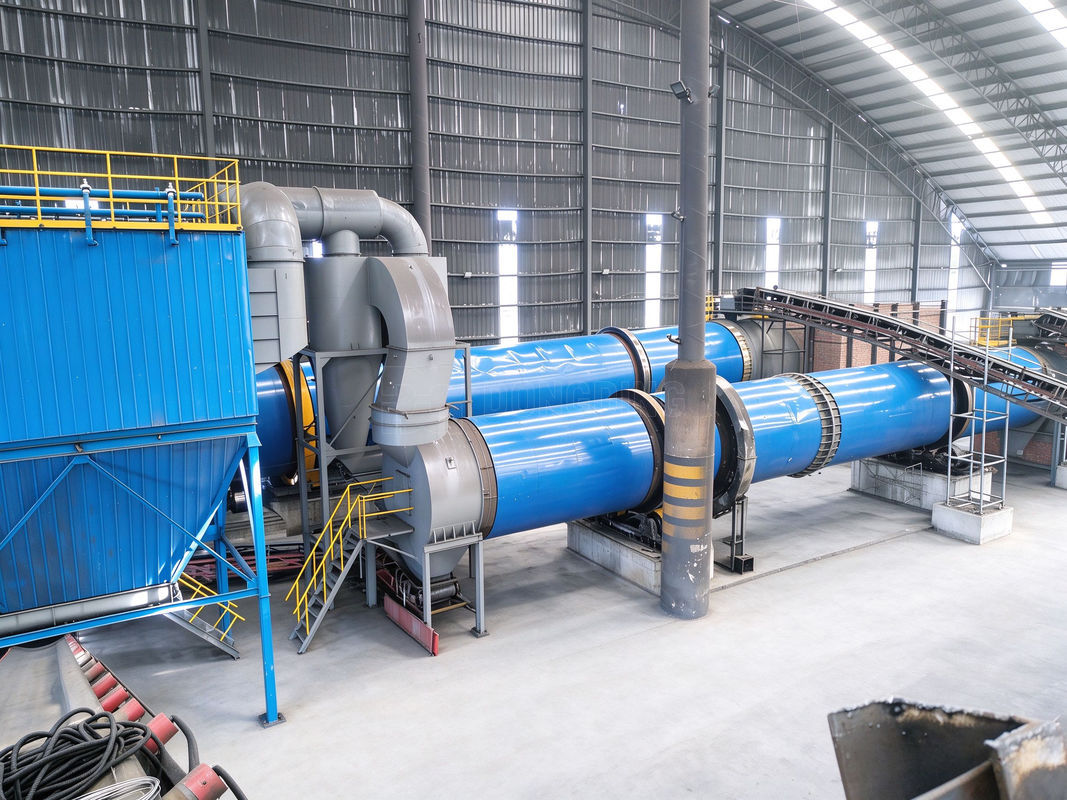

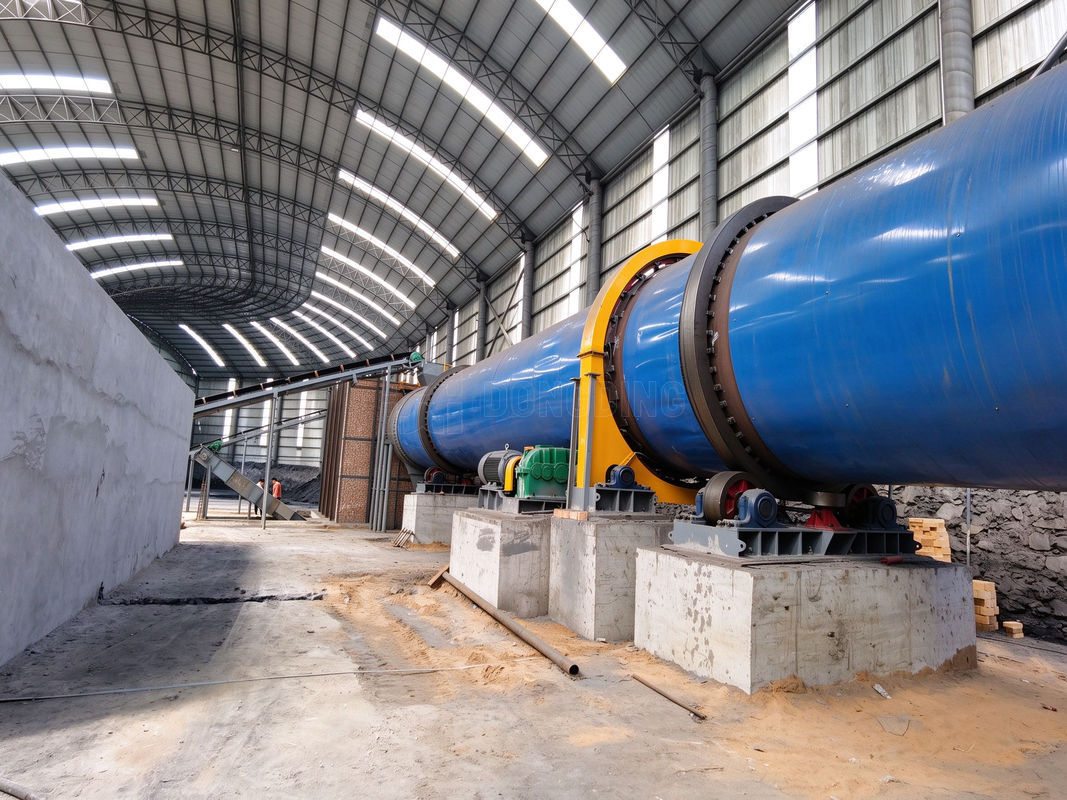

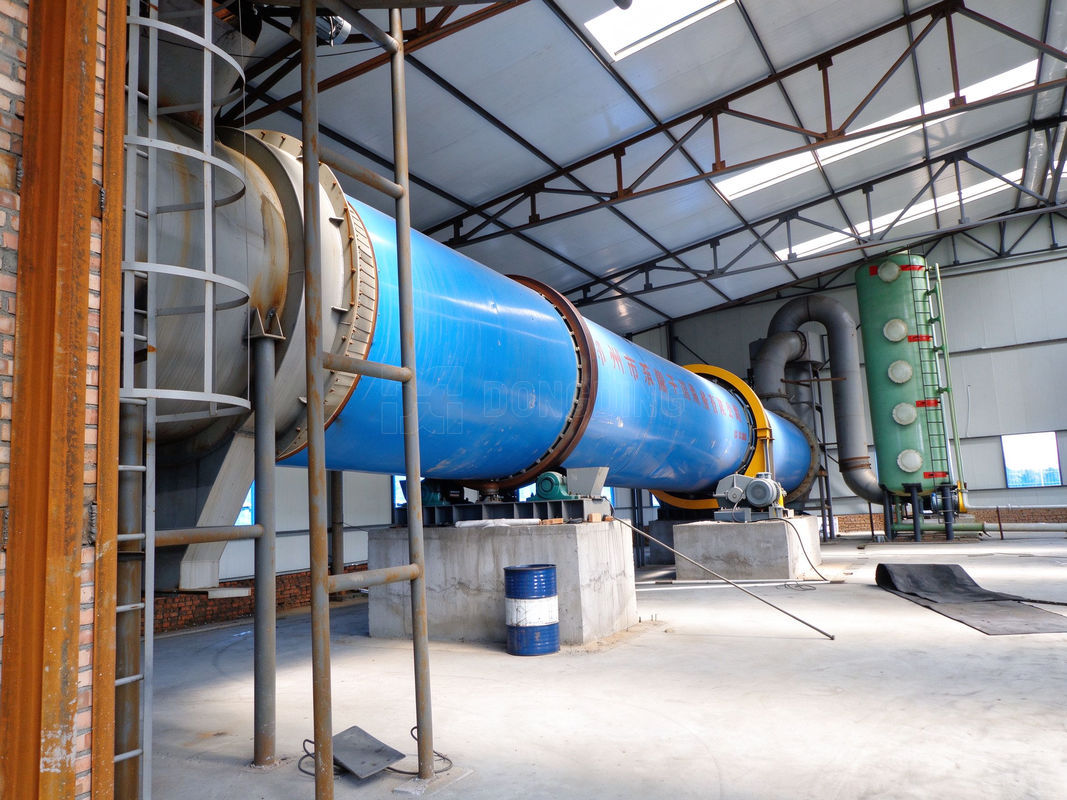

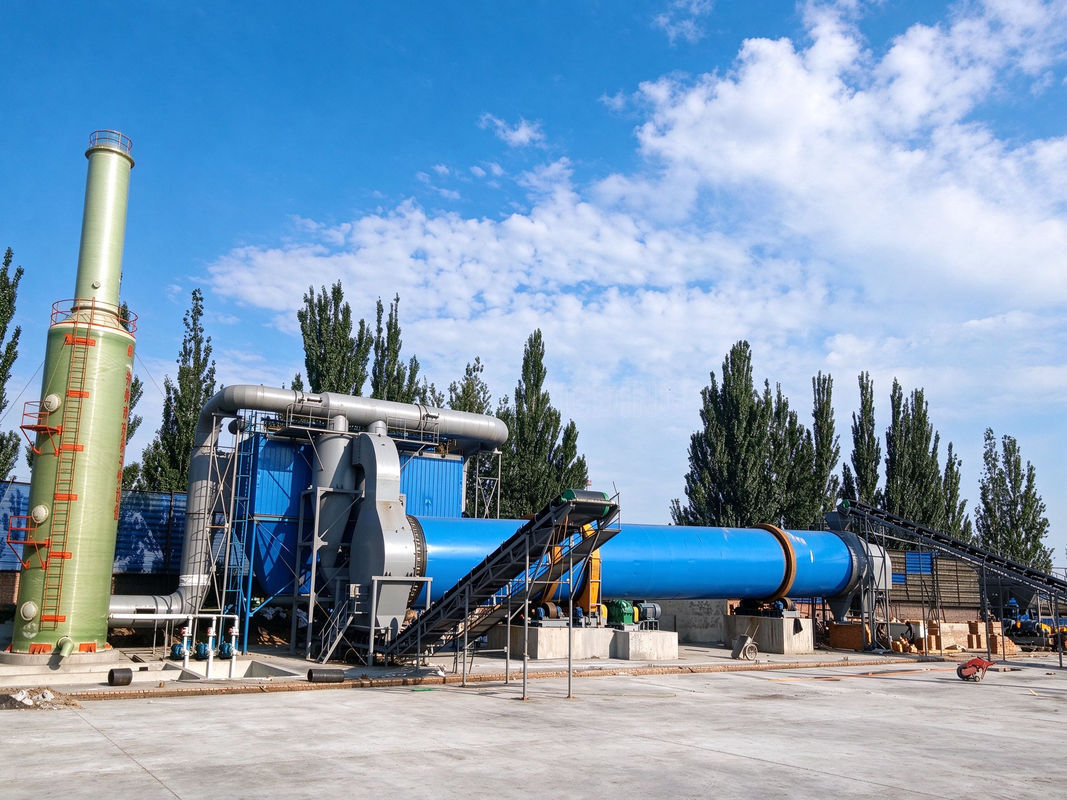

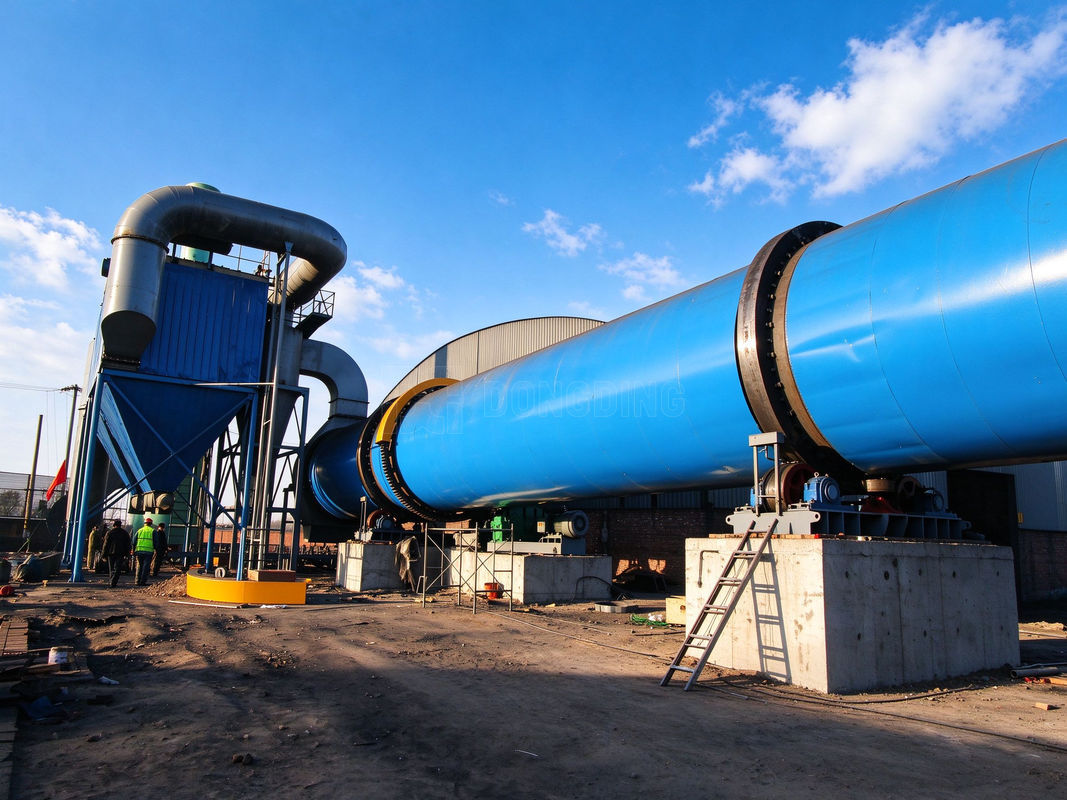

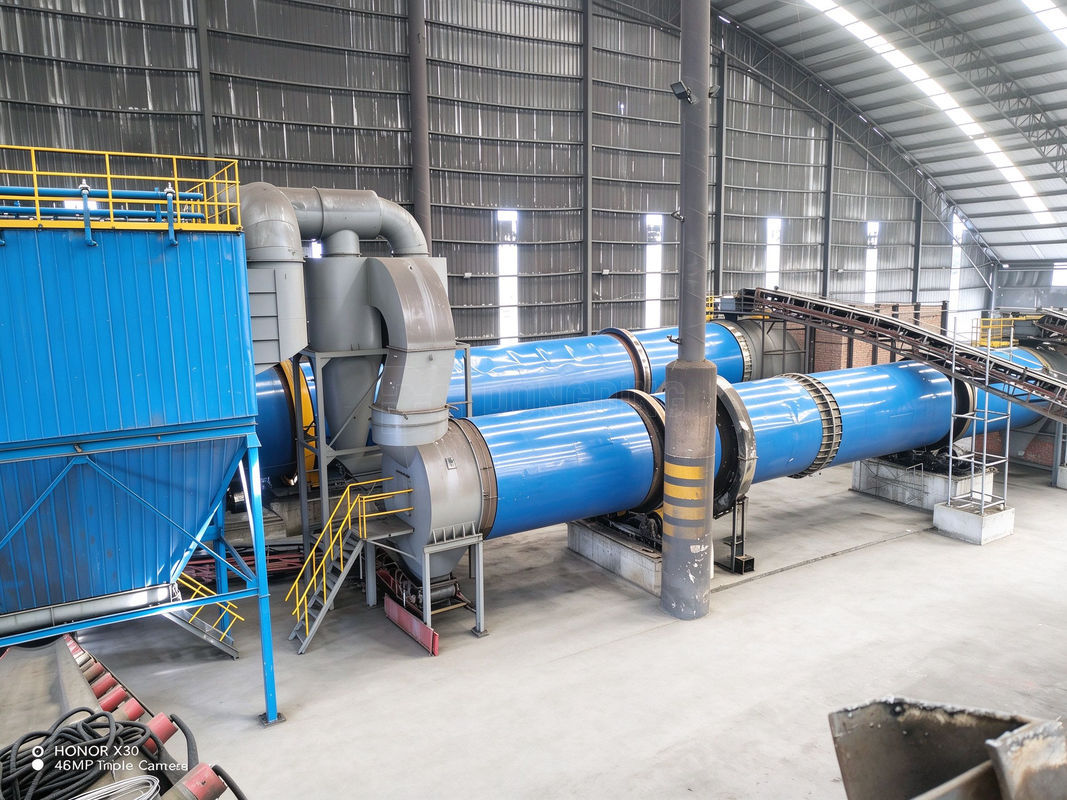

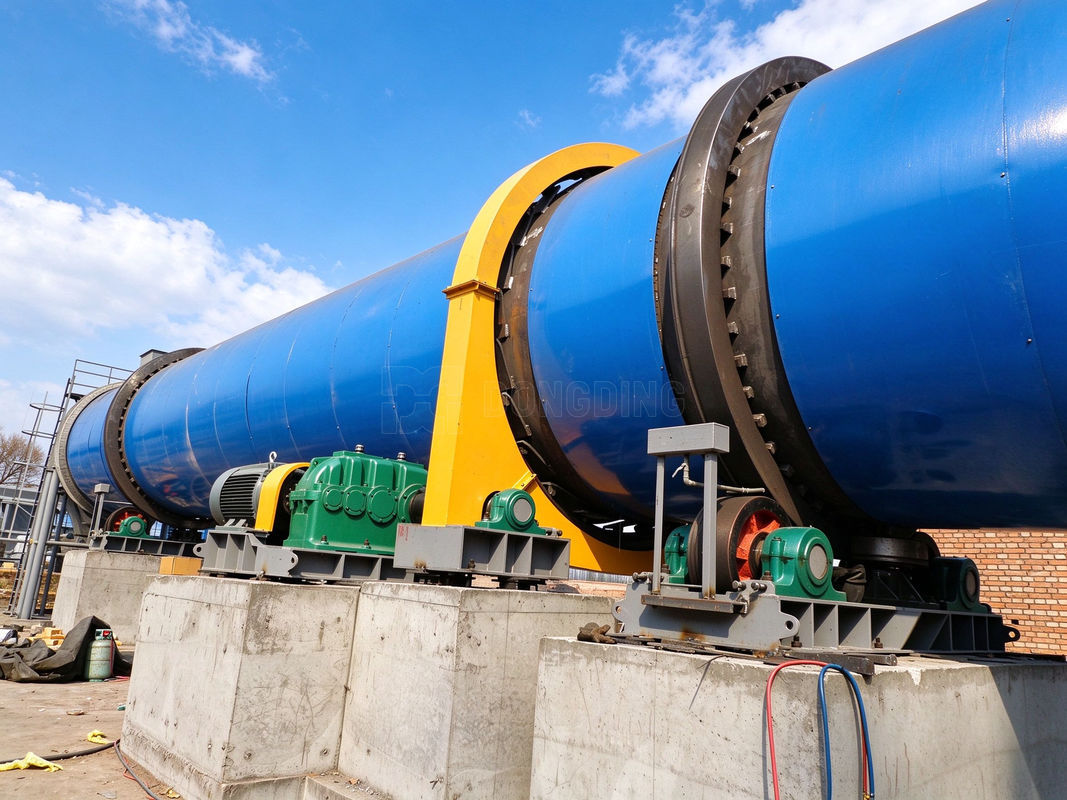

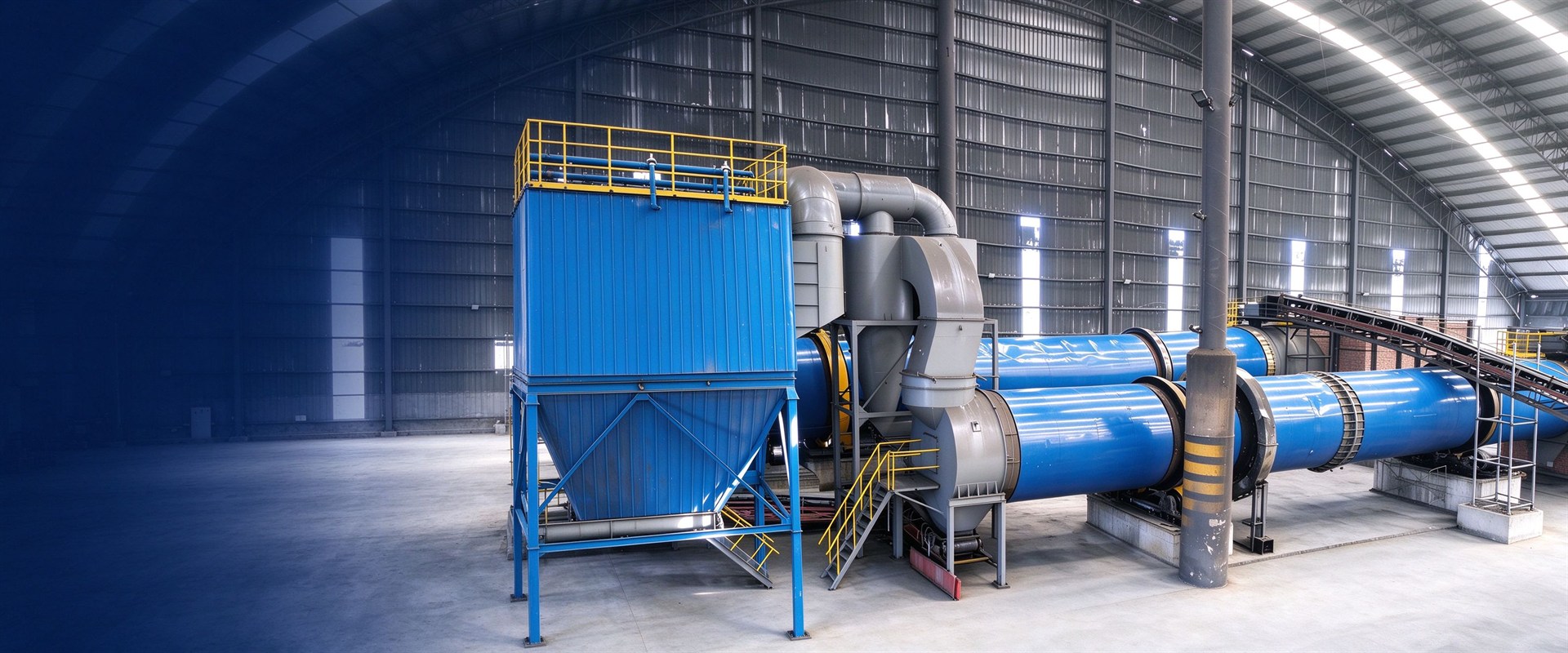

Show of Fluorite Powder Rotary Dryer
Product Photos
