Introduction of Sludge Rotary Dryer
Dongding Sludge Rotary Drying System suits various high-viscosity sludge. It processes sludge at ~85% initial moisture down to dry powder below 10% moisture. Weight drops by about 60% and volume reduces 4–5 times after drying, lowering transport costs and environmental risks.
We customize retention time, drum size and airflow (co-current/counter-current) based on sludge properties. Internal lifters, cleaning and crushing structures prevent wall sticking. The drum can be carbon steel or stainless steel.
This system is suitable for municipal, sewage, petrochemical, papermaking, printing & dyeing, tanning, electroplating, bio-fermentation sludge, plus coal sludge and coal slurry. Dried output can be used as fertilizer or biofuel and more
Advantages of Sludge Rotary Dryer
01
Custom Internal Structure
Custom-engineered internal structure designed according to the features of the raw material.
02
Efficient Heat Transfer
Specially designed lifting flights maximize heat transfer between the material and the hot gas stream.
03
High-Temperature Resistance
High-temperature-resistant design allows high-temperature hot air to dry materials quickly.
04
Automated Control
Computer automatic control enables remote operation, with drying temperature and time configured to suit your needs.
05
Self-Aligning Support
A self-aligning tugboat structure keeps the tug and rolling ring well matched, greatly reducing wear and power consumption.
06
Multiple Heat Sources
A specially designed block wheel greatly reduces horizontal thrust; boiler exhaust gas can be reused as a low-cost heat source, along with biomass pellets, electricity, fossil fuel and coal.

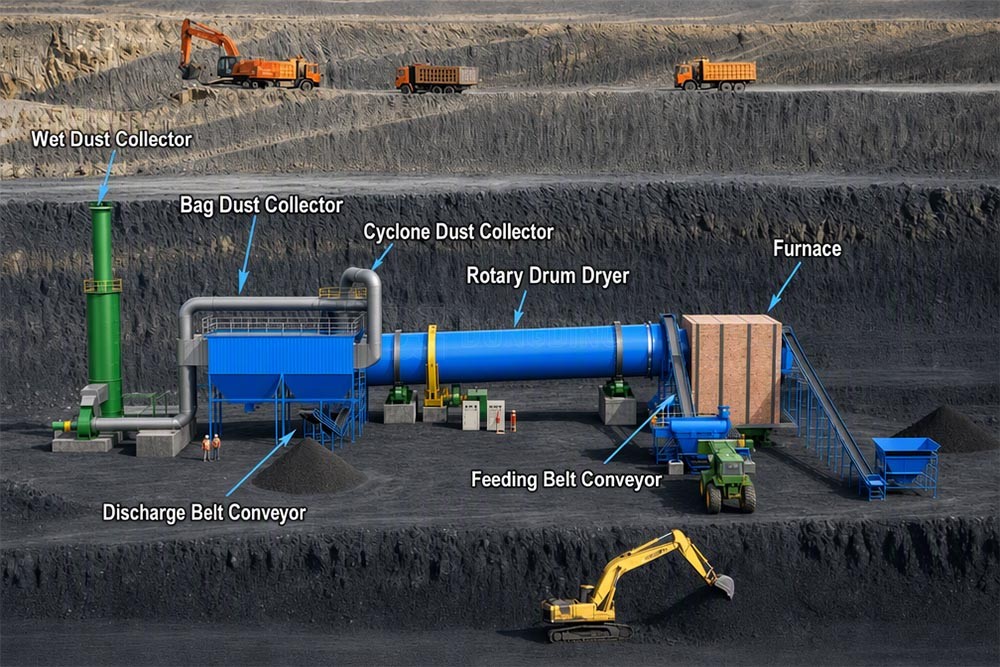

Working Principle of Sludge Rotary Dryer
The whole sludge rotary drying system consists of the dehydrator machine (if needed), feeder, sludge rotary drum dryer, discharging machine, induced draft fan, cyclone dust collector and distribution cabinet, etc.
First, sludge with high water content undergoes dewatering in a dewatering machine, then transported to the rotary drum dryer by the belt conveyor,where it will fully contact with the hot air. with the running of drum dryer, material with hot air moves to the end of dryer body.
After drying, most of the dry material will be discharged through the belt conveyor, the left material will go into the cyclone dust collector, where the dust will be collected, then discharged through the conveyor.
Specifications of Sludge Rotary Dryer
| Specification | Capacity (TPD) | Initial Moisture (%) | Final Moisture (%) | Total Power (kw) | Floor Area (m2) |
| DDMG1918 | 300±10 | 25±5 | ≤12 | 109 | 7m*25m |
| DDMG2218 | 500±30 | 25±5 | ≤12 | 128 | 8m*30m |
| DDMG2520 | 700±30 | 25±5 | ≤12 | 240 | 8m*30m |
| DDMG2822 | 1000±30 | 25±5 | ≤12 | 400 | 8m*40m |
| DDMG3024 | 1200±30 | 25±5 | ≤12 | 480 | 12m*50m |
| DDMG3428 | 1500±30 | 25±5 | ≤12 | 600 | 12m*60m |
| DDMG3830 | 1800±30 | 25±5 | ≤12 | 800 | 16m*70m |
| DDMG4032 | 2000±30 | 25±5 | ≤12 | 1000 | 18m*70m |
| DDMG4238 | 2500±30 | 25±5 | ≤12 | 1200 | 20m*80m |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

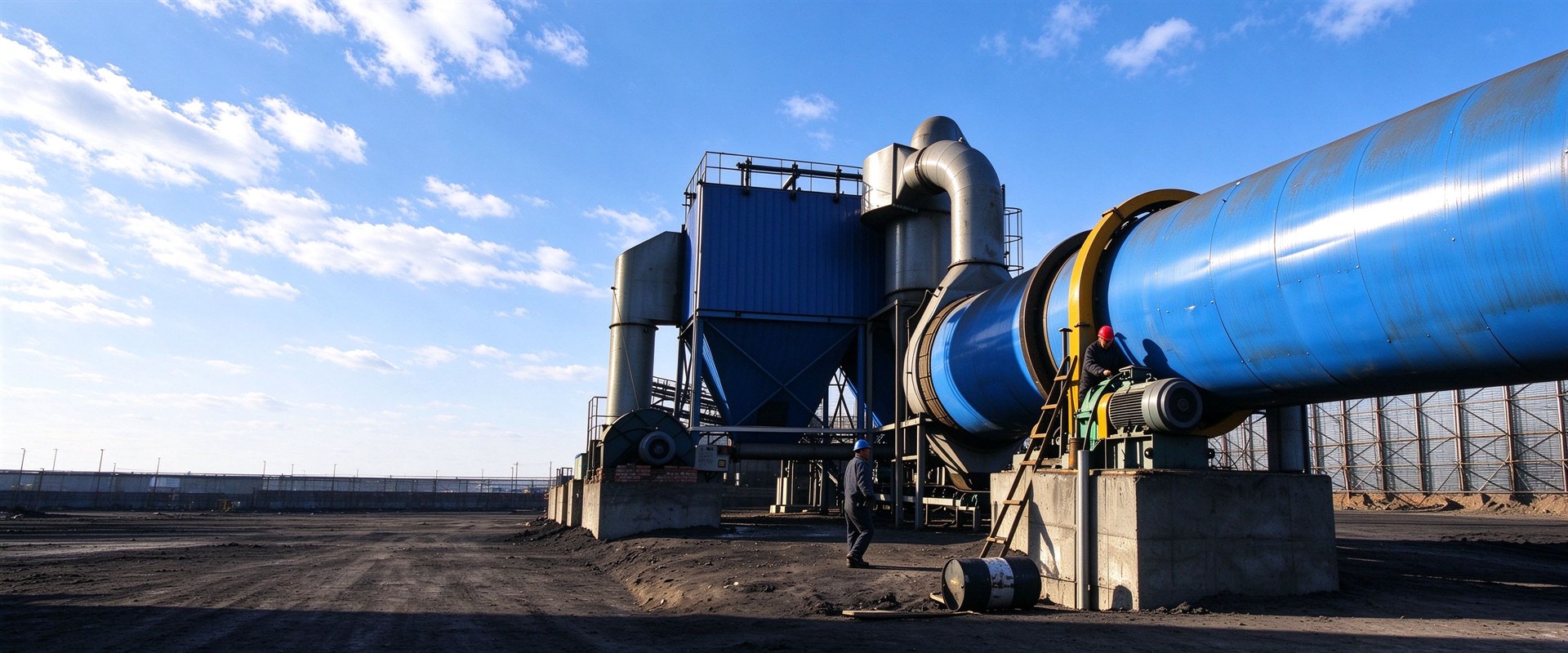

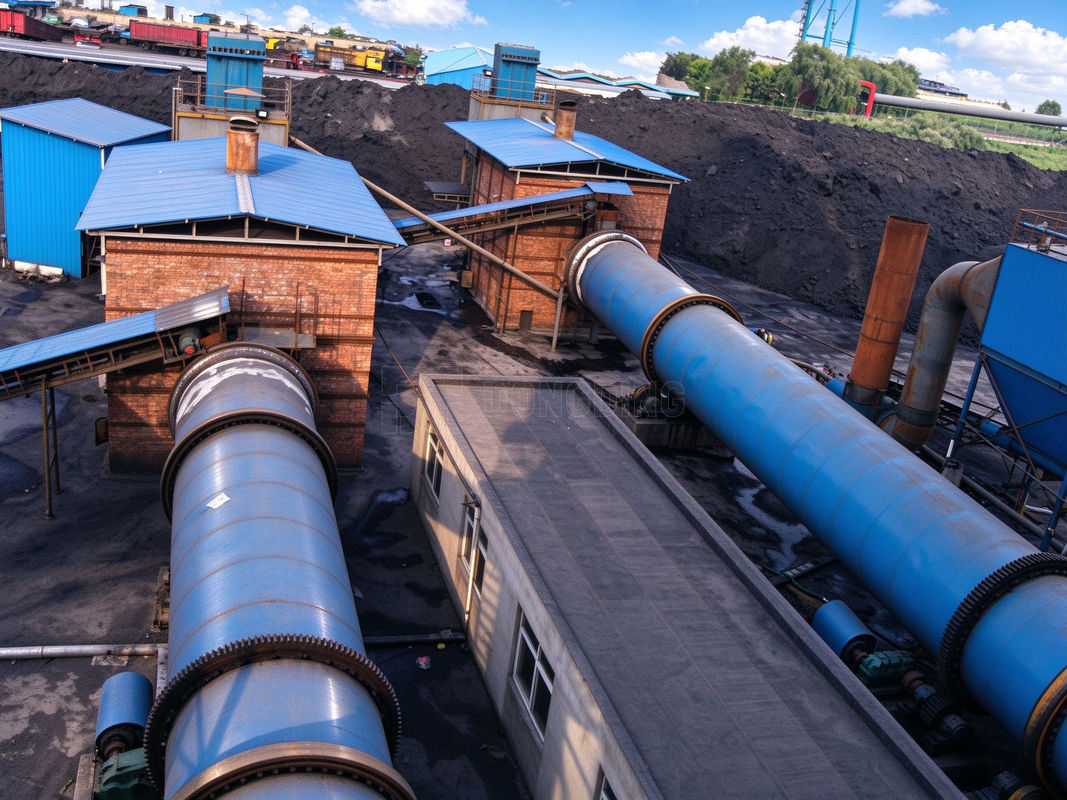

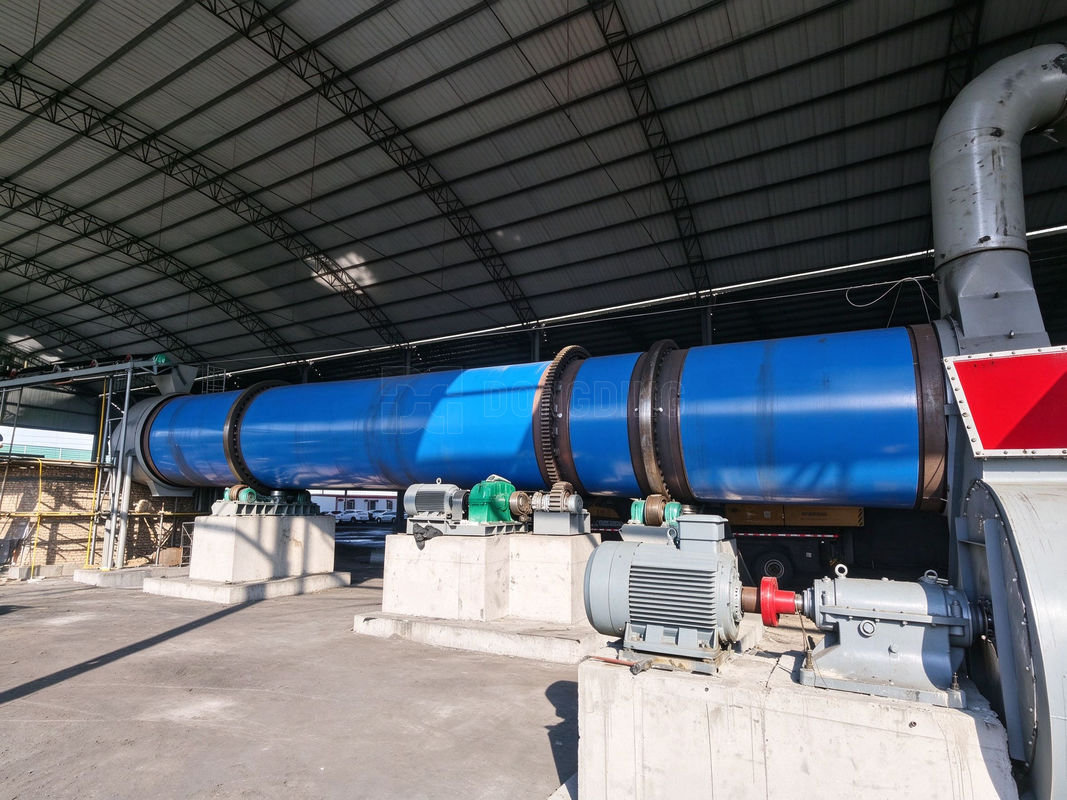

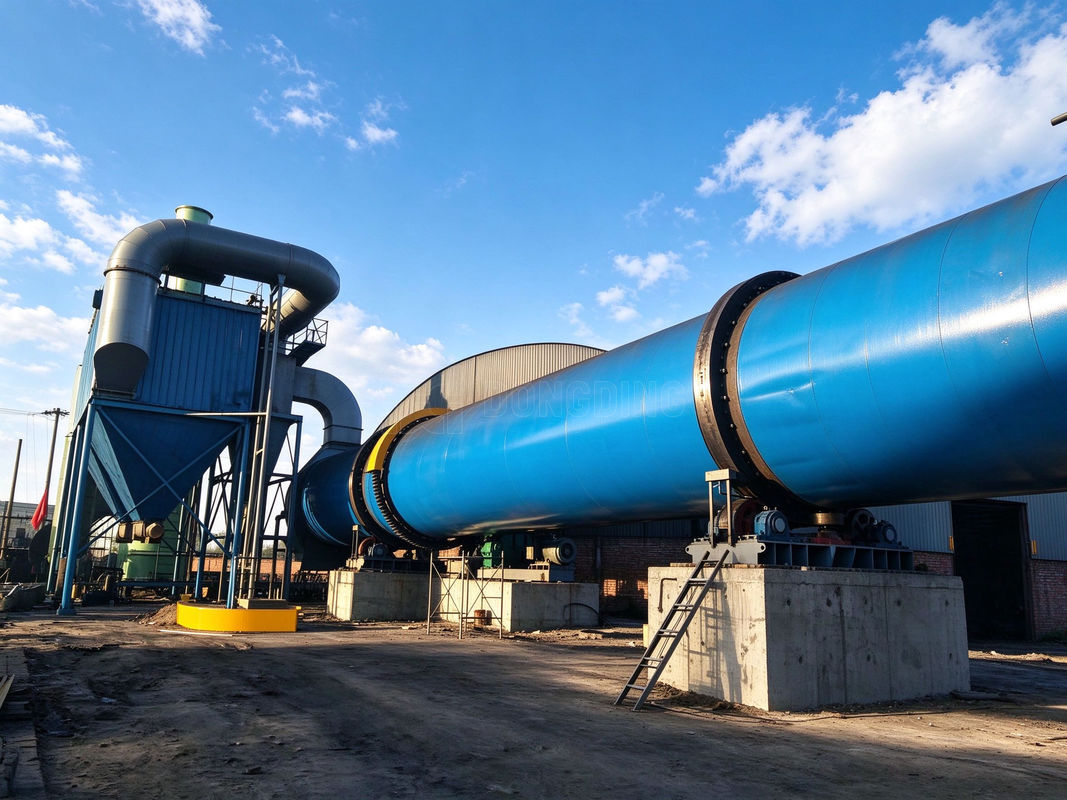

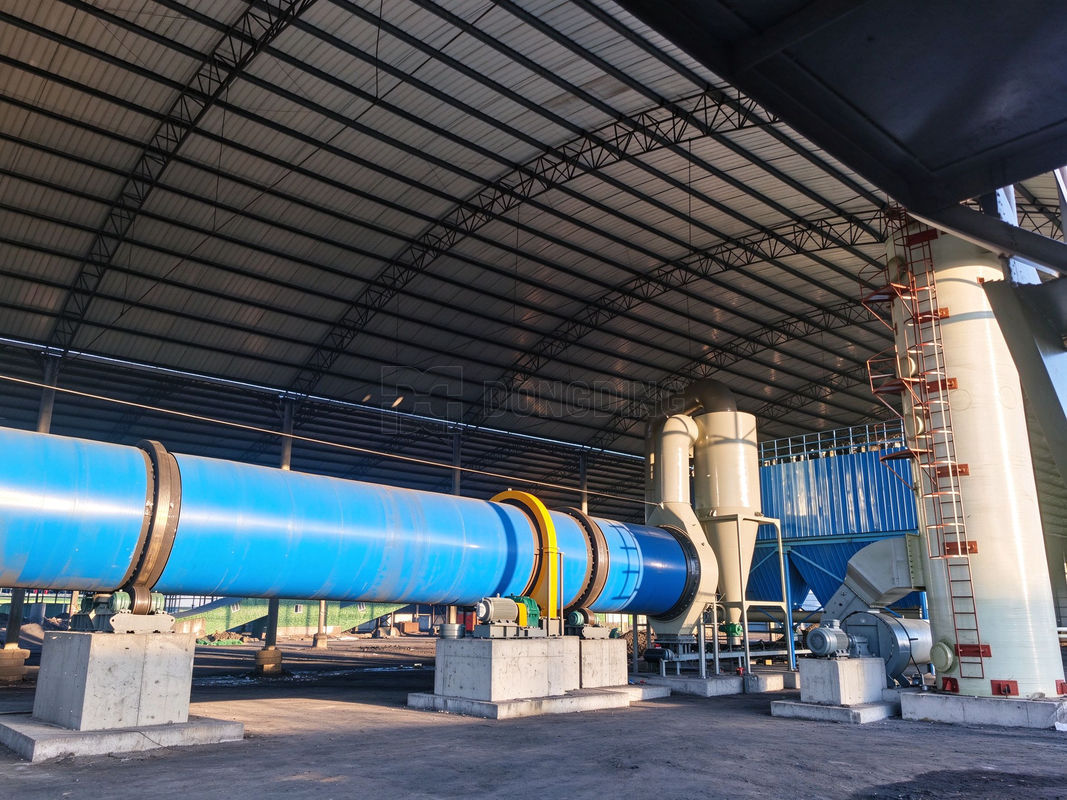

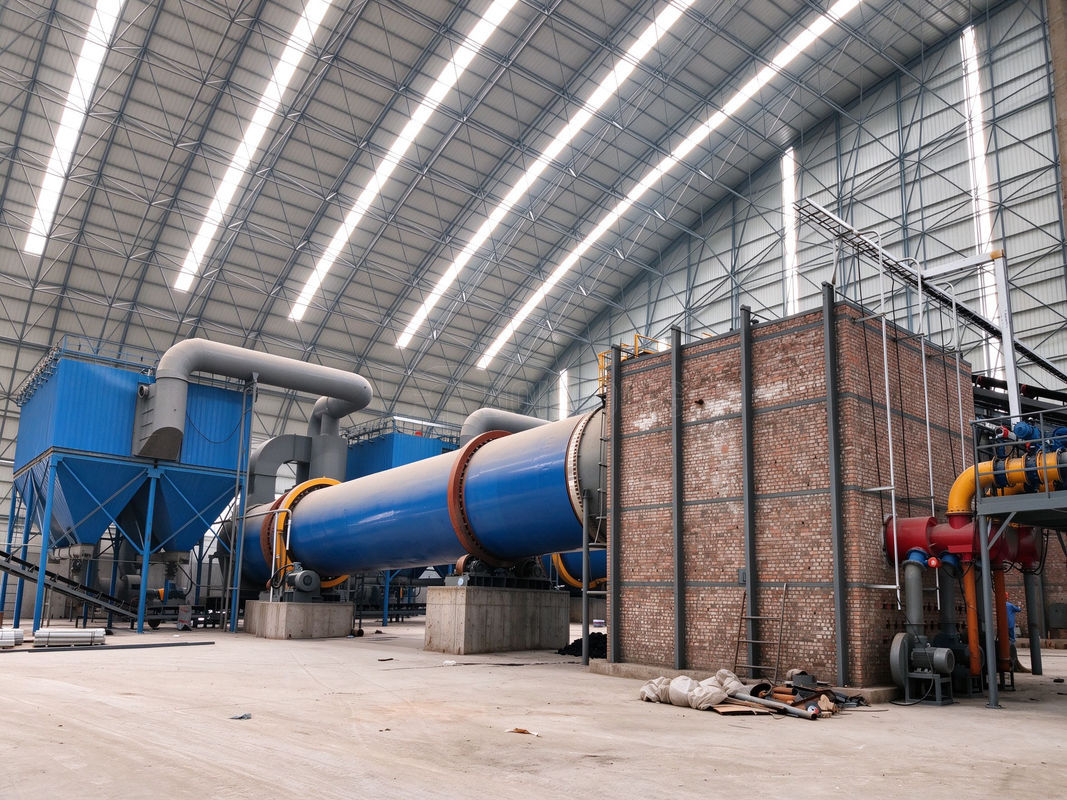

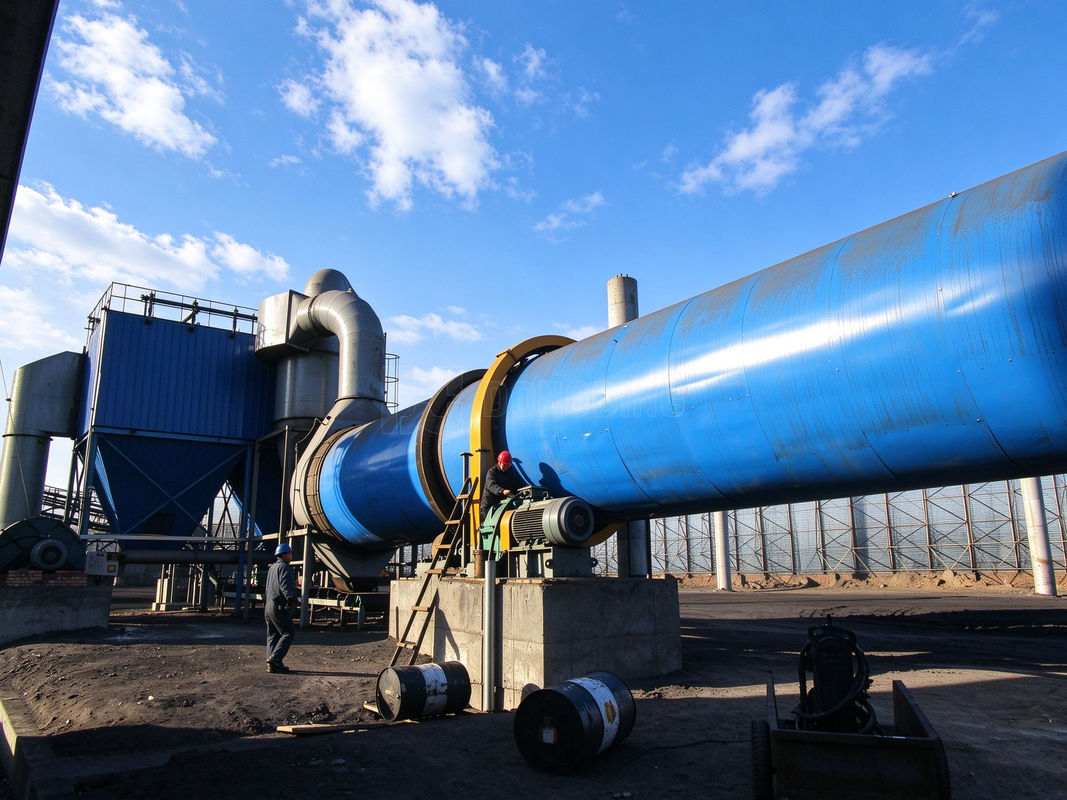

Show of Sludge Rotary Dryer
Product Photos
