All Dongding dryers come with a 12-month warranty covering parts and workmanship from the date of commissioning. Lifetime technical support and spare parts supply are provided.

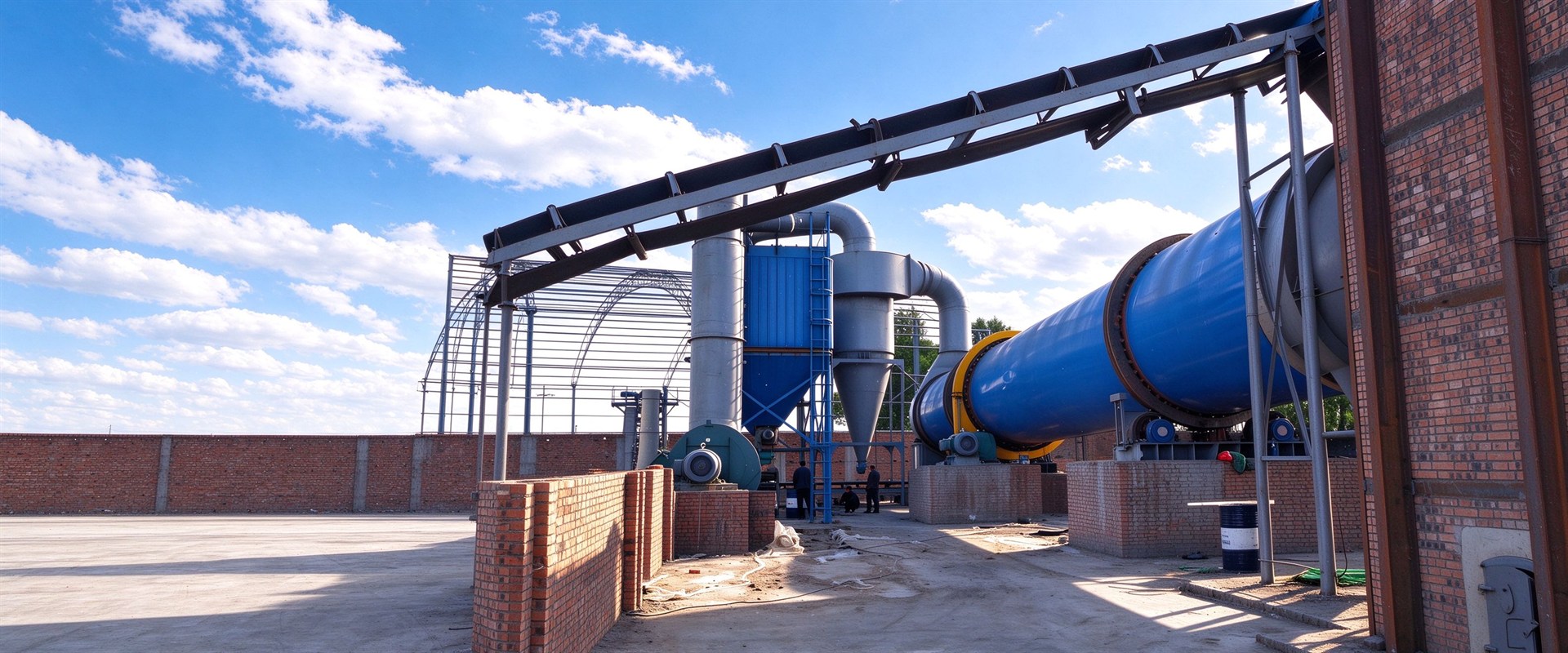

Introduction of Kaolin Dryer
The mined kaolin or clay because of longtime deep buried in the ground, containing a certain degree of internal moisture. They rely on a drying step to reduce shipping costs, improve handling characteristics, prepare the kaolin for downstream processing, and ensure clay materials meet their specific performance standards.The kaolin dryer is specially designed by our company to dry the wet kaolin or clay from the moisture about 25% to 8%. It is widely used in building materials, metallurgy, chemical, and cement industries,etc. This system is mainly suitable for materials with high water content, fine granularity and large viscosity.

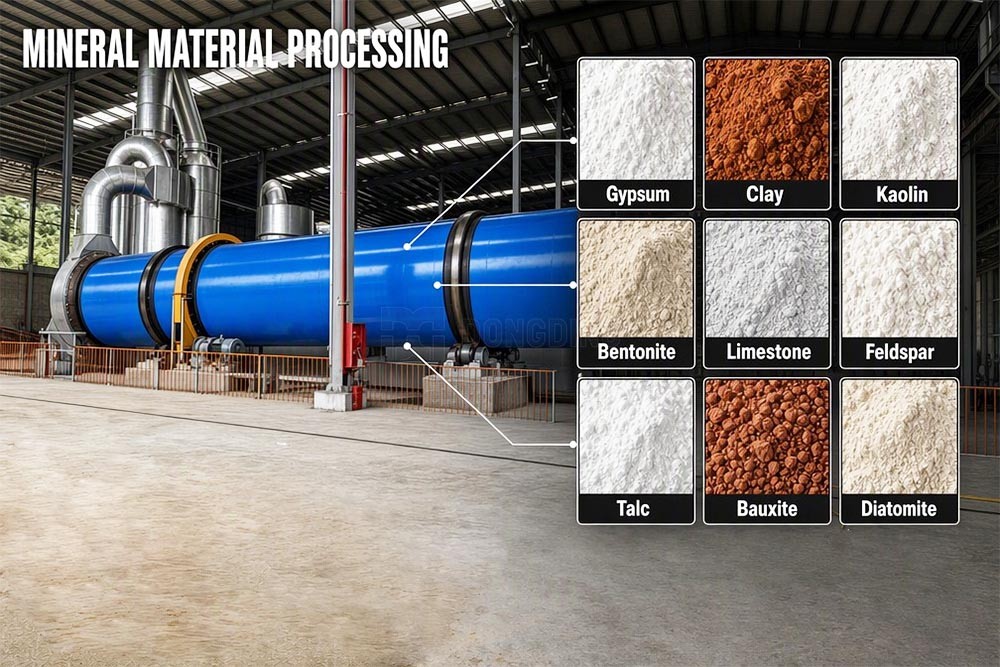

Kaolin Dryer Applicable Raw Material
Kaolin (white clay, china clay)
Clay
Bentonite clay
Ball clay
Fire clay
Fuller's earth (Input moisture: 40-50%, final Moisture: 10%)
Advantages of Kaolin Dryer
01
Large Capacity, Low Cost
Large processing capacity with low fuel consumption and low drying cost.
02
High-Temperature Resistance
High-temperature-resistant design allows high-temperature hot air to dry materials quickly.
03
Automated Control
Computer automatic control enables remote operation, with drying temperature and time configured to suit the kaolin or clay.
04
Self-Aligning Support
A self-aligning tugboat structure keeps the tug and rolling ring well matched, greatly reducing wear and power consumption.
05
Multiple Heat Sources
Coal, biomass pellets, natural gas, diesel, electricity and other heat sources are available.
06
Low Investment & Fast ROI
Low equipment investment and operating cost with quick return on investment.

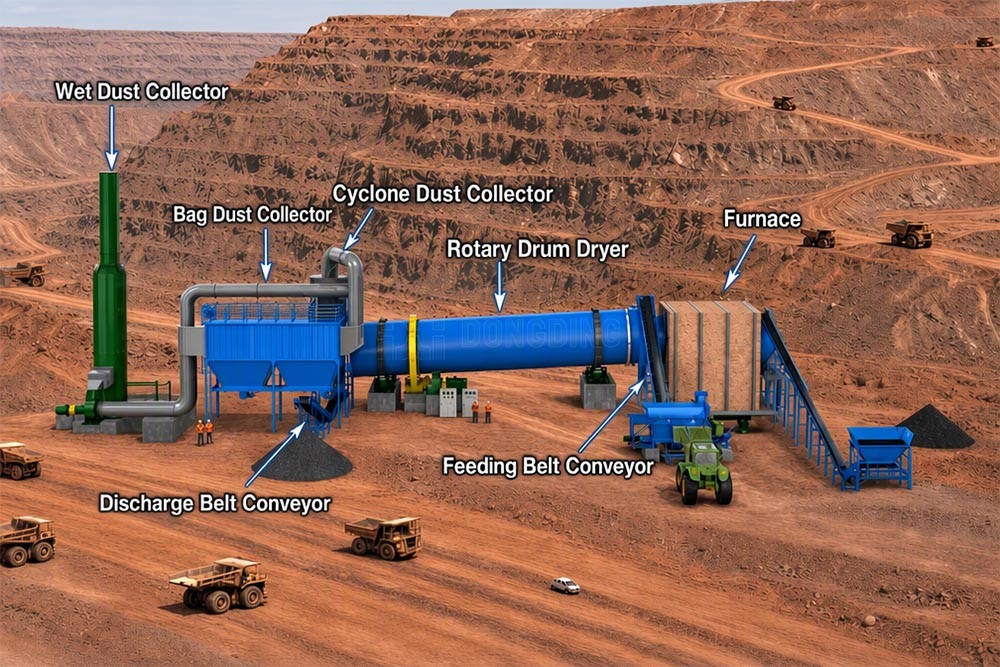

Working Principle of Kaolin Dryer
Firstly, wet material is crushed by the crushing machine, then transported to the rotary drum dryer by the belt conveyor. Because of the inclination of drum dryer, material with hot air moves to the end of dryer body, during which process wet material gets fully contact with the hot air. After drying, most of the dry material is discharged through the belt conveyor. The left materials mixed with dust continue go into the cyclone dust collector and the bag dust collector in sequence, where the dust will be collected. Lastly, with the function of induced draft fan, the left material will discharged through the conveyor.
Specifications of Kaolin Dryer
| Model | Capacity(TPH) | Length (m) | Diameter (m) | Temperature（℃） | Motor Power（kw） |
| DD1208 | 1.9-2.4 | 8 | 1.2 | 600-750 | 7.5 |
| DD1210 | 2.4-3.0 | 10 | 1.2 | 600-750 | 7.5 |
| DD1612 | 4.5-5.7 | 12 | 1.6 | 600-750 | 15 |
| DD1812 | 6.5-8.1 | 12 | 1.8 | 600-750 | 18.5 |
| DD2212 | 9.7-12.2 | 12 | 2.2 | 600-750 | 22 |
| DD2418 | 17.4-21.7 | 18 | 2.4 | 600-750 | 37 |
| DD2420 | 19.3-24.1 | 20 | 2.4 | 600-750 | 45 |
| DD2624 | 27.2-34.0 | 24 | 2.6 | 600-750 | 55 |
| DD3020 | 30.1-37.7 | 20 | 3.0 | 600-750 | 75 |
| DD3225 | 42.9-53.6 | 25 | 3.2 | 600-750 | 90 |
| DD3628 | 60.8-76.0 | 28 | 3.6 | 600-750 | 160 |
Notice:
1. Any change of technical data shall not be advised additionally.
2. Parameters above are for reference; final configuration is tailored to your material and capacity.

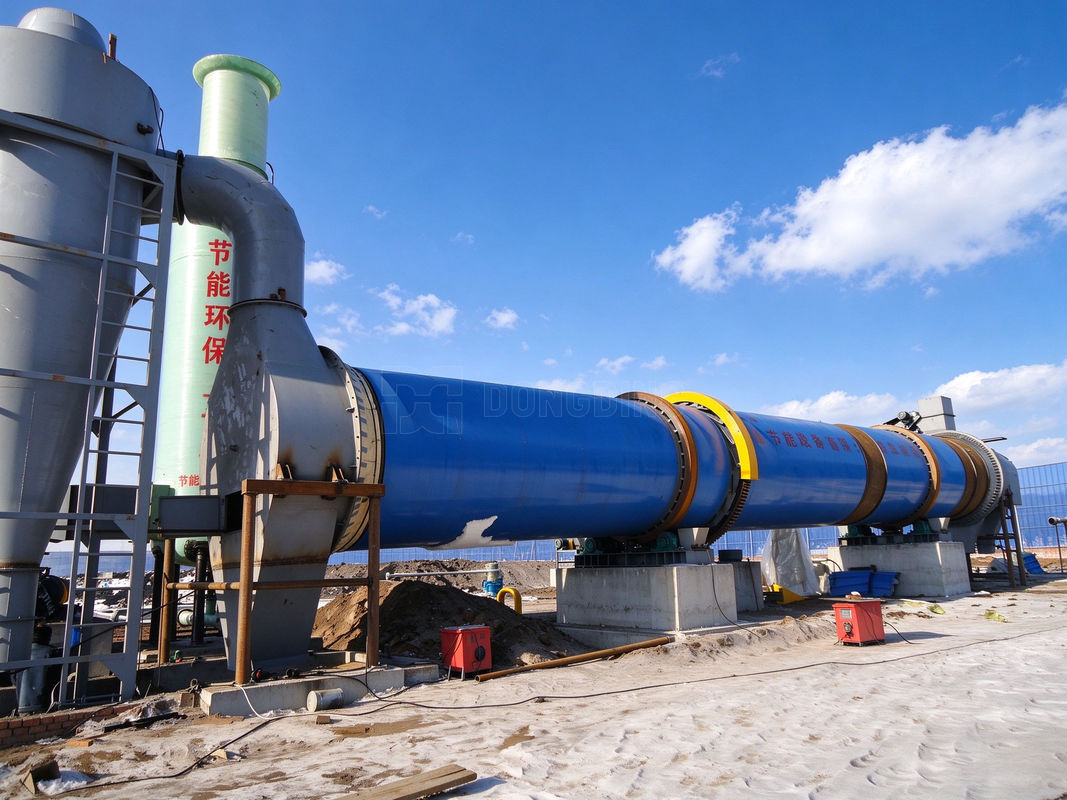

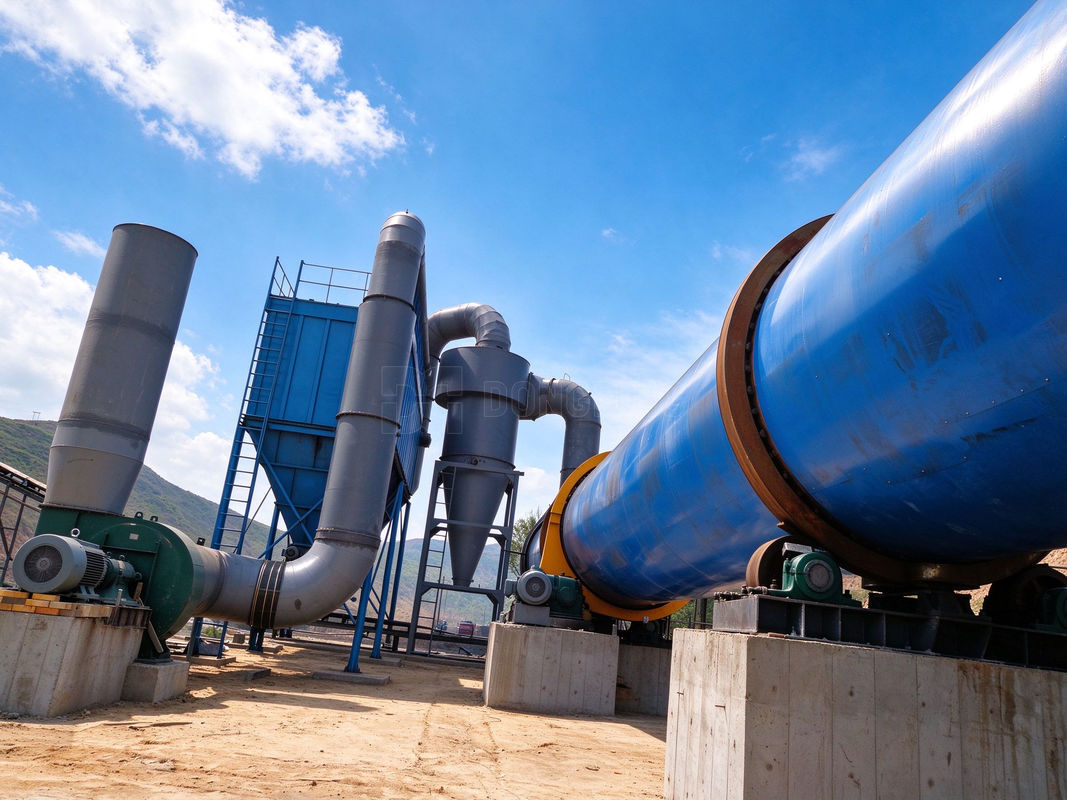

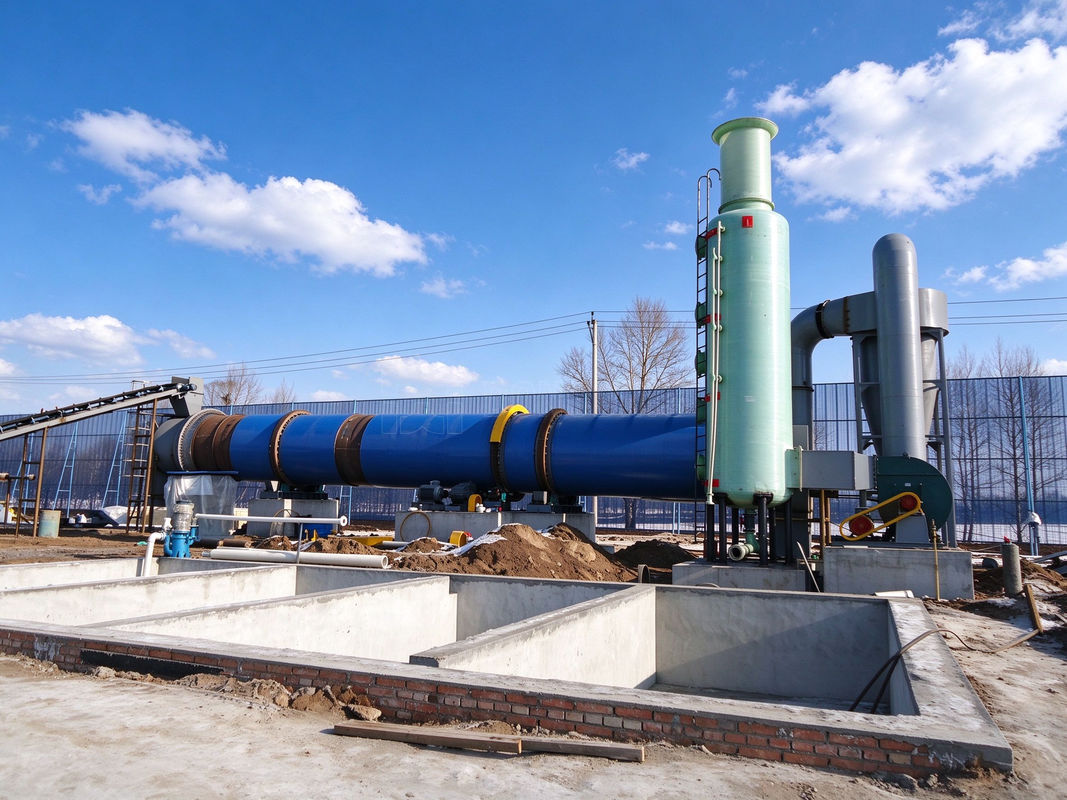

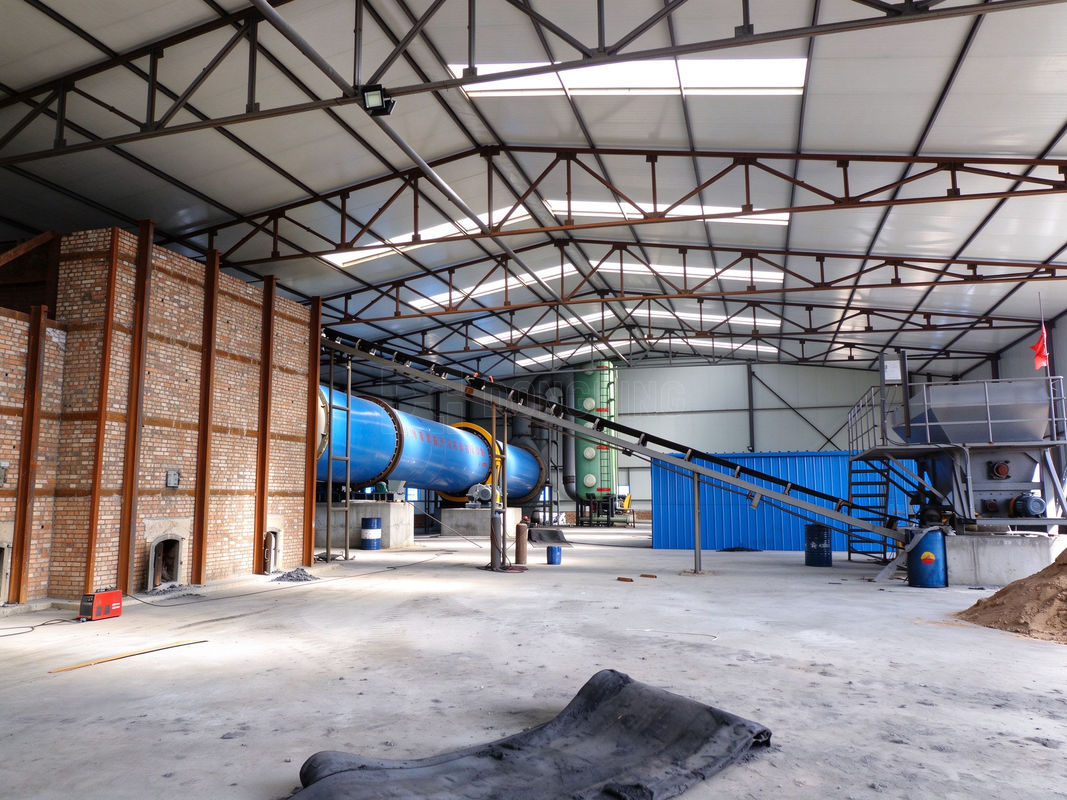

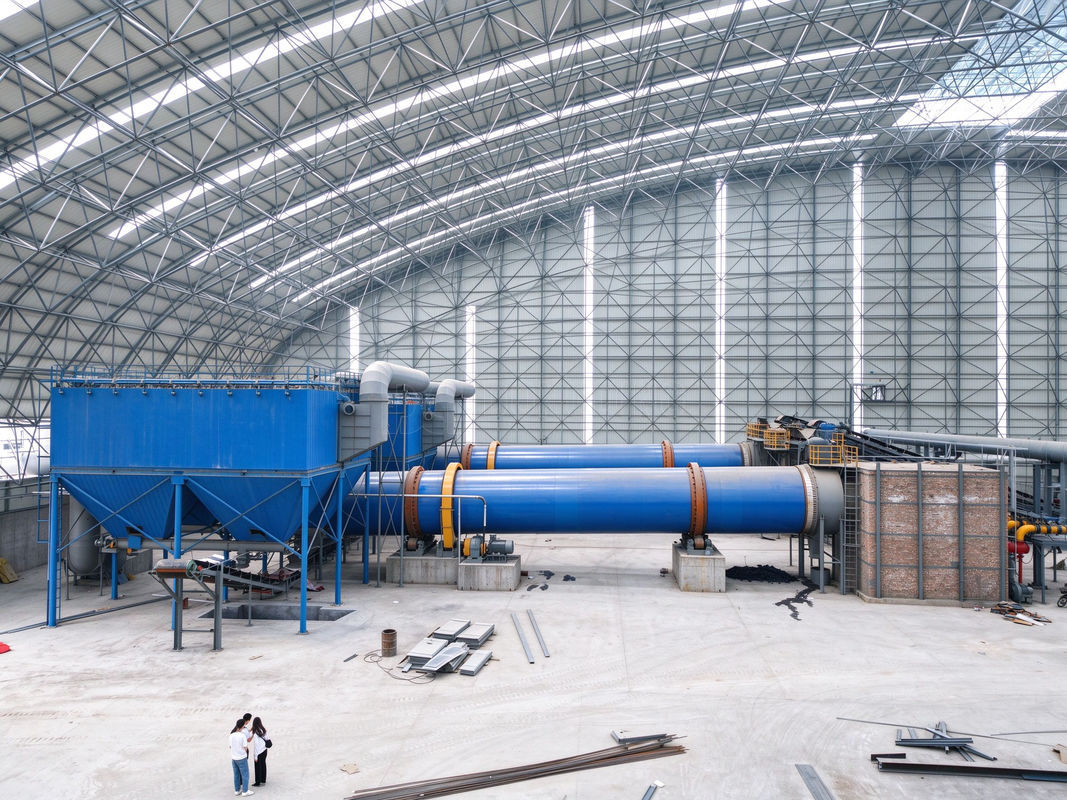

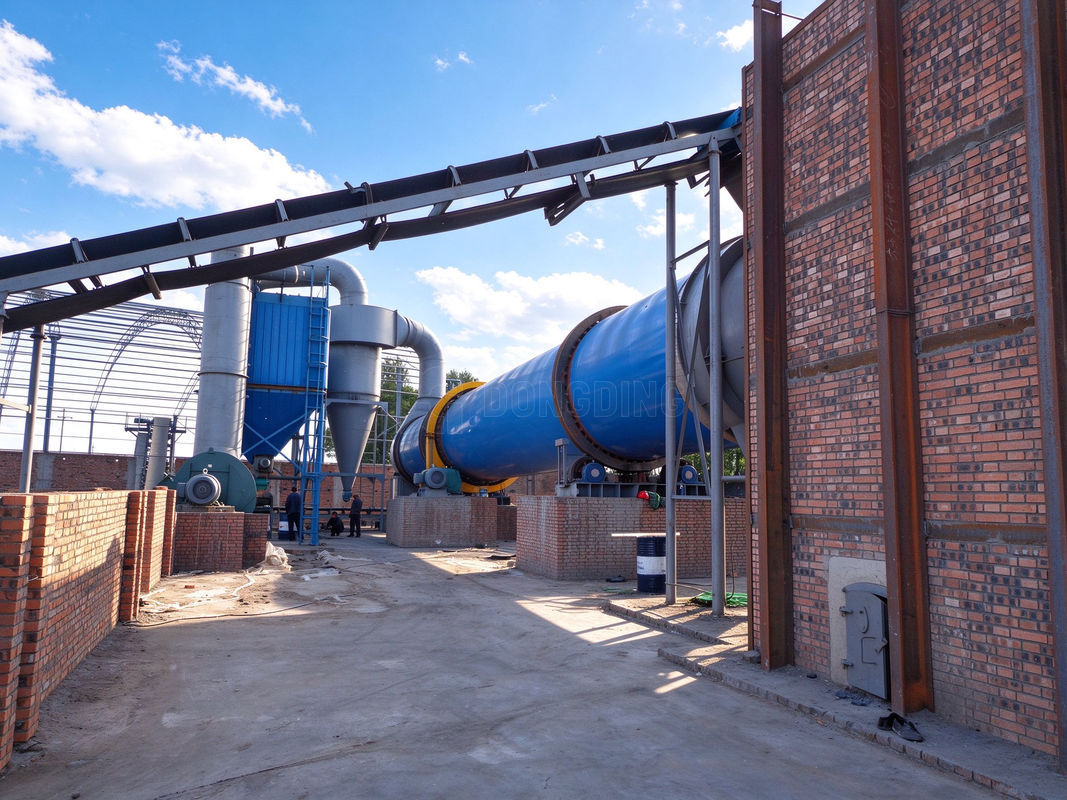

Show of Kaolin Dryer
Product Photos
Why Dongding
Learn More About Dongding® Service
Related Cases
1,100 TPD Fly Ash Drying Project
Input moistureFrom 28% to 2%
Output moisture≤ 5%
LocationMongolia
500 TPD Coal Slime Dryer Project
Input moistureFrom 35% to 10%
Output moisture≤ 10%
LocationInner Mongolia, China
300 TPD Sludge Drying Project
Input moistureFrom 80% to 15%
Output moisture≤ 15%
LocationVietnam
600 TPD Coal Slime Drying Line
Input moistureFrom 40% to 10%
Output moisture≤ 10%
LocationShanxi, China
300 TPD Bentonite Dryer Project
Input moistureFrom 25% to 8%
Output moisture≤ 8%
LocationIran
200 TPD Ore Powder Drying Project
Input moistureFrom 18% to 5%
Output moisture≤ 5%
LocationZambia
150 TPD Sludge Dewatering & Drying Project
Input moistureFrom 80% to 15
Output moisture≤ 15%
LocationJiangsu, China
1.05 TPH Yeast Drum Drying Line
Input moistureFrom 85% to 12%
Output moisture≤ 12%
LocationThailand
- 600+
- Projects Worldwide
With drying projects running across the globe, Dongding has earned long-term trust through reliable quality and responsive after-sales service.
Frequently Asked Questions
Common questions about our rotary dryers — pricing, customization, installation and after-sales.
A:
Please share your raw material, initial and target moisture content, required capacity (t/h), available fuel or heat source, and your target market. With these details our engineers can recommend the right model and send an accurate quotation.
A:
As a manufacturer, we accept orders starting from a single machine. We can also deliver complete drying production lines with auxiliary equipment such as hot air furnaces and dust collectors. Contact us for tailored pricing.
A:
Standard models are usually delivered within 25-40 days after the deposit. Customized machines or larger production lines may take longer depending on the configuration. The exact schedule is confirmed in your contract.
A:
Yes. Every dryer is engineered around your material, capacity, moisture and site layout. Heat source, material of construction, dust collection and automation level can all be customized to your process.
A:
Yes. We provide installation guidance, commissioning, operator training and lifetime after-sales support. Our engineers can also travel to your site, and all equipment comes with a warranty.
